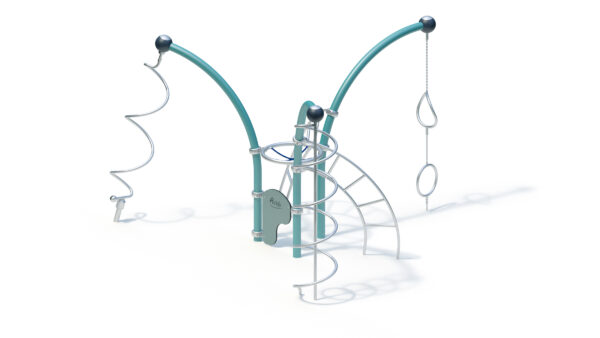

Actio 301

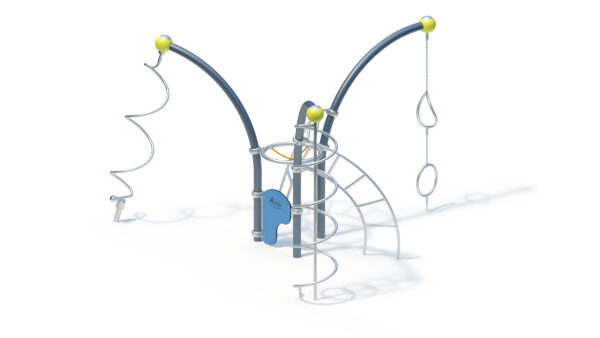

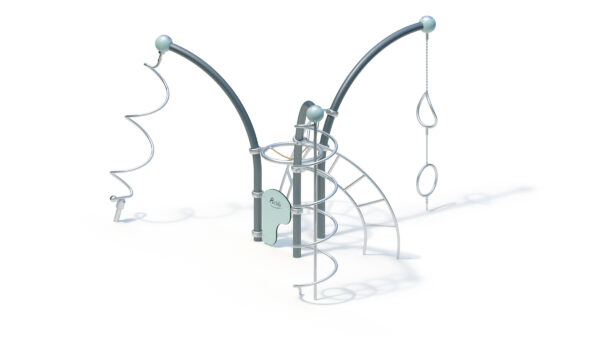

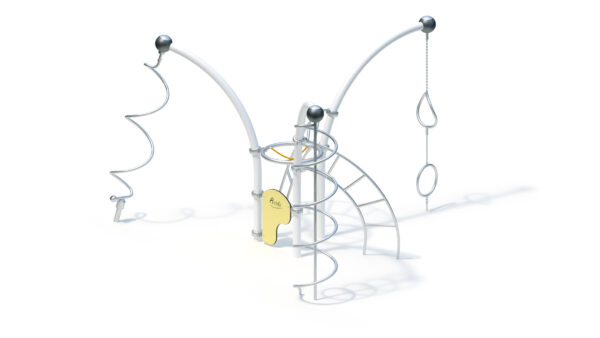

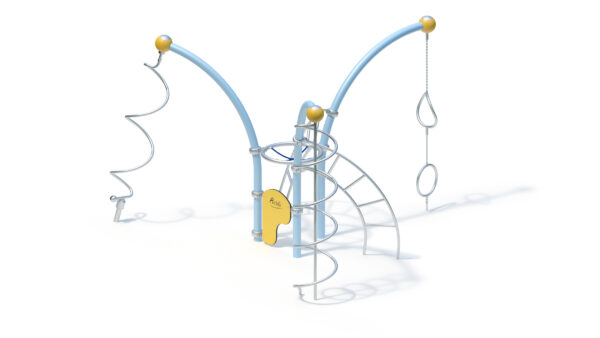

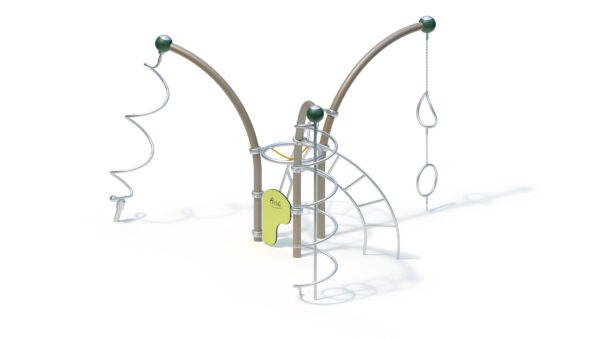

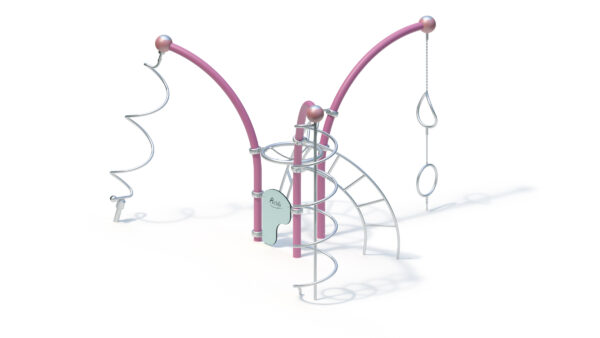

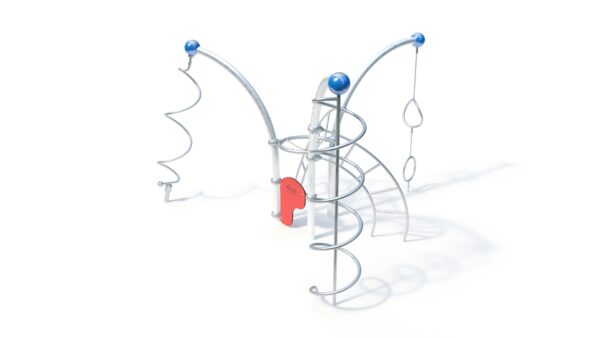

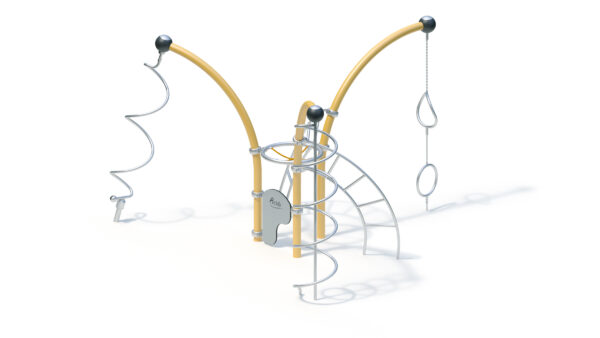

Select variant:
The most important information
| Age group ? | 5+ |
|---|---|
| Areas of use ? | Public playgrounds |
| Number of users ? | 13 people |
| Activities ? | Physical activity, Climbing |
Technical data
| Minimum space length ? | 7,89 m |
|---|---|
| Minimum space width ? | 7,86 m |
| Minimum space height ? | 2.93 m |
| Equipment length ? | 4,46 m |
| Equipment width ? | 4,42 m |
| Equipment height ? | 2.93 m |
| Free-fall height ? | 2,86 m |
| Platform heights | - |
| Total weight ? | 398.00 kg |
| Heaviest single part ? | 67.00 kg |
Assembly & Foundations
| Assembly time ? | 5,0 h |
|---|---|
| Number of fitters ? | 3 people |
| Lifting equipment required | - |
| Foundations | Quantity: 3 (1.3m x 0.5m x 0.5m) Quantity: 2 (0.9m x 0.4m x 0.5m) Quantity: 3 (0.6m x 0.6m x 0.5m) |
Product Downloads
Product description
Technical data

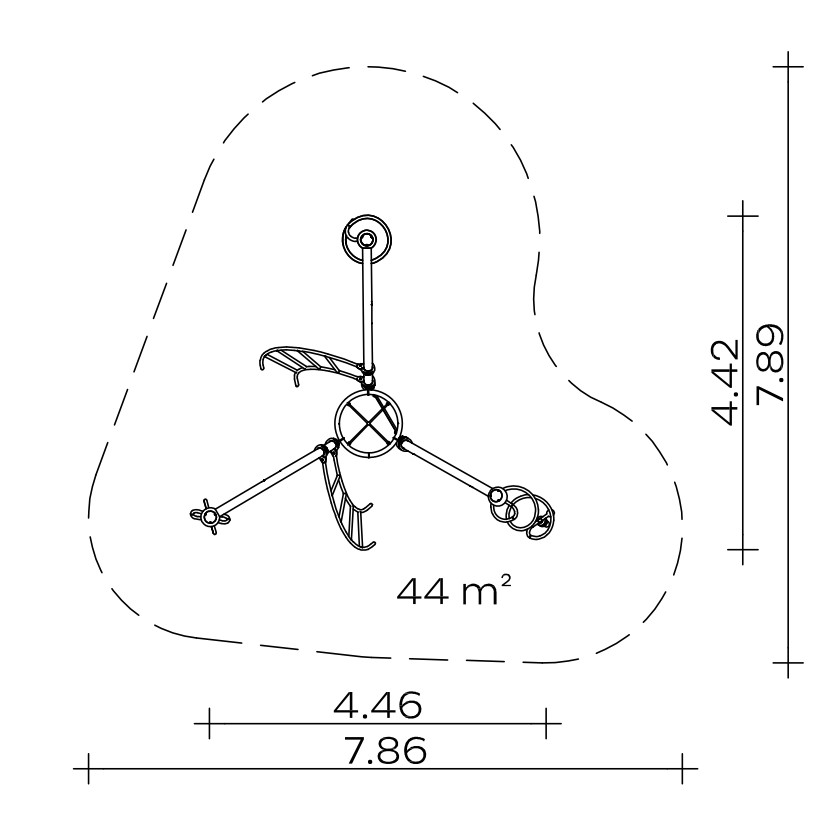

Equipment room: 4.46 x 4.42 x 2.93 m
Minimum space: 7.86 x 7.89 x 2.93 m
Impact area: 44 m²
Total height: 2.93 m
Free fall height: 2.86 m
Weight: 67 kg heaviest single item
398 kg in total
Arc 90 degrees
– Steel pipe bend, hot-dip galvanised, Ø 114 x 3.6 mm (optional powder-coated in RAL colour of choice)
– Aluminium sphere, Ø 250 mm, powder-coated in a RAL colour of your choice (see items below)
Arc 75°
– Steel pipe bend, hot-dip galvanised, Ø 114 x 3.6 mm (optional powder-coated in RAL colour of choice)
– Aluminium sphere, Ø 250 mm, powder-coated in a RAL colour of your choice (see items below)
Big Tornado
- Welded, spiral-shaped construction made of stainless steel tube with knurled base
- Roller bearings at the bottom and top: protected against interference and dirt
- Anchoring via a hot-dip galvanised steel foundation anchor to be set in concrete
– top: screw-on connection to Actio construction element
- below: Anchoring via a hot-dip galvanised steel foundation anchor to be set in concrete
Big Hurricane
- Welded, twisted stainless steel tube construction
- Rotating base made from profiled stainless steel sheet
- Roller bearings at the bottom and top: protected against interference and dirt
– top: screw-on connection to Actio construction element
- below: Anchoring via a hot-dip galvanised steel foundation anchor to be set in concrete
Monkey Rings
– Stainless steel ring combination Ø 38 mm – 1x flat/1x spatially twisted
– Suspension and connection with 7 mm stainless steel chains and swivel
– independently rotatable
– top: screw-on connection to Actio construction element
– below: deflection limited by chain with anchored and screwed ground connection
Meeting Point
- Welded construction made of stainless steel tube Ø 60.3 mm with Hercules rope cross made of Ø16 mm Hercules rope with 6-strand steel core
- Connection to Actio construction element using aluminium clamps (optionally powder-coated in RAL colour of choice)
Actio shield
- Actio sign made of highly weather-resistant HPL laminate, including „Actio“ marking, 20 mm, colour red/similar to RAL 2002.
Connection via aluminium clamps (optionally powder-coated in RAL colour of choice)
Bow ladder
– welded construction made of stainless steel tube Ø 38 mm
– Arc-shaped ladder
– Top: Connection to Actio construction element using aluminium clamps (optionally powder-coated in a RAL colour of your choice).
– below: Fixation by site foundations
Number of components for optional powder coating
2 pipe bends 90°
1 pipe bend 75°
8 pcs. Aluminium clamp Ø 114 mm
Foundations (client-provided)
3 pcs. 1.30 x 0.50 x 0.50 m
2 pcs. 0.90 x 0.40 x 0.50 m
3 units 0.60 x 0.60 x 0.50 m
Concrete volume: approx. 1.90 m³
Assembly time
3 fitters 5 hours each.
(without foundation)
Suitable for
Children aged 6 and over,
public playgrounds etc.,
Physical activities
Item number: 027301000
