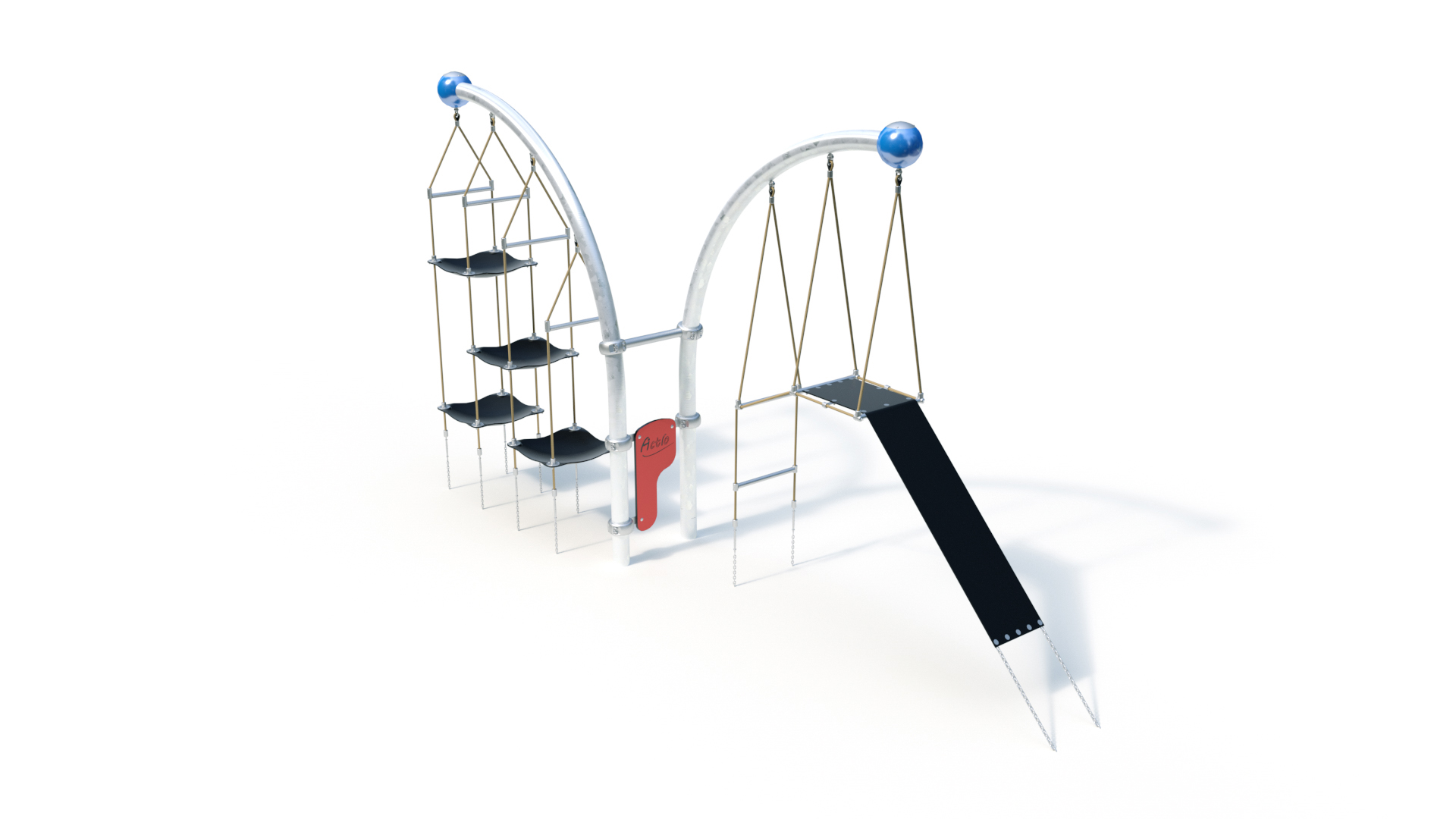

Actio 288

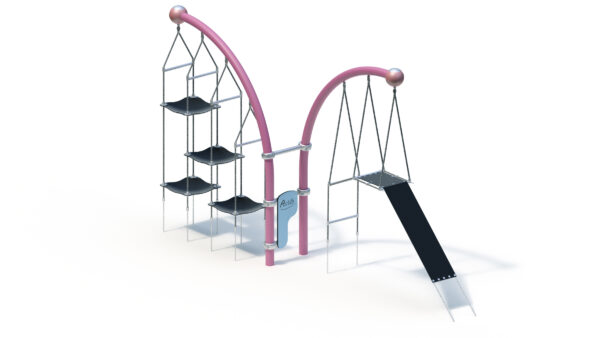

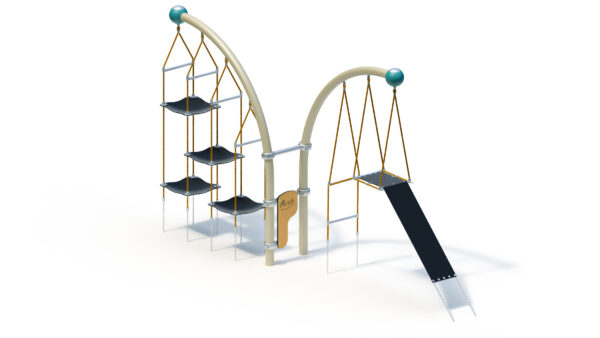

Select variant:
The most important information
| Age group ? | 5+ |
|---|---|
| Areas of application ? | Public playgrounds |
| Number of users ? | 14 persons |
| Activities ? | - |
Technical data
| Device length ? | 5,22 m |
|---|---|
| Device width ? | 1,19 m |
| Device height ? | 2.93 m |
| Free fall height ? | 2,86 m |
| Platform heights | - |
| Total weight ? | 220.00 kg |
| Heaviest single item ? | 67.00 kg |
| Minimum room length ? | 8,89 m |
| Minimum room width ? | 4,82 m |
| Minimum room height ? | 2.93 m |
Assembly & Foundations
| Assembly time ? | 3.0 hours |
|---|---|
| Number of fitters ? | 2 persons |
| Lifting gear required | - |
| Foundations | 070x050x050 |
Product Downloads
Product description
Technical data

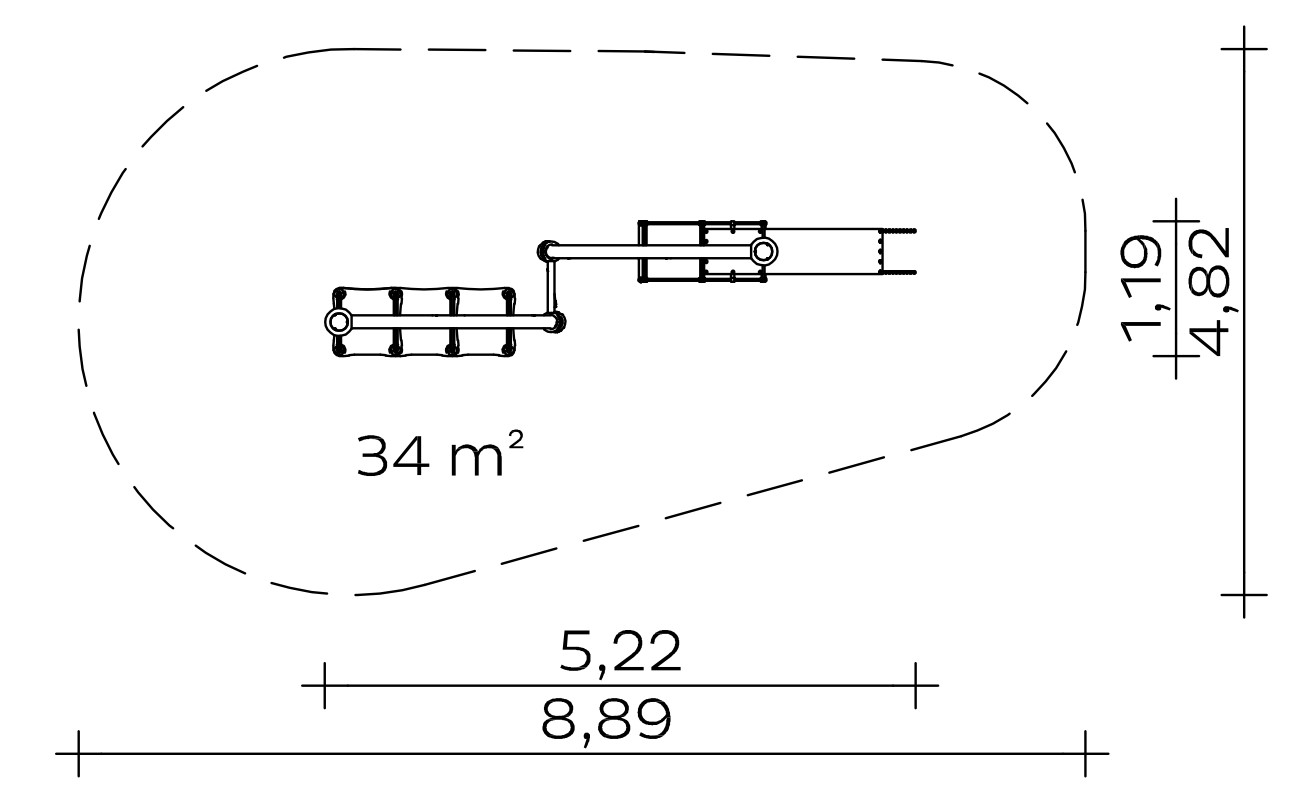

Equipment room: 1.19 x 5.22 x 2.93 m
Minimum space: 4.82 x 8.89 x 2.93 m
Impact area: 34 m²
Total height: 2.93 m
Free fall height: 2.86 m
Weight: 67 kg heaviest individual part
220 kg in total
Arc 90° Moving Hill
– Steel pipe bend, hot-dip galvanised, Ø 114 x 3.6 mm (optional powder-coated in RAL colour of choice)
– Aluminium sphere, Ø 250 mm, powder-coated in a RAL colour of your choice (see items below)
- Turned part, Ø 40 x 11.9 mm, with plain bearing bush IGUS (plastic)
Arc 90° Flying Carpet
– Steel pipe bend, hot-dip galvanised, Ø 114 x 3.6 mm (optional powder-coated in RAL colour of choice)
– Aluminium sphere, Ø 250 mm, powder-coated in a RAL colour of your choice (see items below)
- Turned part, Ø 40 x 11.9 mm, with plain bearing bush IGUS (plastic)
Moving Hill
- Polypropylene rope (Ø 16 mm), 6-strand, with galvanised steel core
- elastic mat element made of 8 mm thick, PAH-free and 4-fold textile-reinforced rubber
- Mounting bracket for rubber mat, stainless steel construction consisting of clamping tube (Ø 34 x 8.5 mm) welded to sheet metal (30 x 68 mm)
- Cross clamping tube, stainless steel construction consisting of tube (Ø 33.7 x 2 mm) welded to clamping tube (Ø 34 x 8.5 mm)
- Floor fastening, stainless steel chains (Ø 7 mm) welded to flat bars (390 x 35 x 3 mm) at the top end, screwed to foundation tube (40 x 40 x 2 mm) at the bottom.
- Connection to Arc 90° with shackle, Ø 10 mm
Flying Carpet
- Polypropylene rope (Ø 16 mm), 6-strand, with galvanised steel core
- elastic mat element made of 8 mm thick, PAH-free and 4-fold textile-reinforced rubber
- Cross clamping tube, welded stainless steel construction consisting of tube (Ø 33.7 x 2 mm) welded to clamping tube (Ø 34 x 8.5 mm)
- Floor fastening, stainless steel chains (Ø 7 mm) welded to a disc (Ø 90 x 3 mm) at the top end, screwed to a foundation tube (Ø 38 x 2 mm) at the bottom.
- Connection to Arc 90° with shackle, Ø 10 mm
Actio shield
- Actio sign made of a highly weather-resistant HPL laminate, including „Actio“ marking, 20 mm, colour red similar to RAL 2002.
Connection via aluminium clamps (optionally powder-coated in RAL colour of choice)
Foundations (client-provided)
1 piece 0.70 x 0.50 x 0.50 m
1 piece 1.40 x 0.70 x 0.50 m
1 piece 2.40 x 0.85 x 0.50 m
Concrete volume: 1.69 m³
Assembly time
2 fitters 3 hours each.
(without foundation)
Suitable for
Children aged 6 and over,
public playgrounds etc.,
Physical activities
Item number: 027288000
