Technical data

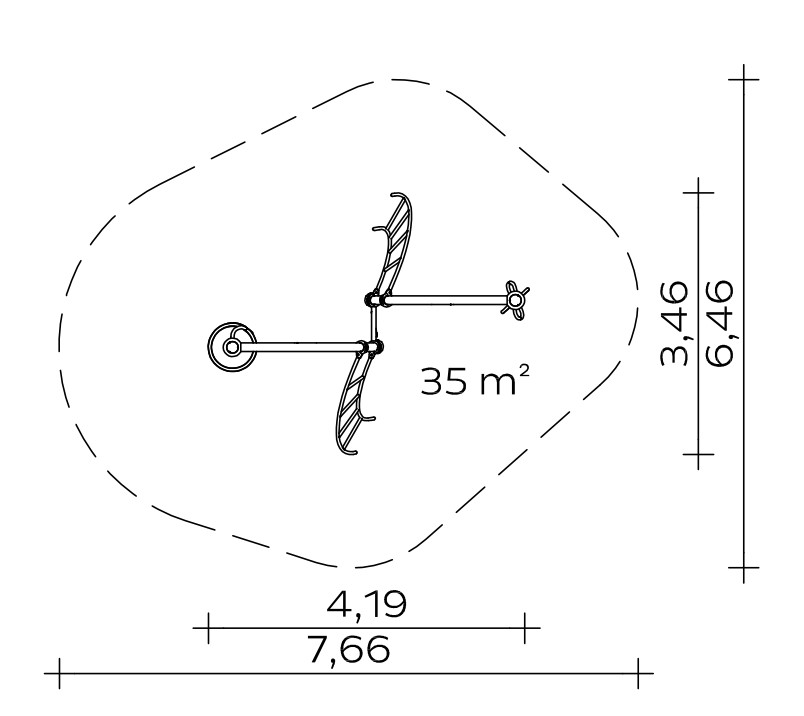

Equipment room: 4.19 x 3.46 x 2.93 m
Minimum space: 7.67 x 6.46 x 2.93 m
Impact area: 35 m²
Total height: 2.93 m
Free fall height: 2.86 m
Weight: 67 kg heaviest single item
257 kg in total

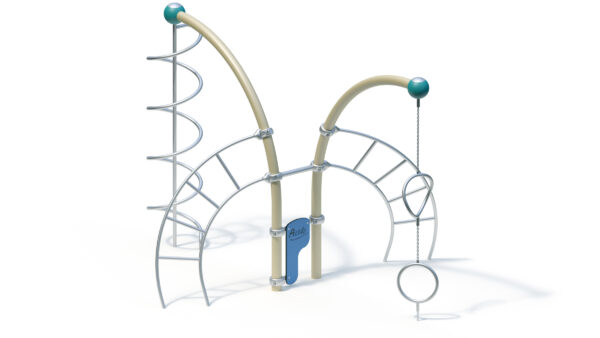

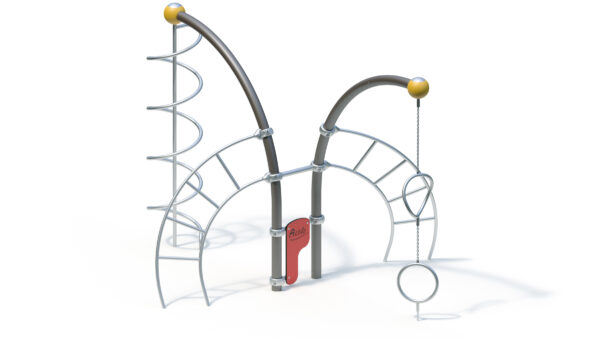

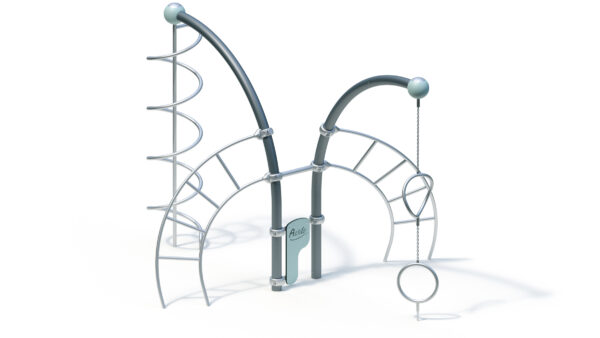

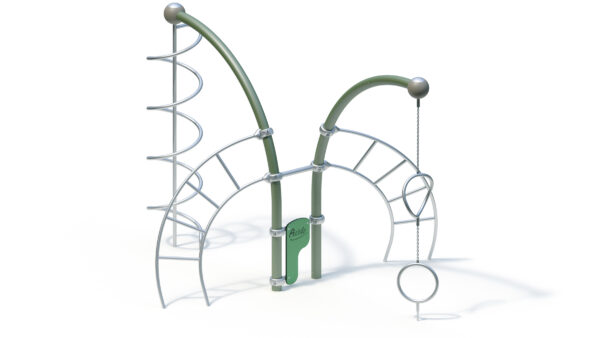

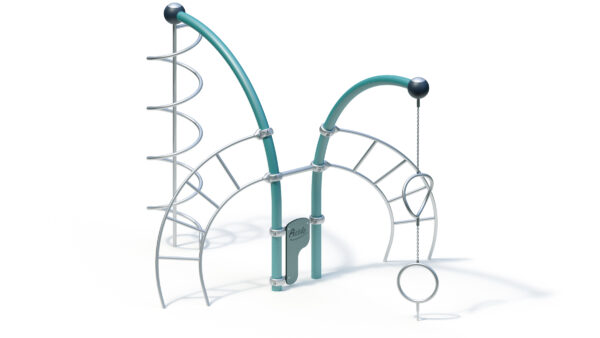

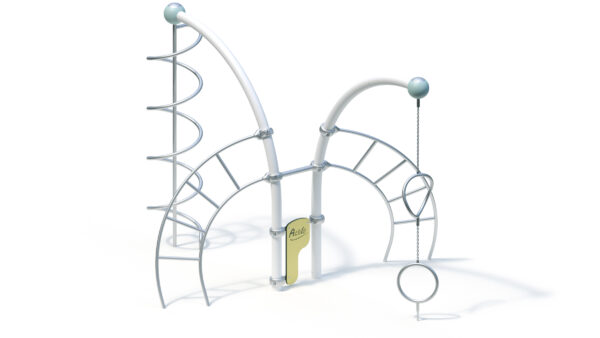

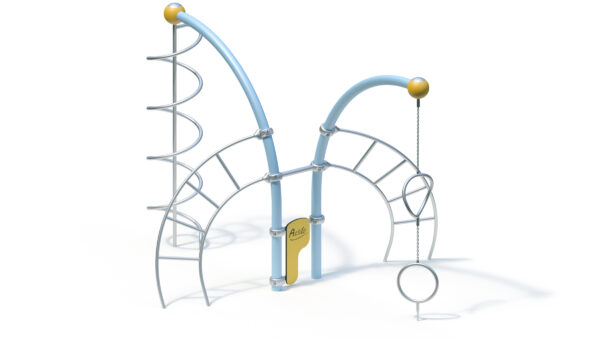

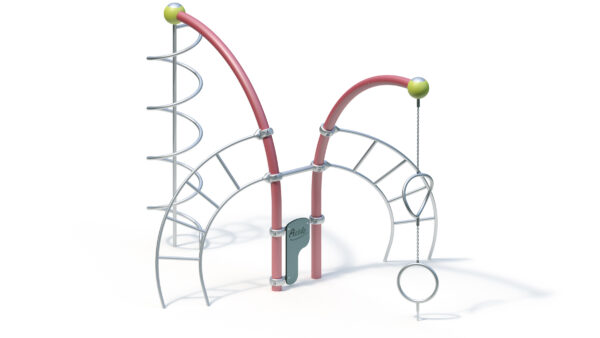

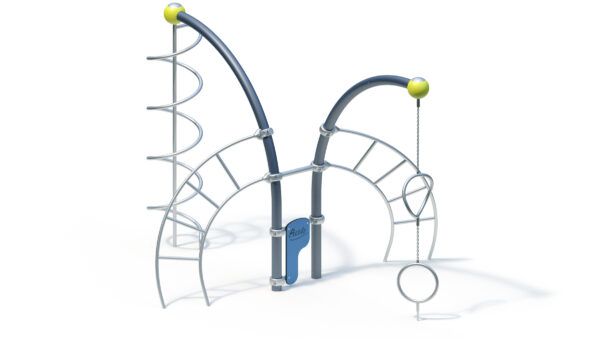

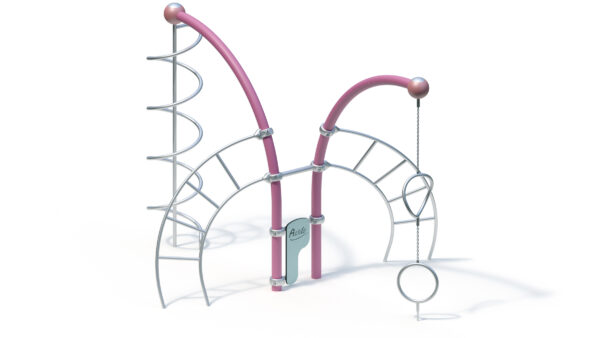

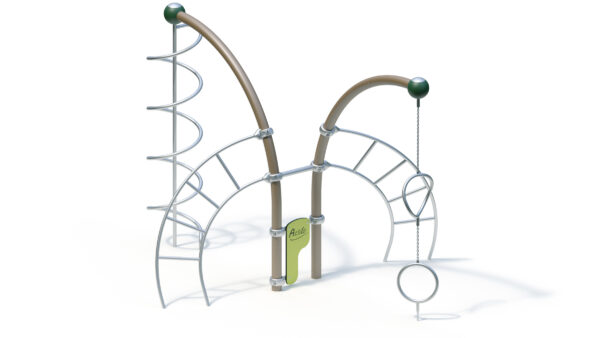

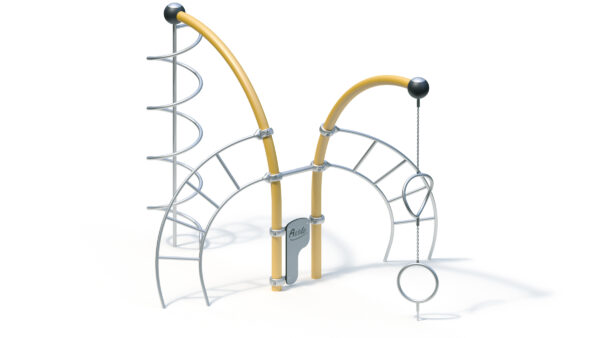

Arc 90 degrees
– Steel pipe bend, hot-dip galvanised, Ø 114 x 3.6 mm (optional powder-coated in RAL colour of choice)
– Aluminium sphere, Ø 250 mm, powder-coated in a RAL colour of your choice (see items below)

Spring Slide
- Welded construction made of stainless steel tube Ø 42.4 mm
– top: screw-on connection to Actio construction element
– below: Fixation by site foundations

Monkey Rings
– Stainless steel ring combination Ø 38 mm – 1x flat/1x spatially twisted
– Suspension and connection with 7 mm stainless steel chains and swivel
– independently rotatable
– top: screw-on connection to Actio construction element
– below: deflection limited by chain with anchored and screwed ground connection

Actio shield
- Actio sign made of a highly weather-resistant HPL laminate, including „Actio“ marking, 20 mm, colour red similar to RAL 2002.
Connection via aluminium clamps (optionally powder-coated in RAL colour of choice)

Bow ladder
– welded construction made of stainless steel tube Ø 38 mm
– Arc-shaped ladder
– Top: Connection to Actio construction element using aluminium clamps (optionally powder-coated in a RAL colour of your choice).
– below: Fixation by site foundations

Number of components for optional powder coating
2 pipe bends 90°
7 pcs. Aluminium clamp Ø 114 mm

Foundations (client-provided)
1 piece 1.70 x 1.00 x 0.50 m
2 pcs. 0.90 x 0.40 x 0.50 m
2 pcs. 0.60 x 0.60 x 0.50 m
Concrete volume: approx. 1.60 m³

Assembly time
2 fitters 4 hours each.
(without foundation)

Suitable for
Children aged 6 and over,
public playgrounds etc.,
Physical activities

Item number: 027232001
