Actio 202 Kitesurfer

SKU: 027202000 Category: Tag:

Select variant:

Classic
Classic
Ocean
Ocean
Aloha
Aloha
Beach
Beach
City
City

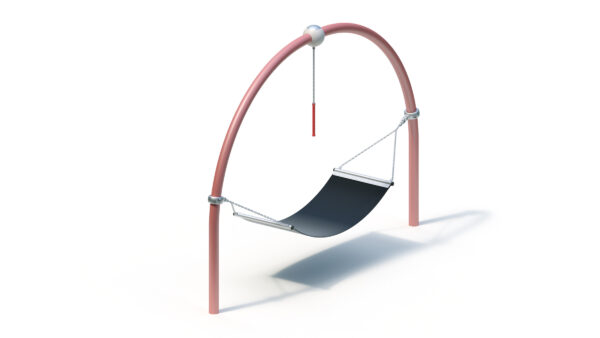

Coral
Coral

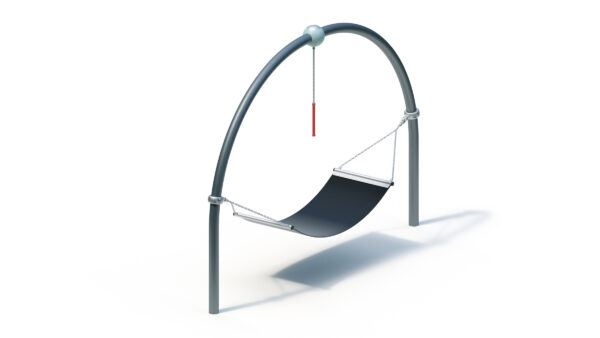

Ice Palace
Ice Palace
Jungle
Jungle

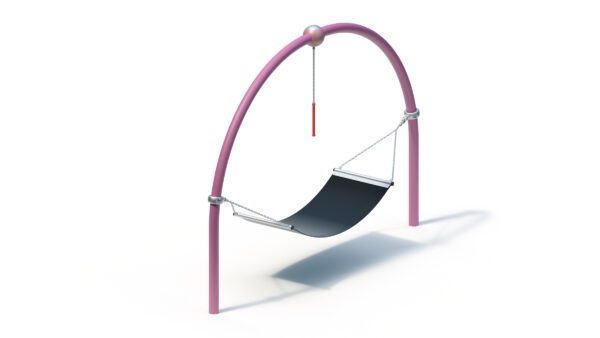

Mermaid
Mermaid

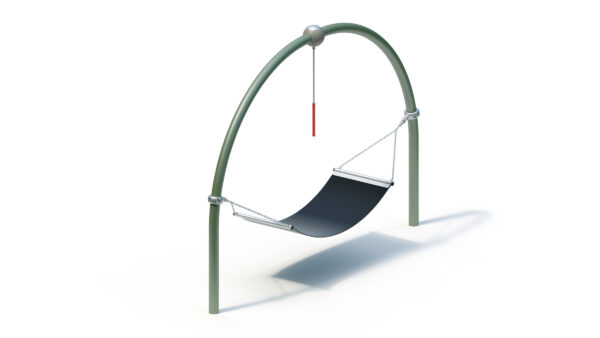

Climbing Rock midi
Climbing Rock midi
Pirate
Pirate
Safari
Safari
Sky
Sky

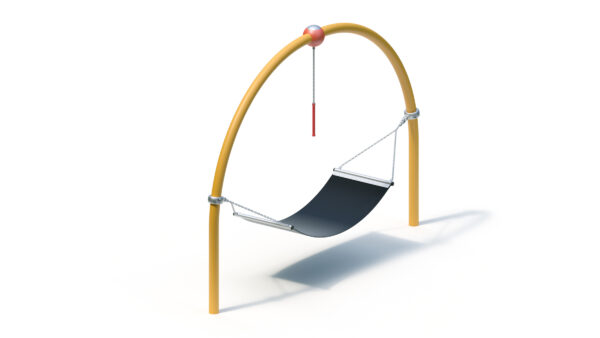

Sun
Sun

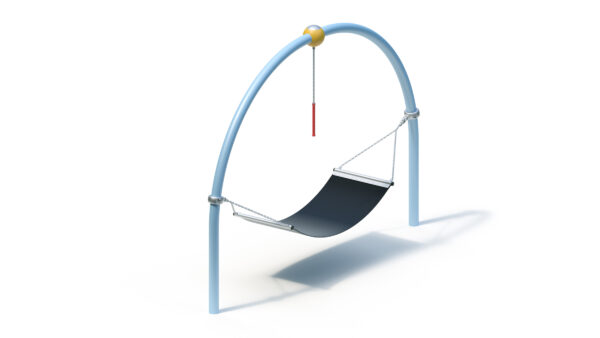

Sunny Day
Sunny Day
Sweden
Sweden
Please note the item number shown above when making your product enquiry, as it changes when you select a specific product variant (e.g. a different colour scheme). The last variant selected is automatically included in your enquiry.
SKU: 027202000 Category: Tag:

The most important information

:
;

Age group ?6+
Areas of use ?Public playgrounds
Number of users ?4 people
Activities ?Balance, Physical activity

Technical data

:
;

Minimum space length ?6,93 m
Minimum space width ?3,84 m
Minimum space height ?2.93 m
Equipment length ?3,93 m
Equipment width ?0,84 m
Equipment height ?2.93 m
Free-fall height ?0,86 m
Platform heights-
Total weight ?157.00 kg
Heaviest single part ?62.00 kg

Assembly & Foundations

:
;

Assembly time ?3.0 hours
Number of fitters ?2 people
Lifting equipment required-
FoundationsQuantity: 2 (1m x 0.6m x 0.5m)

Product description

:
;

Technical data

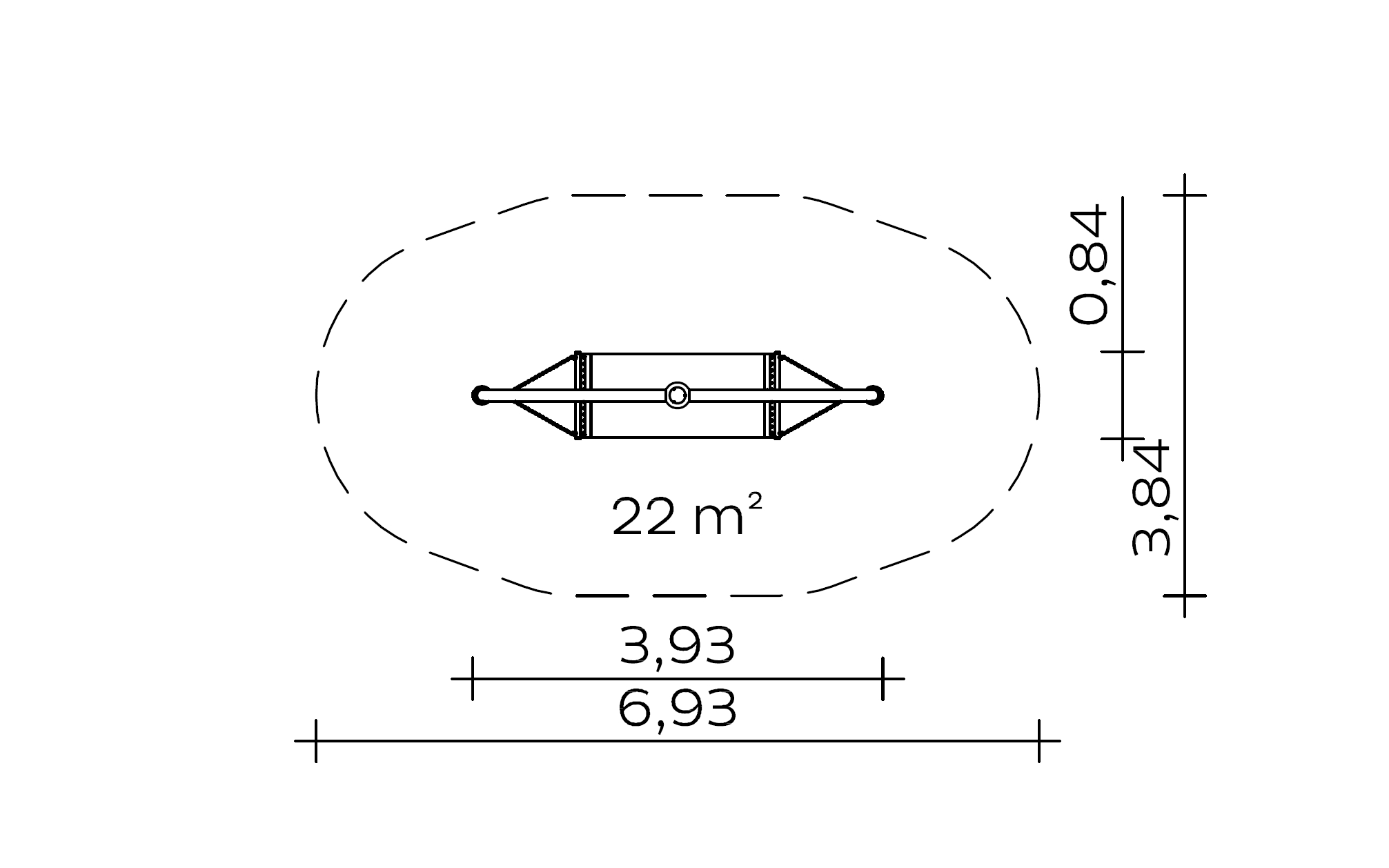

Equipment room: 3.93 x 0.84 x 2.93 m
Minimum space: 6.93 x 3.84 x 2.93 m
Impact area: 22 m²
Total height: 2.93 m
Free fall height: 0.86 m
Weight: 62 kg heaviest individual part
157 kg in total

Arc 90° Kitesurfer
– Steel pipe bend, hot-dip galvanised, Ø 114 x 3.6 mm (optional powder-coated in RAL colour of choice)
– Aluminium sphere, Ø 250 mm, powder-coated in a RAL colour of your choice (see items below)

Hanging/surf mat
- elastic mat element made of 8 mm thick, PAH-free and 4-fold textile-reinforced rubber
- Stainless steel crossbar for holding mats with rounded edges on all sides
- Post connection via 7 mm stainless steel chains with cardanic and radially movable connection adapters and
Aluminium clamps (optionally powder-coated in RAL colour of choice)
- Pendulum handle made of 7 mm stainless steel chain with thermally moulded and flexible elastomer

Number of components for optional powder coating
2 pipe bends 90°
2 x Aluminium clamp Ø 114 mm

Foundations (client-provided)
2 pcs. 1.00 x 0.60 x 0.50 m
Concrete volume: 0.60 m³

Assembly time
2 fitters 3 hours each.
(without foundation)

Suitable for
Children aged 6 and over,
public playgrounds etc.,
Physical activities

Item number: 027202000

This Kaiser & Kühne product enables:
