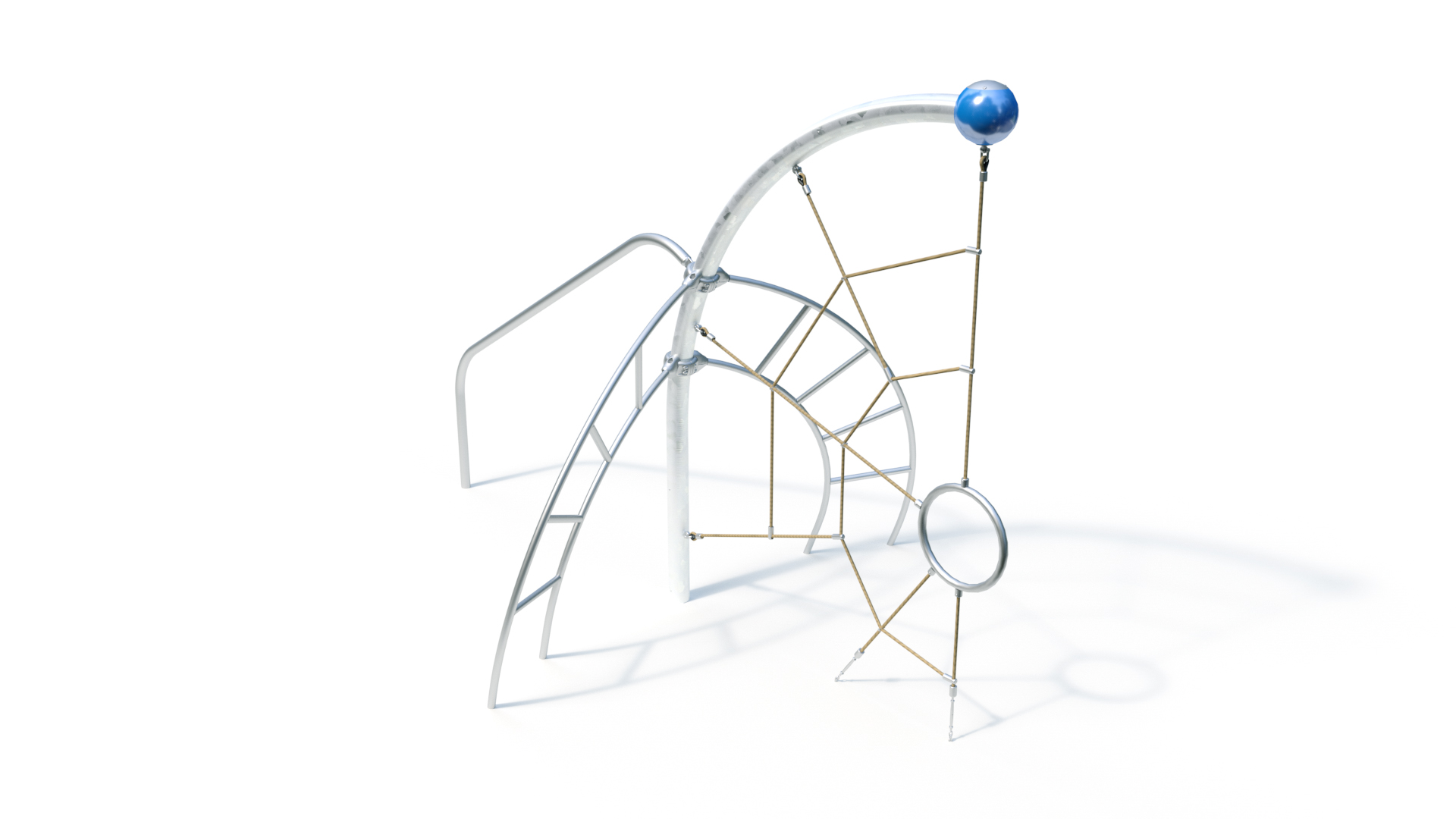

Actio 168

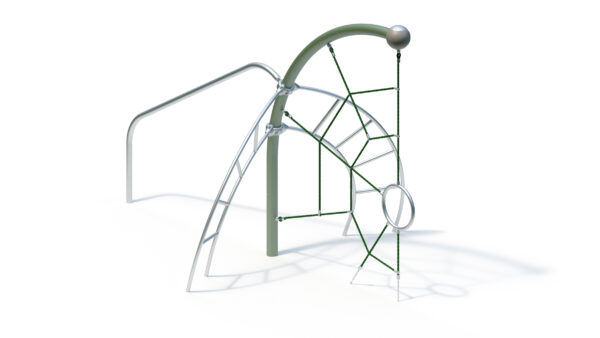

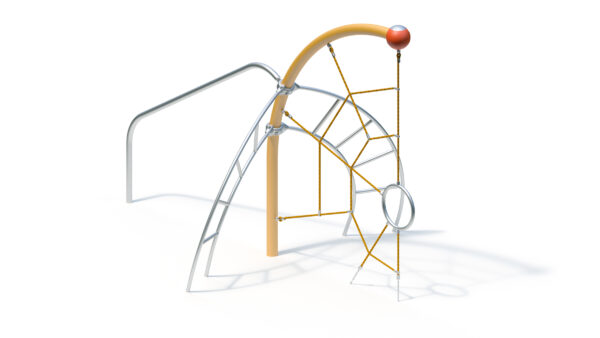

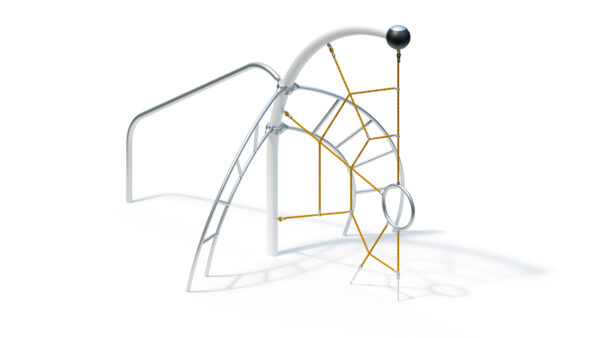

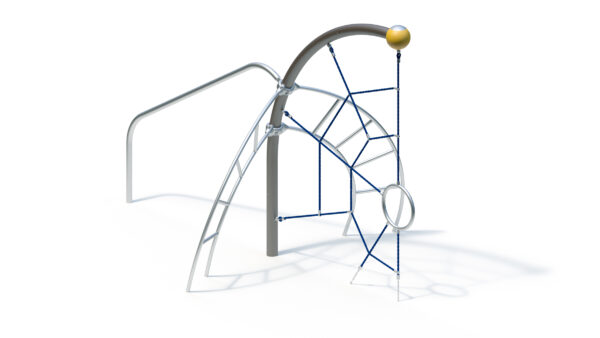

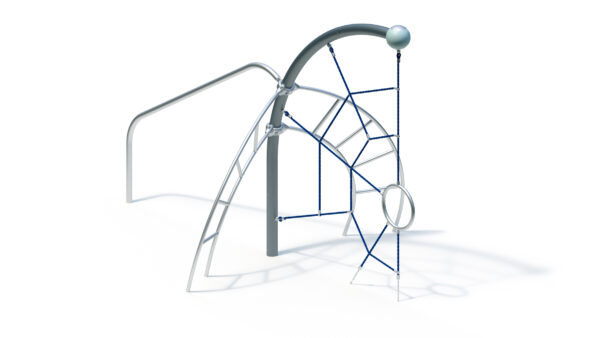

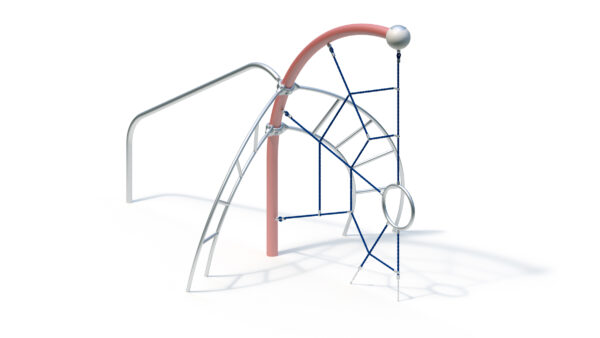

Select variant:
The most important information
| Age group ? | 5+ |
|---|---|
| Areas of use ? | Public playgrounds |
| Number of users ? | 11 people |
| Activities ? | - |
Technical data
| Minimum space length ? | 7,90 m |
|---|---|
| Minimum space width ? | 5.84 m |
| Minimum space height ? | 2.93 m |
| Equipment length ? | 4,34 m |
| Equipment width ? | 2.84m |
| Equipment height ? | 2.93 m |
| Free-fall height ? | 2,86 m |
| Platform heights | - |
| Total weight ? | 164.00 kg |
| Heaviest single part ? | 67.00 kg |
Assembly & Foundations
| Assembly time ? | 3.0 hours |
|---|---|
| Number of fitters ? | 2 people |
| Lifting equipment required | - |
| Foundations | Quantity: 1 (1.3m x 0.5m x 0.5m) Quantity: 2 (0.6m x 0.6m x 0.5m) Quantity: 2 (0.9m x 0.4m x 0.5m) |
Product Downloads
Product description
Technical data

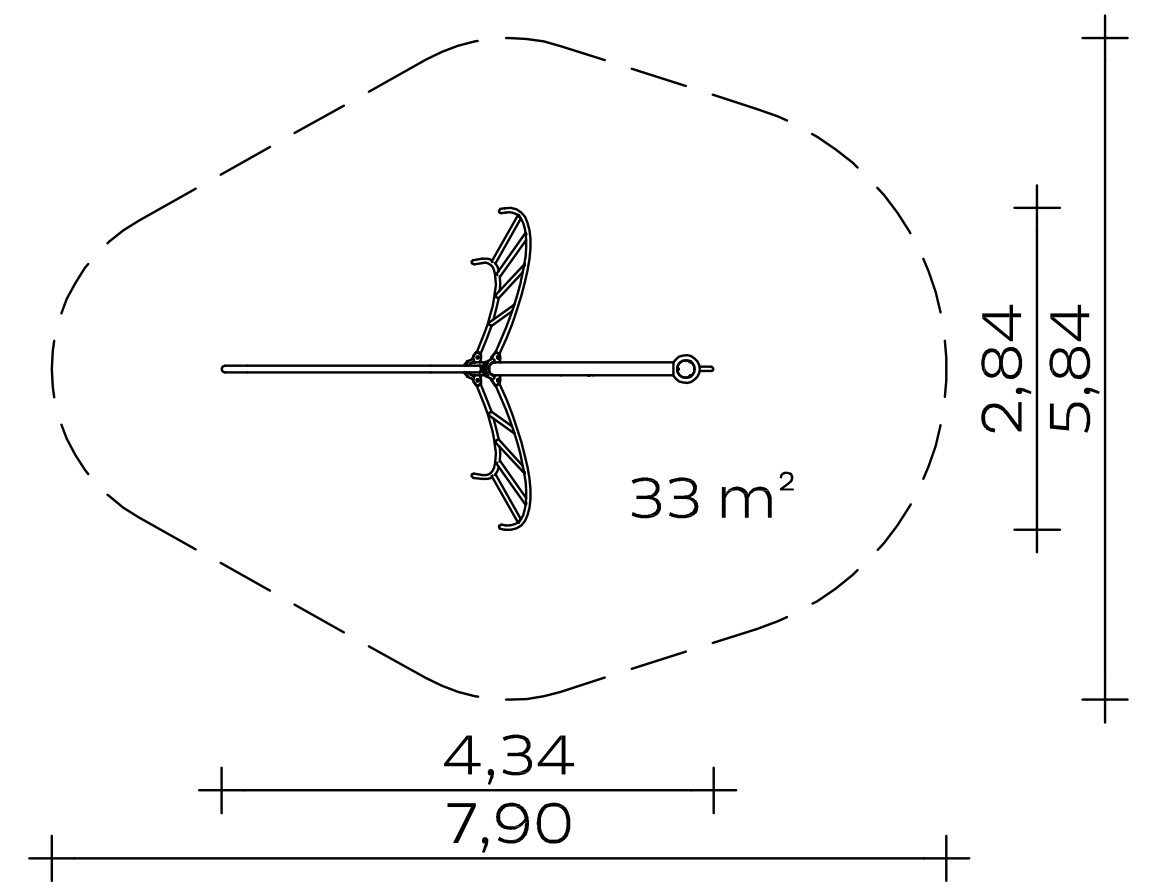

Equipment room: 4.34 x 2.84 x 2.93 m
Minimum space: 7.90 x 5.84 x 2.93 m
Impact area: 33 m²
Total height: 2.93 m
Free fall height: 2.86 m
Weight: 67 kg heaviest individual part
164 kg in total

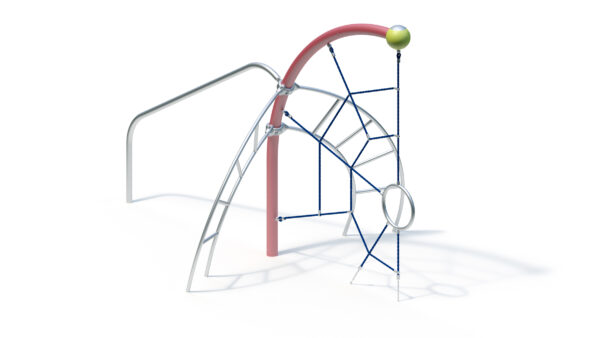

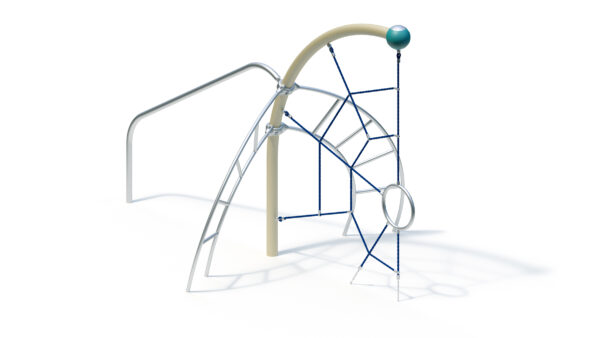

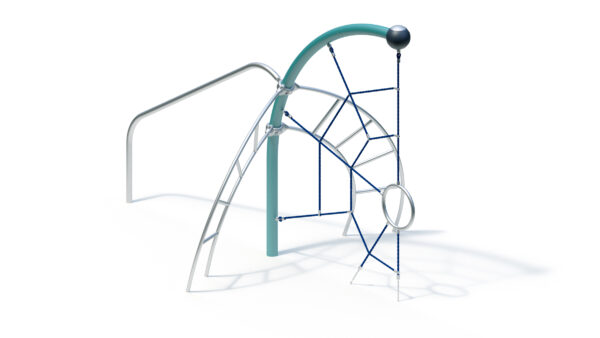

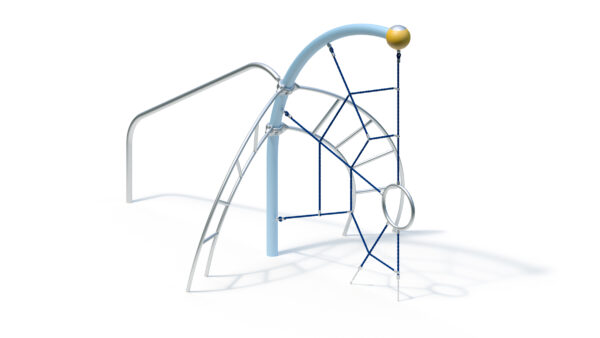

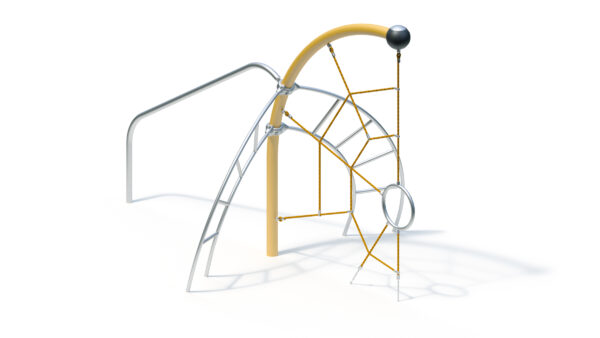

Arc 90° Spider Net
– Steel pipe bend, hot-dip galvanised, Ø 114 x 3.6 mm (optional powder-coated in RAL colour of choice)
– Aluminium sphere, Ø 250 mm, powder-coated in a RAL colour of your choice (see items below)
- Turned part, Ø 40 x 11.9 mm, with plain bearing bush IGUS (plastic)
Spider Net
- Polypropylene rope (Ø 16 mm), 6-strand, with galvanised steel core
- Cross connections and T-connectors in the cable mesh are made of aluminium
- Tubular ring made of stainless steel (Ø 450 x Ø 38 x 2) welded with 4x cable connection (Ø 48.3)
- Floor mounting, stainless steel chains (Ø 7 mm) welded with chain adapter (Ø 34 x 8.5 mm) at the upper end,
Screwed at the bottom with foundation tube (Ø 38 x 2 mm)
- Connection to Arc 90° with shackle, Ø 10 mm
Bow ladder
– welded construction made of stainless steel tube Ø 38 mm
- curved, spatially twisted conductors
– Top: Connection to Actio construction element using aluminium clamps (optionally powder-coated in a RAL colour of your choice).
– below: Fixation by site foundations
Pipe Slide
– Welded construction from stainless steel tube Ø 60.3 mm
– Connection to Actio construction element using an aluminium clamp (optional powder-coated in a RAL colour of your choice)
– below: Foundation with on-site footing
Foundations (client-provided)
1 pc. 1.3 x 0.5 x 0.5 m
2 pcs. 0.8 x 0.4 x 0.5 m
2 pcs. 0.6 x 0.6 x 0.5 m
Concrete volume: 1.10 m³
Assembly time
2 fitters 3 hours each.
(without foundation)
Suitable for
Children aged 6 and over,
public playgrounds etc.,
Physical activities
Item number: 027168000
