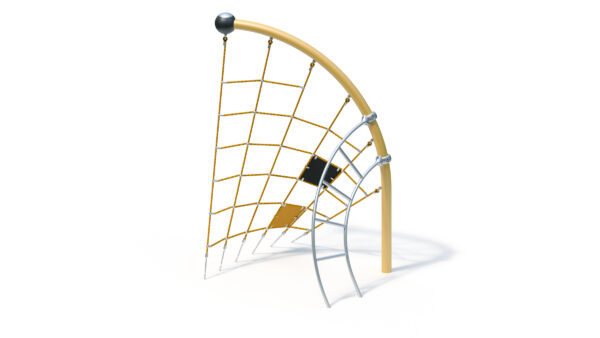

Actio 164

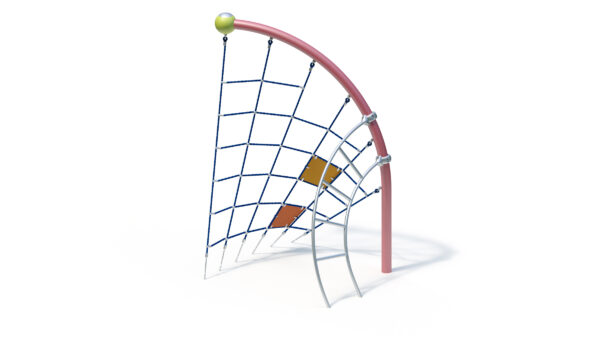

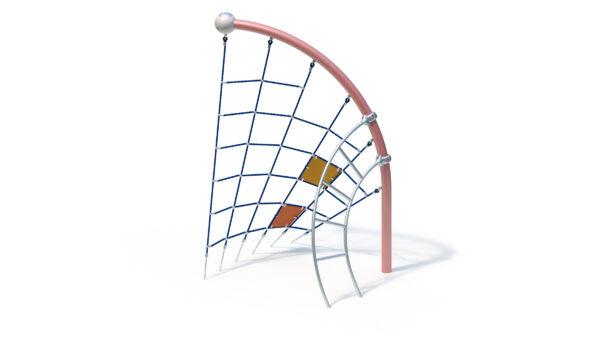

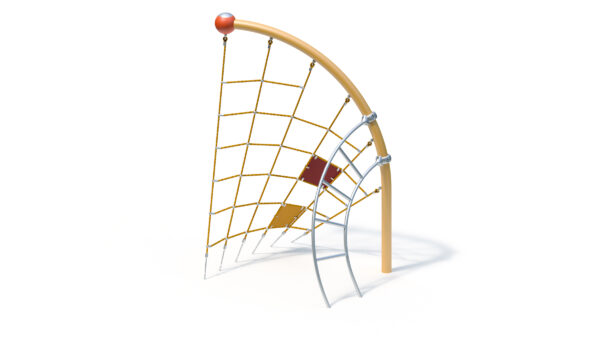

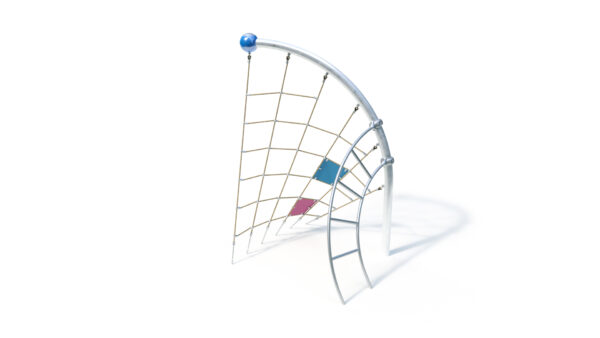

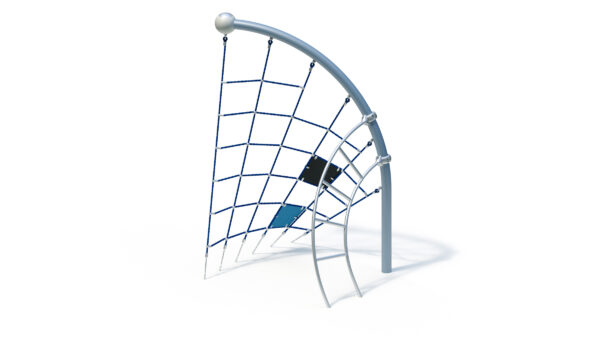

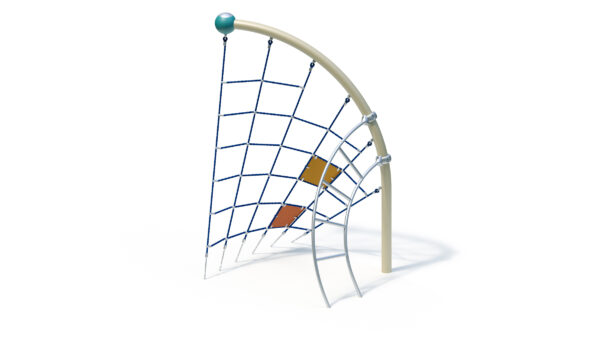

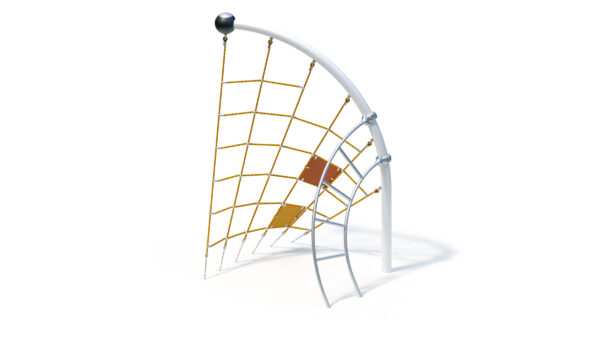

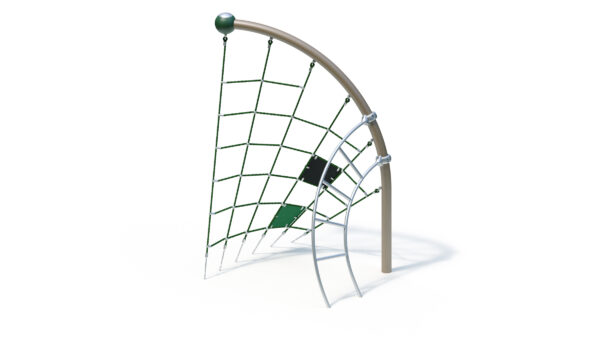

Select variant:
The most important information
| Age group ? | 5+ |
|---|---|
| Areas of application ? | Public playgrounds |
| Number of users ? | 9 persons |
| Activities ? | - |
Technical data
| Device length ? | 2,11 m |
|---|---|
| Device width ? | 2,09 m |
| Device height ? | 2.93 m |
| Free fall height ? | 2,86 m |
| Platform heights | - |
| Total weight ? | 107.00 kg |
| Heaviest single item ? | 67.00 kg |
| Minimum room length ? | 5,33 m |
| Minimum room width ? | 5,76 m |
| Minimum room height ? | 2.93 m |
Assembly & Foundations
| Assembly time ? | 3.0 hours |
|---|---|
| Number of fitters ? | 2 persons |
| Lifting gear required | - |
| Foundations | 090x040x050 |
Product Downloads
Product description
Technical data

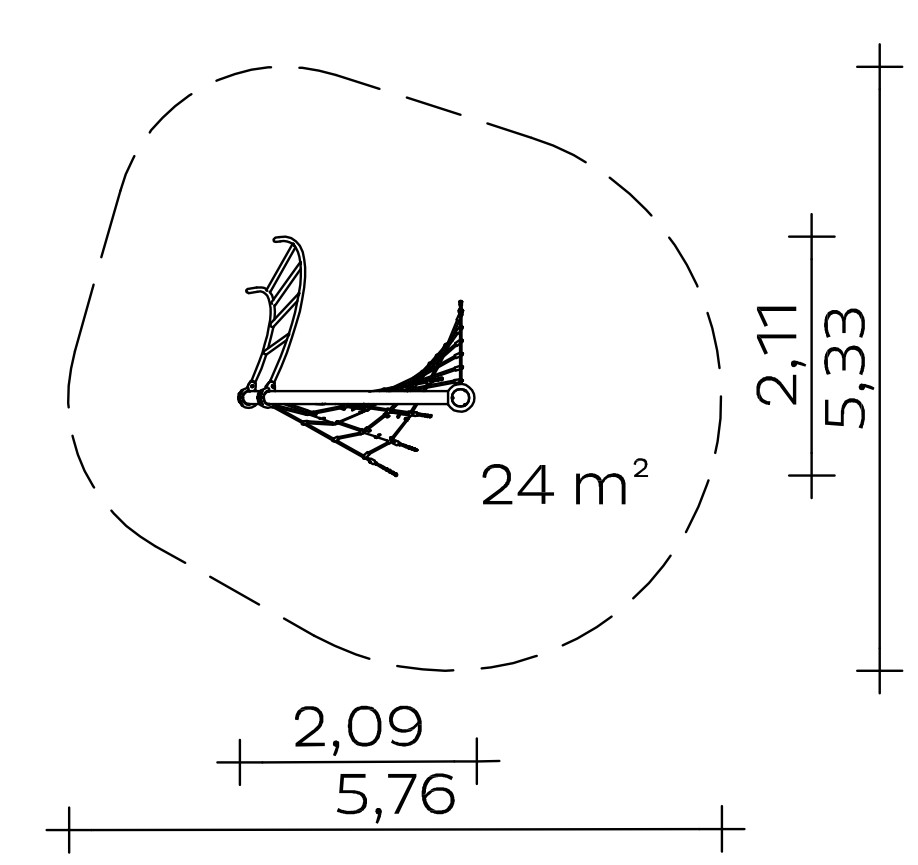

Floor area: 2.11 x 2.09 m
Minimum space: 5.33 x 5.76 m
Impact area: 24 m²
Total height: 2.93 m
Free fall height: 2.86 m
Weight: 67 kg heaviest single item
107 kg in total
Arc 90° Twister
- Steel pipe bend, hot-dip galvanised, Ø 114.3 x 3.6 mm (optionally powder-coated in RAL colour of choice)
- Aluminium ball, Ø 250 mm, powder-coated in RAL colour of choice
- Turned part, Ø 40 x 16.2 mm, with plain bearing bush IGUS (plastic)
Twister
- Polypropylene rope (Ø 16 mm), 6-strand, with galvanised steel core
- Connection to Arc 90° with shackle, Ø 10 mm
- Cross connections and T-connectors in the aluminium cable mesh
- elastic mat elements made of 8 mm thick, PAH-free and 4-fold textile-reinforced rubber
- Fastening mat elements with U-brackets (stainless steel)
- Floor fastening: Stainless steel chains (Ø 7 mm), welded at the top end with turnbuckle (M10), shackle at the bottom with welded-on threaded rod for screwing into internally threaded anchors in the foundation
Bow ladder
– welded construction made of stainless steel tube Ø 38 mm
– Arc-shaped ladder
- Above: Connection to Actio pipe bend using aluminium clamps (optionally powder-coated in RAL colour of choice)
– below: Fixation by site foundations
Foundations (client-provided)
1 pc. 1.3 x 0.5 x 0.5 m
1 piece 0.9 x 0.4 x 0.5 m
1 piece 2.5 x 0.3 x 0.5 m
Concrete volume: 0.89 m³
Assembly time
2 fitters 3 hours each.
(without foundation)
Suitable for
Children aged 6 and over,
public playgrounds etc.,
Physical activities
Item number: 027164000
