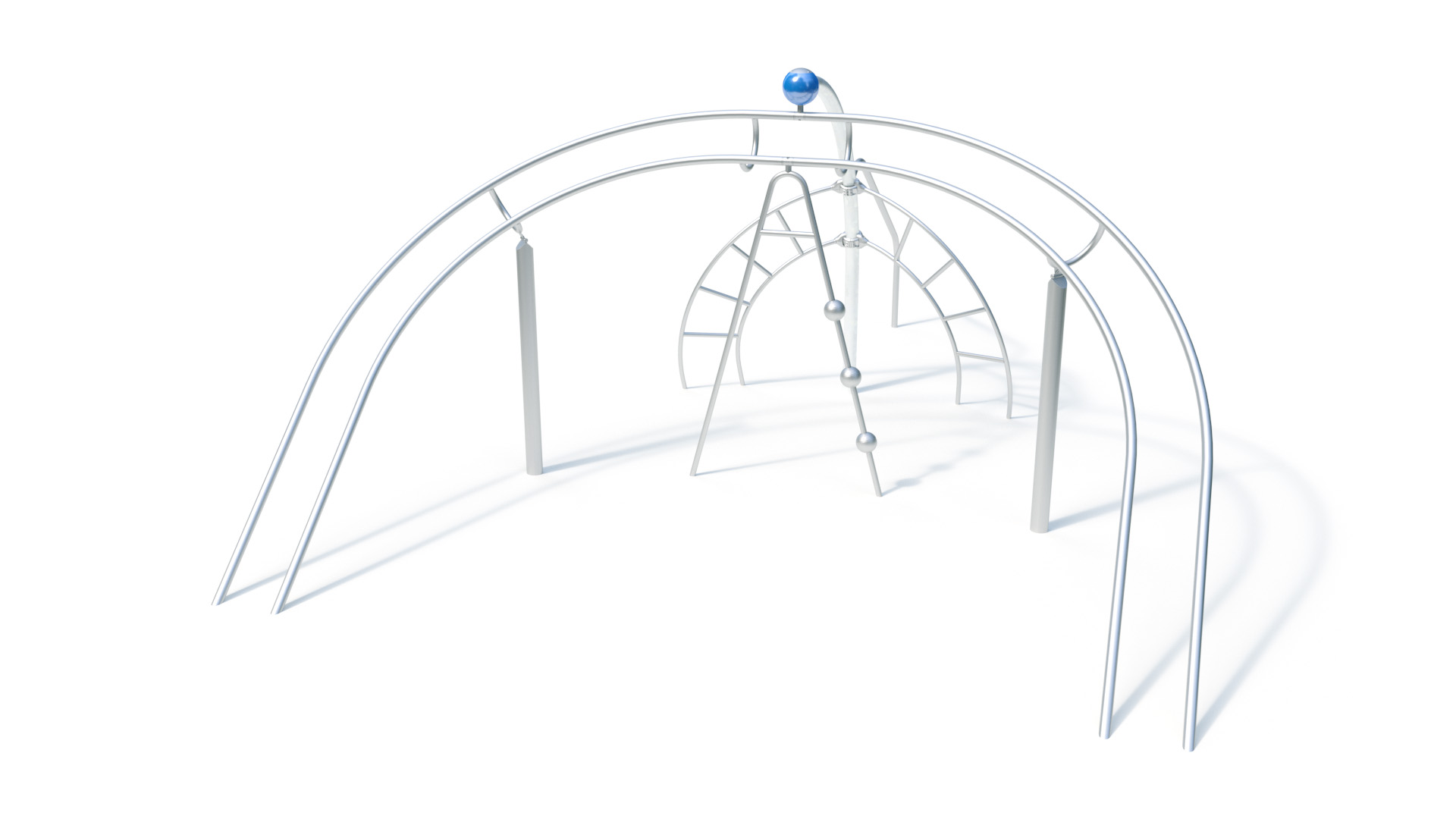

Actio 127

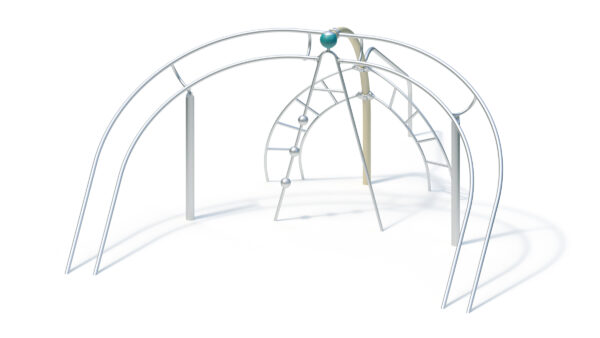

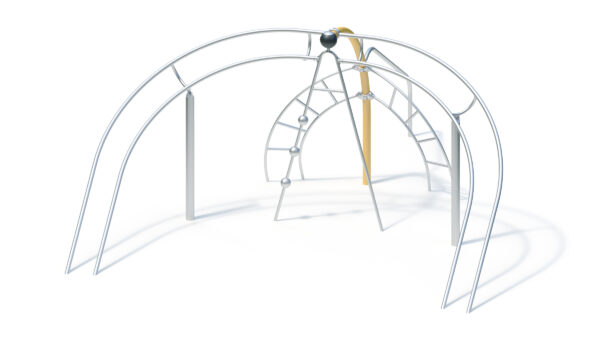

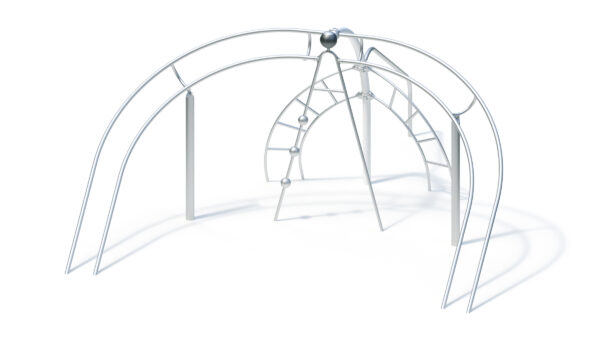

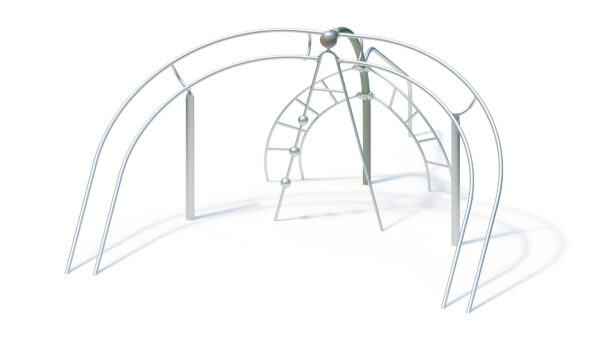

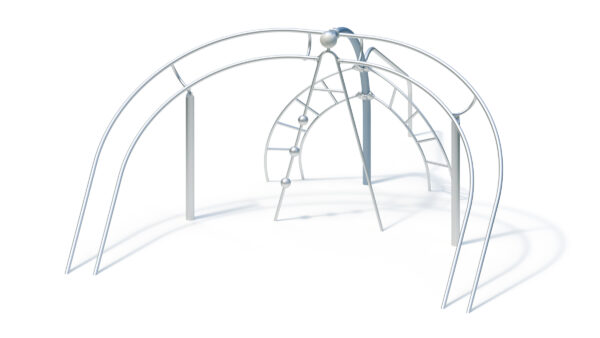

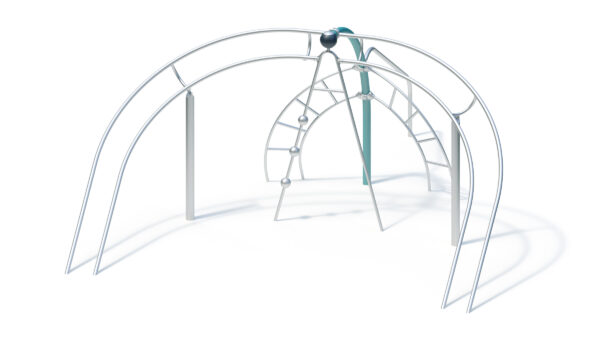

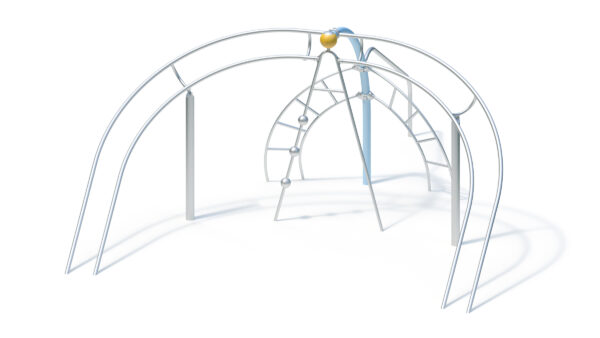

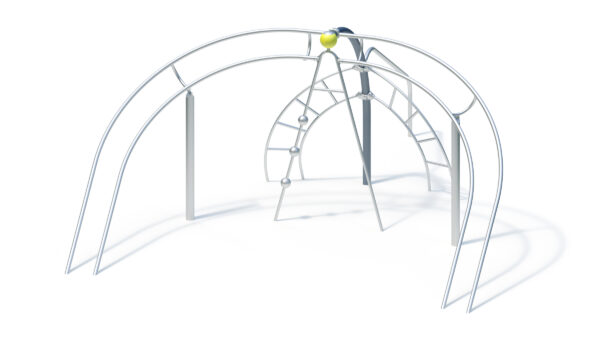

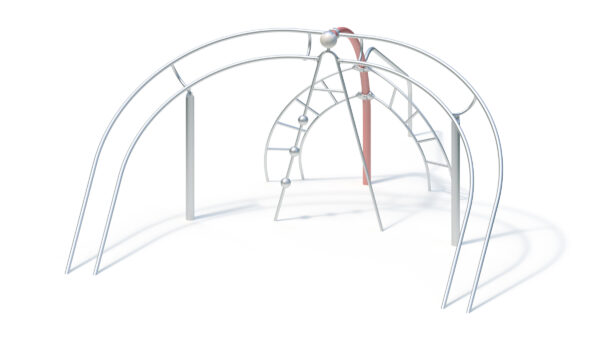

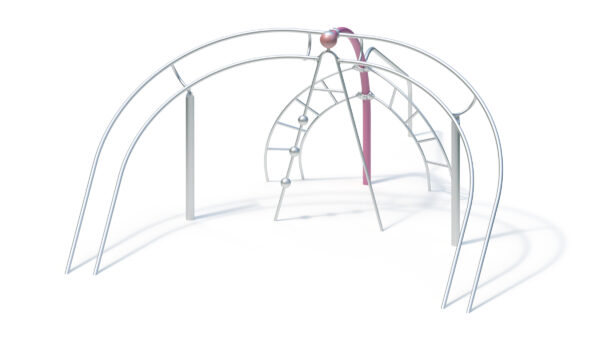

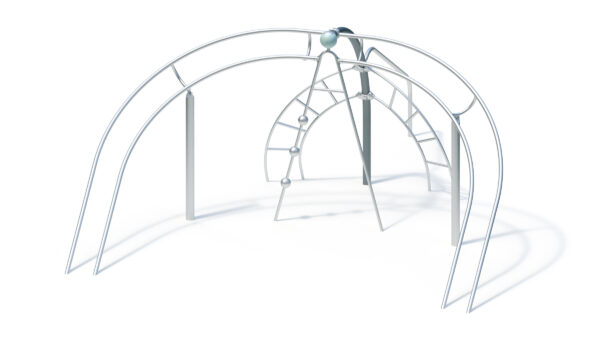

Select variant:
The most important information
| Age group ? | 5+ |
|---|---|
| Areas of use ? | Public playgrounds |
| Number of users ? | 14 people |
| Activities ? | - |
Technical data

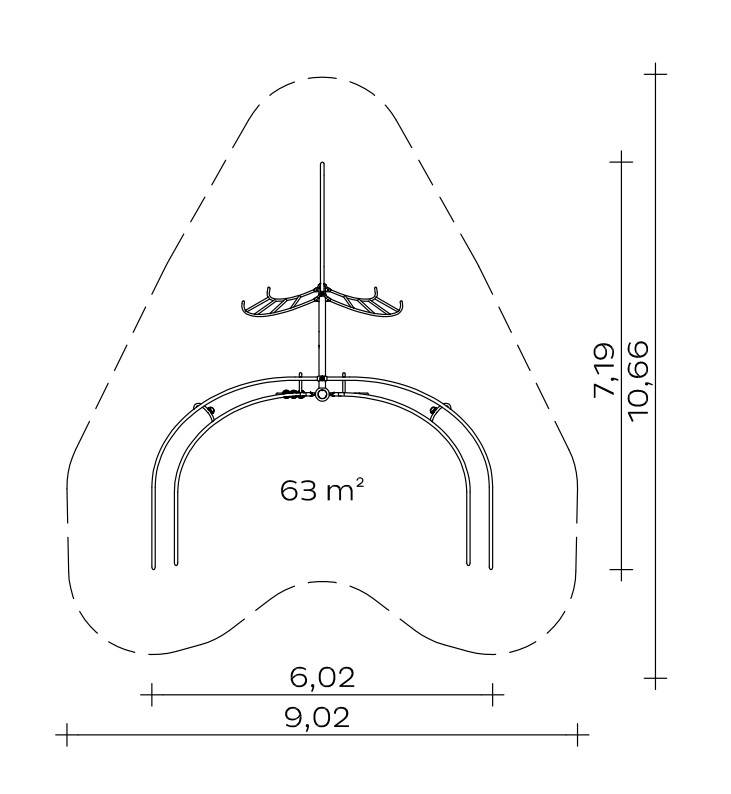

| Minimum space length ? | 10,66 m |
|---|---|
| Minimum space width ? | 9,02 m |
| Minimum space height ? | 2.93 m |
| Equipment length ? | 7,19 m |
| Equipment width ? | 6,02 m |
| Equipment height ? | 2.93 m |
| Free-fall height ? | 2,86 m |
| Platform heights | - |
| Total weight ? | 402.00 kg |
| Heaviest single part ? | 68.00 kg |
Assembly & Foundations
| Assembly time ? | 3.0 hours |
|---|---|
| Number of fitters ? | 2 people |
| Lifting equipment required | - |
| Foundations | Quantity: 4 (0.6m x 0.6m x 0.5m) Quantity: 1 (1.3m x 0.5m x 0.5m) Quantity: 2 (1m x 0.8m x 0.5m) |
Product Downloads
Product description
Arc 90 degrees
- Steel pipe bend, hot-dip galvanised, Ø 114.3 x 3.6 mm, optionally powder-coated in RAL colour
- Aluminium ball, Ø 250 mm, optionally powder-coated in RAL colour
- Bottom clamping through in-situ concrete foundation
Climbing pipe / Airrail
- Welded, partially bolted construction made of stainless steel tube Ø 60.3 x 3 mm and Ø 42.4 x 3.2 mm
- Climbing element made of stainless steel tube Ø 38 mm with three stainless steel balls Ø 150 mm
- Support post made of stainless steel tube Ø 120 mm
- Top screw connection to Actio construction element
- Bottom clamping through in-situ concrete foundations
Pipe Slide
– Welded construction from stainless steel tube Ø 60.3 mm
- Connection to Actio construction element with aluminium clip, optionally powder-coated in RAL colour
- Bottom clamping through in-situ concrete foundations
Bow ladder
- Welded construction made of stainless steel tube Ø 38 x 2 mm
– Arc-shaped ladder
- Top connection to Actio construction element using aluminium clamps, optionally powder-coated in RAL colour
- Bottom clamping through in-situ concrete foundations
Item number: 027127000
