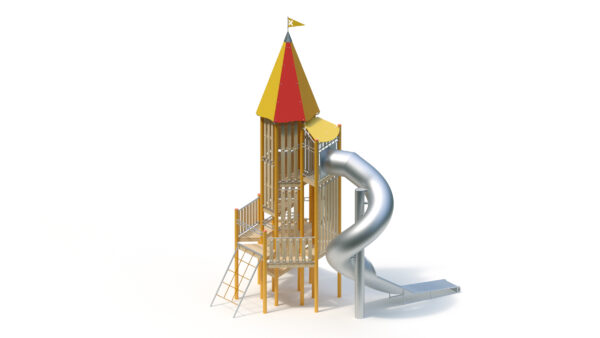

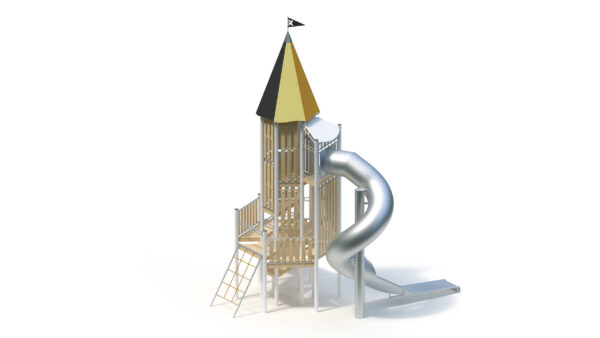

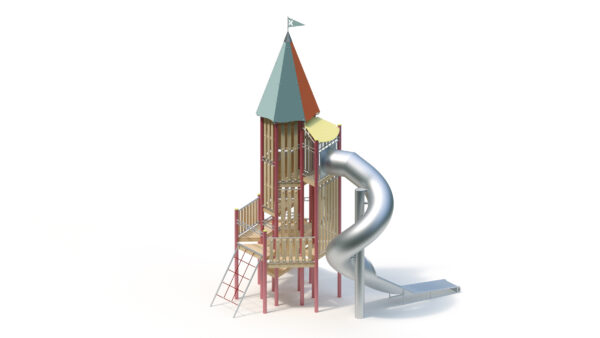

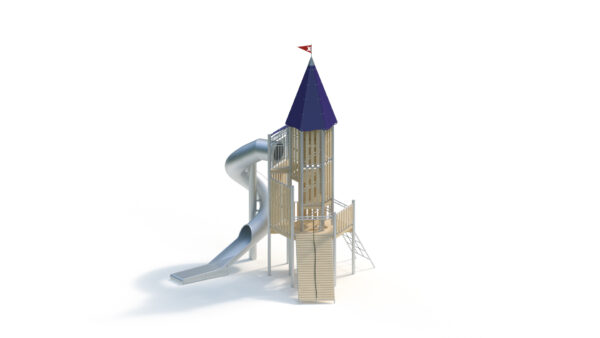

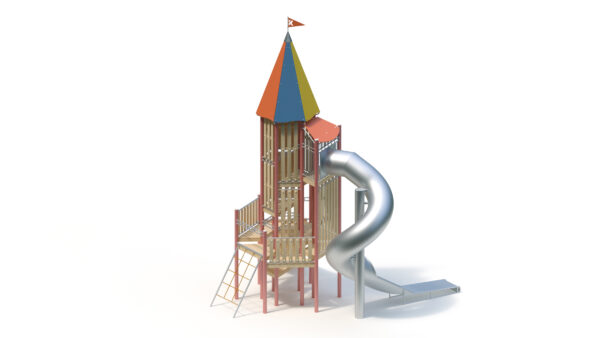

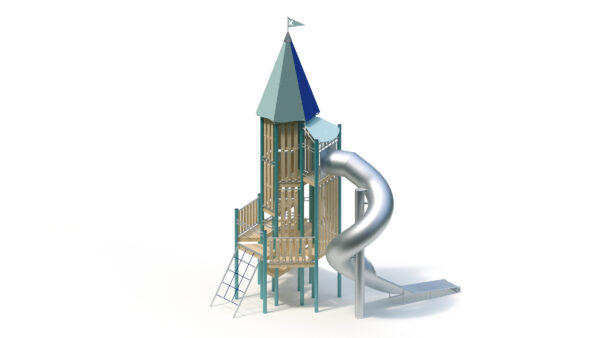

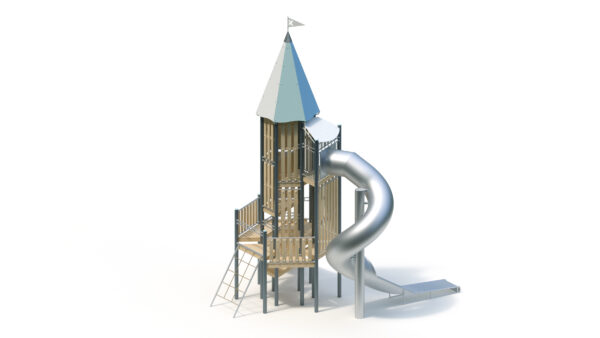

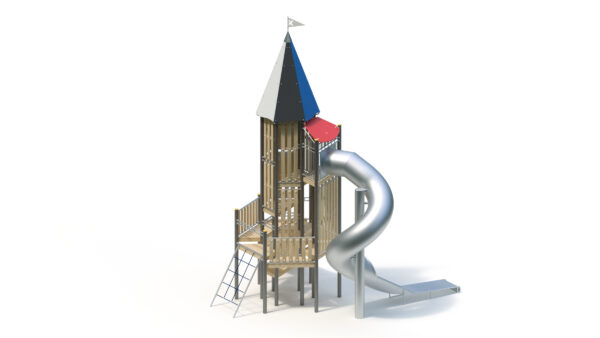

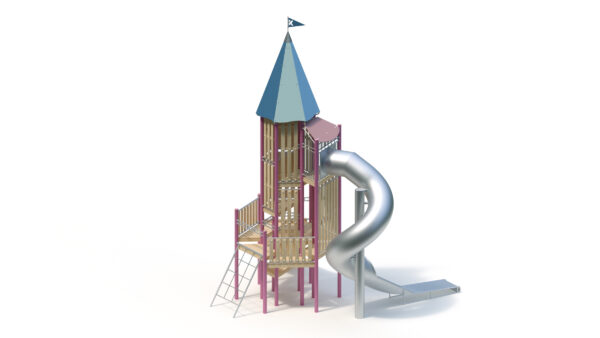

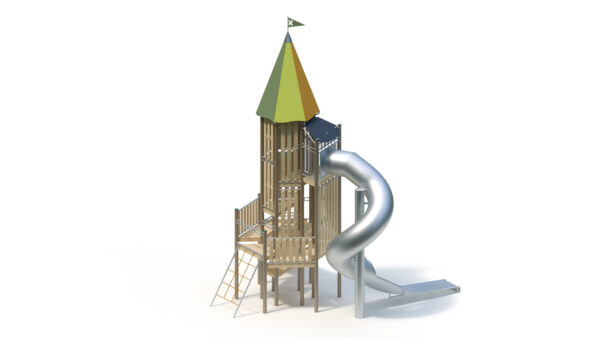

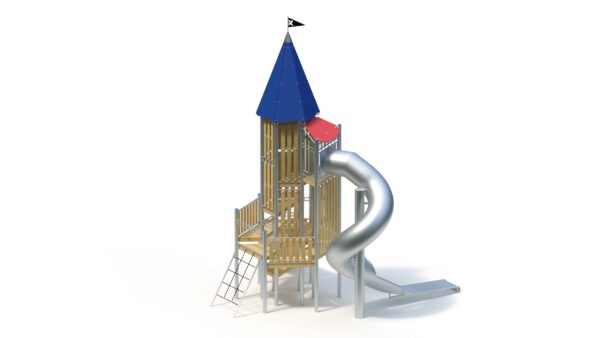

Technical data

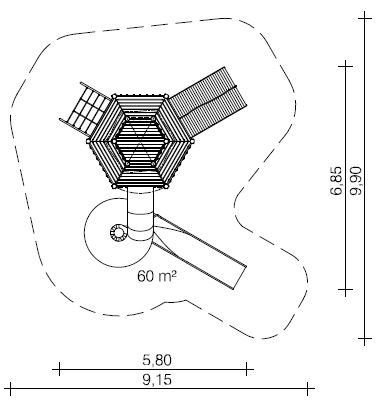

Floor area: 5.80 x 6.90 m
Minimum space: 9.15 x 9.90 m (67 m²)
Total height: 9.25 m
Platform height: 1.00 to 4.20 m
Seat height: 4.30 m

Support post
Posts made of stainless steel tube Ø 120 mm, covered with non-detachable stainless steel post caps. Connection of the modular add-on parts to the uprights using solid and fully welded stainless steel weld-in sleeves without protruding connecting elements.

Platform floor
Platform floor made of boards, 30 mm thick and circumferential squared timber beams 45 x 100 mm. The dried sawn timber made of robinia is planed, bevelled and free of rotting knots. Force-fit floor fastening using special stainless steel brackets with a continuous bolt connection.

Attachments
- Wooden balustrade made of robinia, 125 x 30 mm. Fastening between stainless steel tubes Ø 33.7 x 2 mm
- Lattice balustrade made of stainless steel tube, Ø 33.7 x 2 / 25 x 2 mm, one-piece welded construction
- Tandem railing made of stainless steel tube, Ø 33.7 x 2 mm
- Steep wall made of robinia wood with tandem railing made of stainless steel tube and fixed Hercules climbing rope Ø 18 mm (black)
- Harvester net made of Hercules rope on stainless steel frame Ø 16 mm (black)
- Climbing rung made of stainless steel tube, Ø 38 x 2.5 mm, twist-proof
- Tower roof, pitch 72°, made of highly weather-resistant HPL laminate (Saphir), 13 mm, round eaves, with rotating flag with logo (blood orange/RAL 2002)
- Trapezoidal monopitch roof, made of highly weather-resistant HPL laminate (Saphir), 13 mm, fastened to roof frame made of stainless steel tube Ø 33.7 x 2 mm

Tunnel spiral slide
Mounting height: 4.20 m
Seat height: 4.30 m
Slide inclination: 30°/38°
Turning (right): 300°
Tunnel diameter: 0.80 m
Sliding plate thickness: 2.5 mm

Slide segments made of stainless steel, particularly quiet due to the tunnel shape, welded for transport reasons to form a three-part slide coiled around a centre pylon, including corresponding connecting flanges to facilitate assembly on site.

Metal components: Stainless steel. The robinia wood is treated with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment reduces cracking.
The modular add-on parts transfer their forces directly to the uprights via a special adapter fastening. The screw connections are secured against unauthorised loosening.

For your planning, please note that stainless steel slides should be orientated to the north-east or in the partial shade of trees due to the possible heating of the slide surface.

Foundations (client-provided)
3 pcs. 0.30 x 0.30 x 0.40 m
12 pcs. 0.50 x 0.50 x 0.60 m
1 piece 0.80 x 0.80 x 1.00 m
3 pcs. 1.00 x 0.40 x 0.40 m
Concrete quantity: 3 m³

The foundation sizes specified in this offer correspond to the static requirements for medium-dissolvable soil types with a permissible soil pressure of at least σR,d = 100 kN/m². In the case of deviating soil conditions and installation in areas with high wind loads (deviating from German wind zone 2, corresponds to vref = 25.0 m/s) or high snow loads (deviating from German snow load zone 2, corresponds to sk ≥0.85 kN/m²), technical modifications to the construction of the product may be necessary (e.g. insertion of cross bracing). This will result in additional costs and an extension of the specified delivery time.
At the Client's request, Kaiser & Kühne may commission a recognised engineering firm to carry out the necessary structural calculations. The resulting costs shall be borne by the Client. The required evidence of the local conditions shall be provided by the Client.

Assembly time
3 fitters 10 hours each, plus lifting gear
(without foundation)

Free fall height
2,00 m

Suitable for
Children aged 4 and over,
public playgrounds etc.,
Physical activities

Item number: 025300502
