Tower combination
The most important information
| Age group ? | 4+ |
|---|---|
| Areas of application ? | Public playgrounds |
| Number of users ? | 37 persons |
| Activities ? | Physical activity |
Technical data
| Device length ? | 15,89 m |
|---|---|
| Device width ? | 1,73 m |
| Device height ? | 6,87 m |
| Free fall height ? | 2,40 m |
| Platform heights | - |
| Total weight ? | 2167.00 kg |
| Heaviest single item ? | 106.00 kg |
| Minimum room length ? | 19,36 m |
| Minimum room width ? | 4,85 m |
| Minimum room height ? | 6,87 m |
Assembly & Foundations
| Assembly time ? | 32,0 h |
|---|---|
| Number of fitters ? | 3 persons |
| Lifting gear required | - |
| Foundations | 040x040x060 |
Product Downloads
Product description
Technical data
Device height: 6.87 m
Floor area: 15.89 x 1.73 x 6.87 m
Minimum space: 19.36 x 4.85 x 6.87 m
Free fall height: 2.40 m

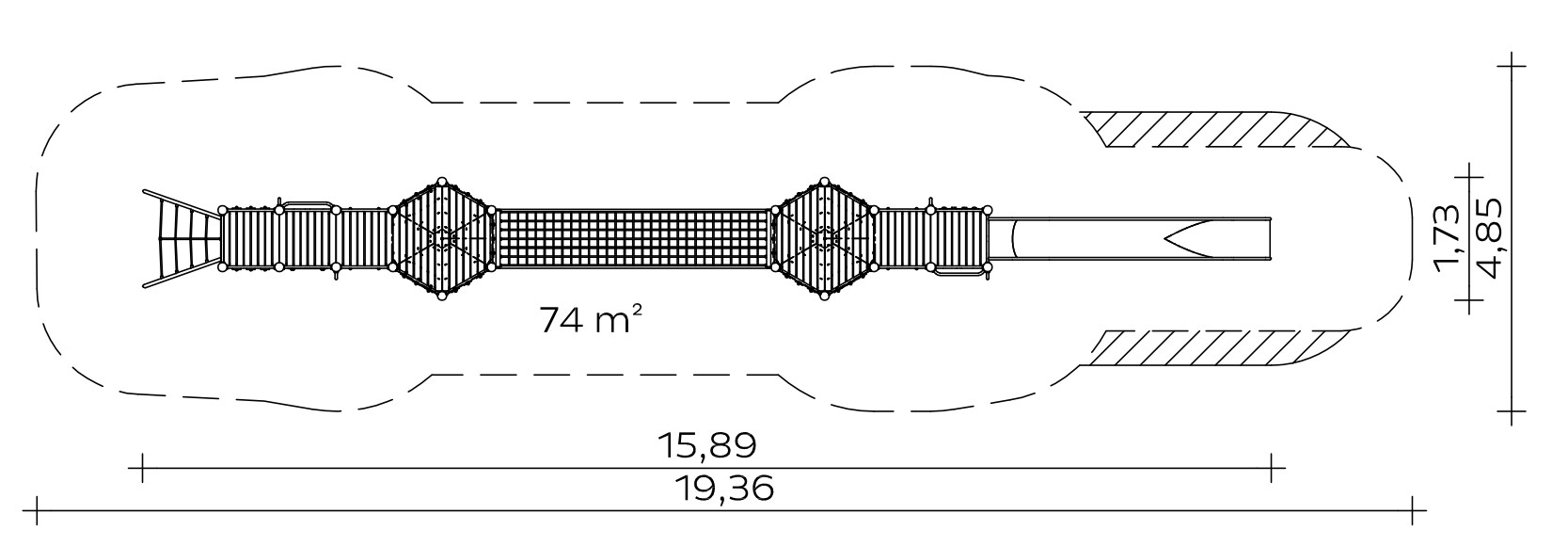

Impact area: 74 m²
Platform heights: 1.80/2.00/2.20/2.40/2.60 m
Slide attachment height: 2.00 m
Seat height: 2.10 m
Slide inclination: 36°
Slide width: 0.60 m
Sliding plate thickness: 2.5 mm
Weight: 106 kg heaviest individual part
2167 kg total
Support post
Posts made of stainless steel tube Ø 120 mm, covered with non-detachable stainless steel post caps. Connection of the modular add-on parts to the uprights using solid and fully welded stainless steel weld-in sleeves without protruding connecting elements.
Platform floor
Platform floor made of boards, 30 mm thick and circumferential squared timber beams 45 x 100 mm. The dried sawn timber made of robinia is planed, bevelled and free of rotting knots. Force-fit floor fastening using special stainless steel brackets with continuous bolt fastening.
Attachments
- Railing bracket, anti-roll, made of stainless steel tube, Ø 33.7 x 2 mm
- Wooden balustrades made of robinia, 125 x 30 mm. Fastening between stainless steel tubes Ø 33.7 x 2 mm
- Panel balustrades made of coloured, highly weather-resistant HPL laminate, fastened between stainless steel tubes Ø 33.7 x 2 mm
- Climbing wall made of coloured, highly weather-resistant HPL laminate, 20 mm, frame made of stainless steel tube, 6 climbing openings.
- Climbing rungs (cranked) made of stainless steel tube, Ø 33.7 x 2 mm
- Climbing wall made of coloured, highly weather-resistant HPL laminate, 20 mm, frame made of stainless steel tubing, with free climbing elements attached on one side
- Vertical handle as climbing aid made of stainless steel tube, Ø 33.7 x 2 mm
- Stilt net made of Hercules rope on stainless steel frame
- Bench 0.80 m, seat: made of coloured, highly weather-resistant HPL laminate, 20 mm
- Net tunnel: Tunnel-shaped net construction made of Hercules rope, mesh size approx. 125 x 125 mm, attached to stainless steel frame
- Attachable trough slide, 0.60 m wide, one-piece stainless steel construction, sheet thickness: 2.5 mm, with roll-off protection above the single-seat section
- Tower roof, pitch 72°, made of coloured, highly weather-resistant HPL laminate, 13 mm
- Tower flag with K&K logo, rotatable
For your planning, please note that stainless steel slides should be orientated to the north-east or in the partial shade of trees due to the possible heating of the slide surface.
Metal components: Stainless steel.
The robinia wood is treated with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment also reduces cracking. The modular add-on parts transfer their forces directly to the uprights via a special adapter fastening. The screw connections are secured against unauthorised loosening.
Foundations (client-provided)
18 units 0.40 x 0.40 x 0.60 m
2 units 1.60 x 0.40 x 0.80 m
1 piece 0.75 x 0.40 x 0.40 m
Concrete volume: 2.9 m³
Assembly time
3 fitters 32 hours each
(without foundation)
Suitable for
Children aged 4 and over,
public playgrounds etc.,
Physical activities
Item number: 023850500
