The 3D model serves as a spatial view. The colours do not correspond to the selected variant.
Play structure

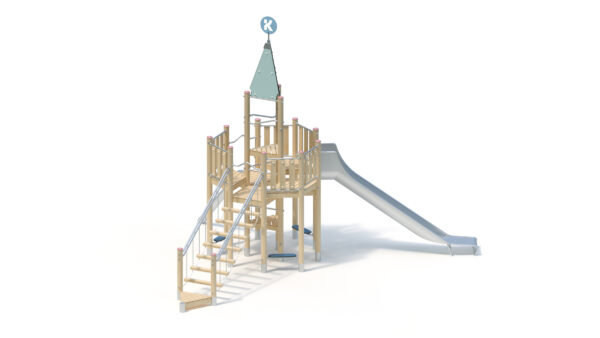

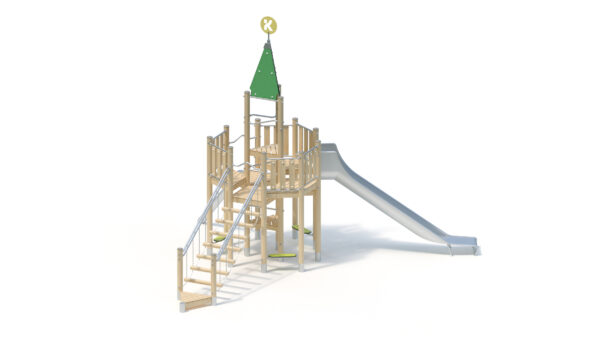

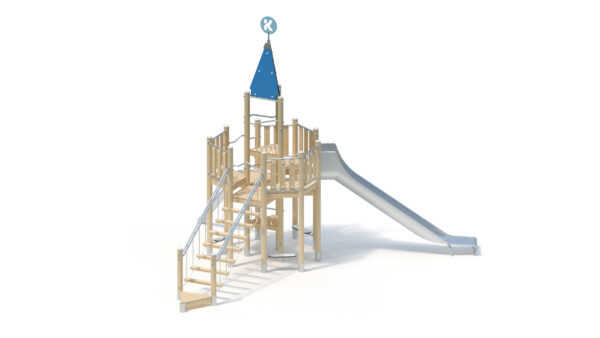

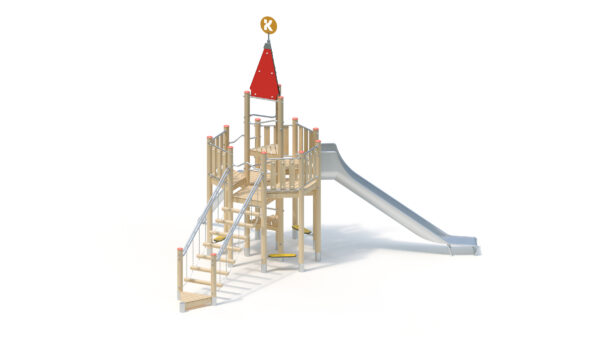

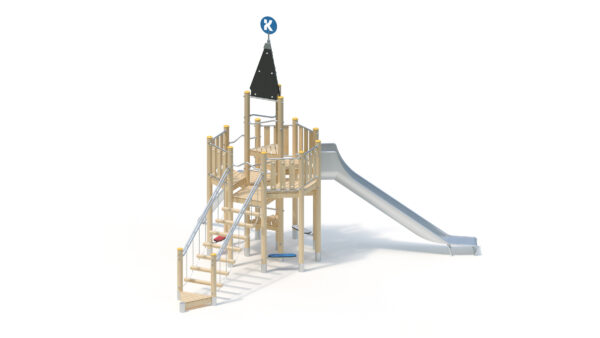

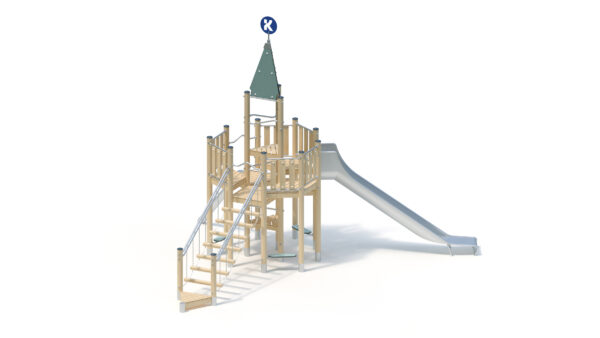

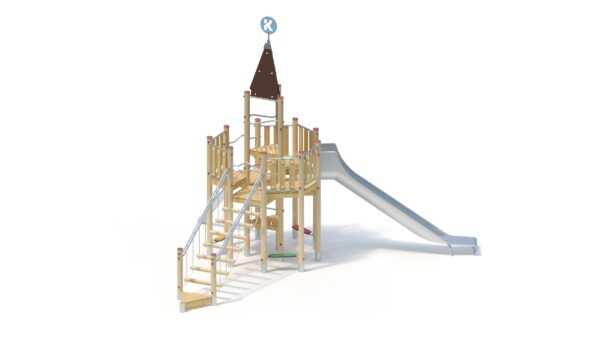

Select variant:
The most important information
| Age group ? | 4+ |
|---|---|
| Areas of application ? | Public playgrounds |
| Number of users ? | 22 persons |
| Activities ? | Balance, Physical activity, Climbing, Slide |
Technical data
| Device length ? | 6,62 m |
|---|---|
| Device width ? | 5,95 m |
| Device height ? | 5,39 m |
| Free fall height ? | 1,80 m |
| Platform heights | - |
| Total weight ? | 955.00 kg |
| Heaviest single item ? | 100.00 kg |
| Minimum room length ? | 10,11 m |
| Minimum room width ? | 8,95 m |
| Minimum room height ? | 5,39 m |
Assembly & Foundations
| Assembly time ? | 8,0 h |
|---|---|
| Number of fitters ? | 2 persons |
| Lifting gear required | - |
| Foundations | 030x030x040 |
Product Downloads
Product description
Technical data

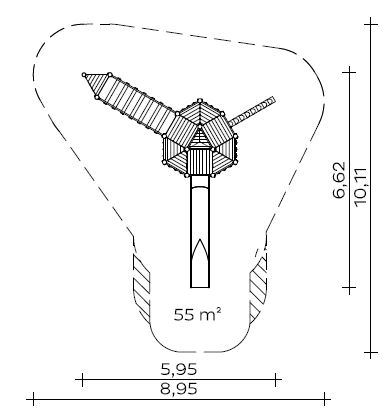

Floor area: 5.95 x 6.65 m
Minimum space: 8.95 x 10.15 m (55 m²)
Total height: 5.40 m
Platform height: 0.20 to 2.40 m
Seat height: 1.70 m
Weight: 100 kg heaviest individual part
955 kg in total
Support post
Standing posts made of robinia plywood, cylindrically milled, Ø 120 mm. Unprotected end grain surfaces are covered with non-detachable stainless steel post caps.
Stainless steel tubular base for the foundation and elevation of Robinia roundwood posts, Ø 120 mm, below the play level.
The upright, which is flush with the platform, is covered with a welded-on stainless steel disc.
Platform floor
Platform floor made of boards, 30 mm thick and circumferential squared timber beams 45 x 100 mm. The dried sawn timber made of robinia is planed, bevelled and free of rotting knots. Force-fit floor fastening using special stainless steel brackets with a continuous bolt connection.
Attachments
- Stainless steel tube railing, Ø 33.7 x 2 mm, torsion-resistant
- Step railing made of stainless steel tube, Ø 33.7 x 2 mm
- Wooden balustrade made of robinia, 125 x 30 mm, fastened between stainless steel tubes Ø 33.7 x 2 mm
- Wobbly staircase on tandem crossbeam, walkway posts made of robinia Ø 100 mm, fine-linked stainless steel railing chains
- Climbing post made of stainless steel tube Ø 159 x 3 mm, tread surface made of profiled stainless steel sheet
- Bench made of highly weather-resistant HPL laminate, 20 mm
- Climbing rungs made of stainless steel tube, Ø 38 mm, torsion-resistant
- Tower roof, pitch 80°, made of highly weather-resistant HPL laminate, 13 mm, with wind chimes
- Attachable trough slide, 0.60 m wide, one-piece stainless steel construction, sheet thickness: 2.5 mm, with roll-off protection above the single-seat section
For your planning, please note that stainless steel slides should be orientated to the north-east or in the partial shade of trees due to the possible heating of the slide surface.
Metal components: Stainless steel. The robinia wood is treated with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment also reduces cracking. The modular add-on parts transfer their forces directly to the uprights via a special adapter fastening. The screw connections are secured against unauthorised loosening by cover caps.
Foundations (client-provided)
1 piece 0.30 x 0.30 x 0.40 m
15 pcs. 0.40 x 0.40 x 0.40 m
1 piece 0.40 x 0.75 x 0.40 m
Concrete volume: 1.12 m³
Assembly time
2 fitters 8 hours each
(without foundation)
Free fall height
1,80 m
Suitable for
Children aged 4 and over,
public playgrounds etc.
Physical activities
Item number: 023131703
