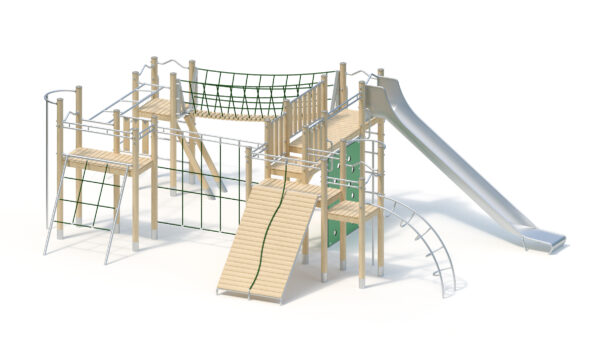

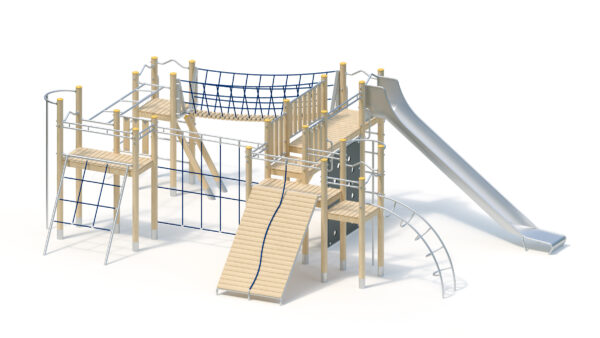

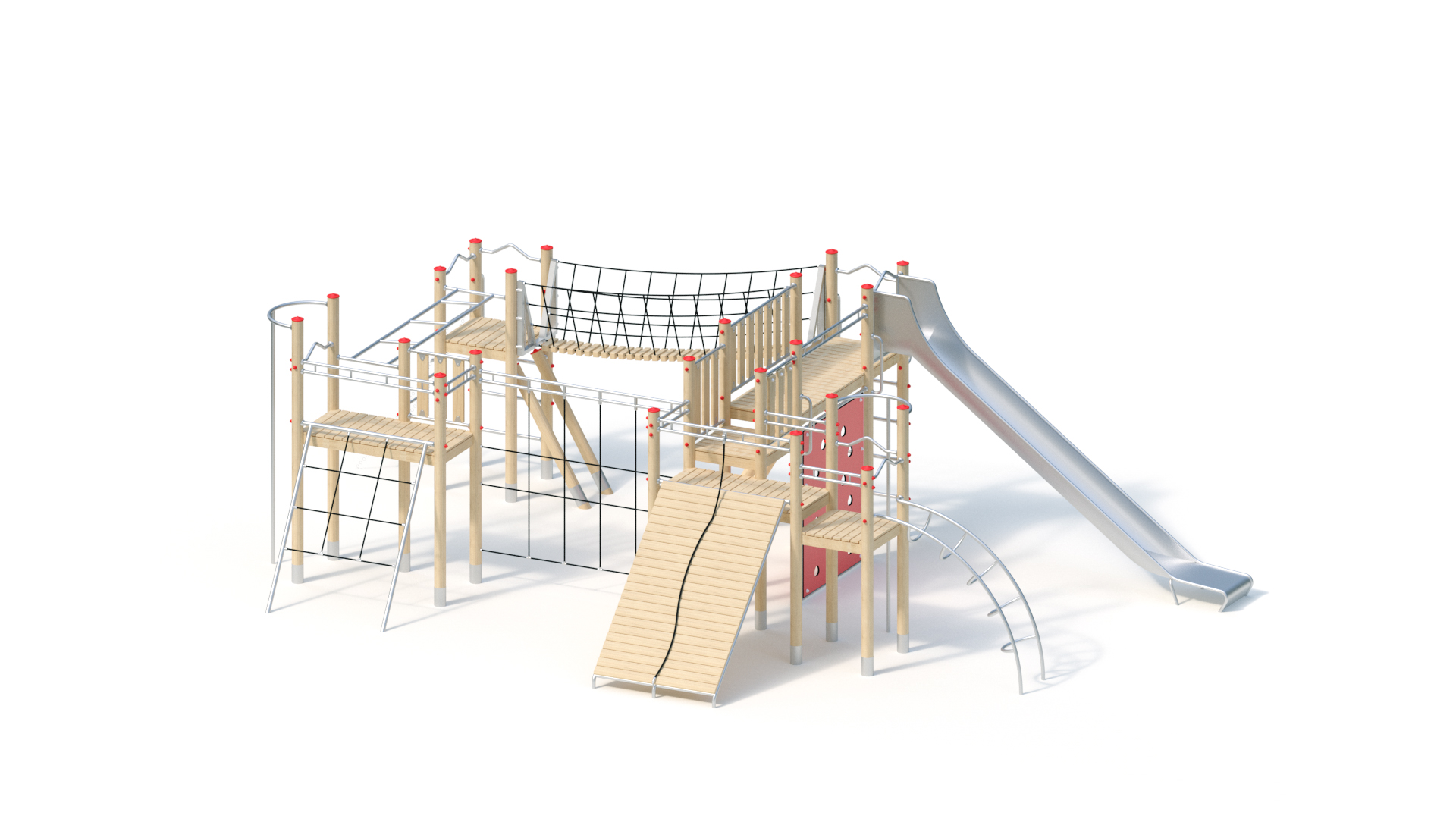

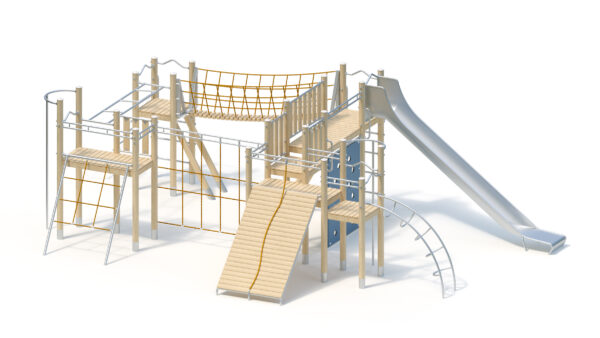

Technical data
Appliance height: 2.94 m
Floor area: 5.80 x 9.85 m
Minimum space: 9.01 x 13.35 m
Free fall height: 2.72 m
Impact area: 96 m²
Platform heights: 1.40/1.60/1.80/2.00 m
Slide attachment height: 2.00 m
Seat height: 2.10 m
Slide inclination: 36°
Slide width: 0.60 m
Sliding plate thickness: 2.5 mm
Weight: 170 kg heaviest individual part
1630 kg total

Support post
Standing posts made of robinia plywood, cylindrically milled, Ø 120 mm. Unprotected end grain surfaces are covered with non-detachable stainless steel post caps. Tubular base made of stainless steel for the foundation and elevation of robinia roundwood posts, Ø 120 mm, below the play level.

Platform floor
Platform floor made of boards, 30 mm thick and circumferential squared timber beams 45 x 100 mm. The dried sawn timber made of robinia is planed, bevelled and free of rotting knots. Force-fit floor fastening using special stainless steel brackets with continuous bolt fastening.

Attachments
- Tandem railing made of stainless steel tube, Ø 33.7 x 2 mm
- Railing bracket, anti-roll, made of stainless steel tube, Ø 33.7 x 2 mm
- Wooden balustrade made of robinia, 125 x 30 mm, fastened between stainless steel tubes Ø 33.7 x 2 mm
- Climbing wall made of highly weather-resistant HPL laminate (red), 20 mm, frame made of stainless steel tube, 12 climbing openings
- Vertical climbing pole made of stainless steel tube, Ø 38 mm
- Climbing net made of Hercules rope on stainless steel crossbar
- Boarding net made of Hercules rope on stainless steel crossbar
- Climbing rungs made of stainless steel tube, Ø 38 mm, torsion-resistant
- Vertical handle as climbing aid made of stainless steel tube, Ø 33.7 x 2 mm
- Chain ladder with stainless steel rungs
- Curved ladder made of stainless steel tube
- Steep wall made of robinia wood with tandem railing made of stainless steel tube and fixed Hercules climbing rope
- Footbridge: V-shaped net construction made of Hercules rope, walkway made of wooden rungs with approx. 40 mm clear rung spacing, attached to steel frame construction, parapet height approx. 0.75 m, support posts made of robinia plywood Ø 120 mm with tubular base
- Horizontal suspended ladder, 0.80 x 2.40 m, made of stainless steel tube, 38 x 2.5/33.7 x 2 mm
- Attachable trough slide, 0.60 m wide, one-piece stainless steel construction, sheet thickness: 2.5 mm, with roll-off protection above the single-seat section

For your planning, please note that stainless steel slides should be orientated to the north-east or in the partial shade of trees due to the possible heating of the slide surface.

Metal components: Stainless steel. The robinia wood is treated with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment also reduces cracking. The modular add-on parts transfer their forces directly to the uprights via a special adapter fastening. The screw connections are secured against unauthorised loosening by cover caps.

Foundations (client-provided)
22 units 0.40 x 0.40 x 0.40 m
2 pcs. 0.60 x 1.00 x 0.60 m
7 units 0.30 x 0.30 x 0.40 m
1 piece 0.40 x 0.75 x 0.40 m
Concrete volume: 2.5 m³

Assembly time
2 fitters 16 hours each
(without foundation)

Suitable for
Children aged 4 and over,
public playgrounds etc.,
Physical activities

Item number: 022680701
