The 3D model serves as a spatial view. The colours do not correspond to the selected variant.

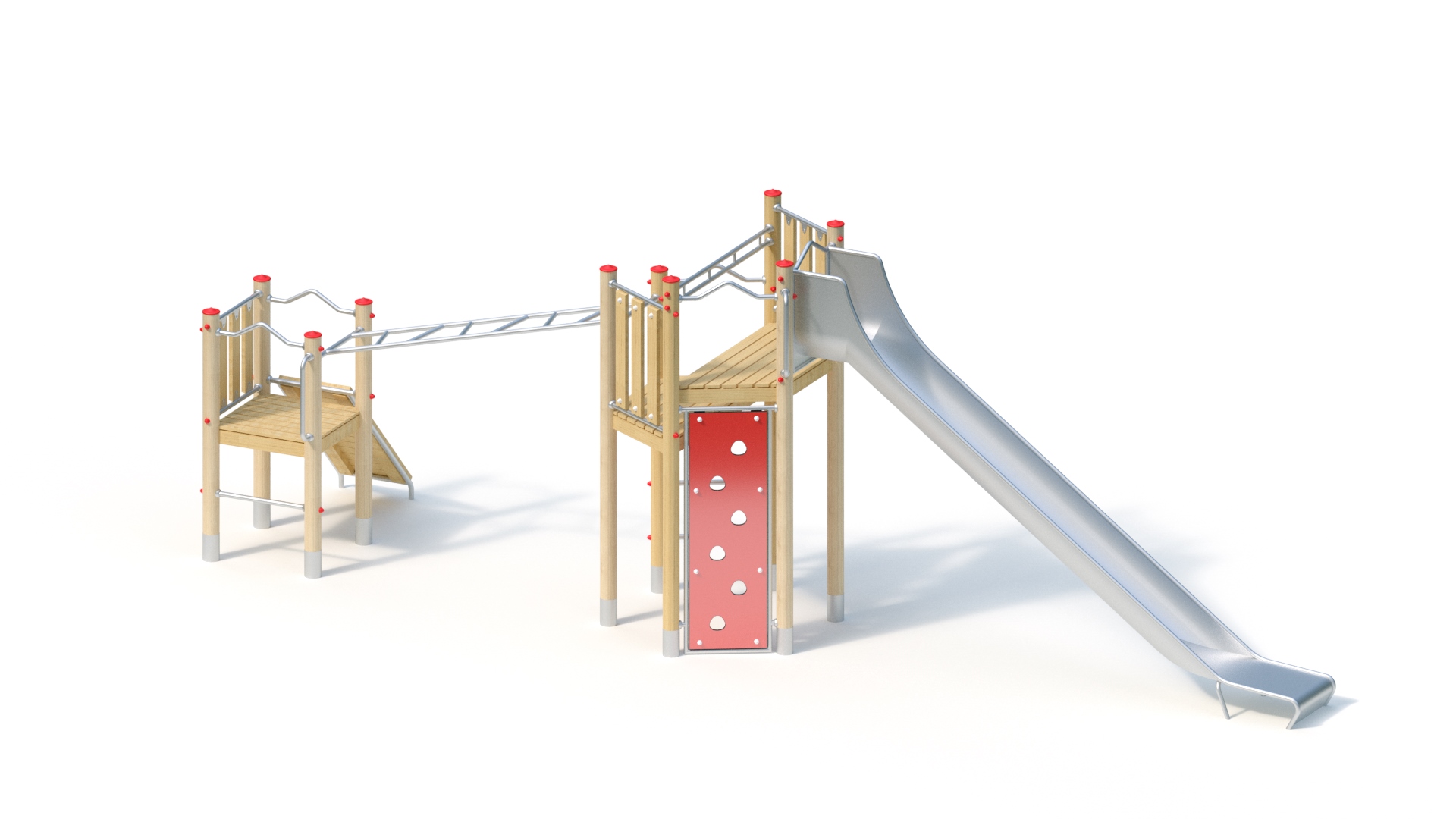

Play structure

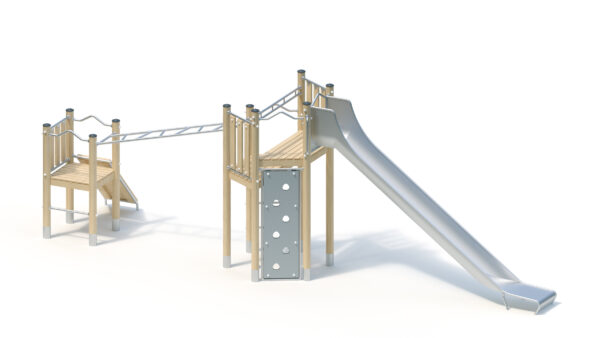

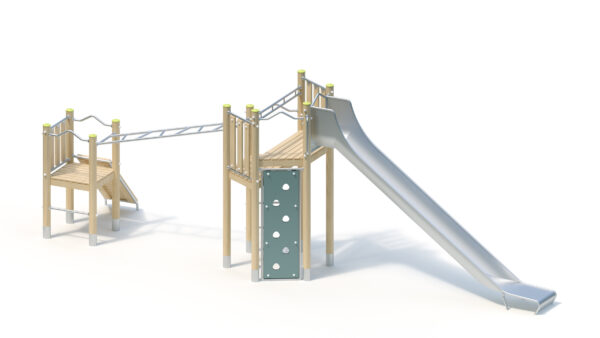

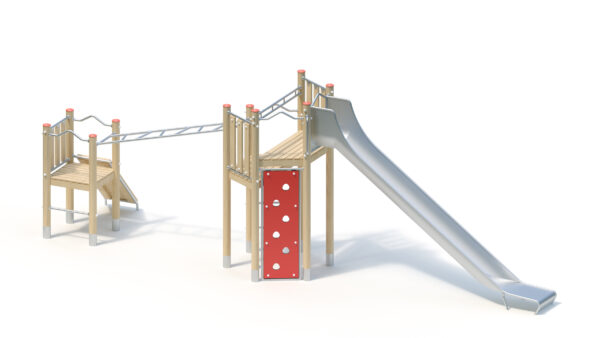

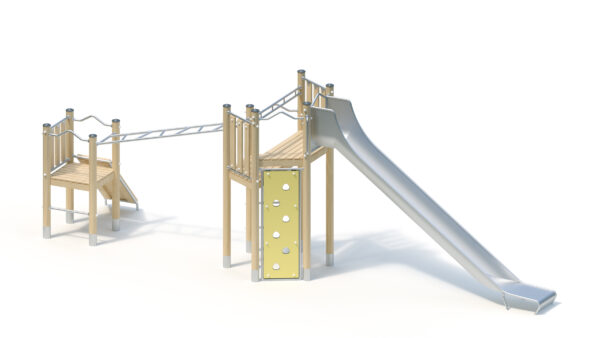

Select variant:
The most important information
| Age group ? | 4+ |
|---|---|
| Areas of application ? | Public playgrounds |
| Number of users ? | 14 persons |
| Activities ? | Physical activity, Climbing, Slide |
Technical data
| Device length ? | 8,57 m |
|---|---|
| Device width ? | 2,28 m |
| Device height ? | 3,00 m |
| Free fall height ? | 2,25 m |
| Platform heights | - |
| Total weight ? | 670.00 kg |
| Heaviest single item ? | 125.00 kg |
| Minimum room length ? | 12,06 m |
| Minimum room width ? | 5,63 m |
| Minimum room height ? | 3,60 m |
Assembly & Foundations
| Assembly time ? | 7,0 h |
|---|---|
| Number of fitters ? | 2 persons |
| Lifting gear required | - |
| Foundations | 040x040x040 |
Product Downloads
Product description
Technical data
Total height: 3.00 m
Floor area: 2.28 x 8.57 m

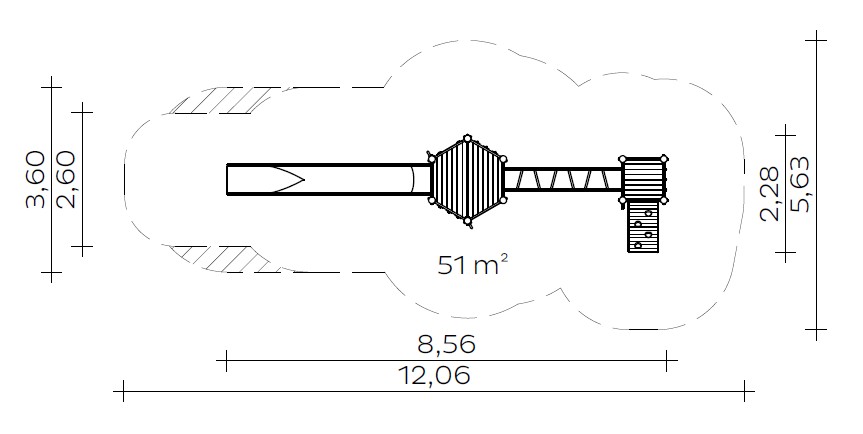

Minimum space: 5.63 x 12.06 m (51 m²)
Platform height: 1.00/1.60/2.00 m
Slide attachment height: 2.00 m
Seat height: 2.10 m
Slide inclination: 36°
Slide width: 0.60 m
Sliding plate thickness: 2.5 mm
Weight: 125 kg heaviest individual part
420 kg in total
Support post
Standing posts made of robinia plywood, cylindrically milled, Ø 120 mm. Unprotected end grain surfaces are covered with non-detachable stainless steel post caps.
Stainless steel tubular base for the foundation and elevation of Robinia roundwood posts, Ø 120 mm, below the play level.
Platform floor
Platform floor made of boards, 30 mm thick and circumferential squared timber beams 45 x 100 mm. The dried sawn timber made of robinia is planed, bevelled and free of rotting knots. Force-fit floor fastening using special stainless steel brackets with a continuous bolt connection.
Attachments
- Railing bracket, anti-roll, made of stainless steel tube, Ø 33.7 x 2 mm
- Tandem railing made of stainless steel tube, Ø 33.7 x 2 mm
- Wooden balustrade made of robinia, 125 x 30 mm, fastened between stainless steel tubes Ø 33.7 x 2 mm
- Climbing wall made of highly weather-resistant coloured HPL laminate, 20 mm, frame made of stainless steel tube, 6 climbing openings
- Climbing rungs made of stainless steel tube, Ø 38 mm, torsion-resistant
- Climbing wall made of robinia wood with attached climbing elements made of HPL laminate board
- Inclined suspended ladder, welded construction made of stainless steel tube 38 x 2.5/33.7 x 2 mm
- Vertical handle as climbing aid made of stainless steel tube, Ø 33.7 x 2 mm
- Attachable trough slide, 0.60 m wide, one-piece stainless steel construction, sheet thickness: 2.5 mm, with roll-off protection above the single-seat section
For your planning, please note that stainless steel slides should be orientated to the north-east or in the partial shade of trees due to the possible heating of the slide surface.
Metal components: Stainless steel. The robinia wood is treated with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment also reduces cracking. The modular add-on parts transfer their forces directly to the uprights via a special adapter fastening. The screw connections are secured against unauthorised loosening by cover caps.
Foundations (client-provided)
10 pcs. 0.40 x 0.40 x 0.40 m
2 pcs. 0.30 x 0.30 x 0.40 m
1 piece 0.40 x 0.75 x 0.40 m
Concrete volume: 0.90 m³
Assembly time
2 fitters 7 hours each
(without foundation)
Free fall height
2,25 m
Suitable for
Children aged 4 and over,
public playgrounds etc.,
Physical activities
Item number: 022530702
