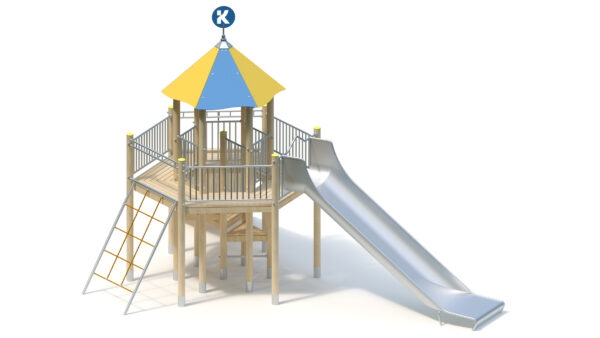

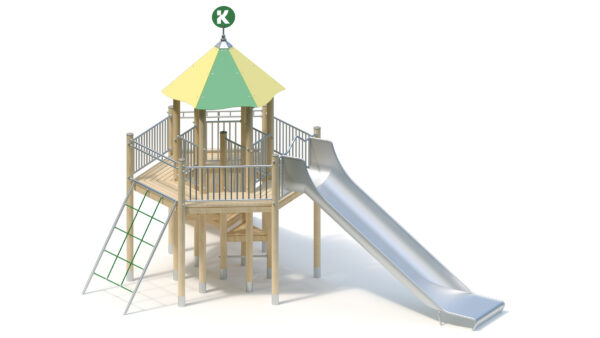

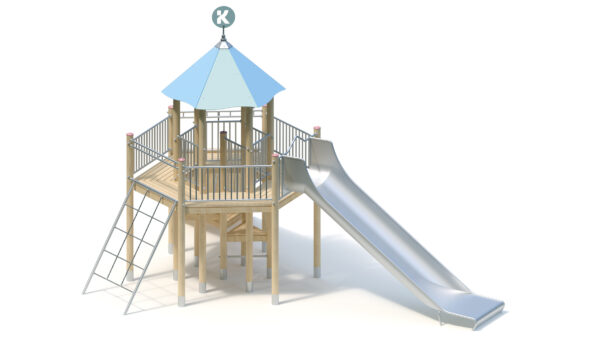

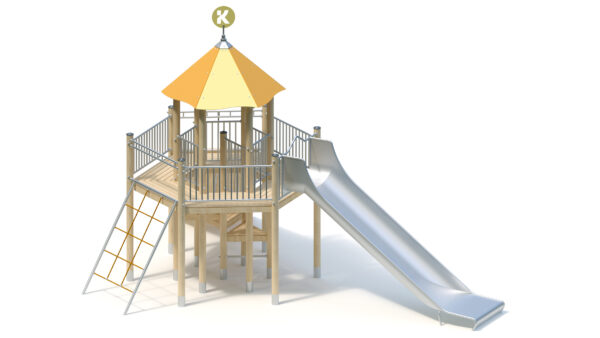

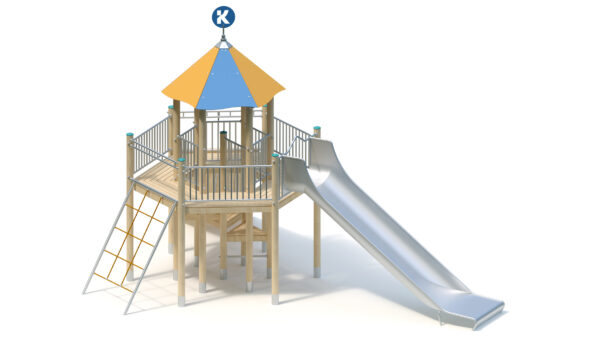

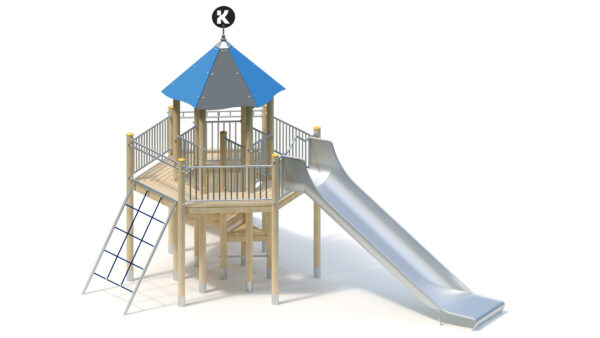

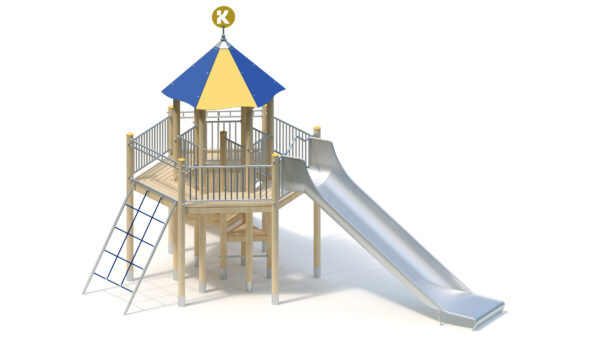

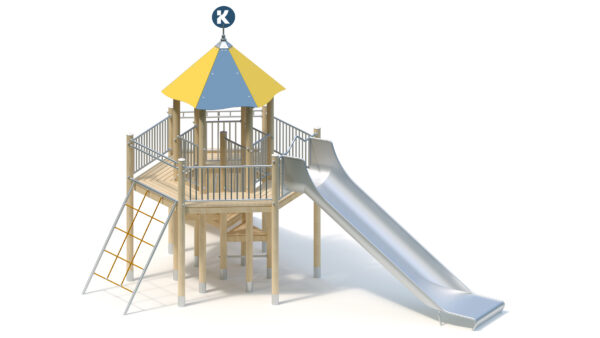

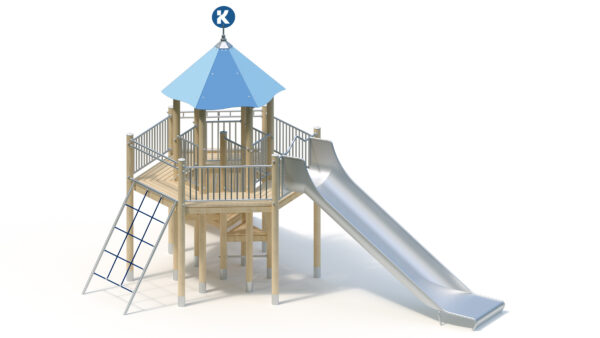

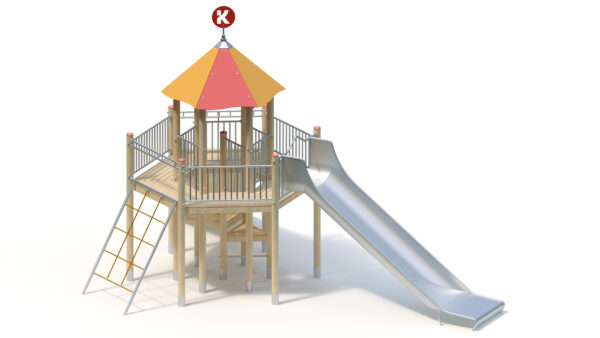

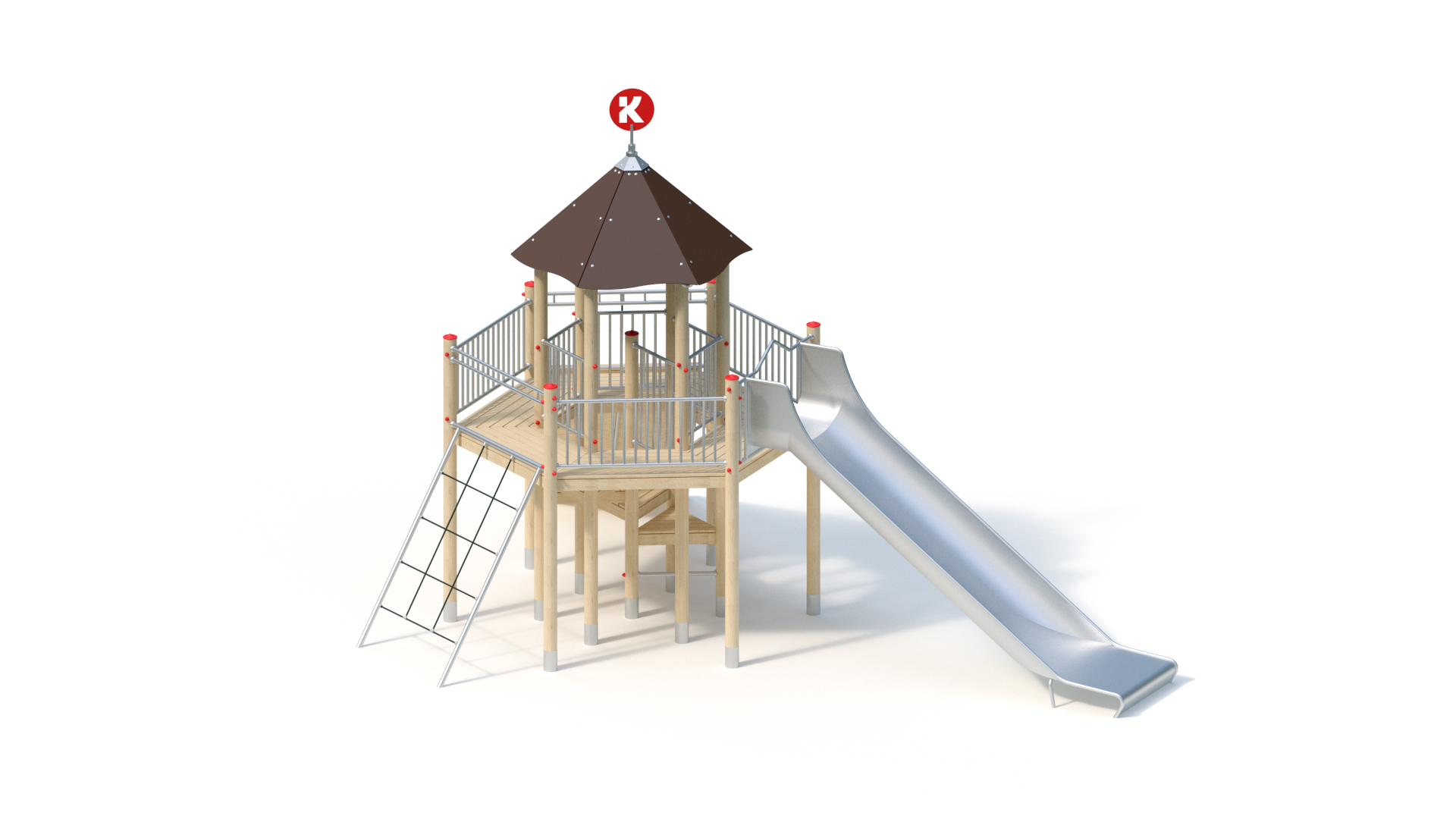

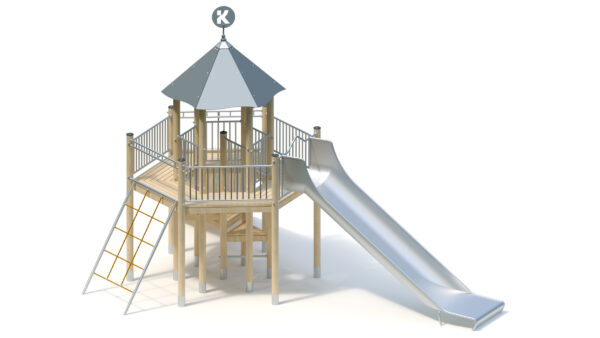

Climbing combination
Variante wählen:
The most important information
| Altersgruppe ? | 4+ |
|---|---|
| Einsatzgebiete ? | Public playgrounds |
| Benutzeranzahl ? | 23 Personen |
| Aktivitäten ? | Physical activity, Climbing, Slide |
Technical data
| Mindestraumlänge ? | 10,80 m |
|---|---|
| Mindestraumbreite ? | 8,65 m |
| Mindestraumhöhe ? | 4,95 m |
| Gerätelänge ? | 7,30 m |
| Gerätebreite ? | 5,65 m |
| Gerätehöhe ? | 4,95 m |
| Freie Fallhöhe ? | 1,90 m |
| Podesthöhen | - |
| Gesamtgewicht ? | 1330.00 kg |
| Schwerstes Einzelteil ? | 190.00 kg |
Assembly & Foundations
| Montagezeit ? | 10,0 h |
|---|---|
| Monteuranzahl ? | 2 Personen |
| Hebezeug erforderlich | Ja |
| Fundamente | Quantity: 3 (0.3m x 0.3m x 0.4m) Quantity: 13 (0.4m x 0.4m x 0.4m) Quantity: 1x (1.25m x 0.4m x 0.4m) |
Product Downloads
Product description
Technical data
Total height: 4.95 m
Floor area: 5.65 x 7.30 m

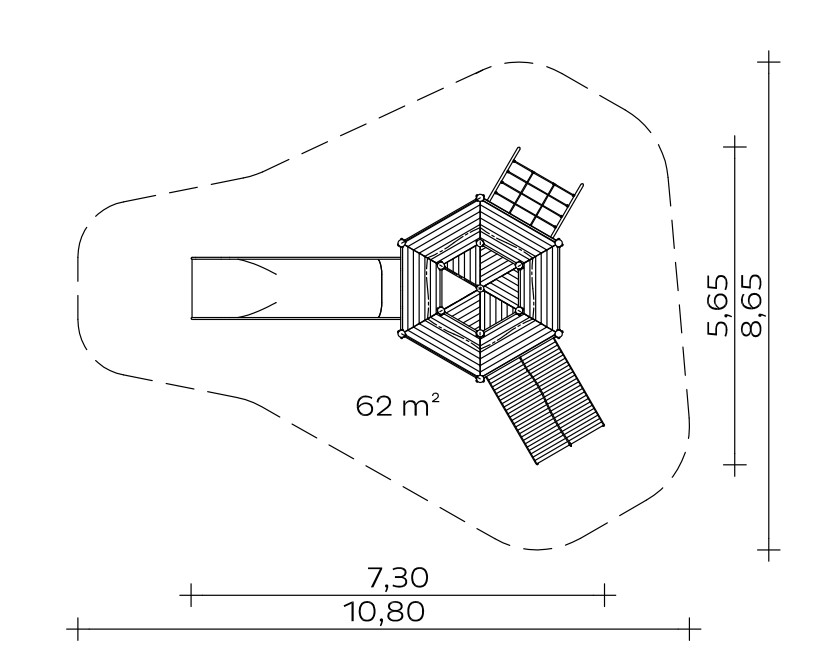

Minimum space: 8.65 x 10.80 (62 m²)
Platform height: 0.80 to 1.80 m
Seat height: 1.90 m
Weight: 190 kg heaviest individual part
1330 kg in total
Support post
Standing posts made of robinia plywood, cylindrically milled, Ø 120 mm. Unprotected end grain surfaces are covered with non-detachable stainless steel post caps.
Stainless steel tubular base for the foundation and elevation of Robinia roundwood posts, Ø 120 mm, below the play level.
Platform floor
Platform floor made of boards, 30 mm thick and circumferential squared timber beams 45 x 100 mm. The dried sawn timber made of robinia is planed, bevelled and free of rotting knots. Force-fit floor fastening using special stainless steel brackets with a continuous bolt connection.
Attachments
- Tandem railing made of stainless steel tube, Ø 33.7 x 2 mm
- Lattice balustrade made of stainless steel tube, Ø 33.7 x 2 / 25 x 2 mm, one-piece welded construction
- Climbing rung made of stainless steel tube, Ø 38 x 2.5 mm, twist-proof
- Steep wall made of robinia wood with tandem railing made of stainless steel tube and fixed Hercules climbing rope
- Boarding net made of Hercules rope on stainless steel crossbar
- Tent roof, pitch 45°, made of highly weather-resistant HPL laminate, 13 mm. Attached to roof frame made of stainless steel tube Ø 33.7 x 2 mm, with wind chimes
- Attachable wide slide, 1.10 m wide, one-piece stainless steel construction, sheet thickness: 2.5 mm, with anti-roll guard above the single-seat section
For your planning, please note that stainless steel slides should be orientated to the north-east or in the partial shade of trees due to the possible heating of the slide surface.
Metal components: Stainless steel. The robinia wood is treated with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment also reduces cracking. The modular add-on parts transfer their forces directly to the uprights via a special adapter fastening. The screw connections are secured against unauthorised loosening by cover caps.
Foundations (client-provided)
3 pcs. 0.30 x 0.30 x 0.40 m
13 units 0.40 x 0.40 x 0.40 m
1 piece 0.40 x 1.25 x 0.40 m
Concrete volume: 1.14 m³
Assembly time
2 fitters 10 hours each + hoist
(without foundation)
Free fall height
1,90 m
Suitable for
Children aged 4 and over,
public playgrounds etc.
Movement activities.
Item number: 022340702
