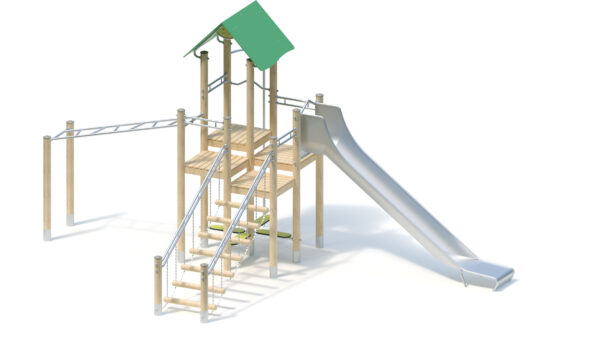

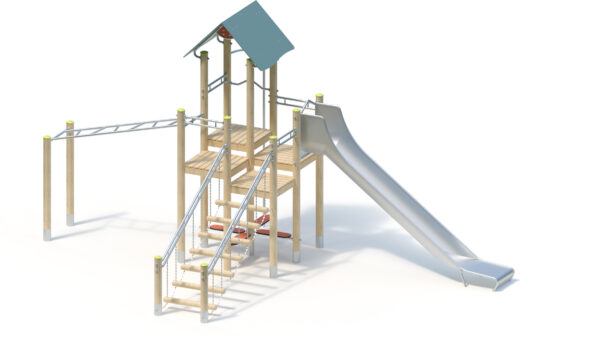

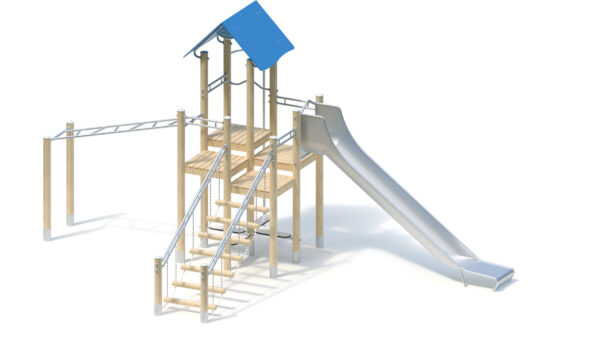

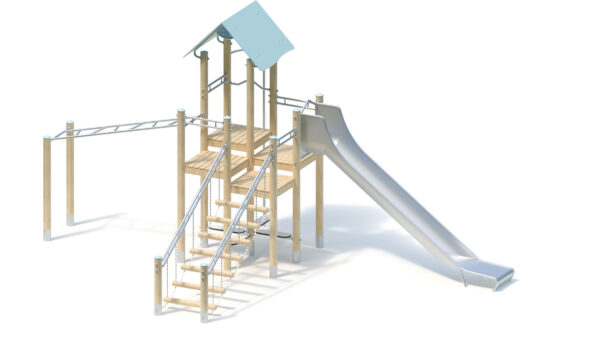

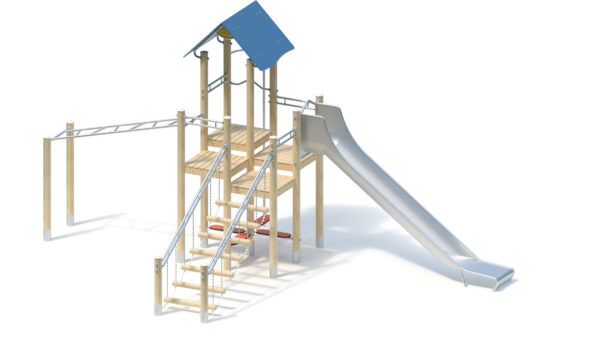

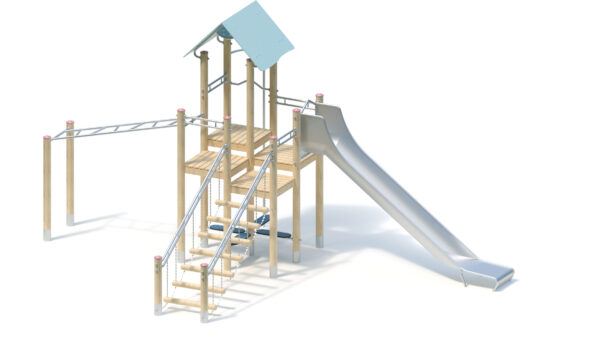

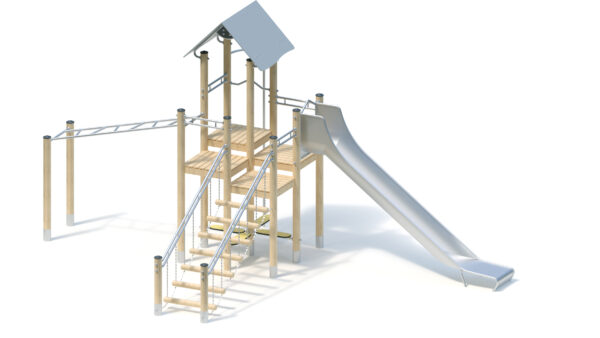

Climbing combination
Variante wählen:
The most important information
| Altersgruppe ? | 4+ |
|---|---|
| Einsatzgebiete ? | Public playgrounds |
| Benutzeranzahl ? | 21 Personen |
| Aktivitäten ? | Physical activity, Climbing, Slide |
Technical data
| Gerätelänge ? | 7,45 m |
|---|---|
| Gerätebreite ? | 4,60 m |
| Gerätehöhe ? | 3,85 m |
| Freie Fallhöhe ? | 2,25 m |
| Podesthöhen | - |
| Gesamtgewicht ? | 725.00 kg |
| Schwerstes Einzelteil ? | 100.00 kg |
| Mindestraumlänge ? | 11,00 m |
| Mindestraumbreite ? | 7,85 m |
| Mindestraumhöhe ? | 3,85 m |
Assembly & Foundations
| Montagezeit ? | 8,0 h |
|---|---|
| Monteuranzahl ? | 2 Personen |
| Hebezeug erforderlich | - |
| Fundamente | 030x030x040 |
Product Downloads
Product description
Technical data
Floor area: 4.60 x 7.45 m
Minimum space: 7.85 x 11.00 m (65 m²)
Total height: 3.85 m
Platform height: 1.40/1.60/1.80 m
Seat height: 1.70 m
Weight: 100 kg heaviest individual part
725 kg in total
Support post
Standing posts made of robinia plywood, cylindrically milled, Ø 120 mm. Unprotected end grain surfaces are covered with non-detachable stainless steel post caps.
Stainless steel tubular base for the foundation and elevation of Robinia roundwood posts, Ø 120 mm, below the play level.
Platform floor
Platform floor made of boards, 30 mm thick and circumferential squared timber beams 45 x 100 mm. The dried sawn timber made of robinia is planed, bevelled and free of rotting knots. Force-fit floor fastening using special stainless steel brackets with a continuous bolt connection.
Attachments
- Railing bracket, anti-roll, made of stainless steel tube, Ø 33.7 x 2 mm
- Tandem railing made of stainless steel tube, Ø 33.7 x 2 mm
- Wobbly steps on tandem crossbeam, walkway posts made of robinia Ø 10 cm. Fine-linked stainless steel railing chains
- Gable roof, pitch 45°, made of highly weather-resistant HPL laminate, 13 mm. Attachment to roof frame made of stainless steel tube Ø 33.7 x 2 mm
- Seat: made of coloured, highly weather-resistant HPL laminate, 20 mm
- Climbing pole made of stainless steel tube, Ø 38 mm
- Stainless steel tube hanging ladder
- Attachable trough slide, 0.60 m wide, one-piece stainless steel construction, sheet thickness: 2.5 mm, with roll-off protection above the single-seat section
For your planning, please note that stainless steel slides should be orientated to the north-east or in the partial shade of trees due to the possible heating of the slide surface.
Metal components: Stainless steel. The robinia wood is treated with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment also reduces cracking. The modular add-on parts transfer their forces directly to the uprights via a special adapter fastening. The screw connections are secured against unauthorised loosening by cover caps.
Foundations (client-provided)
1 piece 0.30 x 0.30 x 0.40 m
13 units 0.40 x 0.40 x 0.40 m
1 piece 0.40 x 0.75 x 0.40 m
Concrete volume: 0.99 m³
Assembly time
2 fitters 8 hours each
(without foundation)
Free fall height
2,25 m
Suitable for
Children aged 4 and over,
public playgrounds etc.
Movement activities.
Item number: 022330703
