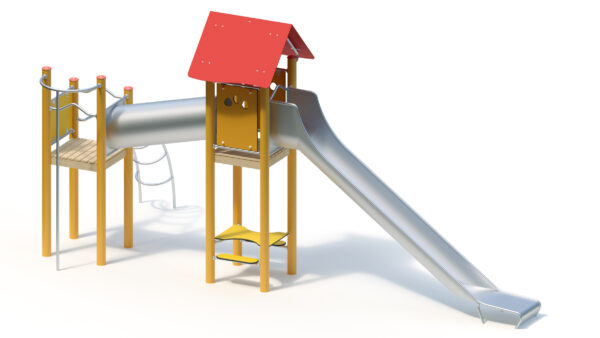

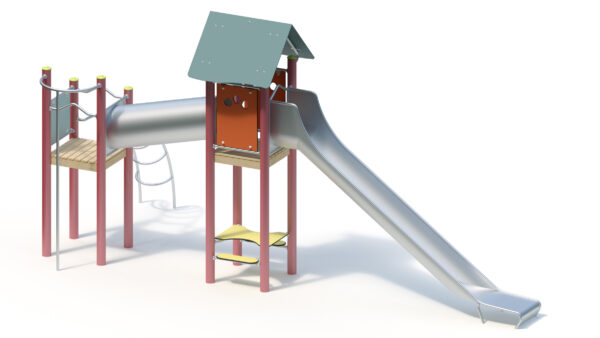

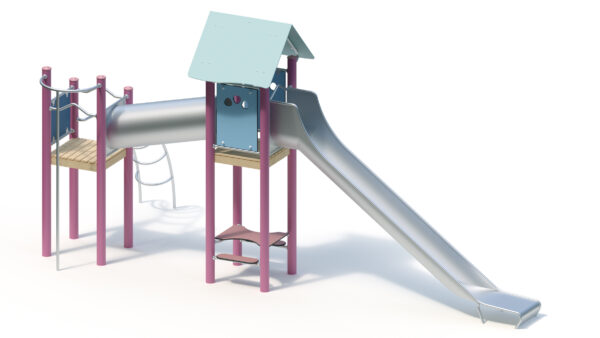

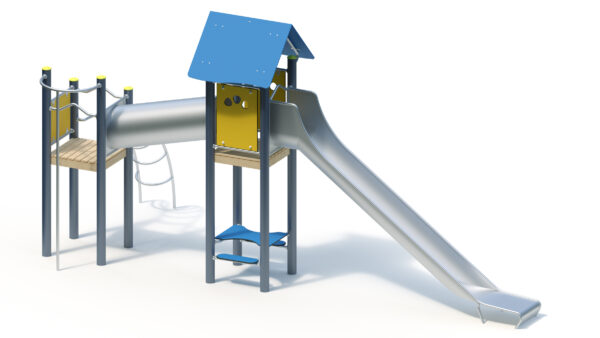

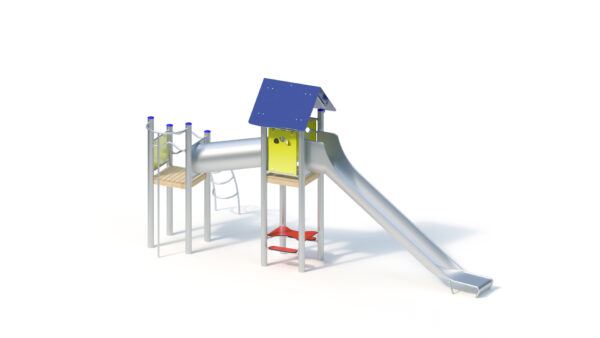

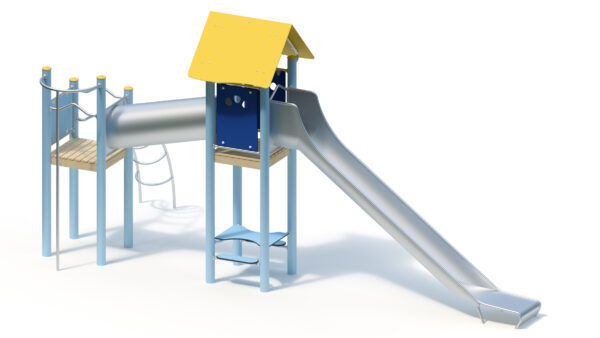

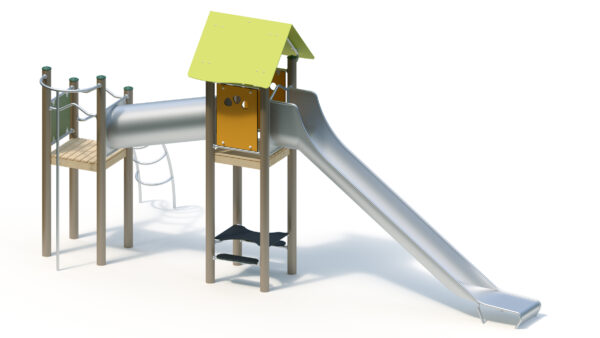

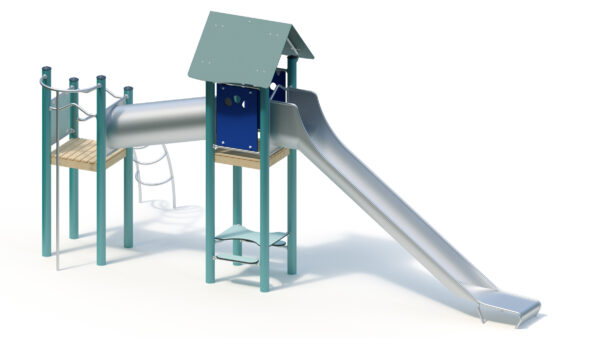

Das 3D-Modell dient der räumlichen Ansicht. Die Farben entsprechen nicht der gewählten Variante.

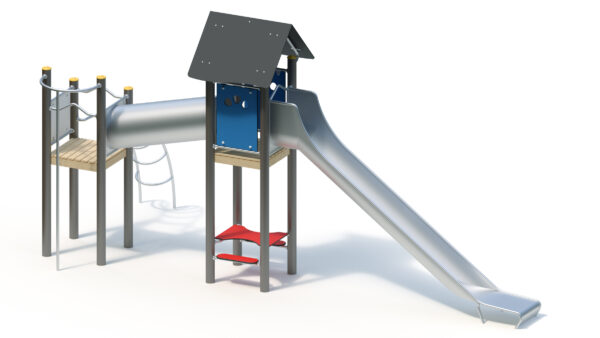

Play structure
Variante wählen:
The most important information
| Altersgruppe ? | 4+ |
|---|---|
| Einsatzgebiete ? | Public playgrounds |
| Benutzeranzahl ? | 13 Personen |
| Aktivitäten ? | Physical activity, Climbing, Slide |
Technical data
| Mindestraumlänge ? | 10,50 m |
|---|---|
| Mindestraumbreite ? | 6,00 m |
| Mindestraumhöhe ? | 3,65 m |
| Gerätelänge ? | 7,00 m |
| Gerätebreite ? | 2,95 m |
| Gerätehöhe ? | 3,65 m |
| Freie Fallhöhe ? | 2,50 m |
| Podesthöhen | - |
| Gesamtgewicht ? | 610.00 kg |
| Schwerstes Einzelteil ? | 105.00 kg |
Assembly & Foundations
| Montagezeit ? | 6,0 h |
|---|---|
| Monteuranzahl ? | 2 Personen |
| Hebezeug erforderlich | - |
| Fundamente | Quantity: 3 (0.3m x 0.3m x 0.4m) Quantity: 8 (0.4m x 0.4m x 0.4m) Quantity: 1 (0.75m x 0.4m x 0.4m) |
Product Downloads
Product description
Technical data
Total height: 3.65 m
Floor area: 2.95 x 7.00 m

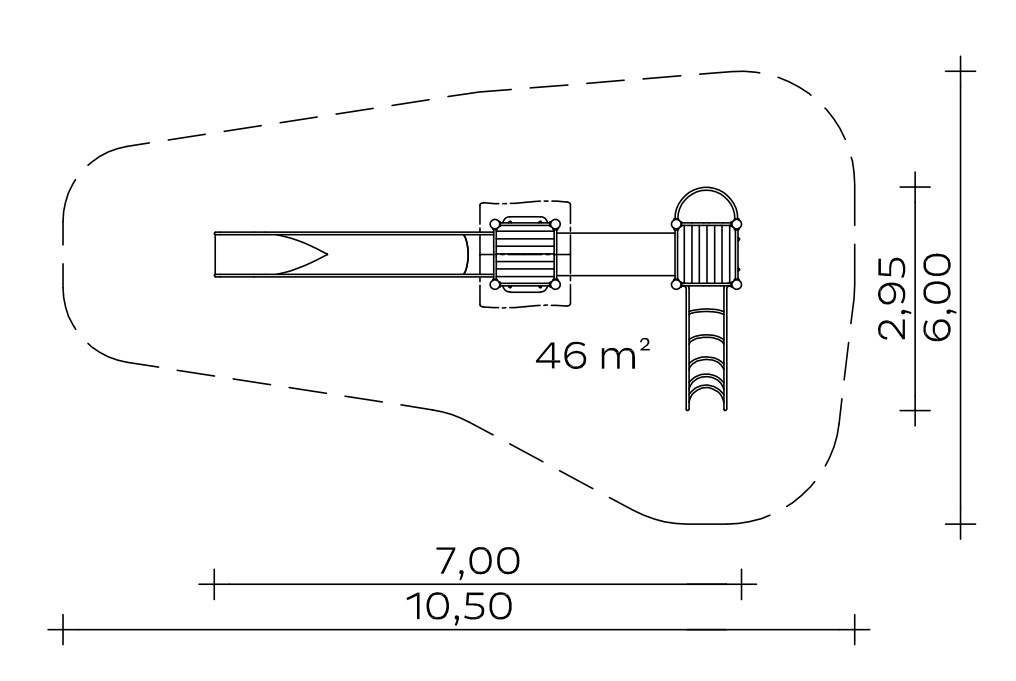

Minimum space: 6.00 x 10.50 m (46 m²)
Platform height: 1.40/1.80 m
Slide attachment height: 1.80 m
Seat height: 1.90 m
Weight: 105 kg heaviest individual part
610 kg in total
Support post
Posts made of stainless steel tube Ø 120 mm covered with non-detachable stainless steel post caps. Connection of the modular add-on parts to the uprights using solid and fully welded stainless steel weld-in sleeves without protruding connecting elements.
Platform floor
Platform floor made of boards, 30 mm thick and circumferential squared timber beams 45 x 100 mm. The dried sawn timber made of robinia is planed, bevelled and free of rotting knots. Force-fit floor fastening using special stainless steel brackets with a continuous bolt connection.
Attachments
- Curved ladder made of stainless steel tube
- Vertical climbing pole made of stainless steel tube, Ø 38 mm
- Railing bracket, anti-roll, made of stainless steel tube, Ø 33.7 x 2 mm
- Panelled balustrade made of highly weather-resistant HPL laminate, 20 mm, fastened between stainless steel tubes Ø 33.7 x 2 mm
- Crawl tunnel: Ø 56 cm, stainless steel sheet 2.5 mm
- Gable roof, pitch 45°, made of blue, highly weather-resistant HPL laminate, 13 mm. Attachment to roof frame made of stainless steel tube Ø 33.7 x 2 mm
- Seat top made of coloured, highly weather-resistant HPL laminate (red), 20 mm
- Table made of coloured, highly weather-resistant HPL laminate (red), 15 mm
- Attachable trough slide, 0.60 m wide, one-piece stainless steel construction, sheet thickness: 2.5 mm, with roll-off protection above the single-seat section
For your planning, please note that stainless steel slides should be orientated to the north-east or in the partial shade of trees due to the possible heating of the slide surface.
Metal components: Stainless steel. The robinia wood is treated with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment reduces cracking.
The modular add-on parts transfer their forces directly to the uprights via a special adapter fastening. The screw connections are secured against unauthorised loosening.
Foundations (client-provided)
3 pcs. 0.30 x 0.30 x 0.40 m
8 pcs. 0.40 x 0.40 x 0.40 m
1 piece 0.40 x 0.75 x 0.40 m
Concrete volume: 0.74 m³
Assembly time
2 fitters 6 hours each
(without foundation)
Free fall height
2,50 m
Suitable for
Children aged 4 and over,
public playgrounds etc.,
Physical activities
Item number: 022320502
