The 3D model serves as a spatial view. The colours do not correspond to the selected variant.

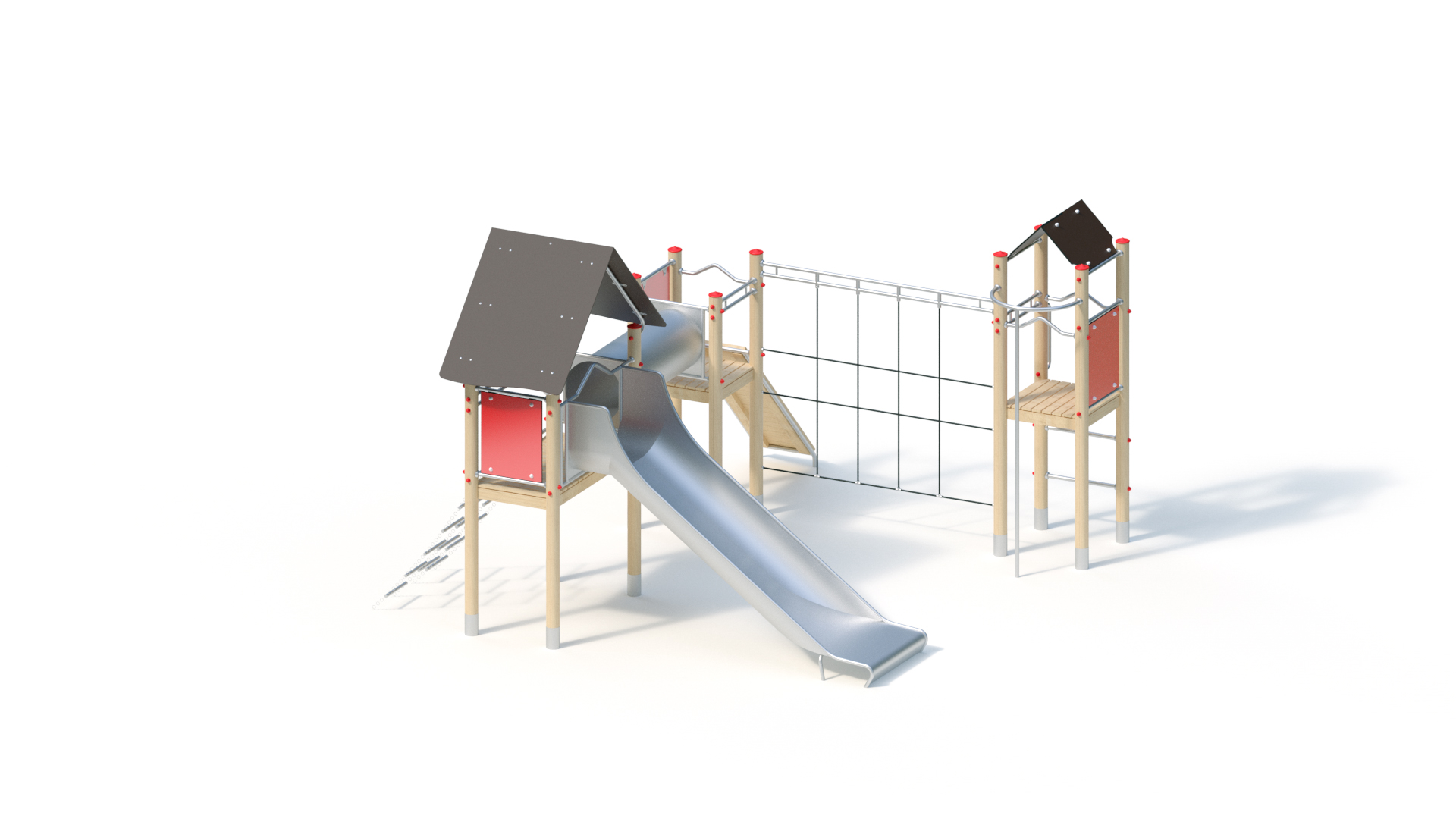

Play structure

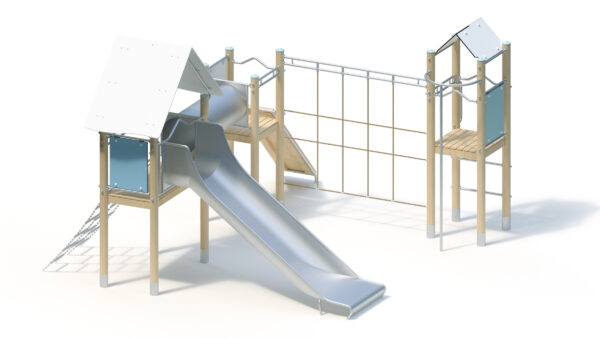

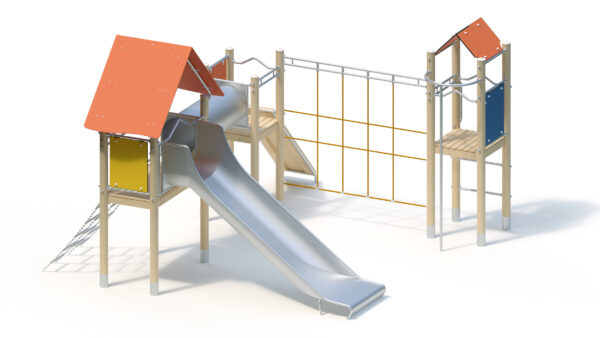

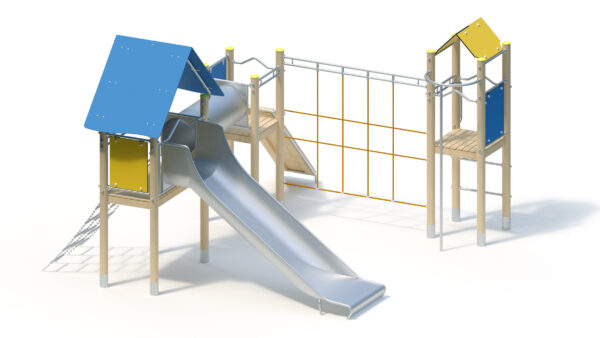

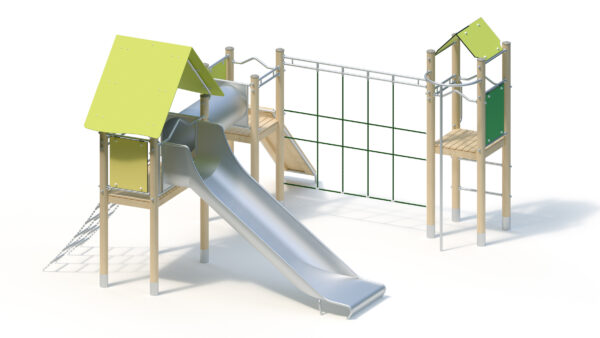

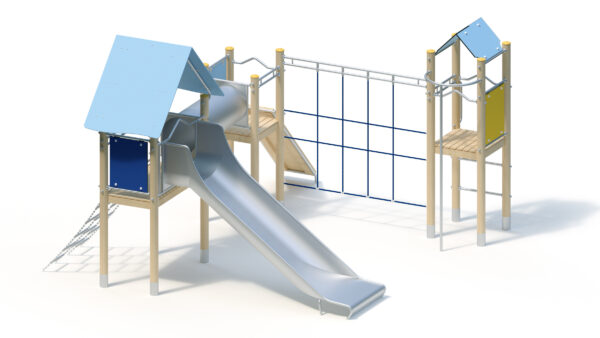

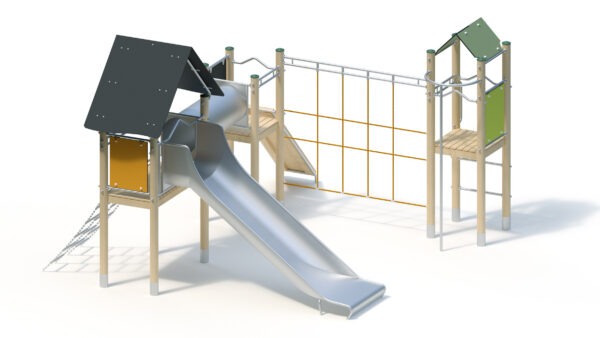

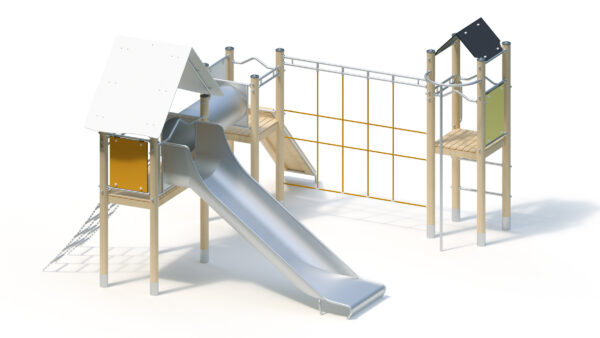

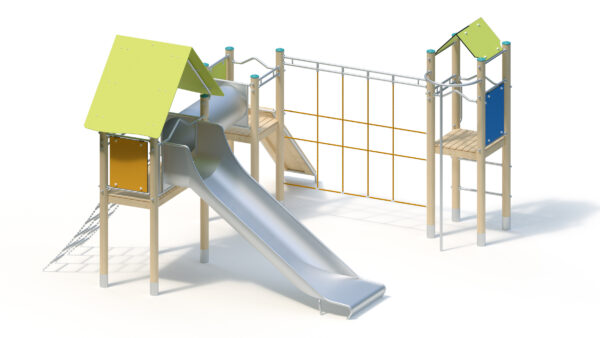

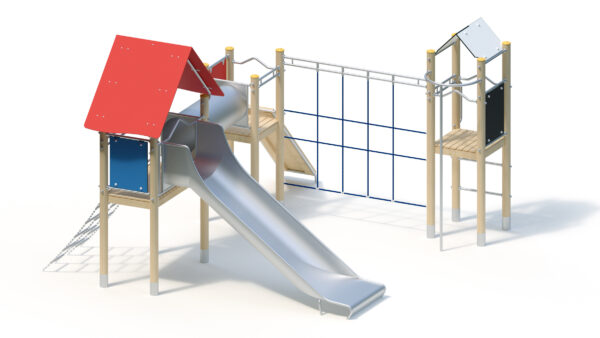

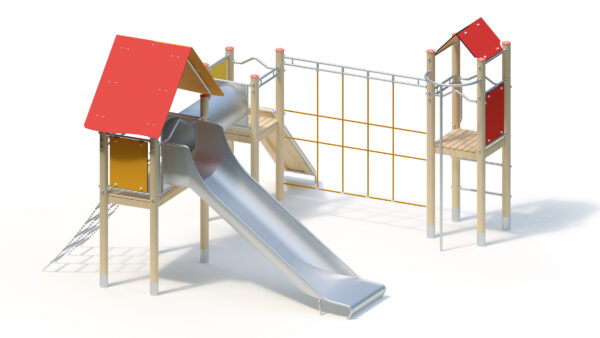

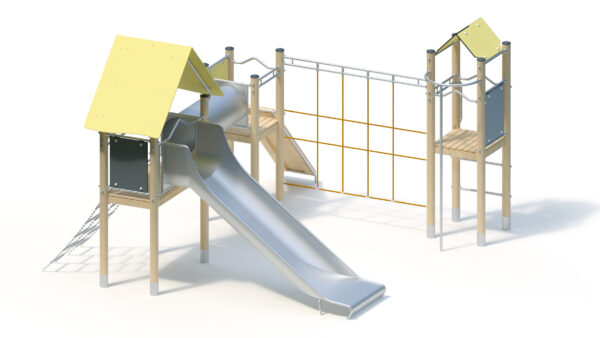

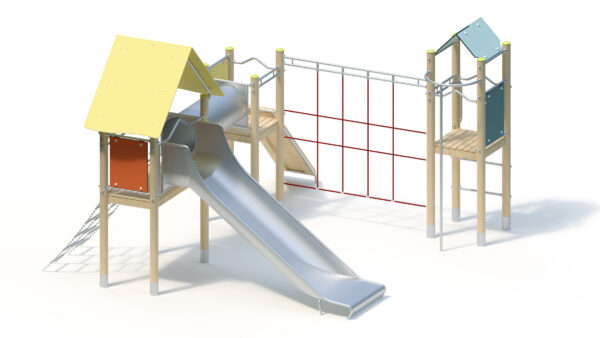

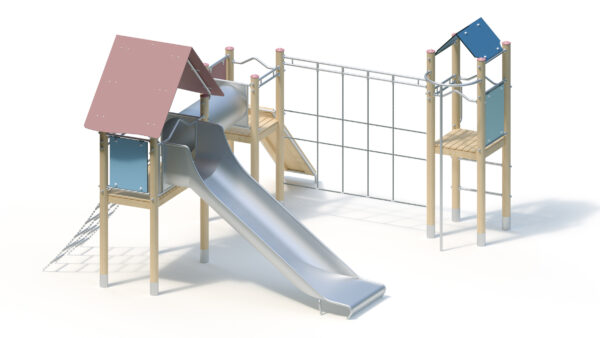

Select variant:
The most important information
| Age group ? | 4+ |
|---|---|
| Areas of application ? | Public playgrounds |
| Number of users ? | 20 persons |
| Activities ? | Physical activity, Climbing, Slide |
Technical data
| Device length ? | 5,50 m |
|---|---|
| Device width ? | 5,20 m |
| Device height ? | 3,55 m |
| Free fall height ? | 2,37 m |
| Platform heights | - |
| Total weight ? | 980.00 kg |
| Heaviest single item ? | 135.00 kg |
| Minimum room length ? | 8,50 m |
| Minimum room width ? | 8,45 m |
| Minimum room height ? | 3,55 m |
Assembly & Foundations
| Assembly time ? | 7,0 h |
|---|---|
| Number of fitters ? | 2 persons |
| Lifting gear required | - |
| Foundations | 030x030x040 |
Product Downloads
Product description
Technical data
Floor area: 5.18 x 5.48 m
Minimum space: 8.44 x 8.48 m (62 m²)
Total height: 3.51 m
Platform height: 1.40 m
Seat height: 1.50 m
Weight: 135 kg heaviest individual part
980 kg in total
Support post
Standing posts made of robinia plywood, cylindrically milled, Ø 120 mm. Unprotected end grain surfaces are covered with non-detachable stainless steel post caps.
Stainless steel tubular base for the foundation and elevation of Robinia roundwood posts, Ø 120 mm, below the play level.
Platform floor
Platform floor made of boards, 30 mm thick and circumferential squared timber beams 45 x 100 mm. The dried sawn timber made of robinia is planed, bevelled and free of rotting knots. Force-fit floor fastening using special stainless steel brackets with a continuous bolt connection.
Attachments
- Panelled balustrade made of highly weather-resistant HPL laminate, 13 mm, fastened between stainless steel tubes Ø 33.7 x 2 mm
- Tandem railing made of stainless steel tube, Ø 33.7 x 2 mm
- Railing bracket, anti-roll, made of stainless steel tube, Ø 33.7 x 2 mm
- Climbing rungs made of stainless steel tube, Ø 38 mm, torsion-resistant
- Vertical handle as climbing aid made of stainless steel tube, Ø 33.7 x 2 mm
- Climbing wall made of robinia wood with attached climbing elements made of HPL laminate, 20 mm
- Vertical climbing pole made of stainless steel tube, Ø 38 mm
- Climbing net made of Hercules rope on stainless steel crossbar
- Crawl tunnel: Ø 56 cm, stainless steel sheet 2.5 mm
- Chain ladder with stainless steel rungs
- Gable roof, pitch 45°, made of highly weather-resistant HPL laminate, 13 mm, fastened to roof frame made of stainless steel tube Ø 33.7 x 2 mm
- Gable roof, pitch 45°, made of highly weather-resistant HPL laminate, 13 mm, fastened to roof frame made of stainless steel tube Ø 33.7 x 2 mm
- Attachable wide slide, 1.10 m wide, one-piece stainless steel construction, sheet thickness: 2.5 mm, with anti-roll guard above the single-seat section
For your planning, please note that stainless steel slides should be orientated to the north-east or in the partial shade of trees due to the possible heating of the slide surface.
Metal components: Stainless steel. The robinia wood is treated with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment also reduces cracking. The modular add-on parts transfer their forces directly to the uprights via a special adapter fastening. The screw connections are secured against unauthorised loosening by cover caps.
Foundations (client-provided)
3 pcs. 0.30 x 0.30 x 0.40 m
12 pcs. 0.40 x 0.40 x 0.40 m
1 piece 0.40 x 1.25 x 0.40 m
Concrete volume: 1.08 m³
Assembly time
2 fitters 7 hours each
(without foundation)
Free fall height
2,37 m
Suitable for
Children aged 4 and over,
public playgrounds etc.
Physical activities
Item number: 021770702
This Kaiser & Kühne product enables:
