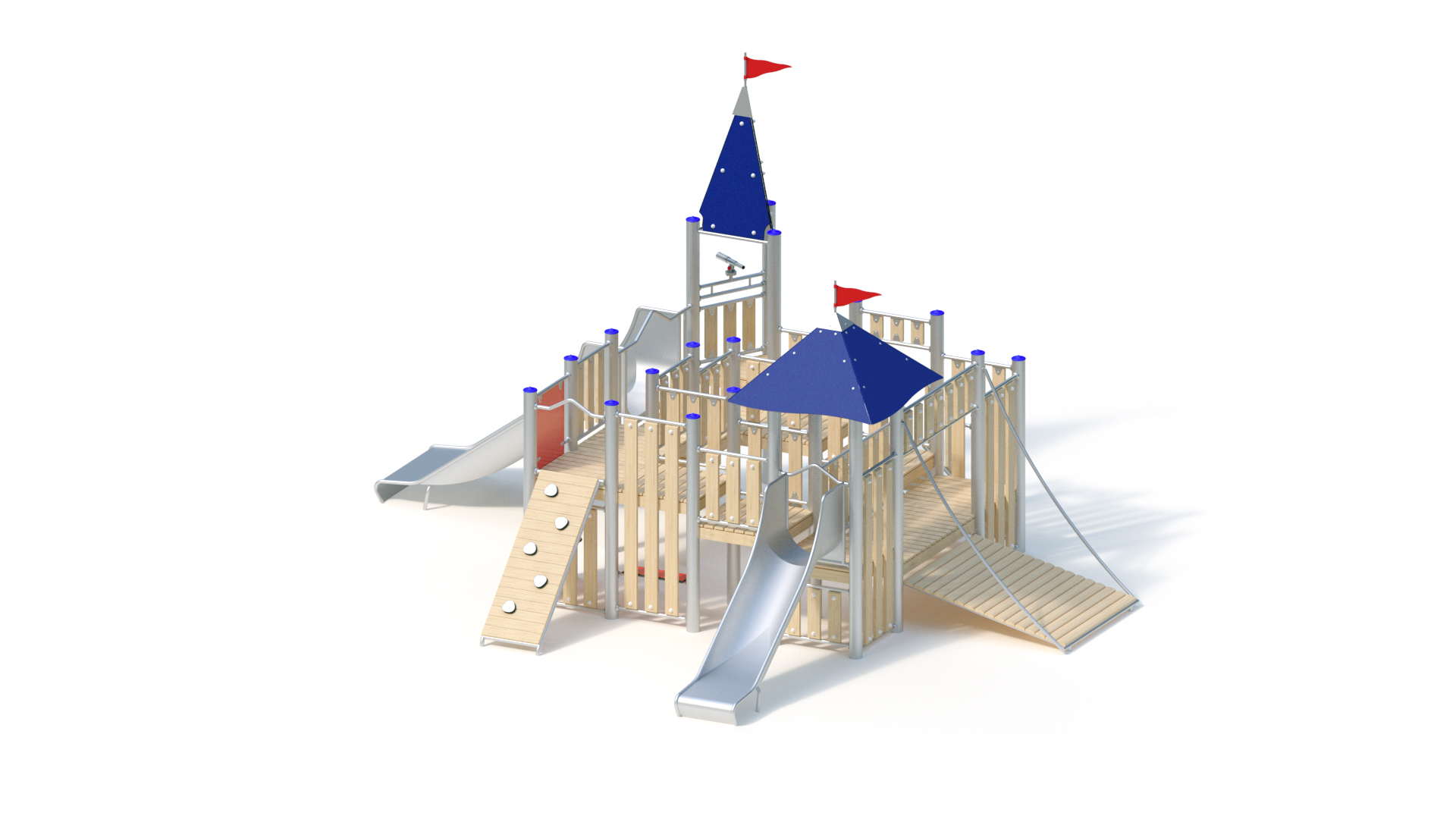

Castle

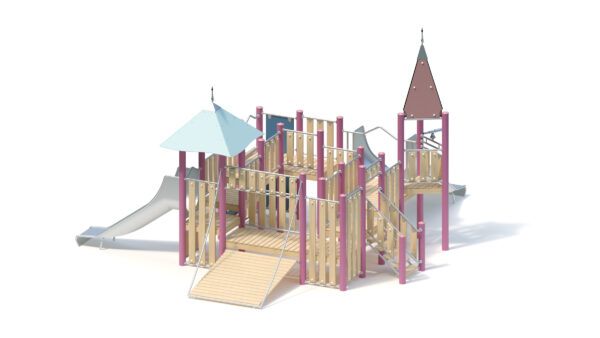

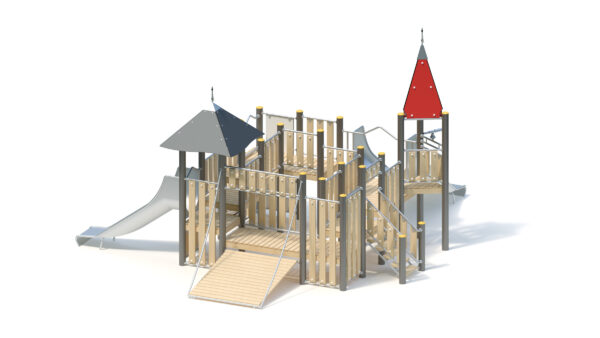

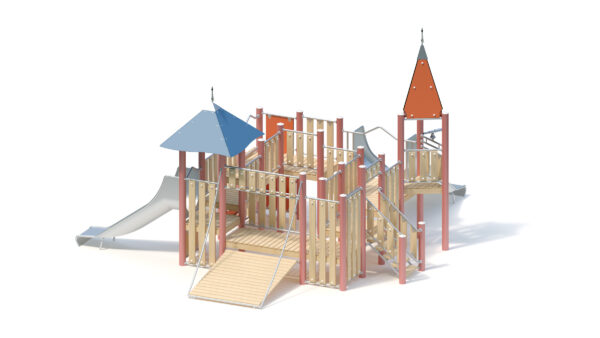

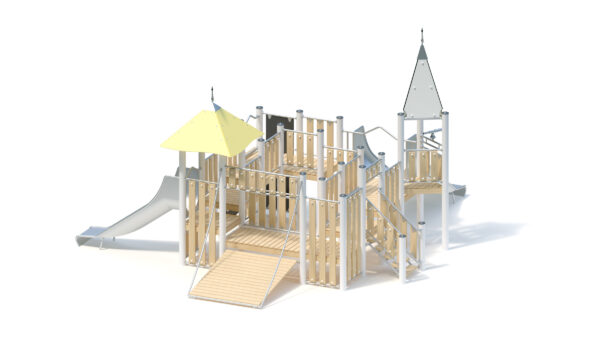

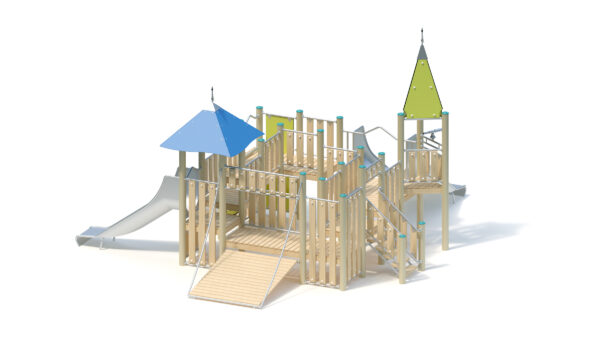

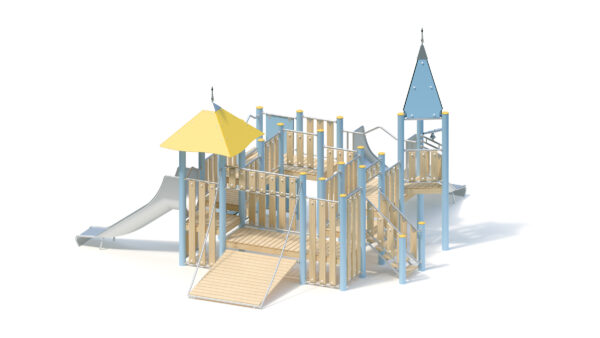

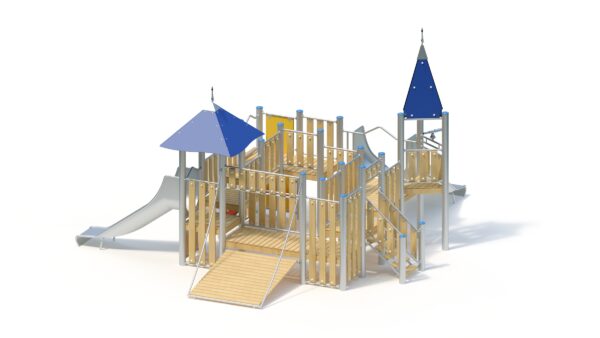

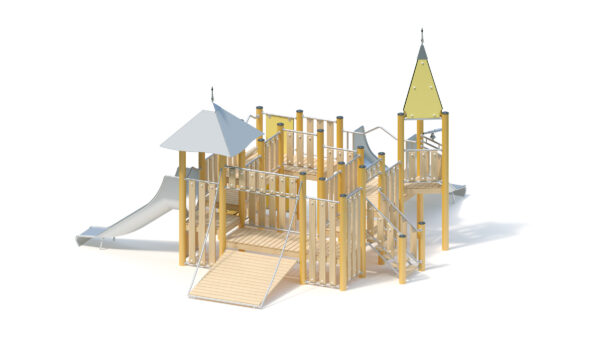

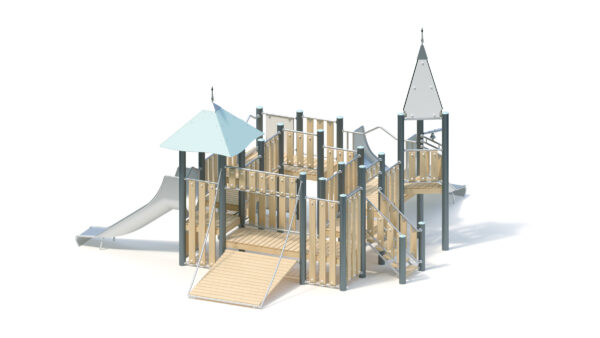

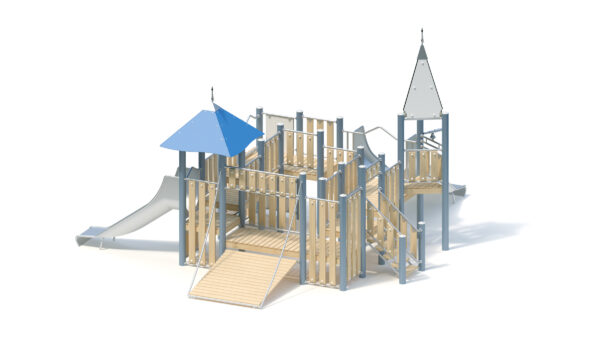

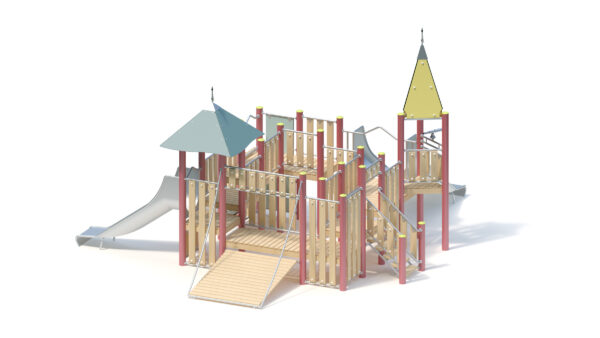

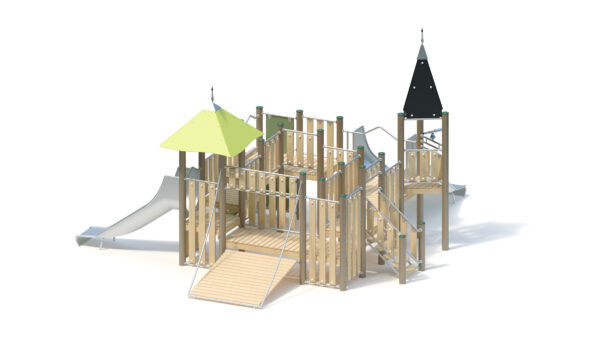

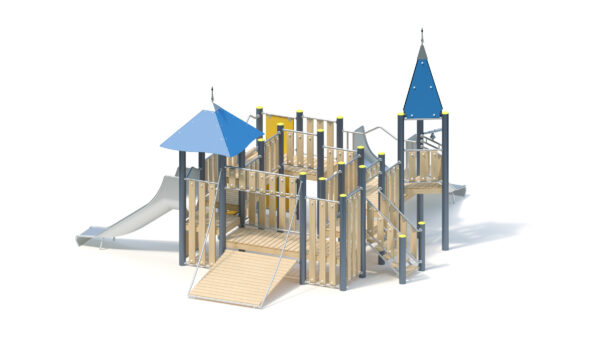

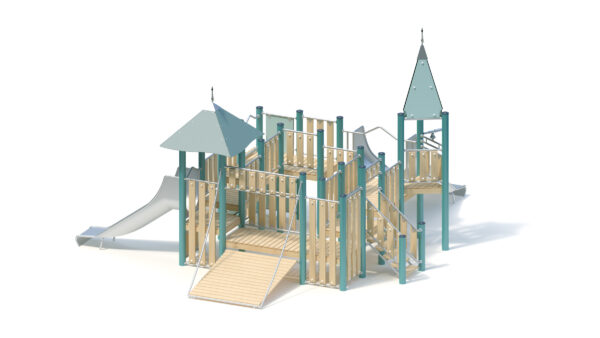

Select variant:
The most important information
| Age group ? | 2+ |
|---|---|
| Areas of application ? | Public playgrounds |
| Number of users ? | 32 persons |
| Activities ? | Physical activity, Climbing, Slide, Social activity |
Technical data
| Device length ? | 7,30 m |
|---|---|
| Device width ? | 6,30 m |
| Device height ? | 4,15 m |
| Free fall height ? | 1,95 m |
| Platform heights | - |
| Total weight ? | 1715.00 kg |
| Heaviest single item ? | 110.00 kg |
| Minimum room length ? | 10,80 m |
| Minimum room width ? | 9,80 m |
| Minimum room height ? | 4,15 m |
Assembly & Foundations
| Assembly time ? | 16,0 h |
|---|---|
| Number of fitters ? | 2 persons |
| Lifting gear required | - |
| Foundations | 030x030x040 |
Product Downloads
Product description
Technical data
Total height: 4.15 m

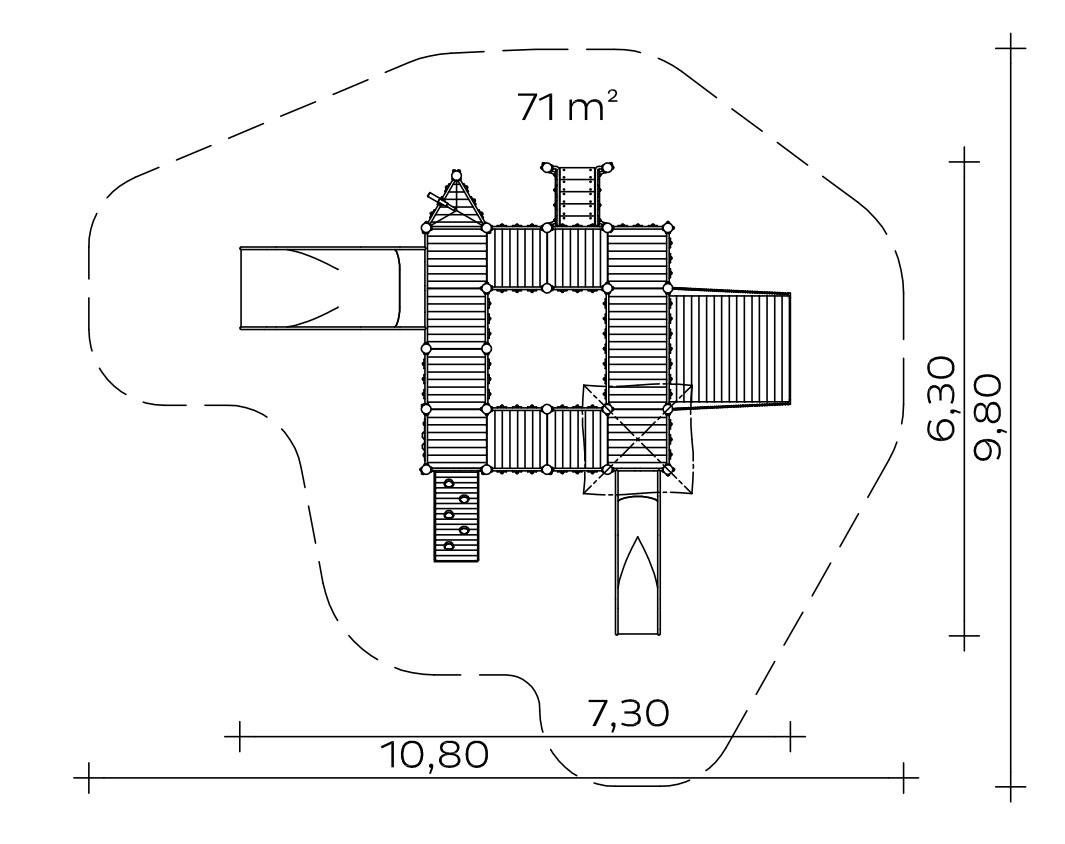

Floor area: 6.30 x 7.30 m
Minimum space: 9.70 x 10.80 m (71 m²)
Platform height: 0.60/0.80/1.00/1.20 m
Slide attachment height: 0.80/1.00 m
Seat height: 0.90/1.10 m
Weight: 110 kg heaviest individual part
1715 kg in total
Support post
Posts made of stainless steel tube Ø 120 mm covered with non-detachable stainless steel post caps. Connection of the modular add-on parts to the uprights using solid and fully welded stainless steel weld-in sleeves without protruding connecting elements.
Platform floor
Platform floor made of boards, 30 mm thick and circumferential squared timber beams 45 x 100 mm. The dried sawn timber made of robinia is planed, bevelled and free of rotting knots. Force-fit floor fastening using special stainless steel brackets with a continuous bolt connection.
Attachments
- Railing bracket, anti-roll, made of stainless steel tube, Ø 33.7 x 2 mm
- Wooden balustrade made of robinia, 125 x 30 mm, fastened between stainless steel tubes Ø 33.7 x 2 mm
- Ramp made of profiled boards, 95 x 30 mm
- Add-on staircase with steps made of robinia 170 x 45 mm, screwed onto stainless steel frame Ø 33.7 x 2 mm, step height 133 mm
- Staircase balustrade made of robinia, fastening between stainless steel tubes, Ø 33.7 x 2 mm
- Telescope horizontally rotatable 360°, vertically adjustable
- Climbing wall made of highly weather-resistant HPL laminate, 20 mm, fastened between stainless steel tubes, with free climbing elements attached on one side
- Climbing wall made of robinia wood with attached climbing elements made of HPL laminate, 20 mm
- Seat made of highly weather-resistant HPL laminate, 20 mm
- Tent roof, pitch 45°, made of highly weather-resistant HPL laminate, 13 mm, attached to roof frame made of stainless steel tube Ø 33.7 x 2 mm, with stainless steel bonnet and wind vane
- Tower roof, pitch 80°, made of highly weather-resistant HPL laminate, 13 mm, with stainless steel bonnet and wind vane
- Attachable trough slide, 0.60 m wide, one-piece stainless steel construction, sheet thickness: 2.5 mm, with roll-off protection above the single-seat section
- Attachable wide slide, 1.10 m wide, one-piece stainless steel construction, sheet thickness: 2.5 mm, with anti-roll guard above the single-seat section
For your planning, please note that stainless steel slides should be orientated to the north-east or in the partial shade of trees due to the possible heating of the slide surface.
The robinia wood is treated with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment also reduces cracking. The modular add-on parts transfer their forces directly to the uprights via a special adapter fastening. The screw connections are secured against unauthorised loosening.
Foundations (client-provided)
5 pcs. 0.30 x 0.30 x 0.40 m
24 pcs. 0.40 x 0.40 x 0.40 m
1 piece 0.40 x 0.75 x 0.40 m
1 piece 0.40 x 1.25 x 0.40 m
Concrete quantity: 2 m³
Assembly time
2 fitters 16 hours each
(without foundation)
Free fall height
1,95 m
Suitable for
Children from 2 years,
public playgrounds,
Physical activities
Item number: 021612500
