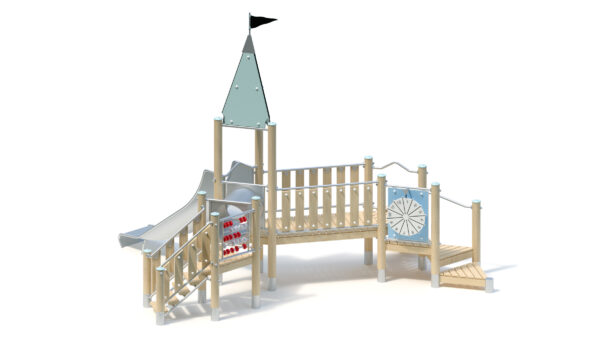

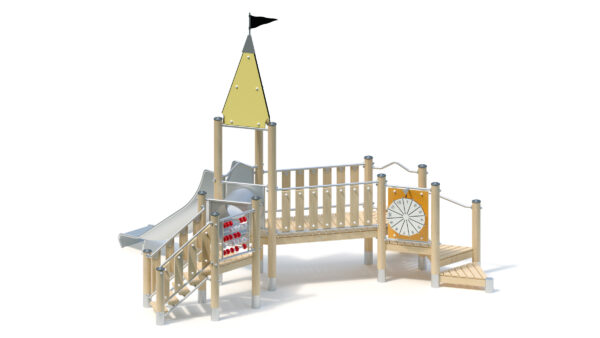

The 3D model is for spatial reference only. The colours may not match the selected variant.

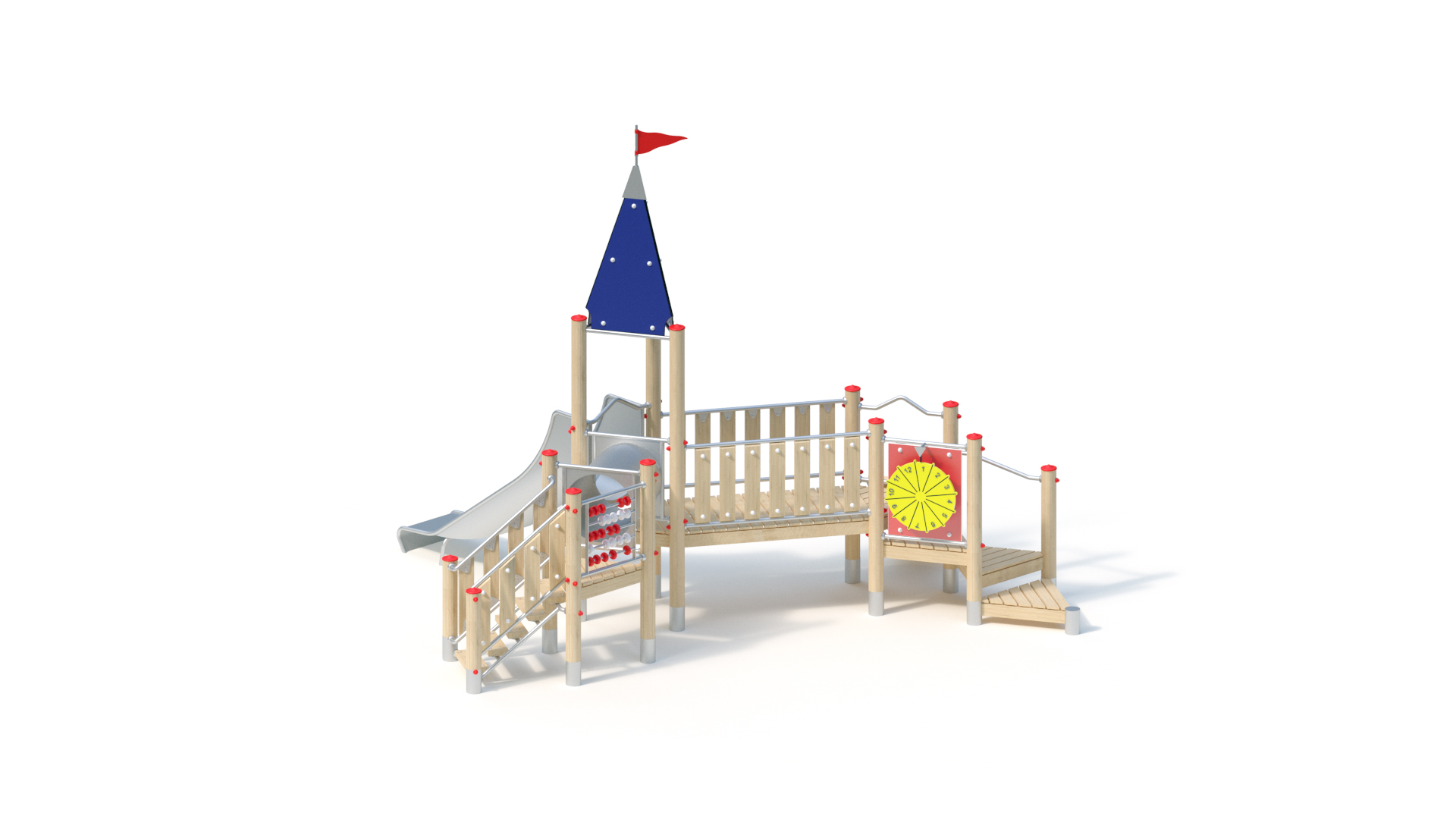

Play structure

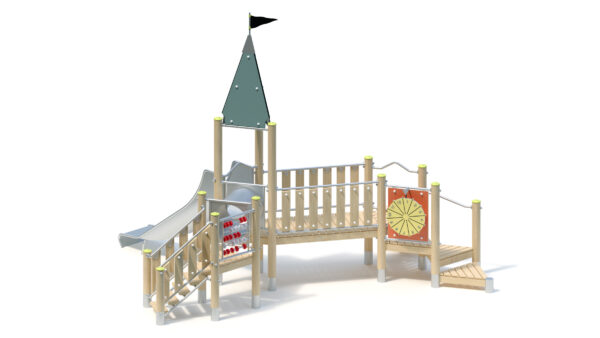

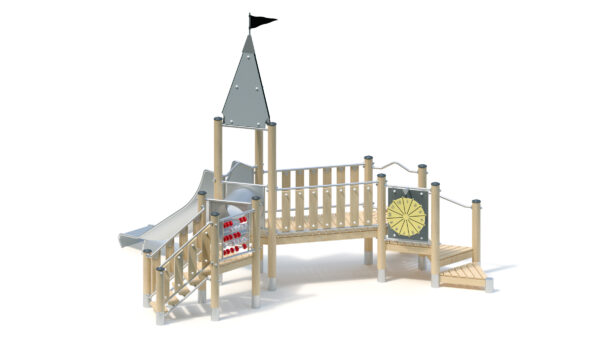

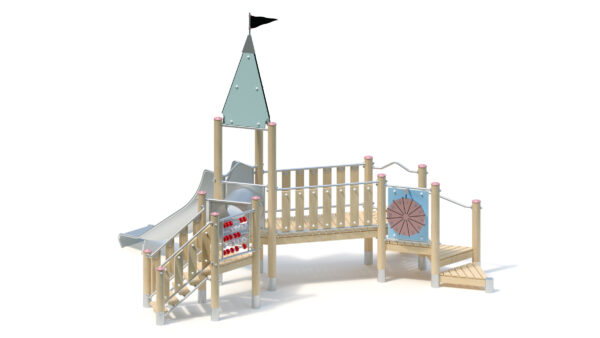

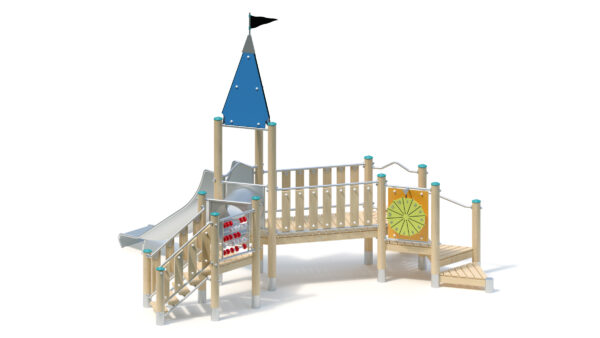

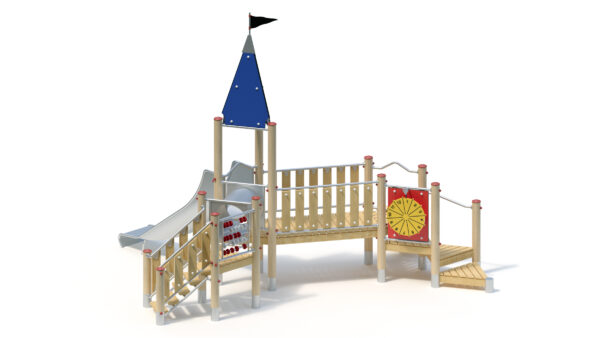

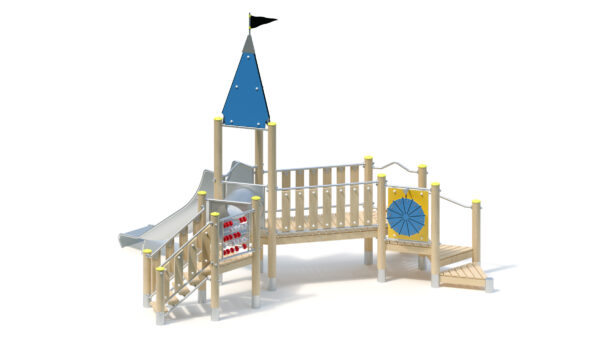

Select variant:
The most important information
| Age group ? | 2+ |
|---|---|
| Areas of use ? | Public playgrounds |
| Number of users ? | 15 people |
| Activities ? | Physical activity, Slide |
Technical data
| Minimum space length ? | 8,05 m |
|---|---|
| Minimum space width ? | 7,20 m |
| Minimum space height ? | 4,05 m |
| Equipment length ? | 5,05 m |
| Equipment width ? | 3,80 m |
| Equipment height ? | 4,05 m |
| Free-fall height ? | 1,55 m |
| Platform heights | - |
| Total weight ? | 820.00 kg |
| Heaviest single part ? | 70.00 kg |
Assembly & Foundations
| Assembly time ? | 8,0 h |
|---|---|
| Number of fitters ? | 2 people |
| Lifting equipment required | - |
| Foundations | Quantity: 14 (0.4m x 0.4m x 0.4m) Quantity: 2 (0.3m x 0.3m x 0.4m) Quantity: 1 (0.75m x 0.4m x 0.4m) |
Product Downloads
Product description
Technical data
Total height: 4.05 m
Floor area: 3.80 x 5.05 m

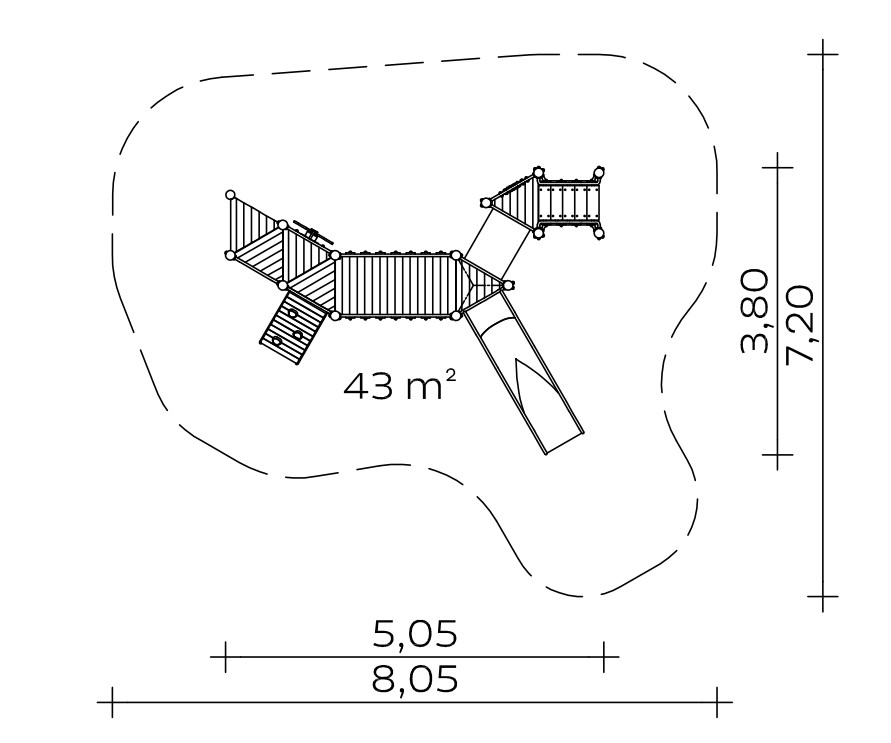

Minimum space: 7.20 x 8.05 m (43 m²)
Platform height: 0.20 to 0.80 m
Slide attachment height: 0.80 m
Slide seat height: 0.90 m
Weight: 70 kg heaviest individual part
820 kg in total
Support post
Standing posts made of robinia plywood, cylindrically milled, Ø 120 mm. Unprotected end grain surfaces are covered with non-detachable stainless steel post caps.
Stainless steel tubular base for the foundation and elevation of Robinia roundwood posts, Ø 120 mm, below the play level.
Platform floor
Platform floor made of boards, 30 mm thick and circumferential squared timber beams 45 x 100 mm. The dried sawn timber made of robinia is planed, bevelled and free of rotting knots. Force-fit floor fastening using special stainless steel brackets with a continuous bolt connection.
Attachments
- Railing bracket, anti-roll, made of stainless steel tube, Ø 33.7 x 2 mm
- Step railing, made of stainless steel tube, Ø 33.7 x 2 mm, for stepped platform floors
- Wooden balustrade made of robinia, 125 x 30 mm, fastened between stainless steel tubes Ø 33.7 x 2 mm
- Slide rule with polyamide elements, Ø 80 mm, on axles made of welded stainless steel tube, Ø 20 mm
- Wheel of fortune wall made of HPL laminate
- Add-on staircase with steps made of robinia 170 x 45 mm, screwed onto stainless steel frame Ø 33.7 x 2 mm, step height 133 mm
- Staircase balustrade made of robinia, fastening between stainless steel tubes, Ø 33.7 x 2 mm
- Climbing wall made of robinia wood with attached climbing elements made of HPL laminate board
- Crawl tunnel, Ø 56 cm, stainless steel sheet 2.5 mm
- Tower roof, pitch 80°, made of highly weather-resistant HPL laminate, 13 mm
- Tower flag, corrugated
- Attachable trough slide, 0.60 m wide, one-piece stainless steel construction, sheet thickness 2.5 mm, with anti-roll guard above the single-seat section
For your planning, please note that stainless steel slides should be orientated to the north-east or in the partial shade of trees due to the possible heating of the slide surface.
Metal components: Stainless steel. The robinia wood is treated with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment also reduces cracking. The modular add-on parts transfer their forces directly to the uprights via a special adapter fastening. The screw connections are secured against unauthorised loosening by cover caps.
Foundations (client-provided)
14 units 0.40 x 0.40 x 0.40 m
2 pcs. 0.30 x 0.30 x 0.40 m
1 piece 0.40 x 0.75 x 0.40 m
Concrete volume: 1.09 m³
Assembly time
2 fitters 8 hours each
(without foundation)
Free fall height
1,55 m
Suitable for
Children from 2 years,
public playgrounds etc.,
Physical activities
Item number: 021166700
