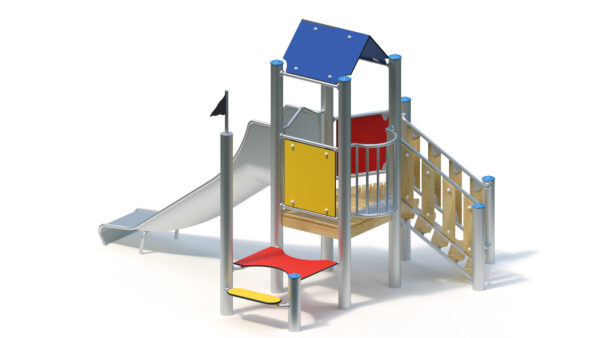

The 3D model serves as a spatial view. The colours do not correspond to the selected variant.

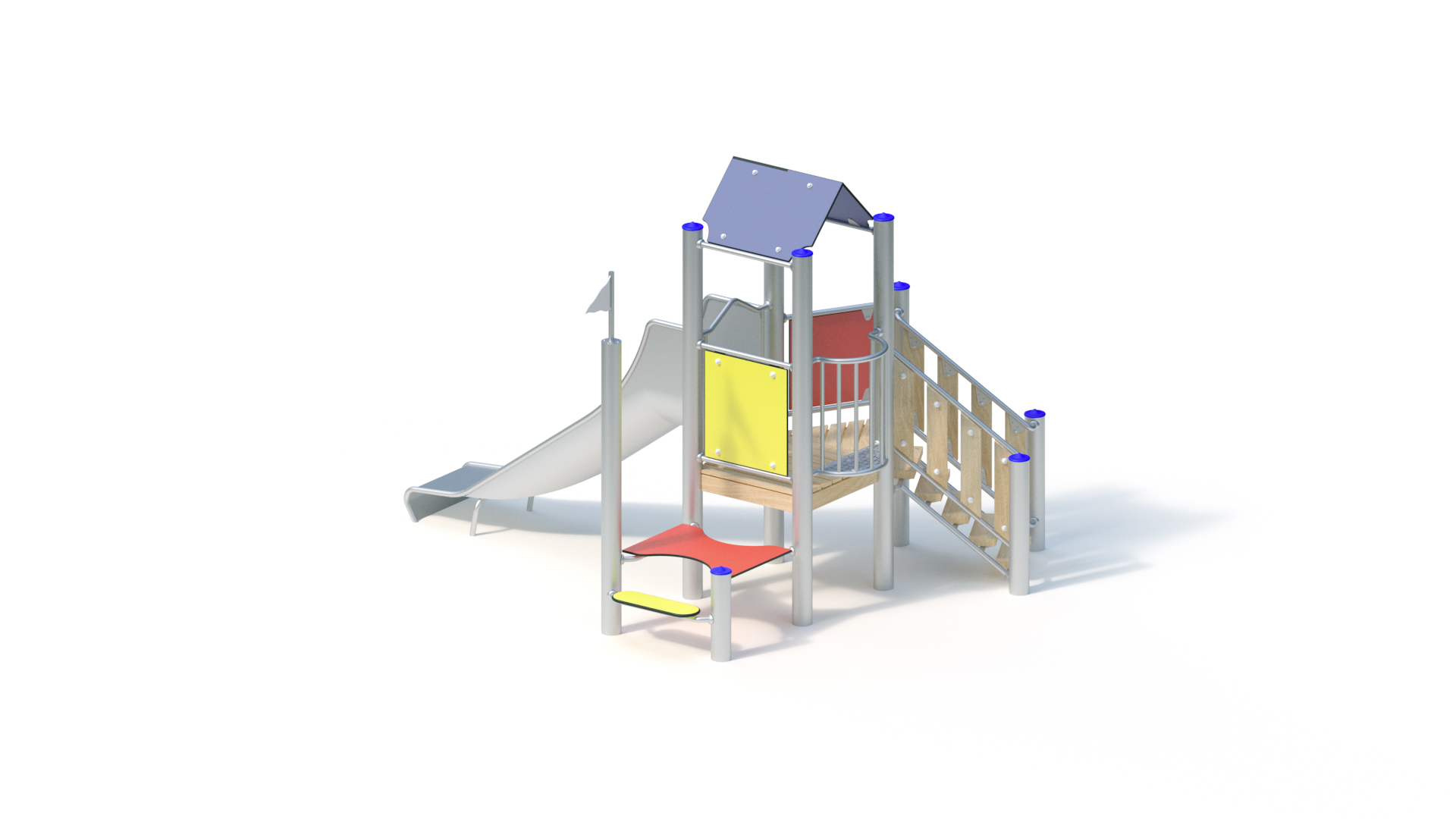

Play structure

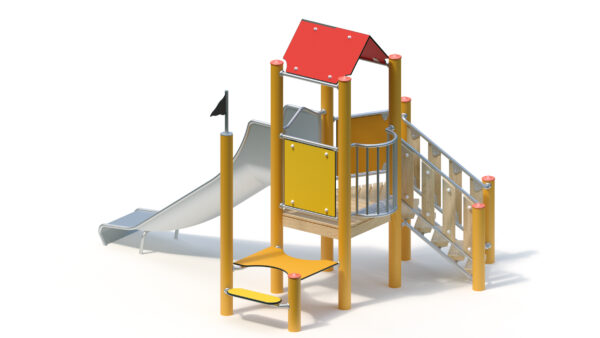

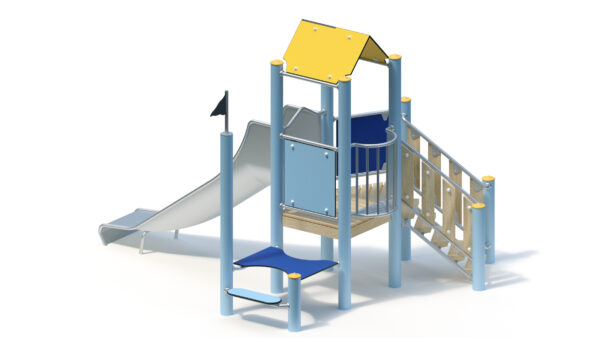

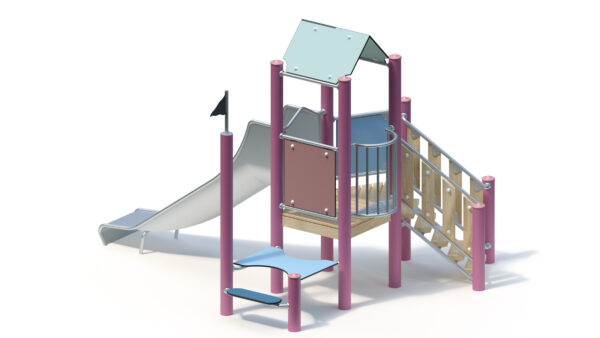

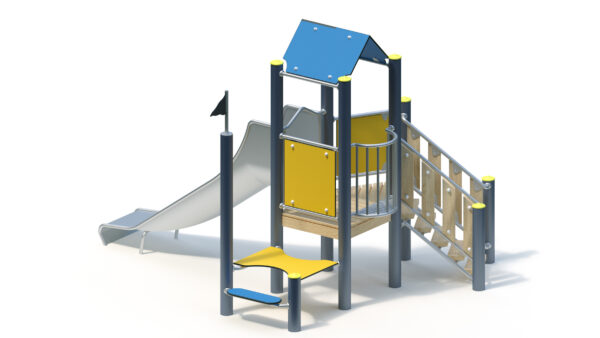

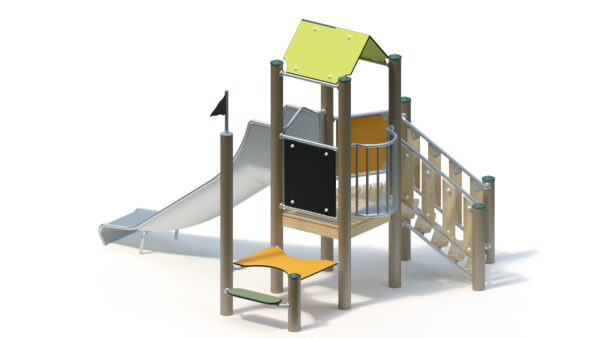

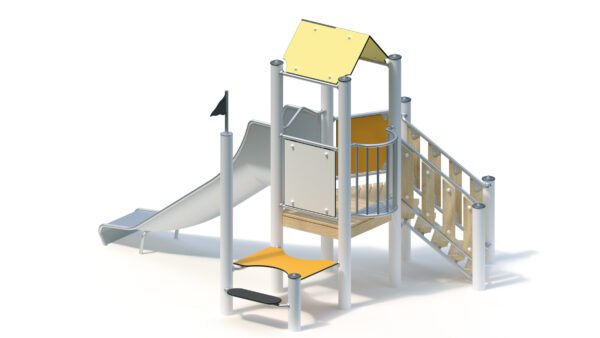

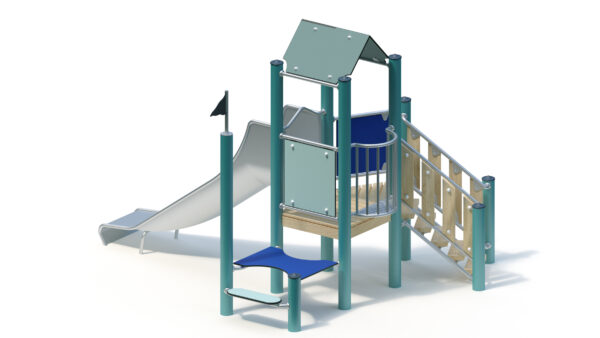

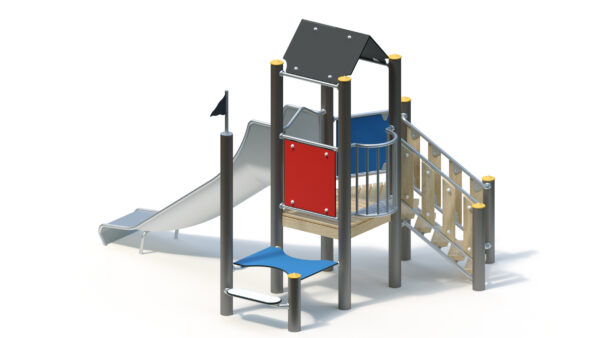

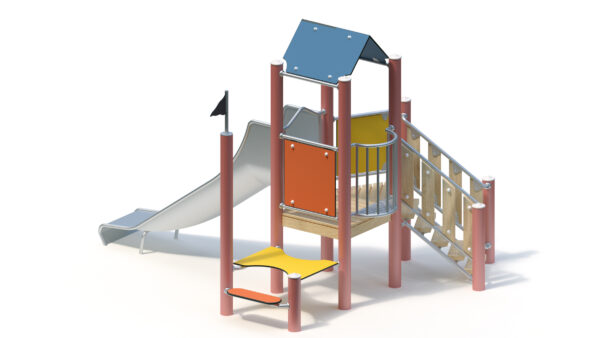

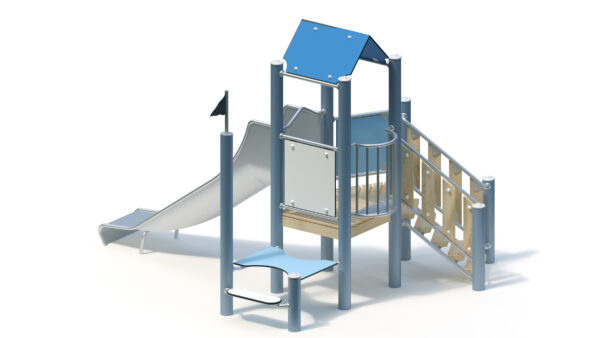

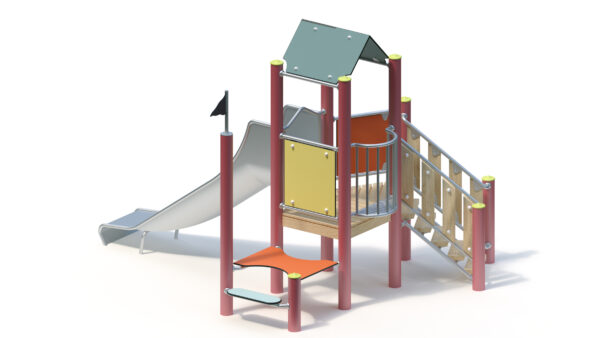

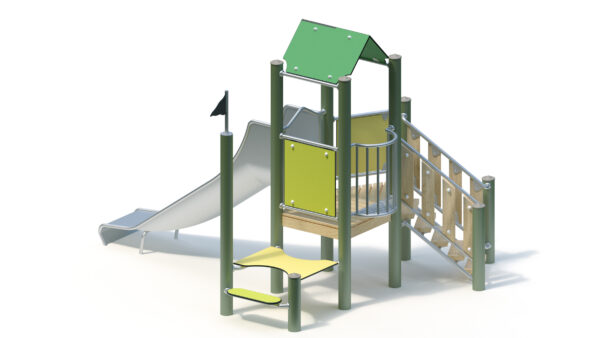

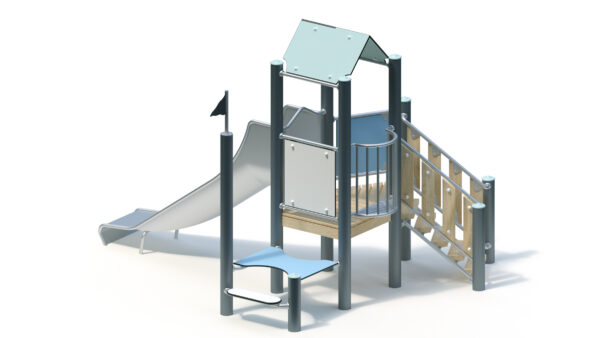

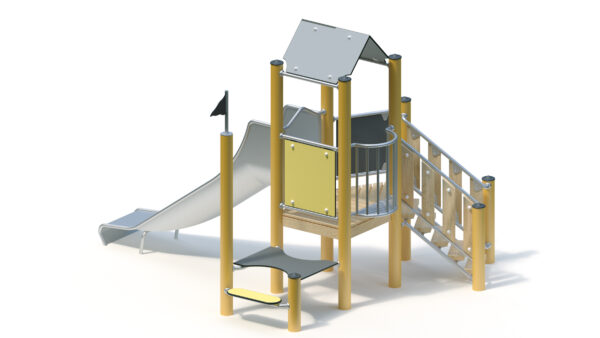

Select variant:
The most important information
| Age group ? | 2+ |
|---|---|
| Areas of application ? | Public playgrounds |
| Number of users ? | 9 persons |
| Activities ? | Physical activity |
Technical data
| Device length ? | 3,75 m |
|---|---|
| Device width ? | 3,20 m |
| Device height ? | 2,65 m |
| Free fall height ? | 0,90 m |
| Platform heights | - |
| Total weight ? | 470.00 kg |
| Heaviest single item ? | 75.00 kg |
| Minimum room length ? | 7,25 m |
| Minimum room width ? | 6,20 m |
| Minimum room height ? | 2,65 m |
Assembly & Foundations
| Assembly time ? | 3.0 hours |
|---|---|
| Number of fitters ? | 2 persons |
| Lifting gear required | - |
| Foundations | 040x040x040 |
Product Downloads
Product description
Technical data
Total height: 2.65 m

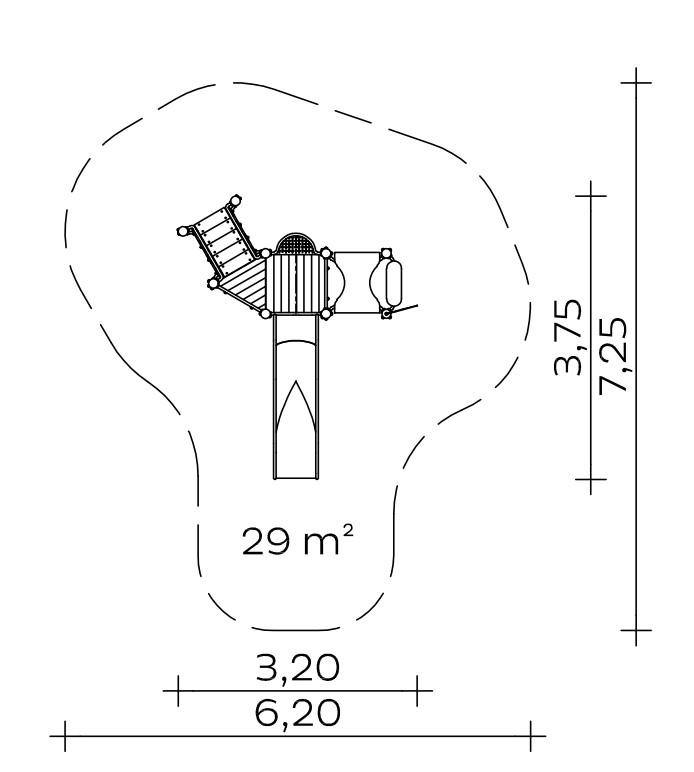

Floor area: 3.20 x 3.75 m
Minimum space: 6.20 x 7.25 m (29 m²)
Platform height: 0.80 m
Seat height: 0.90 m
Support post
Posts made of stainless steel tube Ø 120 mm covered with non-detachable stainless steel post caps. Connection of the modular add-on parts to the uprights using solid and fully welded stainless steel weld-in sleeves without protruding connecting elements.
Platform floor
Platform floor made of boards, 30 mm thick and circumferential squared timber beams 45 x 100 mm. The dried sawn timber made of robinia is planed, bevelled and free of rotting knots. Force-fit floor fastening using special stainless steel brackets with a continuous bolt connection.
Attachments
- Panelled balustrade made of highly weather-resistant HPL laminate, 15 mm, fastened between stainless steel tubes Ø 33.7 x 2 mm
- Balcony parapet made of stainless steel tube
- Staircase balustrade made of robinia wood, fixed between stainless steel tubes Ø 33.7 x 2 mm
- Add-on staircase with steps made of robinia 170 x 45 mm, screwed onto stainless steel frame Ø 33.7 x 2 mm, step height 133 mm
- Table made of highly weather-resistant HPL laminate, 15 mm
- Seat made of highly weather-resistant HPL laminate, 20 mm
- Rubber flag with fabric insert for attachment to the stand post
- Gable roof, pitch 45°, made of highly weather-resistant HPL laminate, 13 mm, fastened to roof frame made of stainless steel tube Ø 33.7 x 2 mm
- Attachable trough slide, 0.60 m wide, one-piece stainless steel construction, sheet thickness: 2.5 mm, with roll-off protection above the single-seat section
For your planning, please note that stainless steel slides should be orientated to the north-east or in the partial shade of trees due to the possible heating of the slide surface.
Metal components: Stainless steel. The robinia wood is treated with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment also reduces cracking. The modular add-on parts transfer their forces directly to the uprights via a special adapter fastening. The screw connections are secured against unauthorised loosening.
Foundations (client-provided)
9 pcs. 0.40 x 0.40 x 0.40 m
1 piece 0.40 x 0.75 x 0.40 m
Concrete volume: 0.76 m³
Assembly time
2 fitters 3 hours each
(without foundation)
Free fall height
0,90 m
Suitable for
Children from 2 years,
public playgrounds etc.,
Physical activities
Item number: 021126500
