The most important information
| Altersgruppe ? | 2+ |
|---|---|
| Einsatzgebiete ? | Public playgrounds |
| Benutzeranzahl ? | 7 Personen |
| Aktivitäten ? | Physical activity, Slide |
Technical data
| Mindestraumlänge ? | 7,20 m |
|---|---|
| Mindestraumbreite ? | 6,30 m |
| Mindestraumhöhe ? | 2,40 m |
| Gerätelänge ? | 4,05 m |
| Gerätebreite ? | 2,70 m |
| Gerätehöhe ? | 1,75 m |
| Freie Fallhöhe ? | 0,90 m |
| Podesthöhen | - |
| Gesamtgewicht ? | 310.00 kg |
| Schwerstes Einzelteil ? | 75.00 kg |
Assembly & Foundations
| Montagezeit ? | 4,0 h |
|---|---|
| Monteuranzahl ? | 2 Personen |
| Hebezeug erforderlich | - |
| Fundamente | Quantity: 7 (0.4m x 0.4m x 0.4m) Quantity: 1 (0.75m x 0.4m x 0.4m) |
Product Downloads

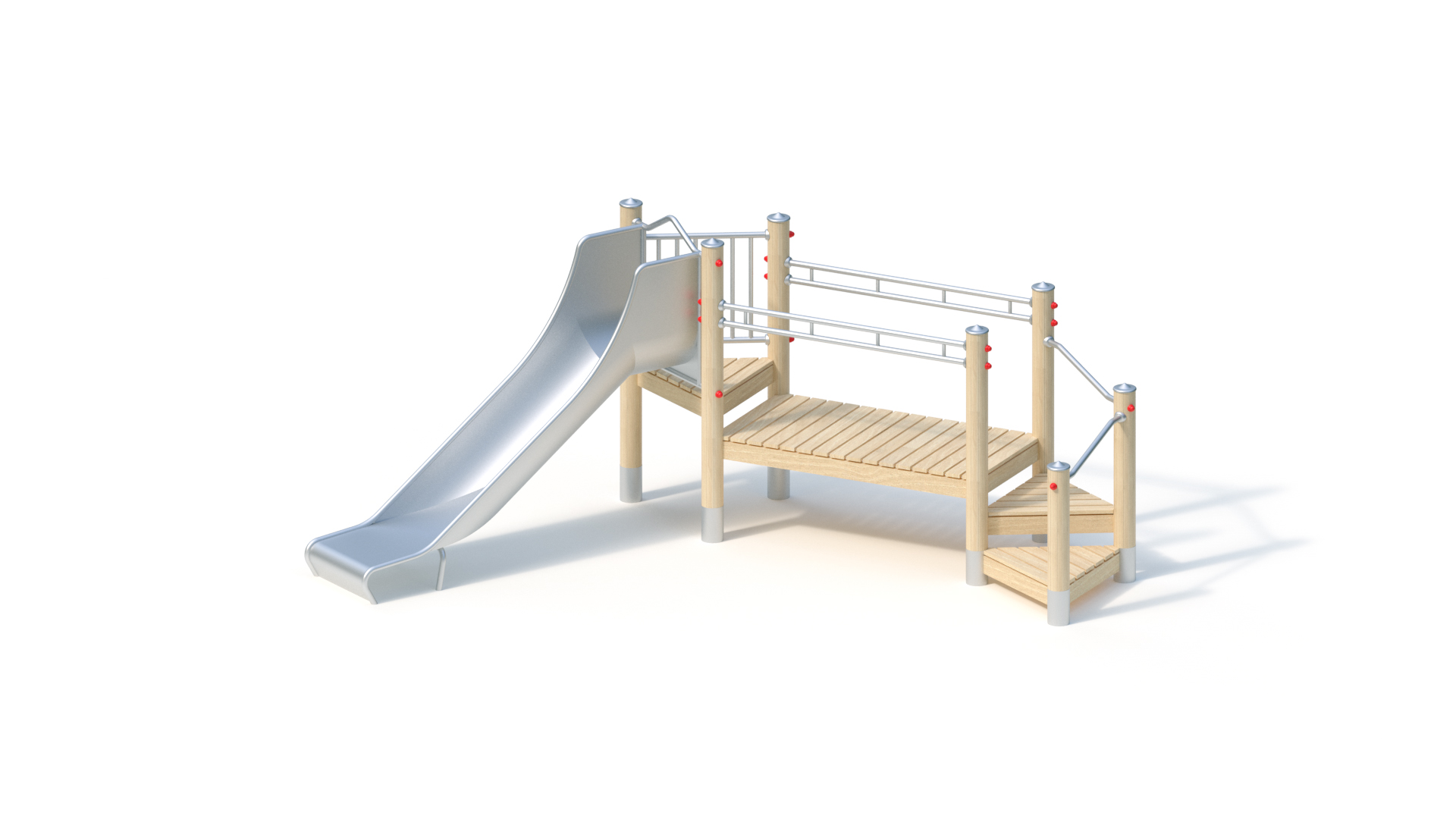

Product description
Technical data
Floor area: 2.70 x 4.05 m

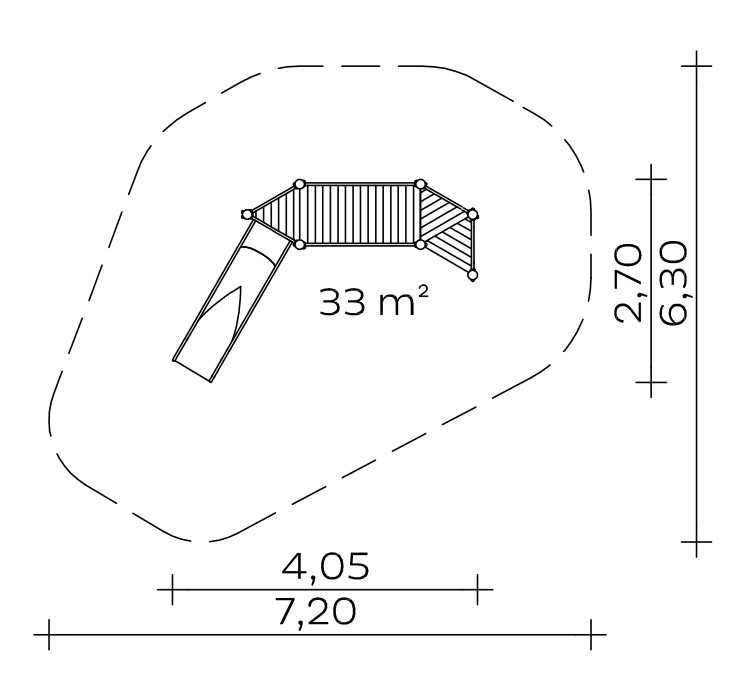

Minimum space: 6.30 x 7.20 m (33 m²)
Total height: 1.75 m
Platform height: 0.20/0.40/0.60/0.80 m
Slide attachment height: 0.80 m
Seat height: 0.90 m
Support post
Standing posts made of robinia plywood, cylindrically milled, Ø 120 mm. Unprotected end grain surfaces are covered with non-detachable stainless steel post caps.
Stainless steel tubular base for the foundation and elevation of Robinia roundwood posts, Ø 120 mm, below the play level.
Platform floor
Platform floor made of boards, 30 mm thick and circumferential squared timber beams 45 x 100 mm. The dried sawn timber made of robinia is planed, bevelled and free of rotting knots. Force-fit floor fastening using special stainless steel brackets with a continuous bolt connection.
Attachments
- Lattice balustrade made of stainless steel tube, Ø 33.7 x 2 / 25 x 2 mm, one-piece welded construction
- Step railing made of stainless steel tube, Ø 33.7 x 2 mm, for stepped platform floors
- Tandem railing made of stainless steel tube, Ø 33.7 x 2 mm
- Attachable trough slide, 0.60 m wide, one-piece stainless steel construction, sheet thickness: 2.5 mm, with roll-off protection above the single-seat section
For your planning, please note that stainless steel slides should be orientated to the north-east or in the partial shade of trees due to the possible heating of the slide surface.
Metal components: Stainless steel. The robinia wood is treated with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment also reduces cracking. The modular add-on parts transfer their forces directly to the uprights via a special adapter fastening. The screw connections are secured against unauthorised loosening by cover caps.
Foundations (client-provided)
7 units 0.40 x 0.40 x 0.40 m
1 piece 0.40 x 0.75 x 0.40 m
Concrete volume: 0.57 m³
Assembly time
2 fitters 3.5 hours each
(without foundation)
Free fall height
0,90 m
Suitable for
Children from 2 years,
public playgrounds etc.,
Physical activities
Item number: 021114701
