Das 3D-Modell dient der räumlichen Ansicht. Die Farben entsprechen nicht der gewählten Variante.

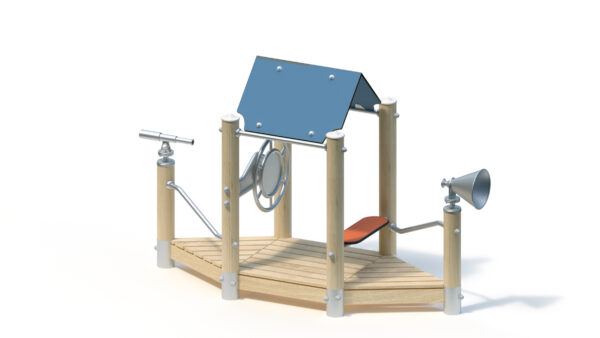

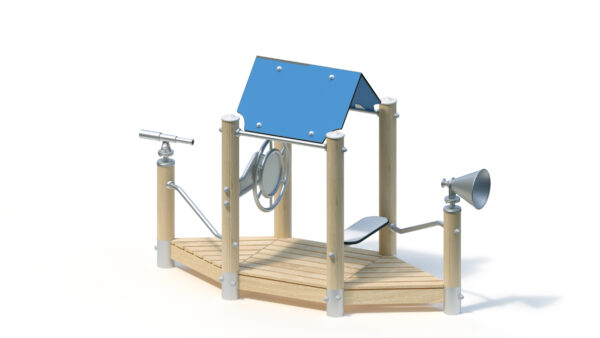

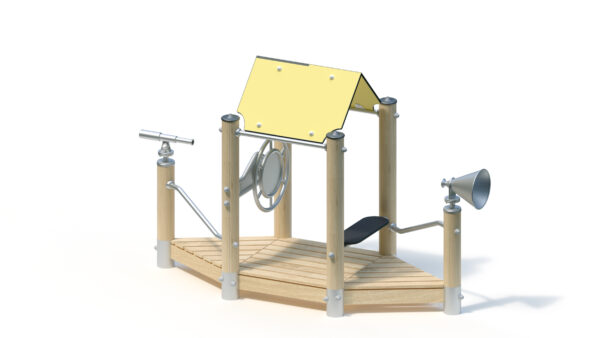

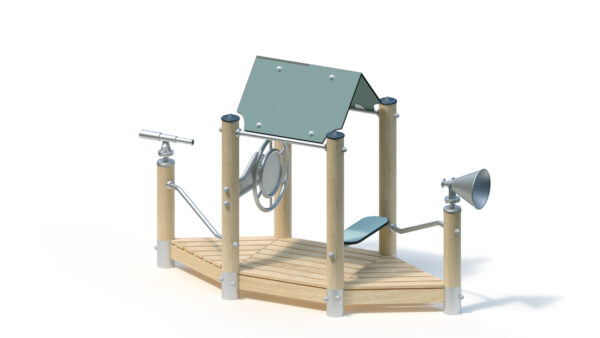

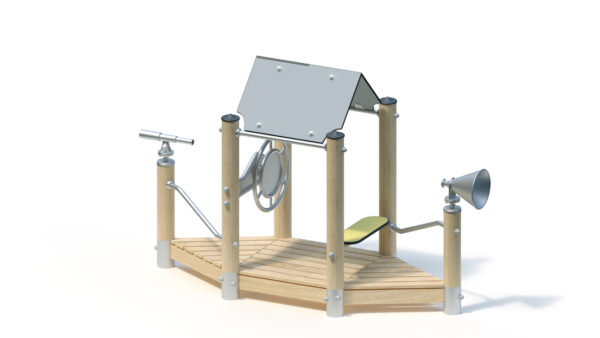

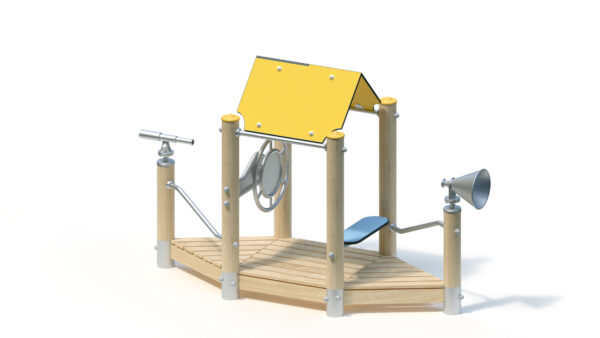

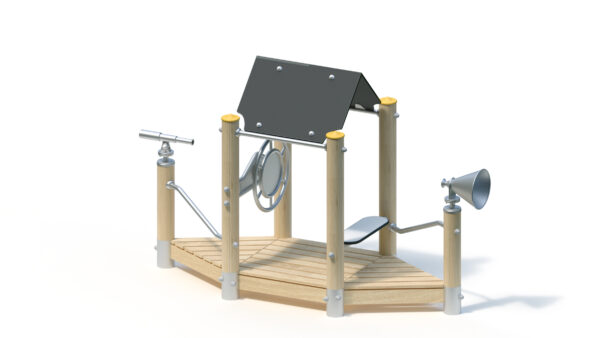

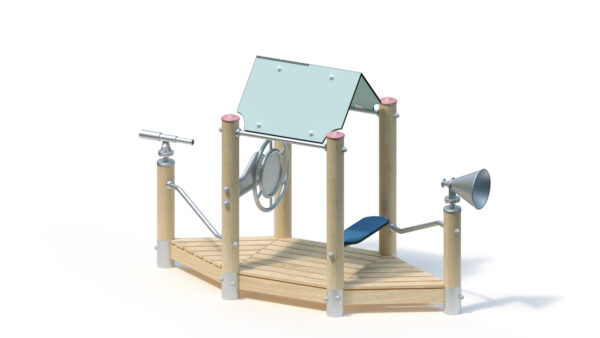

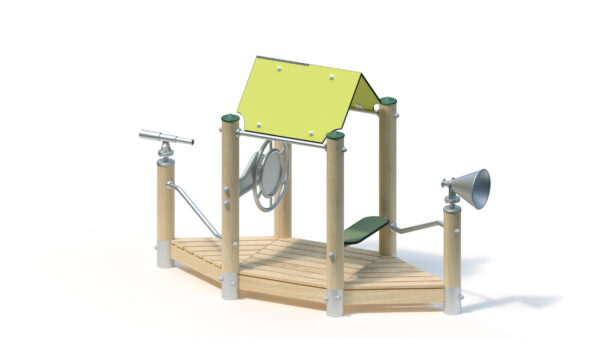

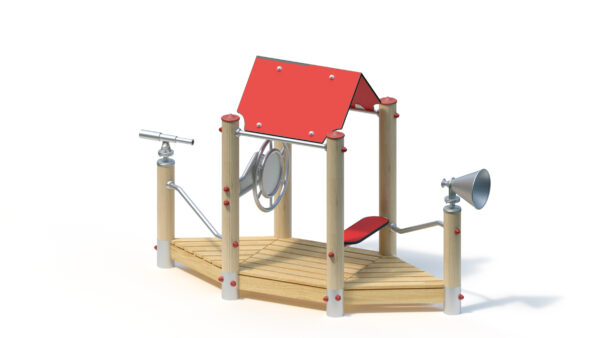

Barge
Variante wählen:
The most important information
| Altersgruppe ? | 2+ |
|---|---|
| Einsatzgebiete ? | Public playgrounds |
| Benutzeranzahl ? | 6 Personen |
| Aktivitäten ? | Physical activity, Social activity |
Technical data
| Mindestraumlänge ? | 5,65 m |
|---|---|
| Mindestraumbreite ? | 3,95 m |
| Mindestraumhöhe ? | 1,65 m |
| Gerätelänge ? | 2,65 m |
| Gerätebreite ? | 0,95 m |
| Gerätehöhe ? | 1,65 m |
| Freie Fallhöhe ? | 0,50 m |
| Podesthöhen | - |
| Gesamtgewicht ? | 184.50 kg |
| Schwerstes Einzelteil ? | 30.00 kg |
Assembly & Foundations
| Montagezeit ? | 2,0 h |
|---|---|
| Monteuranzahl ? | 2 Personen |
| Hebezeug erforderlich | - |
| Fundamente | Quantity: 6 (0.4m x 0.4m x 0.4m) |
Product Downloads
Product description
Technical data

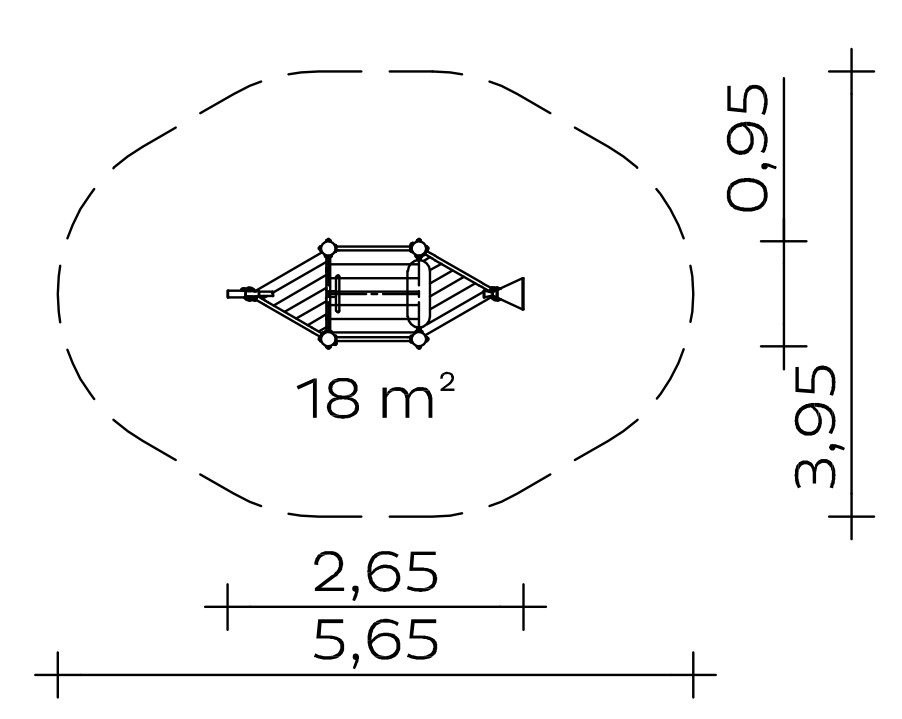

Base area: 0.95 x 2.65 m
Minimum space: 3.95 x 5.65 m (18 m²)
Total height: 1.65 m
Platform height: 0.20 m
Support post
Standing posts made of robinia plywood, cylindrically milled, Ø 120 mm. Unprotected end grain surfaces are covered with non-detachable stainless steel post caps.
Stainless steel tubular base for the foundation and elevation of Robinia roundwood posts, Ø 120 mm, below the play level.
Platform floor
Platform floor made of boards, 30 mm thick and circumferential squared timber beams 45 x 100 mm. The dried sawn timber made of robinia is planed, bevelled and free of rotting knots. Force-fit floor fastening using special stainless steel brackets with a continuous bolt connection.
Attachments
- Gable roof, pitch 45°, made of highly weather-resistant HPL laminate, 13 mm, fastened to roof frame made of stainless steel tube Ø 33.7 x 2 mm
- Step railing made of stainless steel tube, Ø 33.7 x 2 mm
- Seat made of highly weather-resistant HPL laminate, 20 mm
- Steering wheel: rotatable with locking mechanism
- Telescope horizontally rotatable 360°, vertically adjustable
- Megaphone horizontally rotatable 360
Metal components: Stainless steel
The robinia wood is treated with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment also reduces cracking. The modular add-on parts transfer their forces directly to the uprights via a special adapter fastening. The screw connections are secured against unauthorised loosening by cover caps.
Foundations (client-provided)
6 pcs. 0.40 x 0.40 x 0.40 m
Concrete volume: 0.38 m³
Assembly time
2 fitters 2 hours each
(without foundation)
Free fall height
0,50 m
Suitable for
Children from 2 years,
public playgrounds etc.,
social / movement activities
Item number: 020280701
