The 3D model is for spatial reference only. The colours may not match the selected variant.
Kiosk

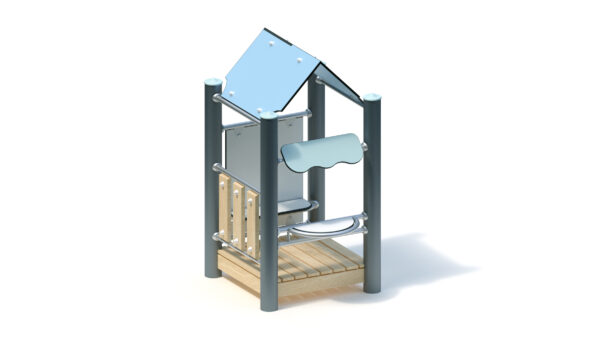

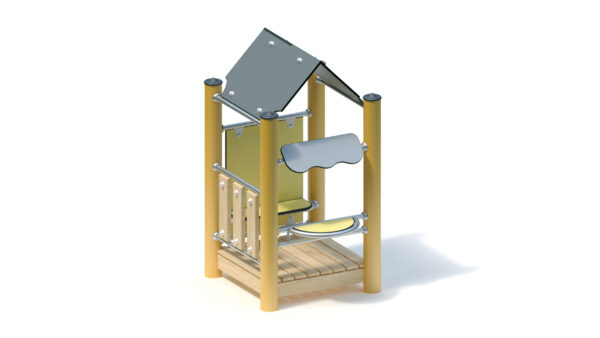

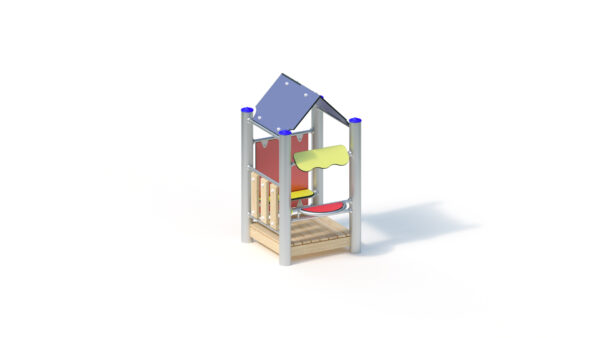

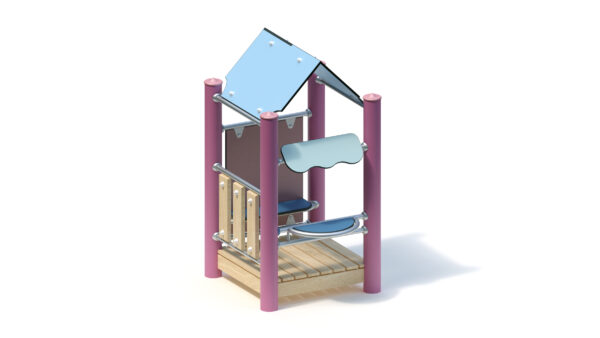

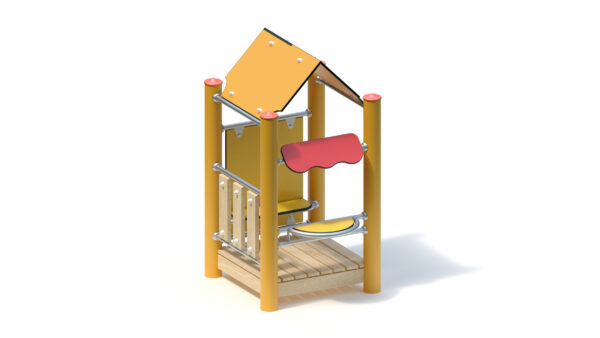

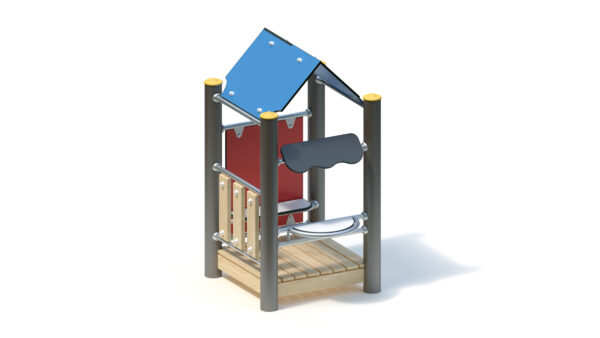

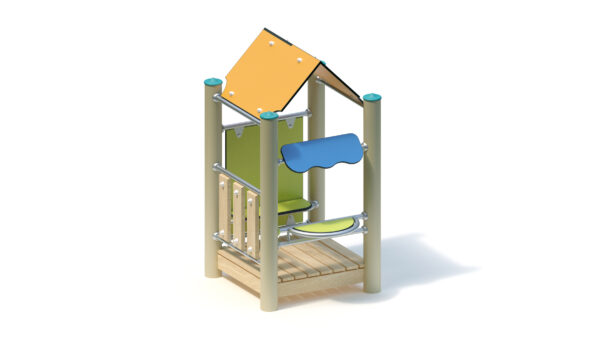

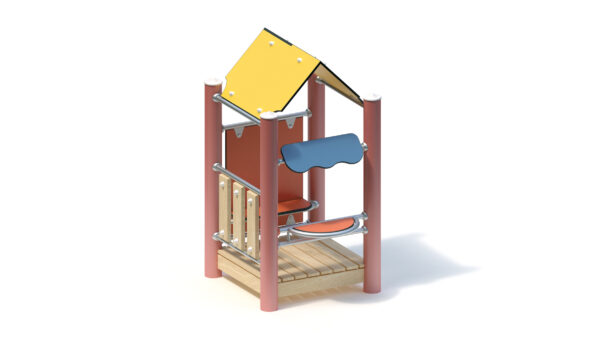

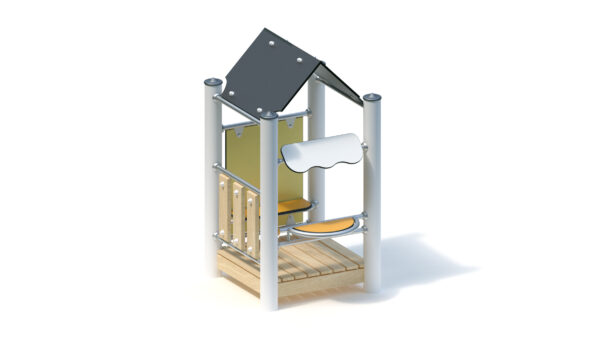

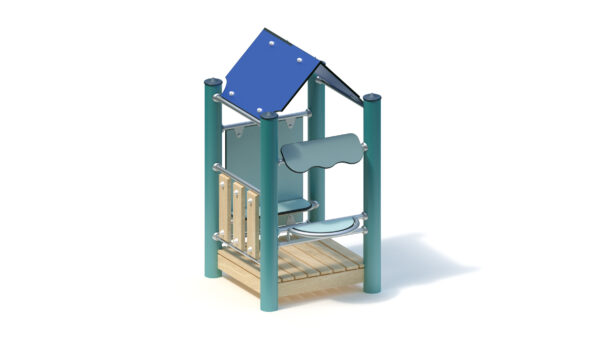

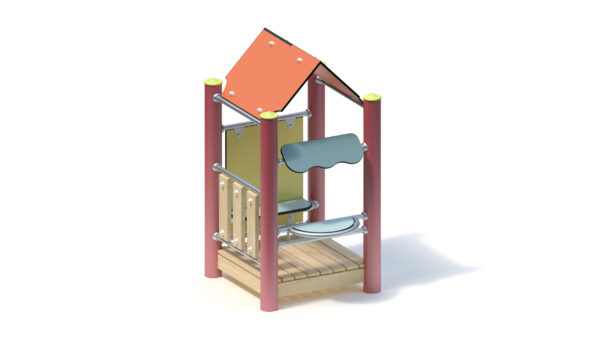

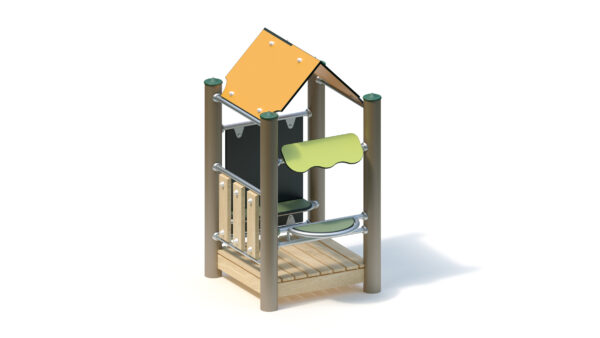

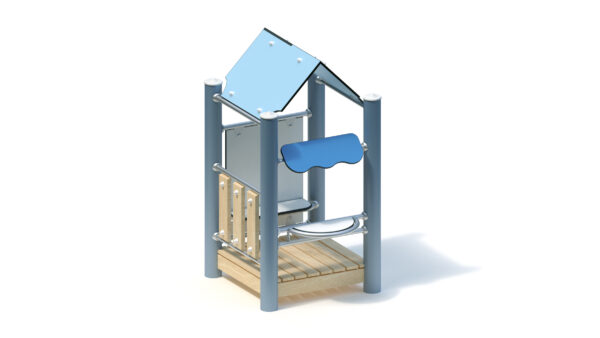

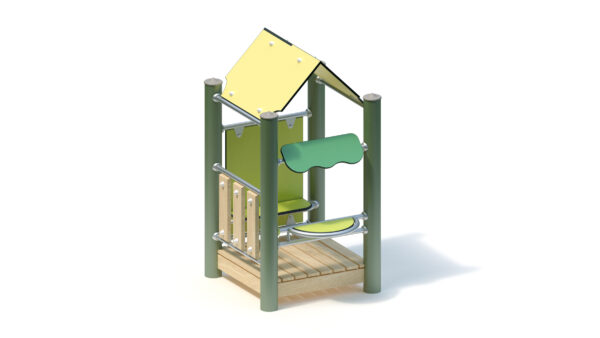

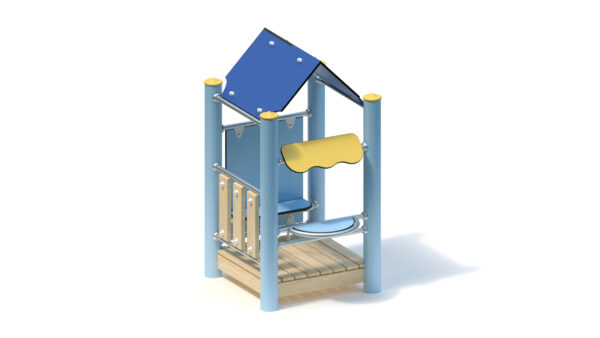

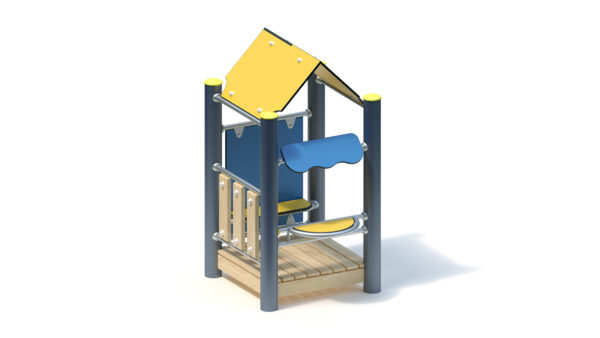

Select variant:
The most important information
| Age group ? | 1+ |
|---|---|
| Areas of use ? | Public playgrounds |
| Number of users ? | 4 people |
| Activities ? | Social activity |
Technical data
| Minimum space length ? | 4,15 m |
|---|---|
| Minimum space width ? | 3,95 m |
| Minimum space height ? | 1,75 m |
| Equipment length ? | 0,95 m |
| Equipment width ? | 1,15 m |
| Equipment height ? | 1,75 m |
| Free-fall height ? | 0,60 m |
| Platform heights | - |
| Total weight ? | 160.00 kg |
| Heaviest single part ? | 30.00 kg |
Assembly & Foundations
| Assembly time ? | 2,0 h |
|---|---|
| Number of fitters ? | 2 people |
| Lifting equipment required | - |
| Foundations | Quantity: 4 (0.4m x 0.4m x 0.4m) |
Product Downloads
Product description
Technical data

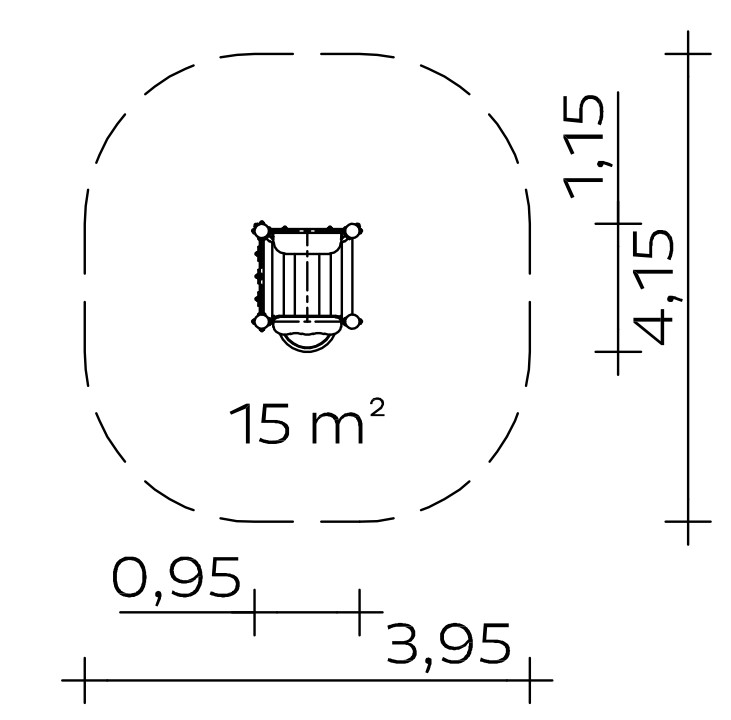

Base area: 0.95 x 1.15 m
Minimum space: 3.95 x 4.15 m (15 m²)
Total height: 1.75 m
Platform height: 0.20 m
Support post
Support posts made of stainless steel tube, Ø 120 x 3 mm, covered with non-detachable stainless steel post caps. Connection of the modular add-on parts to the uprights using solid and fully welded stainless steel weld-in sleeves without protruding connecting elements.
Platform floor
Platform floor made of boards, 30 mm thick and circumferential squared timber beams 45 x 100 mm. The dried sawn timber made of robinia is planed, bevelled and free of rotting knots. Force-fit floor fastening using special stainless steel brackets with a continuous bolt connection.
Attachments
- Panelled balustrade made of highly weather-resistant HPL laminate, 15 mm
- Wooden balustrade made of robinia, 125 x 30 mm, fastened between stainless steel tubes Ø 33.7 x 2 mm
- Table/awning made of highly weather-resistant HPL laminate, 15 mm
- Seat made of highly weather-resistant HPL laminate, 20 mm
- Gable roof, pitch 45°, made of highly weather-resistant HPL laminate, 13 mm, fastened to roof frame made of stainless steel tube Ø 33.7 x 2 mm
Metal components: Stainless steel. The robinia wood is treated with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment reduces cracking.
The modular add-on parts transfer their forces directly to the uprights via a special adapter fastening. The screw connections are secured against unauthorised loosening.
Foundations (client-provided)
4 pcs. Foundations 0.40 x 0.40 x 0.40 m
Concrete volume: 0.26 m³
Assembly time
2 fitters 1.5 hours each
(without foundation)
Free fall height
0,60 m
Suitable for
Children from the age of one,
public playgrounds etc.,
Social activities
Item number: 020260502
This Kaiser & Kühne product enables:
