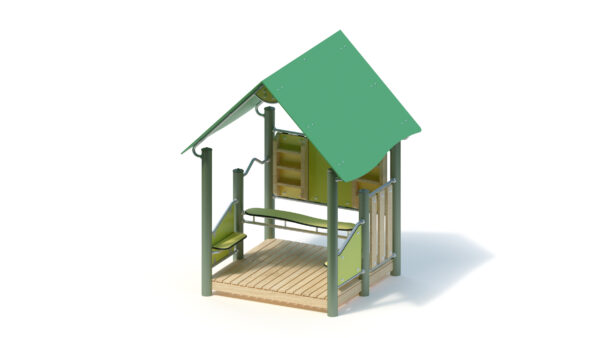

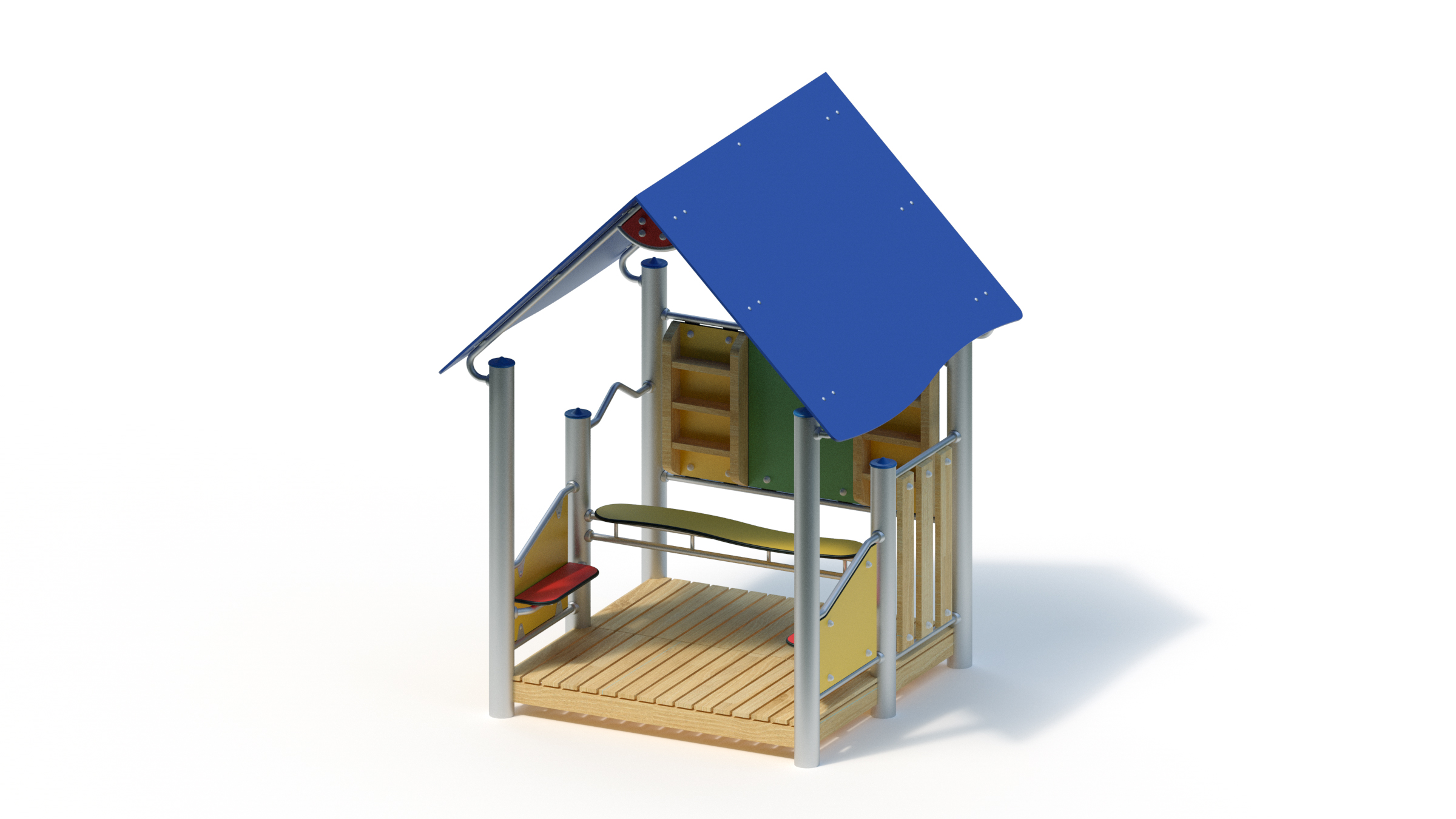

Shopping centre

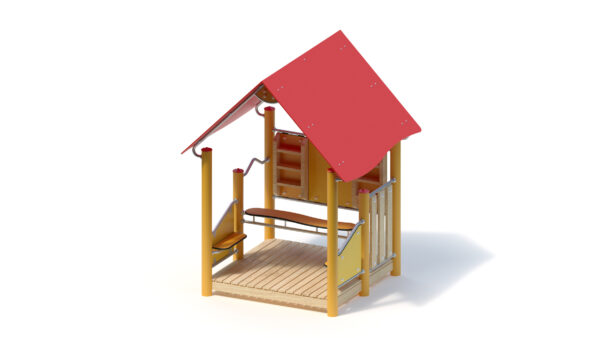

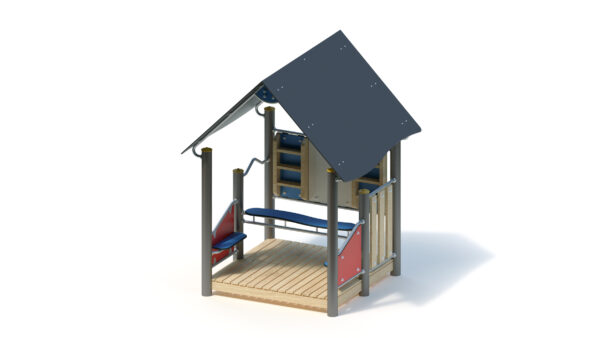

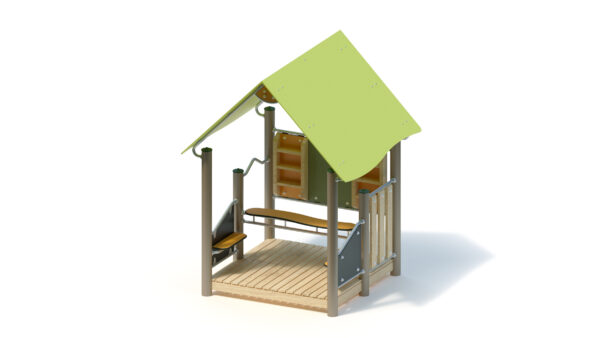

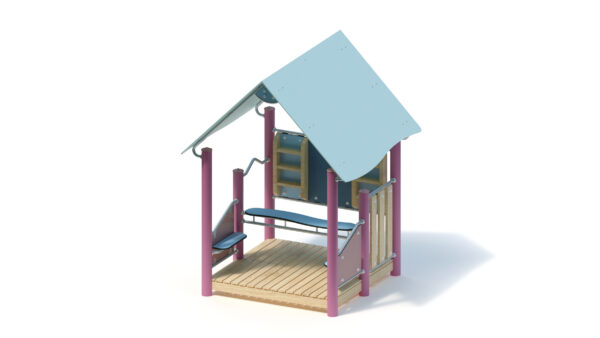

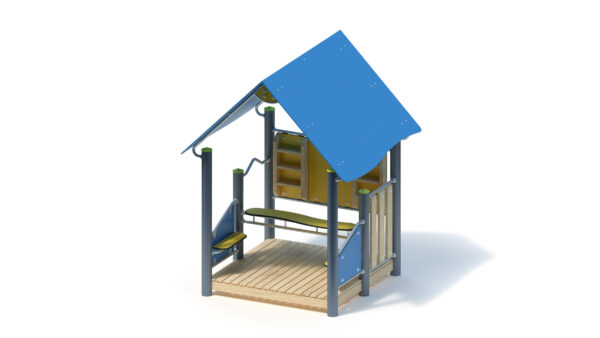

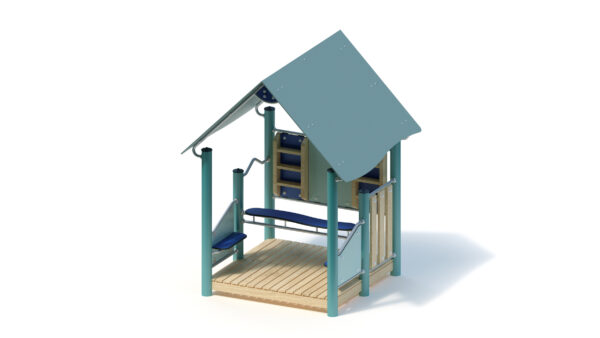

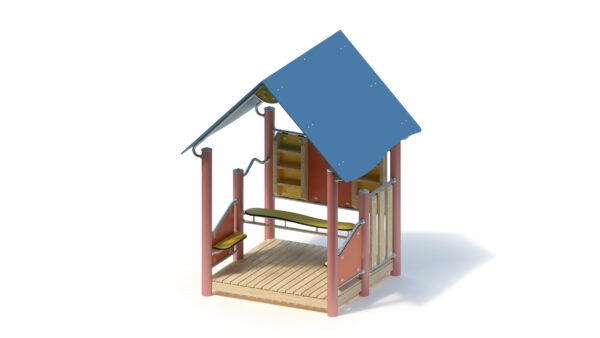

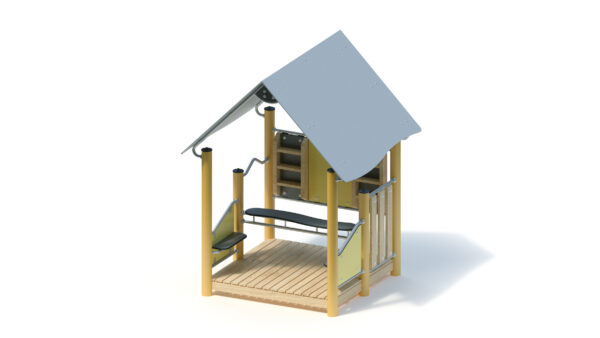

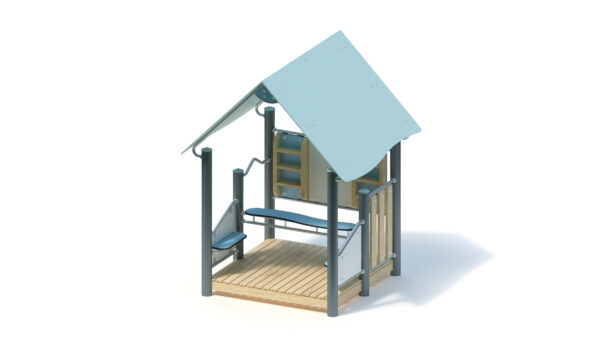

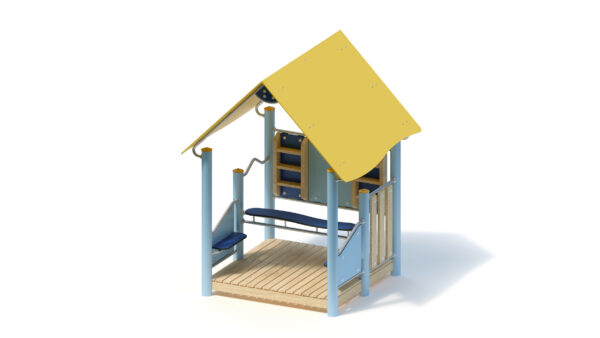

Variante wählen:
The most important information
| Altersgruppe ? | 2+ |
|---|---|
| Einsatzgebiete ? | Public playgrounds |
| Benutzeranzahl ? | 7 Personen |
| Aktivitäten ? | Social activity |
Technical data
| Mindestraumlänge ? | 5,20 m |
|---|---|
| Mindestraumbreite ? | 5,00 m |
| Mindestraumhöhe ? | 1,65 m |
| Gerätelänge ? | 2,20 m |
| Gerätebreite ? | 2,00 m |
| Gerätehöhe ? | 2,80 m |
| Freie Fallhöhe ? | 0,55 m |
| Podesthöhen | - |
| Gesamtgewicht ? | 340.00 kg |
| Schwerstes Einzelteil ? | 50.00 kg |
Assembly & Foundations
| Montagezeit ? | 3.0 hours |
|---|---|
| Monteuranzahl ? | 2 Personen |
| Hebezeug erforderlich | - |
| Fundamente | Quantity: 6 (0.4m x 0.4m x 0.4m) |
Product Downloads
Product description
Technical data
Base area: 2.00 x 2.20 m

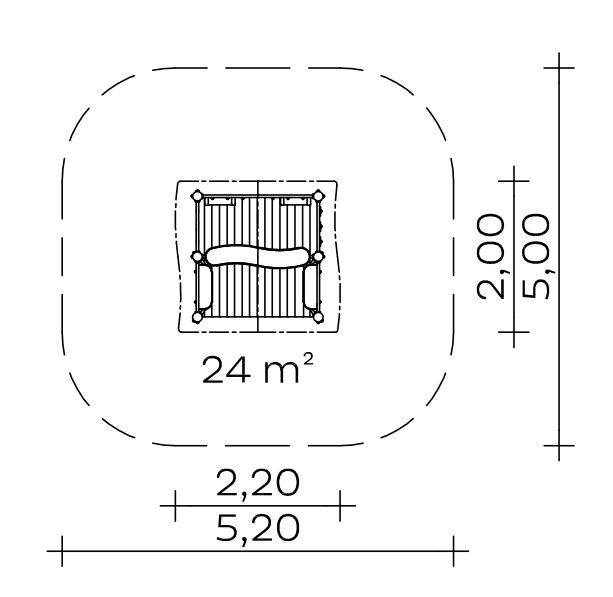

Minimum space: 5.00 x 5.20 m (24 m²)
Total height: 2.80 m
Platform height: 0.20 m
Weight: 50 kg heaviest individual part
340 kg in total
Support post
Posts made of stainless steel tube Ø 12 cm covered with non-detachable stainless steel post caps. Connection of the modular add-on parts to the uprights using solid and fully welded stainless steel weld-in sleeves without protruding connecting elements.
Platform floor
Platform floor made of boards, 30 mm thick and circumferential squared timber beams 45 x 100 mm. The dried sawn timber made of robinia is planed, bevelled and free of rotting knots. Force-fit floor fastening using special stainless steel brackets with a continuous bolt connection.
Attachments
- Wooden balustrade made of robinia, 125 x 30 mm, fastened between stainless steel tubes Ø 33.7 x 2 mm
- Panelled balustrade made of highly weather-resistant HPL laminate, 15 mm, fastened between stainless steel tubes Ø 33.7 x 2 mm
- Shelf made of robinia 45 x 100 mm, planed, bevelled and free of rotting knots, rear panel made of highly weather-resistant HPL laminate, 15 mm
- Railing bracket, anti-roll, made of stainless steel tube, Ø 33.7 x 2 mm
- Gable roof, pitch 45°, made of highly weather-resistant HPL laminate, 13 mm, fastened to roof frame made of stainless steel tube Ø 33.7 x 2 mm
- Seat made of highly weather-resistant HPL laminate, 20 mm
- Counter, wave-shaped, made of highly weather-resistant HPL laminate, 20 mm
Metal components: Stainless steel. The robinia wood is treated with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment reduces cracking.
The modular add-on parts transfer their forces directly to the uprights via a special adapter fastening. The screw connections are secured against unauthorised loosening.
Foundations (client-provided)
6 pcs. 0.40 x 0.40 x 0.40 m
Concrete volume: 0.38 m³
Assembly time
2 fitters 2.5 hours each
(without foundation)
Free fall height
0,55 m
Suitable for
Children from 2 years,
public playgrounds etc.
Social activities
Item number: 020316500
