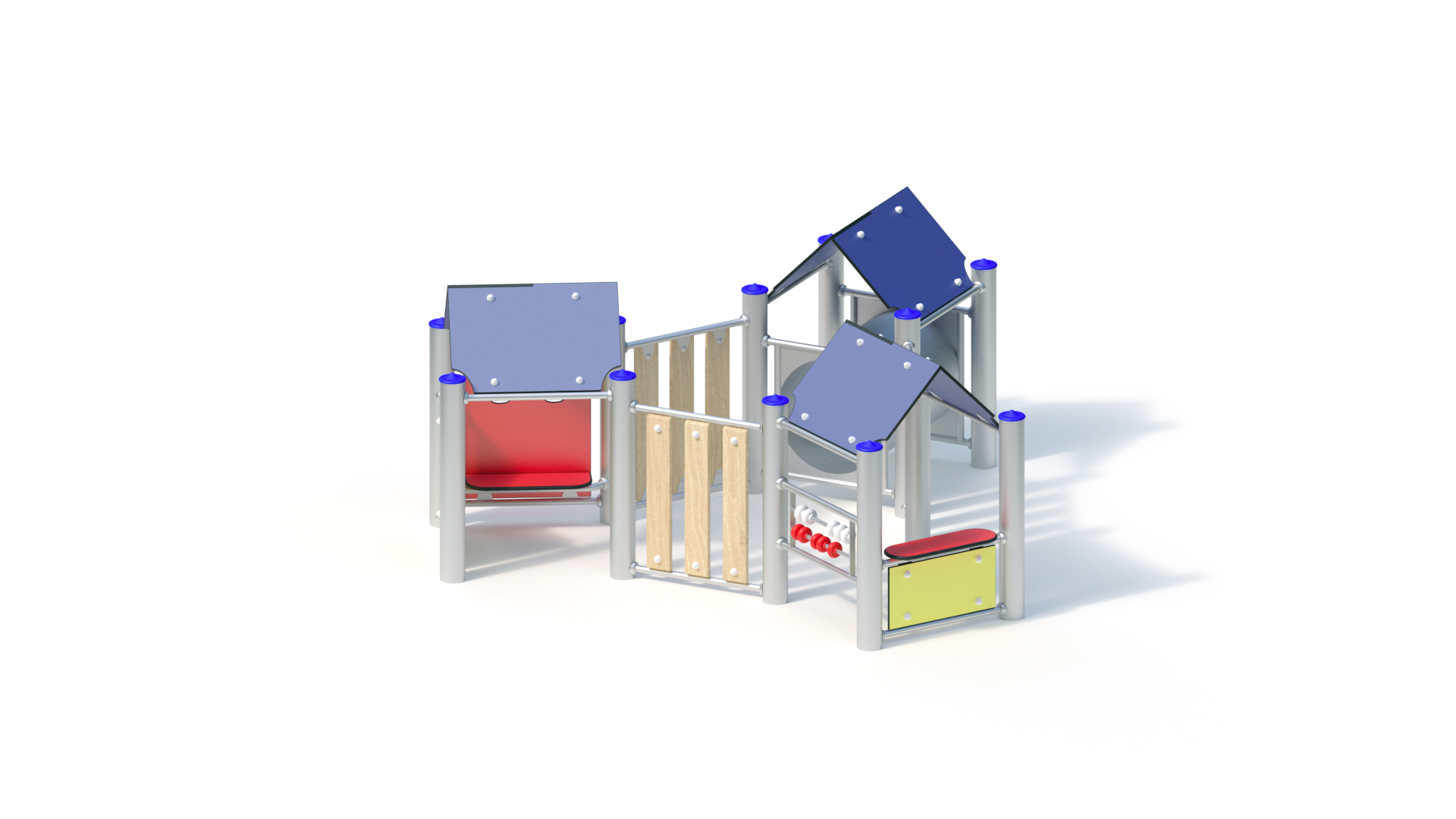

Toddler's court

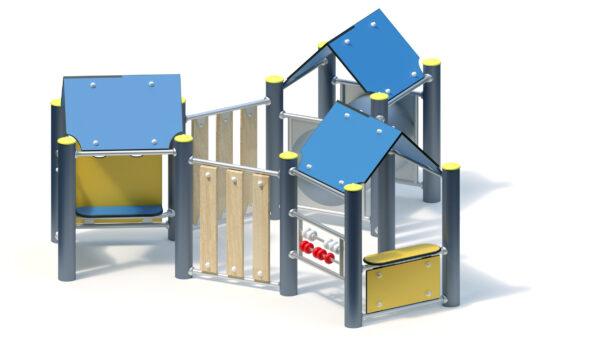

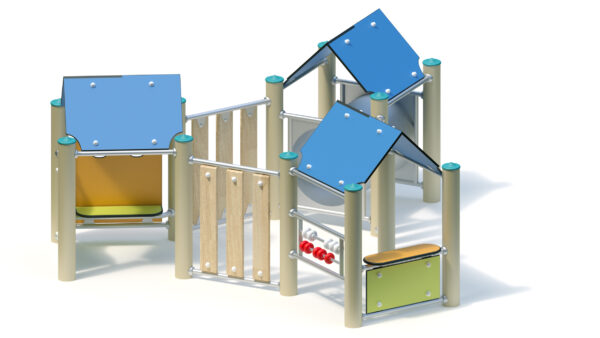

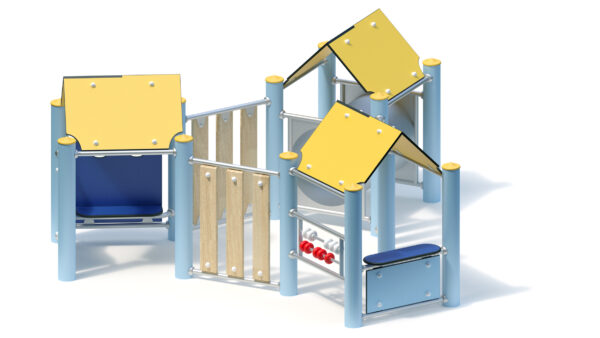

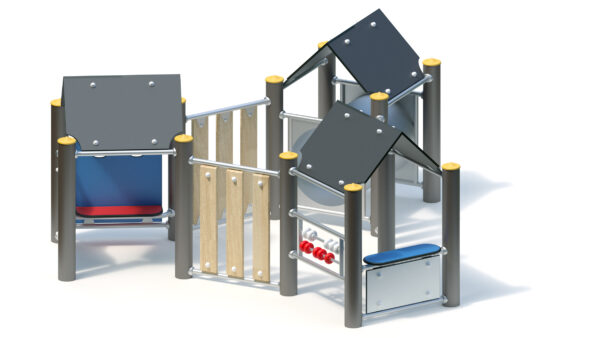

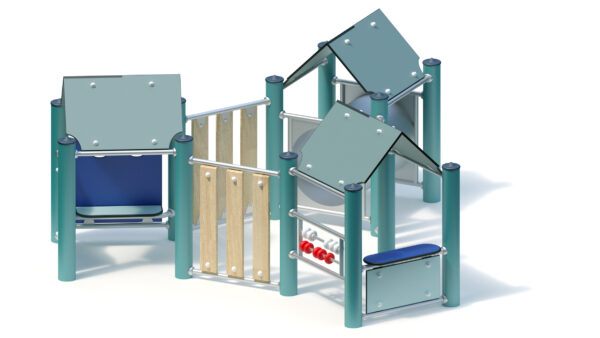

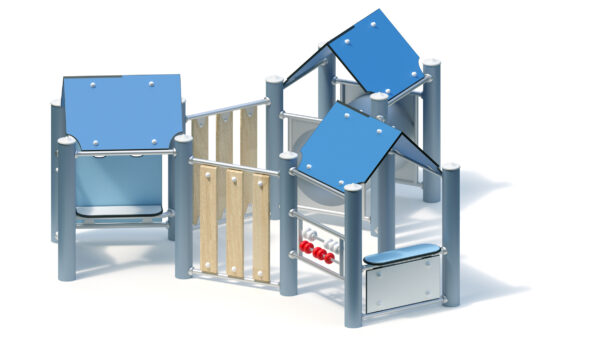

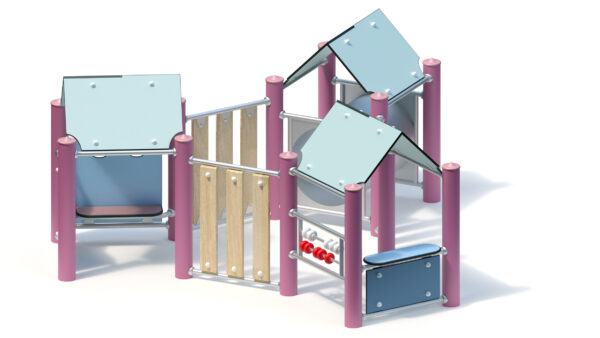

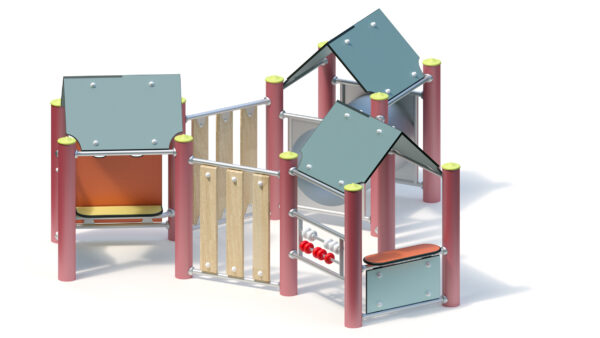

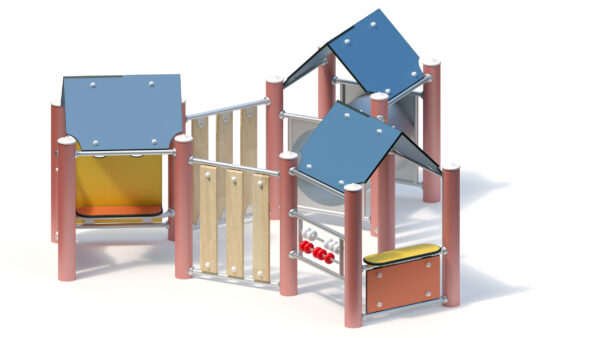

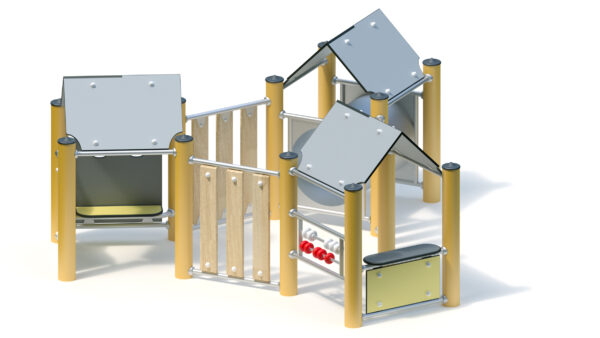

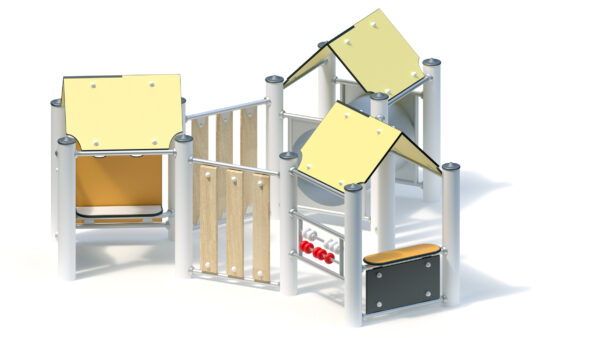

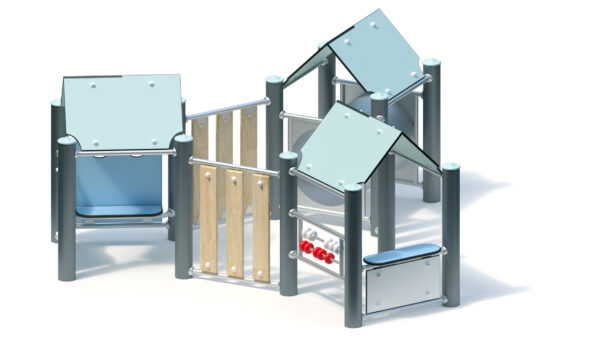

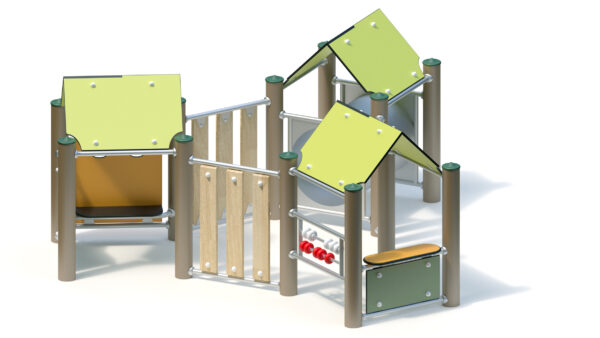

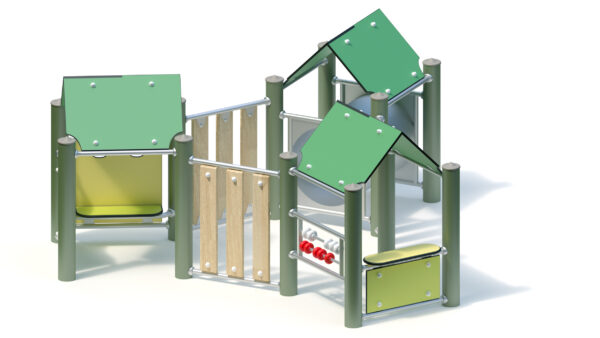

Variante wählen:
The most important information
| Altersgruppe ? | 1+ |
|---|---|
| Einsatzgebiete ? | Public playgrounds |
| Benutzeranzahl ? | 9 Personen |
| Aktivitäten ? | Physical activity, Social activity |
Technical data
| Mindestraumlänge ? | 6,11 m |
|---|---|
| Mindestraumbreite ? | 5,71 m |
| Mindestraumhöhe ? | 1,33 m |
| Gerätelänge ? | 3,11 m |
| Gerätebreite ? | 2,71 m |
| Gerätehöhe ? | 1,33 m |
| Freie Fallhöhe ? | 1,33 m |
| Podesthöhen | - |
| Gesamtgewicht ? | 340.00 kg |
| Schwerstes Einzelteil ? | 40.00 kg |
Assembly & Foundations
| Montagezeit ? | 3.0 hours |
|---|---|
| Monteuranzahl ? | 2 Personen |
| Hebezeug erforderlich | - |
| Fundamente | Quantity: 12 (0.4m x 0.4m x 0.4m) |
Product Downloads
Product description
Technical data

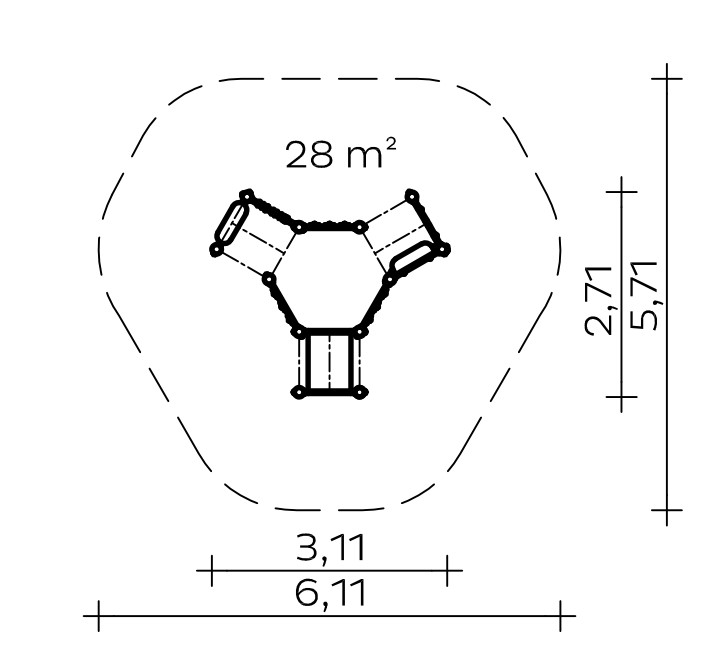

Equipment room: 3.11 x 2.71 x 1.33 m
Minimum space: 6.11 x 5.71 x 1.33 m
Total height: 1.33 m
Free fall height: 1.33 m
Impact area: 28 m²
Weight: 40 kg heaviest individual part
320 kg in total
Support post
Support posts made of stainless steel tube, Ø 120 x 3 mm, covered with non-detachable stainless steel post caps. Connection of the modular add-on parts to the uprights using solid and fully welded stainless steel weld-in sleeves without protruding connecting elements.
Attachments
- Panelled balustrade made of highly weather-resistant HPL laminate
- Wooden balustrade made of robinia, 125 x 30 mm, fastened between stainless steel tubes Ø 33.7 x 2 mm
- Seat/counter made of highly weather-resistant HPL laminate, 20 mm
- Gable roof, pitch 45°, made of highly weather-resistant HPL laminate, 13 mm, fastened to roof frame made of stainless steel tube Ø 33.7 x 2 mm
- Crawl tunnel: Ø 56 cm, stainless steel sheet 2.5 mm
- Slide rule: polyamide elements, Ø 80 mm
Metal components: Stainless steel. The robinia wood is treated with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment also reduces cracking. The modular add-on parts transfer their forces directly to the uprights via a special adapter fastening. The screw connections are secured against unauthorised loosening.
Foundations (client-provided)
12x 0.40 x 0.40 x 0.40 m
Concrete volume: 0.8 m³
Assembly time
2 fitters 3 hours each
(without foundation)
Suitable for
Children from the age of one,
public playgrounds etc.,
Social/movement activities
Item number: 020053501
