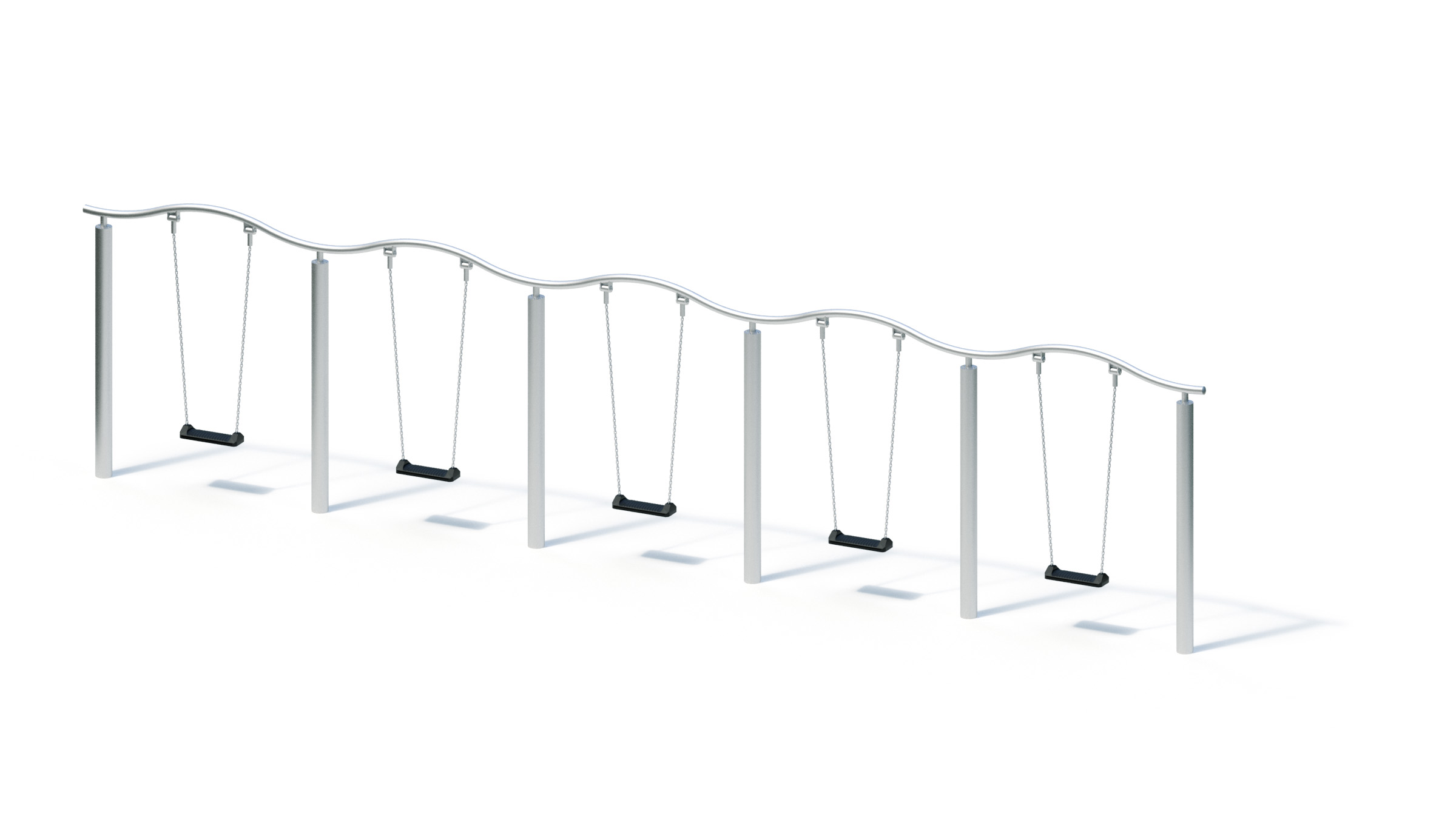

Fivefold Post swing (2,00)
The most important information
| Altersgruppe ? | 3+ |
|---|---|
| Einsatzgebiete ? | Public playgrounds |
| Benutzeranzahl ? | 5 Personen |
| Aktivitäten ? | Physical activity, Swinging |
Technical data
| Gerätelänge ? | 0,12 m |
|---|---|
| Gerätebreite ? | 8,85 m |
| Gerätehöhe ? | 2,14 m |
| Freie Fallhöhe ? | 1,25 m |
| Podesthöhen | - |
| Gesamtgewicht ? | 363.00 kg |
| Schwerstes Einzelteil ? | 65.00 kg |
| Mindestraumlänge ? | 7,30 m |
| Mindestraumbreite ? | 8,85 m |
| Mindestraumhöhe ? | 2,14 m |
Assembly & Foundations
| Montagezeit ? | 4,0 h |
|---|---|
| Monteuranzahl ? | 2 Personen |
| Hebezeug erforderlich | - |
| Fundamente | Quantity: 6 (1m x 0.8m x 0.5m) |
Product Downloads
Product description
Technical data
Minimum space: 8.85 x 7.30 m (63 m²)
Swing height: 2.00 m
Weight: 65 kg heaviest individual part
363 kg in total
- Support post made of stainless steel tube, Ø 120 x 3 mm
- Swing support: stainless steel tube, Ø 60.3 x 3 mm
- Stainless steel swing axle with plain bearings, incl. swivel
- Safety swing seat made of rubber with dimensionally stable aluminium insert and gapless single-point suspension
- Matching infant seat (item no. 15818) can be supplied at an extra charge
Foundations (client-provided)
6 pcs. 1.00 x 0.80 x 0.50 m
Concrete volume: 2.40 m³
Assembly time
2 fitters 4 hours each
(without foundation)
Free fall height
1,25 m
Suitable for
Children aged 3 and over,
public playgrounds etc.,
Physical activities
Item number: 040221000
