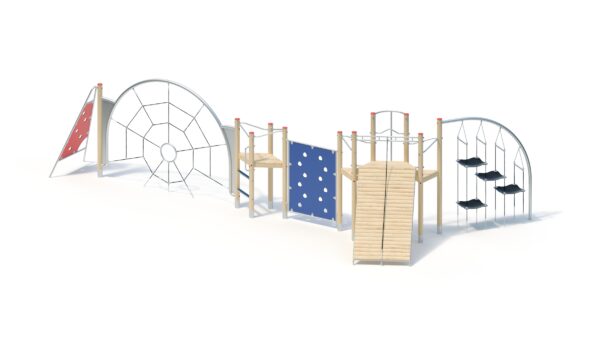

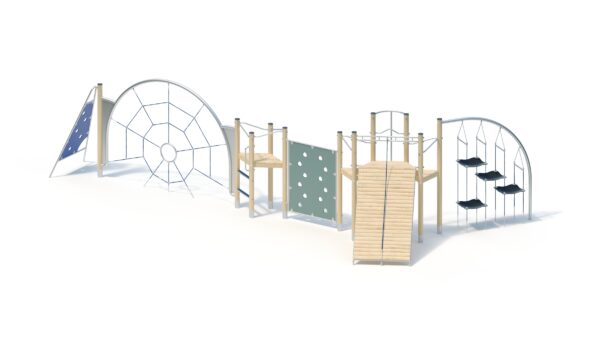

Technical data
Total height: 3.02 m

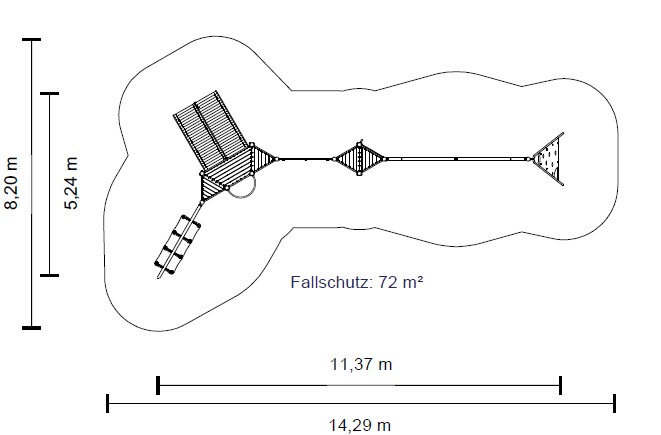

Floor area: 5.24 x 11.37 m
Minimum space: 8.20 x 14.29 m

Support post
Standing posts made of robinia plywood, cylindrically milled, Ø 120 mm. Unprotected end grain surfaces are covered with non-detachable stainless steel post caps.
Stainless steel tubular base for the foundation and elevation of Robinia roundwood posts, Ø 120 mm, below the play level.

Platform floor
Platform floor made of boards, 30 mm thick and circumferential squared timber beams 45 x 100 mm. The dried sawn timber made of robinia is planed, bevelled and free of rotting knots. Force-fit floor fastening using special stainless steel brackets with a continuous bolt connection.

Attachments
- Railing bracket, anti-roll, made of stainless steel tube, Ø 33.7 x 2 mm
- Step railing made of stainless steel tube, Ø 33.7 x 2 mm
- Stainless steel step with EPDM coating
- Vertical handle as climbing aid made of stainless steel tube, Ø 33.7 x 2 mm
- Climbing wall made of highly weather-resistant HPL laminate, 20 mm, stainless steel tube frame, 12 climbing openings
- Angled climbing wall made of highly weather-resistant HPL laminate, 20 mm, frame made of stainless steel tube, 5 climbing openings
- Steep wall made of robinia wood with tandem railing made of stainless steel tube and fixed Hercules climbing rope
- Vertical climbing pole made of stainless steel tube, Ø 38 x 2 mm
- Flying Carpet with stainless steel pipe bend, Ø 76.1 x 3.6 mm, stainless steel chain connection Ø 34 x 37 mm; polypropylene rope (Ø 16 mm), 6 strands, with galvanised steel insert; elastic mat element made of 8 mm thick, PAH-free and 4-fold textile-reinforced rubber
- Sider Net with 90° stainless steel pipe bend element, Ø 76.1 x 3.6 mm, 2-piece screwed together to form 180° pipe bend, chain connection Ø 34 x 37 mm made of stainless steel, bend connection Ø 76.1 x 64 mm made of stainless steel;
Polypropylene rope (Ø 16 mm), 6-strand, with galvanised steel insert, cross connections and T-connection elements in the rope mesh made of aluminium, tubular ring made of stainless steel (Ø 450 x Ø 38 x 2 mm) welded with 6 x rope connection (Ø 48.3 mm)

Metal components: Stainless steel.
The robinia wood is treated with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment also reduces cracking. The modular add-on parts transfer their forces directly to the uprights via a special adapter fastening. The screw connections are secured against unauthorised loosening by cover caps.

Foundations (client-provided)
6 pcs. 0.30 x 0.30 x 0.40 m
12 pcs. 0.40 x 0.40 x 0.40 m

Assembly time
2 fitters 8 hours each
(without foundation)

Free fall height
2,83 m

Suitable for
Children aged 5 and over,
public playgrounds etc.,
sporting activities

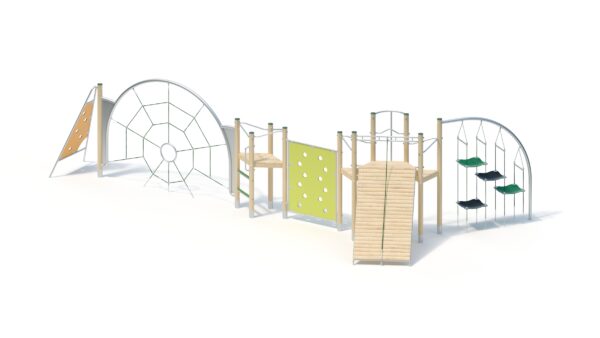

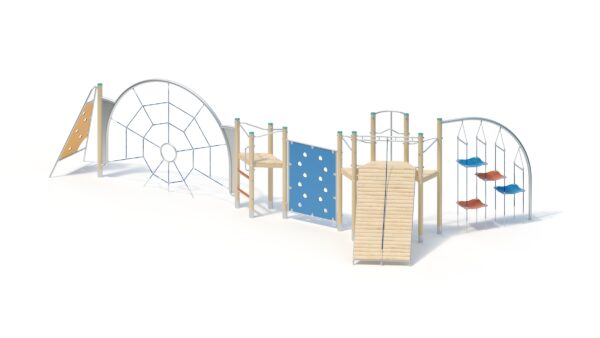

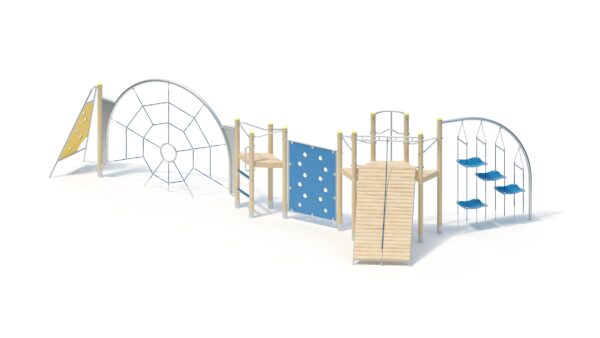

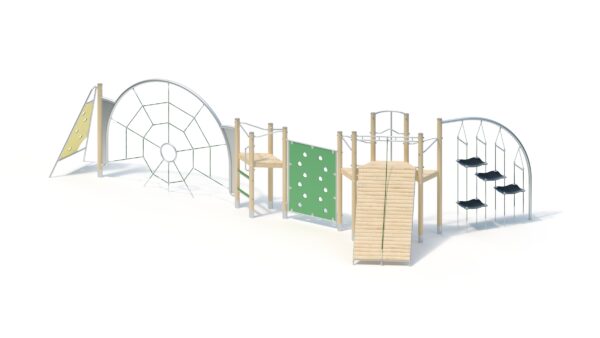

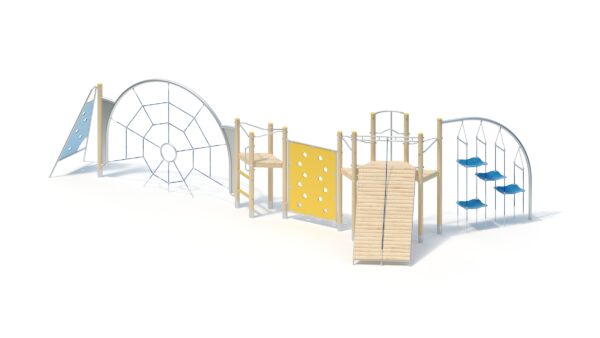

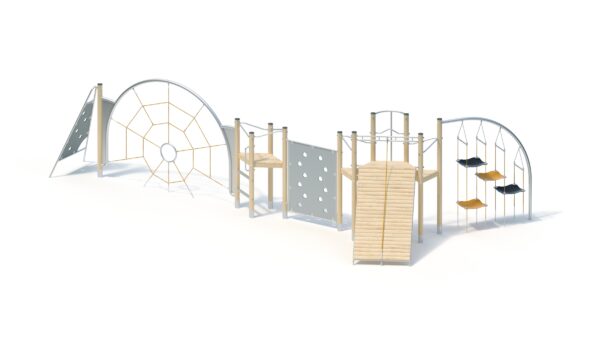

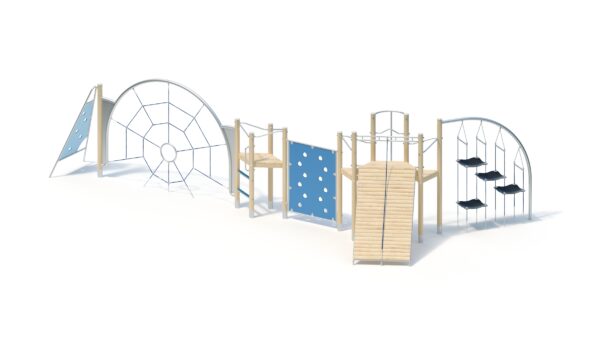

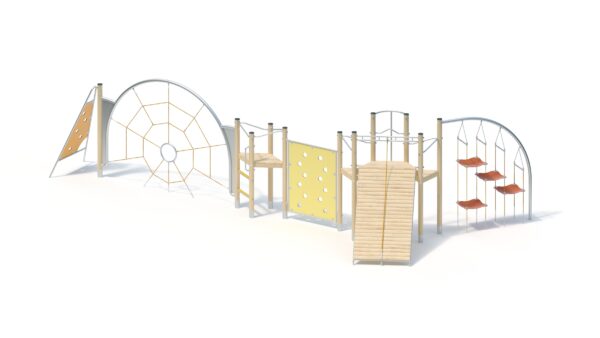

Each of our units is manufactured in accordance with the highest quality standards and the currently valid EN 1176. This model serves as an inspirational suggestion and can be designed with posts made of laminated robinia wood or stainless steel on request. The colour design is flexible and can be individually adapted to your wishes.

Item number: L755000069
