Technical data
Total height: 2.91 m

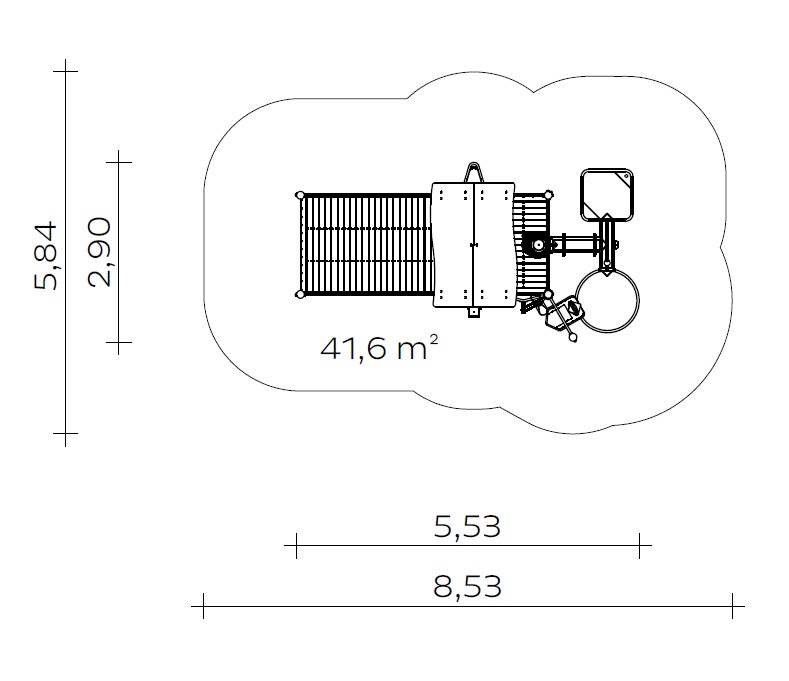

Floor area: 2.86 x 5.53 m
Minimum space: 5.84 x 8.53 m
Platform height: 0.30 m

Support post
Standing posts made of robinia plywood, cylindrically milled, Ø 120 mm. Unprotected end grain surfaces are covered with non-detachable stainless steel post caps. Tubular base made of stainless steel for the foundation and elevation of robinia roundwood posts, Ø 120 mm, below the play level.

Platform floor
Platform floor made of 30 mm thick boards and 45 x 100 mm squared timber joists all round. The dried sawn timber made of robinia is planed, bevelled and free of rotting knots. Force-fit floor fastening using special stainless steel brackets with a continuous bolt connection. Pump platform also with profiled stainless steel sheet.

Attachments
- Railing bracket, anti-roll, made of stainless steel tube, Ø 33.7 x 2 mm
- Tandem railing made of stainless steel tube, Ø 33.7 x 2 mm
- Platform ramp with handrails and stainless steel wheel deflectors
- Gable roof, with round eaves, pitch 45°, made of highly weather-resistant HPL laminate, 13 mm, attached to roof frame made of stainless steel tube Ø 33.7 x 2 mm
- Sand lift with rubber transport container and 4 mm stainless steel chain, designed as a circumferential element so that the transport container cannot be pulled into neighbouring play areas or open spaces
- Step channel with rubber sand wheel with fabric insert
- Pouring pipe wall made of HPL laminate with sand pouring pipe including shut-off damper
- Sand slide made of stainless steel tube with HPL laminate panel

Water pump with pump swivel
Height: 1.17 m
Water pump for direct connection to a water pipe, suction pipe connection 1 ¼ inch (pipe diameter at least ¾ inch)
Welded stainless steel construction, encapsulated pump housing, pump mechanism with roller and plain bearings, upper pump housing with swivel must be removed, e.g. during the frost period. Cover („winterisation plate“) for the remaining pump base is supplied.
Suitable for mounting on a solid surface, e.g. on a platform provided by the customer.

Please note:
When connecting the water pump to a pressurised water line, the valve combination (item no. 0-33190-000 or 0-33195-000) is required.
Please also observe the framework data specified in the installation instructions (spacing, diameter of the cables, etc.); these are available on request from K&K or directly as a PDF from our website at www.kaiser-kuehne.com.

If the water supply is intentionally interrupted temporarily (timer or similar), a negative pressure builds up in the pipe system when the pump is operated again, which causes the pump swivel to kick back.
It is therefore essential to prevent the pump swivel arm from being actuated (e.g. by using the pump lock, part number 1040639).

Water trough (0,80)
Welded stainless steel construction. Sheet thickness: min. 2 mm / pipe Ø 38 mm. Bevelled outlet. Stepless inclination for installation for the required gradient for the water inlet and outlet through additional elevation.

Distributing trough
Welded stainless steel construction with adjustable, shock-absorbing tilting mechanism for two-way water distribution, sheet thickness: min. 2 mm / pipe Ø 38 mm, with elevation and water channel with edge protection pipe Ø 38 x 2 mm.

Water table (0,25)
Total height: 0.40 m
Welded stainless steel construction with 1 water drain pipe. Rubber cone closure with locking mechanism for complete water drainage. 2 shelves. Sheet thickness: min. 2 mm / pipe Ø 38 mm. Anchored to the flange ring.
Matching ring foundation (15165) for anchoring to the flange ring and moulded stones (15170) for bricking up and levelling height differences or for secure foundation in loose fall protection (sand, fine gravel, etc.) can be supplied at an extra charge.

Mixing plate (0,25)
Base area: Ø 1.04 m
Total height: 0.33 m
Weight: 40 kg in total
Welded stainless steel construction with 6 water drainage openings. Sheet thickness: min. 2 mm / pipe Ø 38 mm. Anchored to the flange ring.
Matching ring foundation (15165) for anchoring to the flange ring and moulded stones (15170) for bricking up and levelling height differences or for secure foundation in loose fall protection (sand, fine gravel, etc.) can be supplied at an extra charge.

Metal components: Stainless steel. The robinia wood is treated with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment also reduces cracking. The modular add-on parts transfer their forces directly to the uprights via a special adapter fastening. The screw connections are secured against unauthorised loosening by cover caps.

Foundations (client-provided)
9 pcs. 0.40 x 0.40 x 0.40 m
2 pcs. 0.50 x 0.50 x 0.50 m
1 piece 0.50 x 0.70 x 0.50 m

Free fall height
0,92 m

Suitable for
Children aged 4 and over,
public playgrounds etc.,
Manual activities

Each of our units is manufactured in accordance with the highest quality standards and the current EN 1176 standard, and this model serves as an inspirational suggestion and can be supplied with posts made of laminated robinia wood or stainless steel on request. The colour design is flexible and can be individually adapted to your wishes.

Item number: L734400003
