Technical data

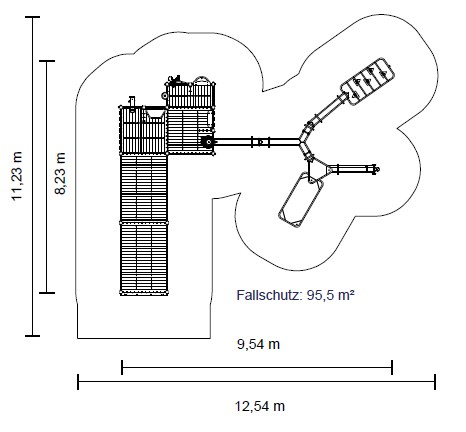

Total height: 2.07 m
Floor area: 8.23 x 9.54 m
Minimum space: 11.23 x 12.54 m
Platform height: 0.60 m
Ramp height at the start: 0.20 m

Support post
Standing posts made of robinia plywood, cylindrically milled, Ø 120 mm. Unprotected end grain surfaces are covered with non-detachable stainless steel post caps.
Stainless steel tubular base for the foundation and elevation of Robinia roundwood posts, Ø 120 mm, below the play level.

Platform floor
Platform floor made of 30 mm thick boards and 45 x 100 mm squared timber joists all round. The dried sawn timber made of robinia is planed, bevelled and free of rotting knots. Force-fit floor fastening using special stainless steel brackets with a continuous bolt connection. Pump platform also with profiled stainless steel sheet.

Attachments
- Access railing, roll-preventing, made of stainless steel tube, Ø 33.7 x 2 mm, consisting of horizontal railing tube and balustrade tubes arranged vertically on both sides
- Lattice balustrade made of stainless steel tube, Ø 33.7 x 2 / 25 x 2 mm, one-piece welded construction
- Panelled balustrade made of highly weather-resistant HPL laminate, fastened between stainless steel tubes Ø 33.7 x 2 mm
- Wooden balustrade made of robinia, 125 x 30 mm, fastened between stainless steel tubes Ø 33.7 x 2 mm
- Pouring tube wall made of HPL laminate with sand pouring tube including shut-off damper, fastened between stainless steel tubes Ø 33.7 x 2 mm
- Sand pouring pipe with stainless steel hemisphere
- Stainless steel mud table
- Sand lift with rubber transport container and 4 mm stainless steel chain, designed as a circumferential element so that the transport container cannot be pulled into neighbouring play areas or open spaces
- Platform ramp with handrails and stainless steel wheel deflectors
- Awning made of highly weather-resistant HPL laminate 13 mm
- Table made of highly weather-resistant HPL laminate 20 mm
- Seat plate made of highly weather-resistant HPL laminate, 20 mm

Water pump article no. 0-33130-001
Water pump for direct connection to a water pipe, suction pipe connection 1 ¼ inch (pipe diameter at least ¾ inch)
Welded stainless steel construction, encapsulated pump housing, pump mechanism with roller and plain bearings, upper pump housing with swivel must be removed, e.g. during the frost period. Cover („winterisation plate“) for the remaining pump base is supplied.

Please note:
When connecting the water pump to a pressurised water line, the K&K valve combination (item no. 0-33190-000 or 0-33195-000) is required.
Please also observe the framework data specified in the installation instructions (spacing, diameter of the cables, etc.); these are available on request from K&K or directly as a PDF from our website at www.kaiser-kuehne.com.

If the water supply is intentionally interrupted temporarily (timer or similar), a negative pressure builds up in the pipe system when the pump is operated again, which causes the pump swivel to kick back.
It is therefore essential to prevent the pump swivel arm from being actuated (e.g. by using the pump lock, part number 1040639).

Water channel 1.60 m, 2 pieces
Welded stainless steel construction. Sheet thickness: min. 2 mm. Bevelled spout.
Stepless inclination for installation for the required gradient for the inlet and outlet of the water through additional elevation

Water channel 1.60 m with water mill
Welded stainless steel construction with supports and water channel for upper water supply. Sheet thickness: min. 2 mm / tube Ø 38 mm. Water mill made of 6 hemispheres with edge protection. Wheel bearings with maintenance-free roller bearings.

Y-channel
Y-shaped water channel with one inlet area and two outlets, sheet thickness: min. 2 mm / pipe Ø 38 mm. Stepless inclination for installation for the required gradient for the inlet and outlet of the water through additional elevations.

Storage flap, 3 pieces
Storage flap for K&K water channels, freely positionable, stainless steel handle, rubber blade with fabric insert.

Water distribution table (0.50) Article no. 0-33481-000
Total height: 0.90 m
Welded stainless steel construction with 2 water drain pipes. Rubber cone closure with locking mechanism for complete water drainage. Sheet thickness min. 2 mm/ pipe Ø 38 mm.
Matching ring foundation (15166) for anchoring to the flange ring and moulded stones (15167) for bricking up and levelling height differences or for secure foundation in loose fall protection (sand, fine gravel, etc.) can be supplied at an extra charge.

Whirling table (0.25)
Base area: 0.84 x 1.84 m
Welded stainless steel construction with 1 water drainage opening and 5 adjustable HPL prisms as flow obstacles. Sheet thickness: min. 2 mm. Anchored to the flange ring.
Matching ring foundations (15165) for anchoring to the flange ring and moulded stones (15170) for bricking up and levelling height differences or for secure foundations in loose fall protection (sand, fine gravel, etc.) can be supplied at an extra charge.

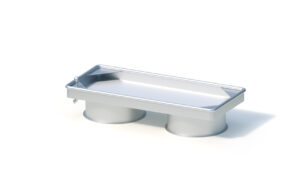

Water table
Base area: 0.84 x 1.84 m
Total height: 0.69 m
Height lower edge of water tables: 0.53 m
Welded stainless steel construction with 1 water drain pipe. Rubber cone closure with locking mechanism for residue-free water removal. 4 shelves. Sheet thickness: min. 2 mm / pipe Ø 38 mm. Substructure made of stainless steel tube.

Metal components: Stainless steel.
The robinia wood is treated with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment also reduces cracking. The modular add-on parts transfer their forces directly to the uprights via a special adapter fastening. The screw connections are secured against unauthorised loosening by cover caps.

Foundations (client-provided)
19 units 0.40 x 0.40 x 0.40 m
7 units 0.50 x 0.50 x 0.50 m
1 piece 0.50 x 0.70 x 0.50 m

Assembly time
2 fitters 12 hours each.
(without foundation, without water connection)

Free fall height
1,20 m

Suitable for
Children aged 3 and over,
public playgrounds etc.,
Manual activities

Each of our units is manufactured in accordance with the highest quality standards and the current EN 1176 standard, and this model serves as an inspirational suggestion and can be supplied with posts made of laminated robinia wood or stainless steel on request. The colour design is flexible and can be individually adapted to your wishes.

Item number: L734000349
