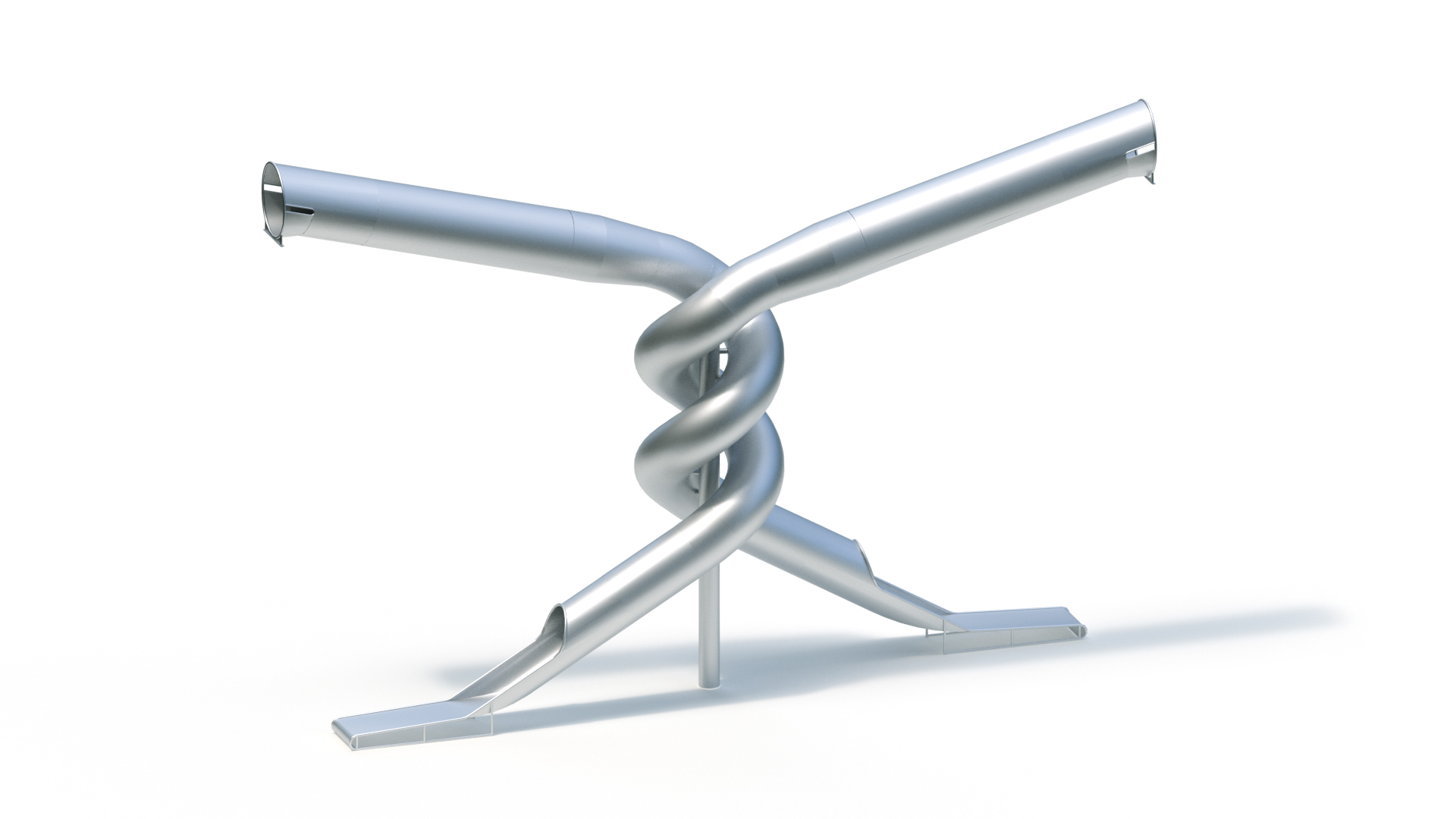

Roller/Tunnel slide combination
The most important information
| Altersgruppe ? | 4+ |
|---|---|
| Einsatzgebiete ? | Public playgrounds |
| Benutzeranzahl ? | 7 Personen |
| Aktivitäten ? | Physical activity, Slide |
Technical data

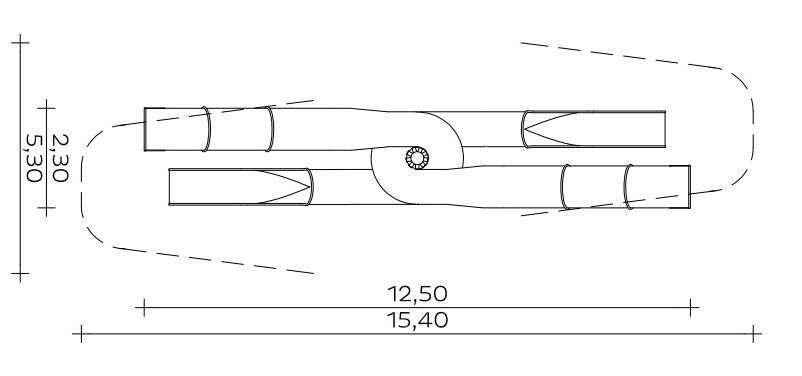

| Mindestraumlänge ? | 15,40 m |
|---|---|
| Mindestraumbreite ? | 5,30 m |
| Mindestraumhöhe ? | 0,00 m |
| Gerätelänge ? | 12,50 m |
| Gerätebreite ? | 2,30 m |
| Gerätehöhe ? | 8,25 m |
| Freie Fallhöhe ? | 0,71 m |
| Podesthöhen | - |
| Gesamtgewicht ? | 3335.00 kg |
| Schwerstes Einzelteil ? | 1900.00 kg |
Assembly & Foundations
| Montagezeit ? | 8,0 h |
|---|---|
| Monteuranzahl ? | 3 Personen |
| Hebezeug erforderlich | Ja |
| Fundamente | Quantity: 1 (0.8m x 0.8m x 1m) Quantity: 6 (1m x 0.4m x 0.4m) |
Product Downloads
Product description
Technical data
Flange mounting
Mounting height: 7.11 m
Seat height: 7.28 m
Roller conveyor inclination: 15°
Roller conveyor diameter: 0.96 m
Slide inclination: 30°/38°
Tunnel diameter: 0.80 m
Sheet thickness: 2.5 mm
Stainless steel roller conveyor segments
Single-seat section with grip openings on both sides, internal track guide, stainless steel rollers with roller bearings, roller diameter: 50 mm
Centre pylon: Stainless steel tube Ø 298.5 x 7.1 mm
Stainless steel slide segments, particularly quiet due to tubular shape,
Five-part roller conveyor/slide, incl. connecting flanges for assembly on site.
Each consisting of:
- 17100 K&K Roller conveyor single seat
- 17110 K&K Roller conveyor straight
- 16155 K&K tunnel slide screw 38°, clockwise rotation
- 16148 K&K tunnel slide shaft 38/30°
- 16110 K&K tunnel slide-straight 30°
- 16180 K&K tunnel slide outlet 30°
Foundations (client-provided)
1 piece 0.80 x 0.80 x 1.00 m
6 pcs. 1.00 x 0.40 x 0.40 m
Concrete volume: 1.60 m³
Item number: 941000454
