Roller slide (3,00 m)
The most important information
| Age group ? | 4+ |
|---|---|
| Areas of use ? | Public playgrounds |
| Number of users ? | 4 people |
| Activities ? | Physical activity, Slide |
Technical data

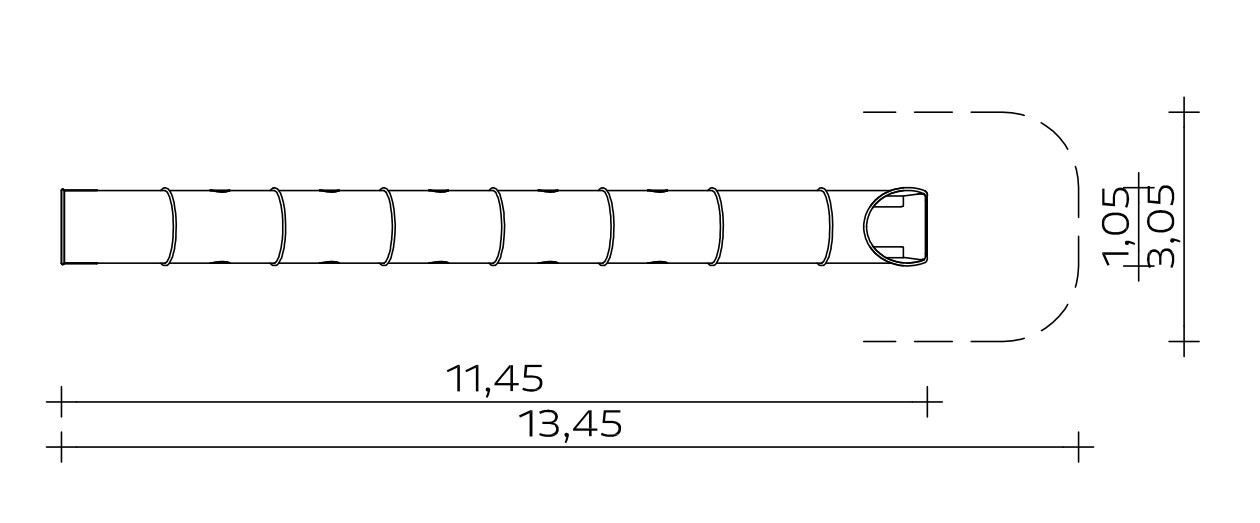

| Minimum space length ? | 13,45 m |
|---|---|
| Minimum space width ? | 3,05 m |
| Minimum space height ? | 0,00 m |
| Equipment length ? | 11,45 m |
| Equipment width ? | 1,05 m |
| Equipment height ? | 4,15 m |
| Free-fall height ? | 0,00 m |
| Platform heights | - |
| Total weight ? | 1155.00 kg |
| Heaviest single part ? | 1155.00 kg |
Assembly & Foundations
| Assembly time ? | 2,0 h |
|---|---|
| Number of fitters ? | 2 people |
| Lifting equipment required | Yes |
| Foundations | Quantity: 1 (1.2m x 0.4m x 0.4m) |
Product Downloads
Product description
Technical data
Floor area: 1.05 x 11.50 m
Minimum space: 3.05 x 13.50 m
Mounting height: 3.00 m
Seat height: 3.10 m
Slide inclination: 15°
Tunnel diameter: 0.96 m
Roller diameter: 50 mm
Sliding plate thickness: 2.5 mm
Roller conveyor segments with internal web guide made of stainless steel, welded to form a one-piece roller conveyor
Handle openings on both sides in the single-seat section. Light openings made of shatterproof polycarbonate
Stainless steel rollers with roller bearings Ø 50 mm
In the area of the flange on the single seat, a suitable base for fastening (wooden platform or planks, concrete foundation or similar) must be available on site.
For your planning, please note that stainless steel slides should be orientated to the north-east or in the partial shade of trees due to the possible heating of the slide surface.
Foundations (client-provided)
1 piece 1.20 x 0.40 x 0.40 m
Concrete volume: 0.19 m³
Item number: 941000358
