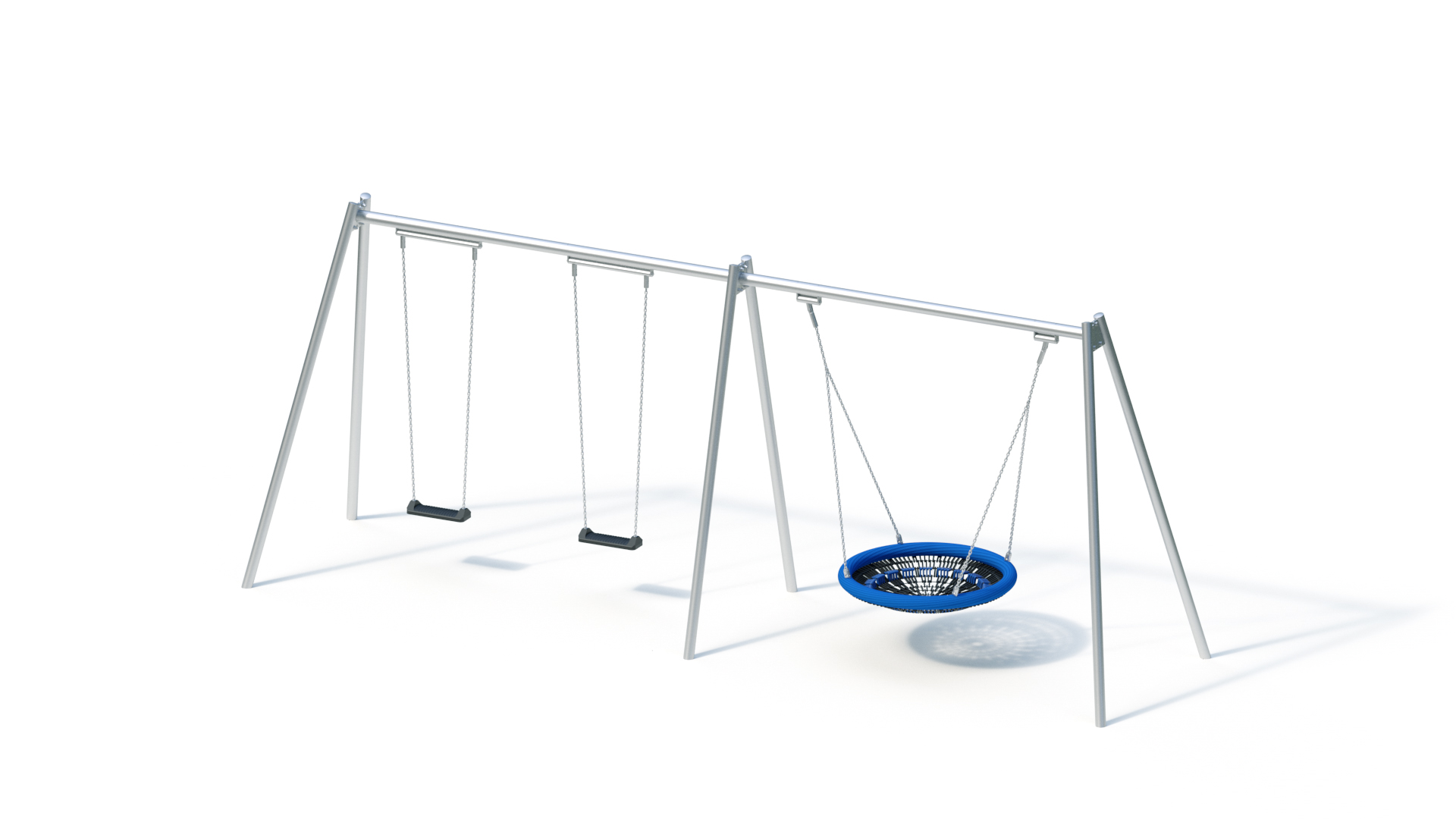

Swing combination (2,50) zinc-plated

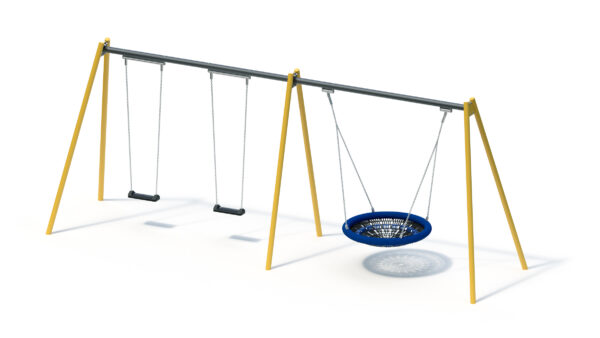

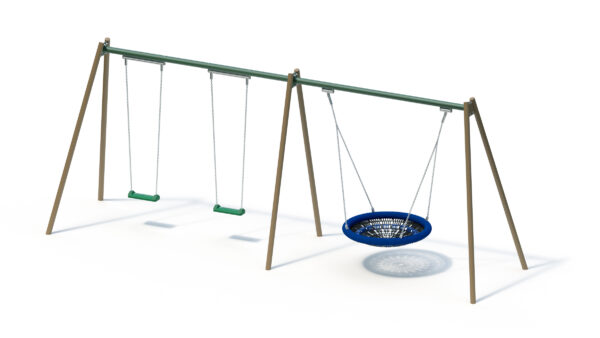

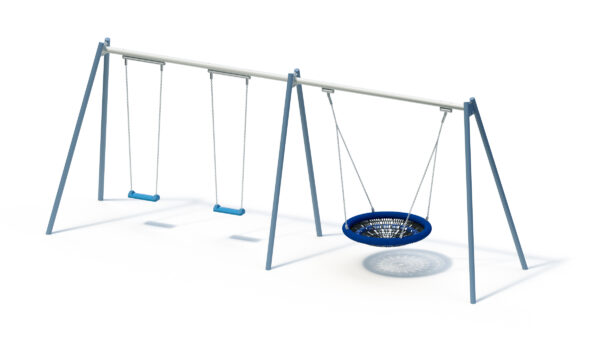

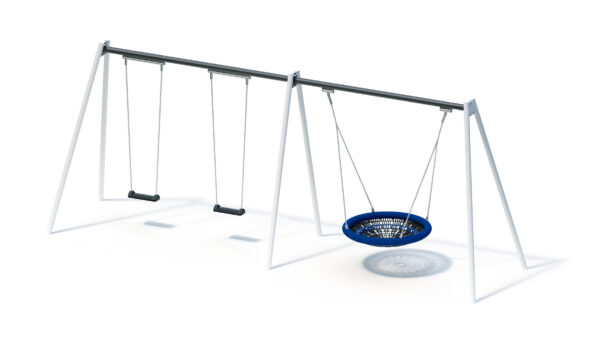

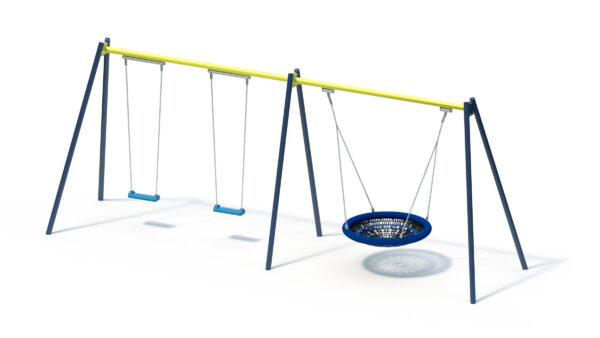

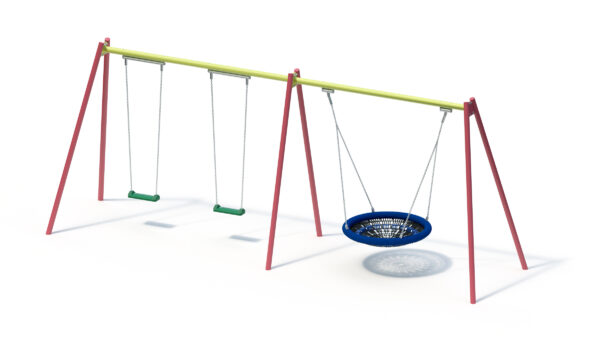

Select variant:
The most important information
| Age group ? | 3+ |
|---|---|
| Areas of application ? | - |
| Number of users ? | 8 persons |
| Activities ? | - |
Technical data
| Device length ? | 1,75 m |
|---|---|
| Device width ? | 6,79 m |
| Device height ? | 2,71 m |
| Free fall height ? | 1,59 m |
| Platform heights | - |
| Total weight ? | 265.00 kg |
| Heaviest single item ? | 50.00 kg |
| Minimum room length ? | 8,05 m |
| Minimum room width ? | 6,79 m |
| Minimum room height ? | 2,71 m |
Assembly & Foundations
| Assembly time ? | 3.0 hours |
|---|---|
| Number of fitters ? | 2 persons |
| Lifting gear required | - |
| Foundations | 070x050x050 |
Product Downloads
Product description
Technical data
Floor area: 1.73 x 6.79 m
Minimum space: 8.05 x 6.79 m
Swing height: 2.50 m
Weight: 50 kg heaviest individual part
265 kg in total
- Swing supports made of steel, Ø 76.1 mm, wall thickness 2.9 mm, hot-dip galvanised; connection to swing supports via connecting plates
- Swing support made of steel, Ø 88.9 mm, wall thickness 3.2 mm, hot-dip galvanised; connection to swing supports via connecting plates
- Swing axle made of stainless steel, consisting of internal bearing axle Ø 28 mm made of solid material, outer tube Ø 42.4 mm with 2 mm wall thickness and plain bearings
- Trapezoidal chain suspension consisting of stainless steel chains Ø 7 mm, with integrated swivels on ball bearings to prevent the chains from knotting
- on the swing axle and on the swing seat/basket: chain attachment with stainless steel clamping adapter
- Safety swing seat made of rubber with dimensionally stable aluminium insert and gapless single-point suspension
- Two-part basket swing axle made of stainless steel with roller bearings, chain holder with plain bearing-mounted equalising transverse joint including second device for securing the swing seat to prevent it from falling down if the main attachment fails.
- Swinging basket with all-round cushioning made of PUR foam and PE rope sheathing blue Ø 20 mm; basket ring Ø 1.20 m made of stainless steel tube Ø 38 mm, wall thickness 2 mm; basket made of plastic links blue-black, connected with steel rope. The TÜV-tested maximum acceleration is 50g. The limit value according to DIN EN 1176-2 is 120g. According to the TÜV test, the surface pressure is 79.6 N/cm², the limit value is 90N/cm²
- Specially designed swivel and universal joints, designed for the high dynamic requirements of the basket swing, therefore no additional safety elements are required for the suspension system (in accordance with DIN EN 1176-2:2008)
Foundations (client-provided)
6 pcs. 0.50 x 0.70 x 0.50 m
Assembly time
2 fitters 3 hours each
(without foundation)
Free fall height
1,59 m
Suitable for
Children aged 3 and over,
public playgrounds etc.,
Physical activities
Item number: 940342222
