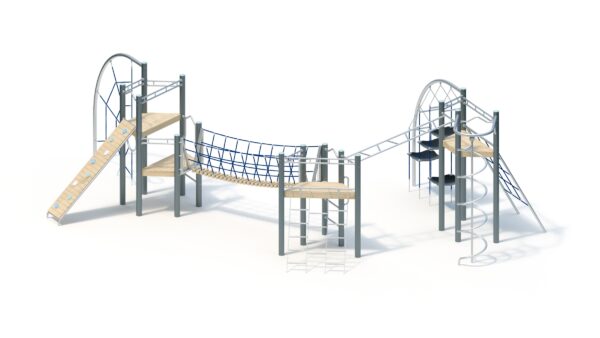

Technical data
Total height: 2.93

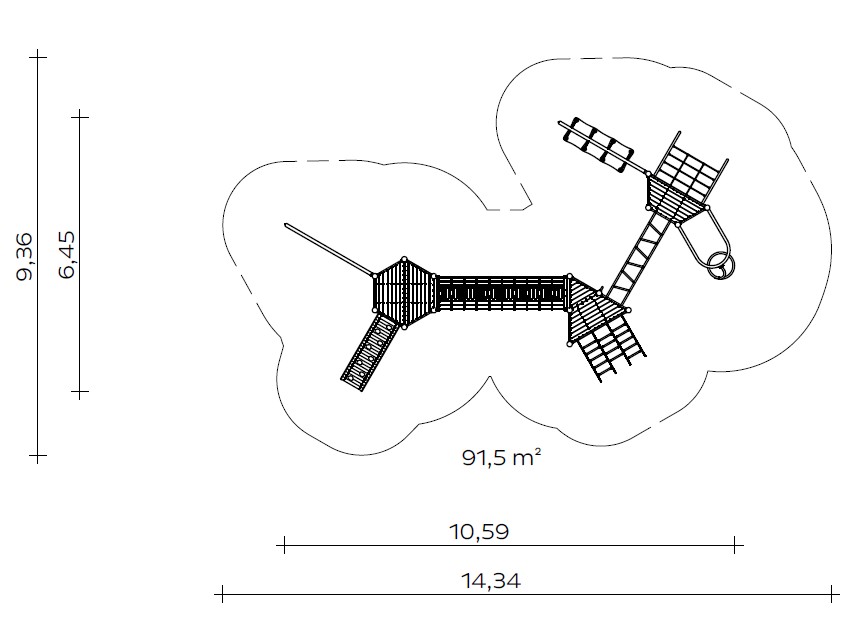

Floor area: 6.45 x 10.59 m
Impact area: 9.36 x 14.34 m (91.5 m²)
Platform height: 1.00 / 1.20 / 1.40 / 2.00 m

Support post
Posts made of stainless steel tube Ø 120 mm, covered with non-detachable stainless steel post caps. Connection of the modular add-on parts to the uprights using solid and fully welded stainless steel weld-in sleeves without protruding connecting elements.

Platforms
Platform floor made of boards, 30 mm thick and circumferential squared timber beams 45 x 100 mm. The dried sawn timber made of robinia is planed, bevelled and free of rotting knots. Force-fit floor fastening using special stainless steel brackets with continuous bolt fastening.

Attachments
– Flying Carpet with stainless steel curved tube elements (Ø 76.1 x 3.6 mm), polypropylene rope net with galvanised steel core Ø 16 mm, 8 mm rubber mats and stainless steel chain fixings Ø 7 mm attached to a base tube Ø 38 x 2 mm.
- Stainless steel spring slide Ø 42.4 mm on stainless steel pipe bend Ø 60.3 x 3 mm
- Boarding net made of Hercules rope on stainless steel frame
- Chain ladder with stainless steel rungs
- Climbing wall made of robinia wood with attached climbing elements made of HPL laminate board
- Climbing rung made of stainless steel tube, Ø 38 mm, torsion-resistant
- Inclined suspended ladder, welded construction made of stainless steel tube 38 x 2.5/33.7 x 2 mm
– Truss bridge: V-shaped mesh structure made of Hercules rope, walkway consisting of wooden rungs with a clear spacing of approx. 40 mm, attached to a steel frame structure, parapet height approx. 0.75 m; Support posts made of laminated robinia timber, Ø 120 mm, with stainless steel tubular bases
- Railing bracket, anti-roll, made of stainless steel tube, Ø 33.7 x 2 mm
- Tandem railing made of stainless steel tube, Ø 33.7 x 2 mm
- Access railing, roll-preventing, welded construction made of stainless steel tube, Ø 33.7 x 2 mm, consisting of horizontal railing tube with bent, vertically arranged support tubes
- Vertical handle as climbing aid made of stainless steel tube, Ø 33.7 x 2 mm
- Spider Net with stainless steel tube bend element Ø 76.1 x 3.6 mm, polypropylene rope net with galvanised steel insert Ø 16 mm, aluminium connecting elements and stainless steel tube ring Ø 450 mm made of tube Ø 38 x 2 mm.

General note
The robinia wood is treated with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment also reduces cracking. The modular add-on parts transfer their forces directly to the uprights via a special adapter fastening. The screw connections are secured against unauthorised loosening.

Foundations
15 pieces, 0.40 x 0.40 x 0.40 m
2 pcs. 0.30 x 0.30 x 0.40 m
2 pieces, 0.50 x 0.50 x 0.40 m
1 piece 0.60 x 0.60 x 0.40 m

Assembly time
2 fitters 10 hours each, plus lifting gear
(without foundation)

Free fall height
2.84m

Suitable for
Children aged 6 and over,
public playgrounds etc.,
Physical activities

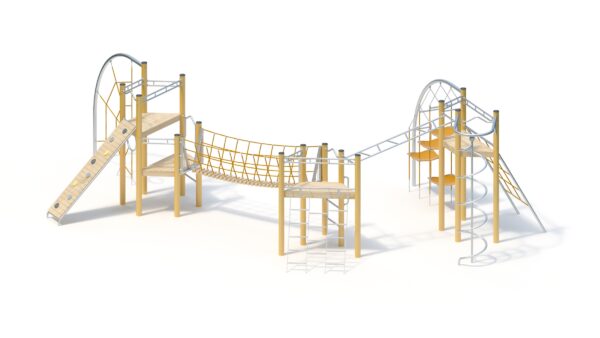

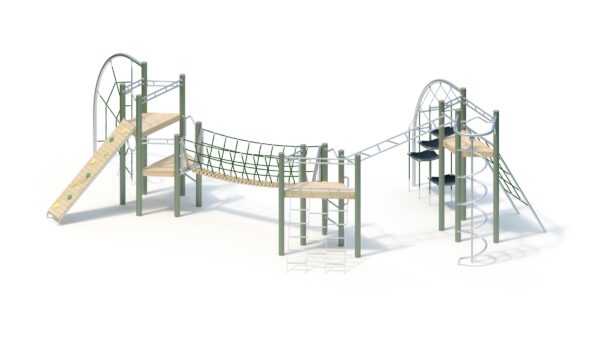

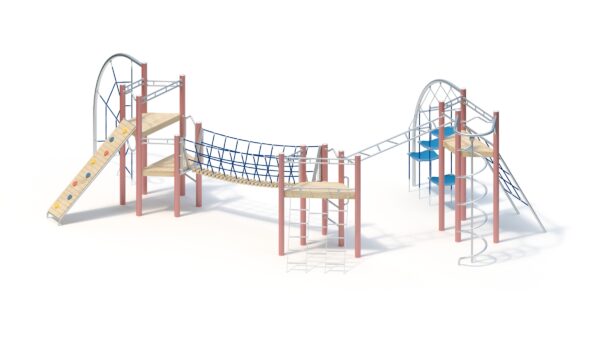

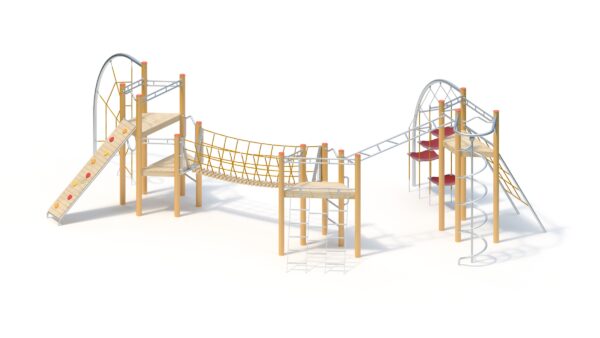

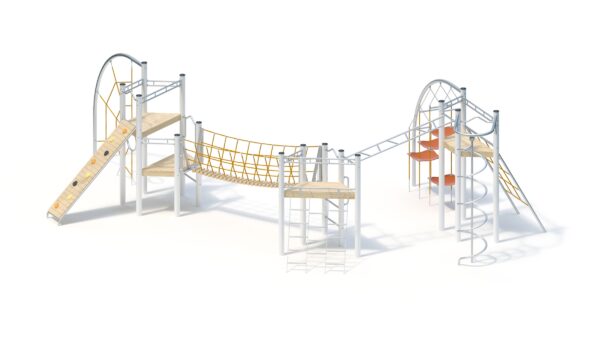

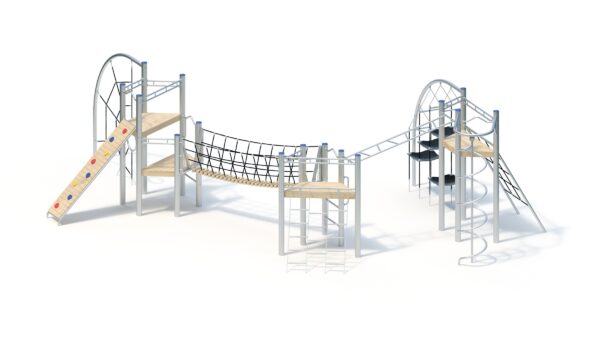

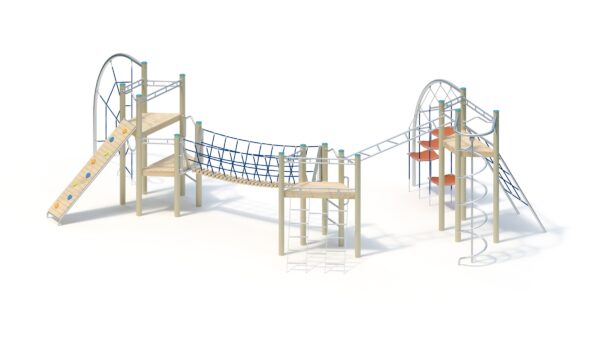

Each of our units is manufactured in accordance with the highest quality standards and the currently valid EN 1176. This model serves as an inspirational suggestion and can be designed with posts made of laminated robinia wood or stainless steel on request. The colour design is flexible and can be individually adapted to your wishes.

Item number: 855600044
