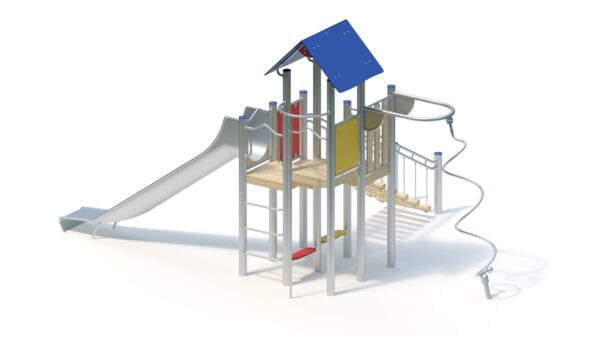

Climbing combination

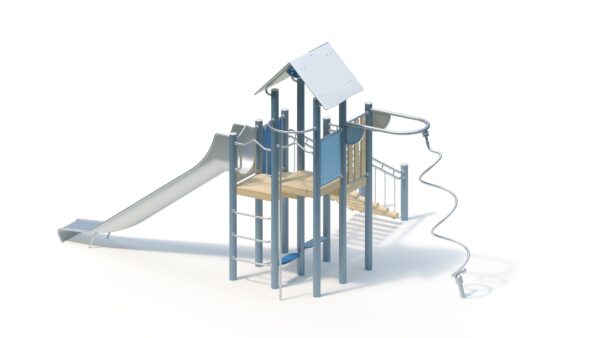

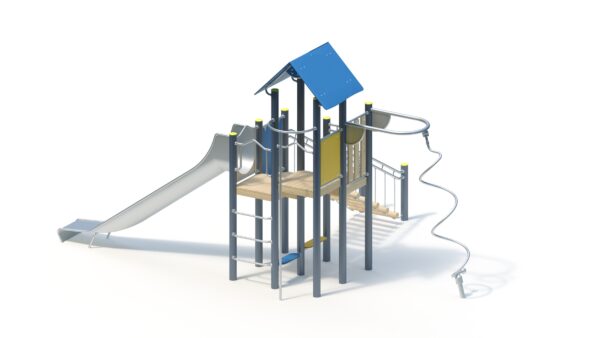

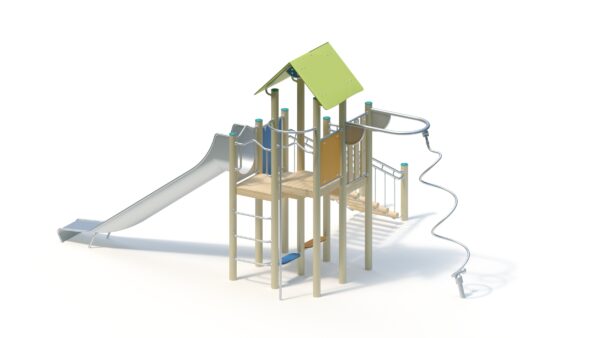

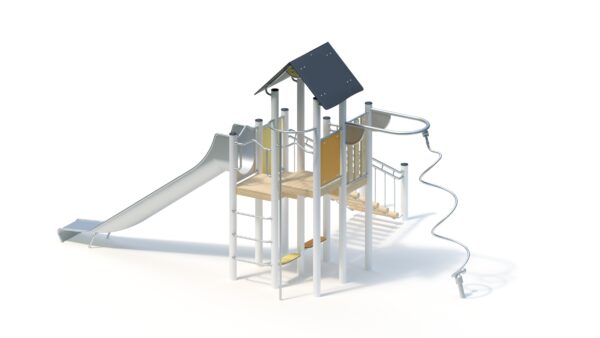

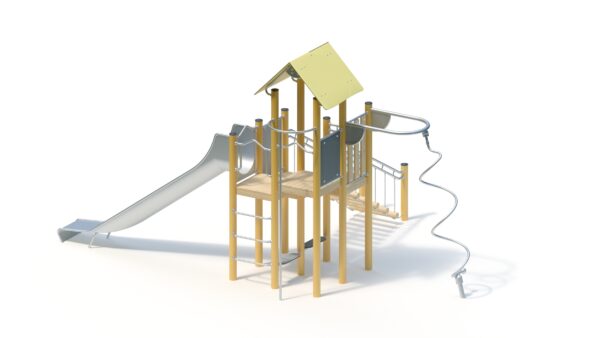

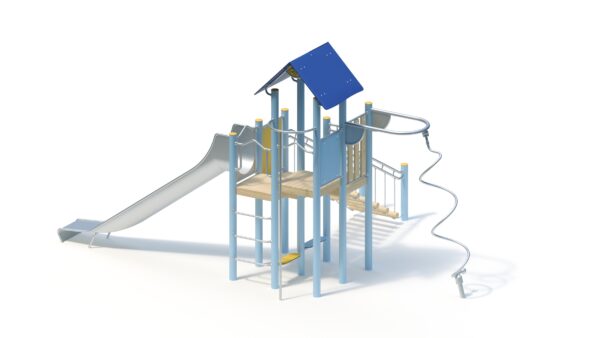

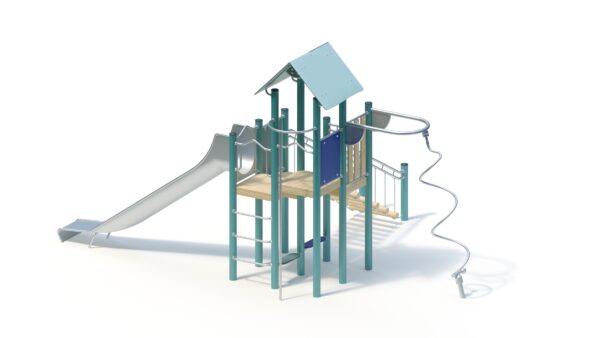

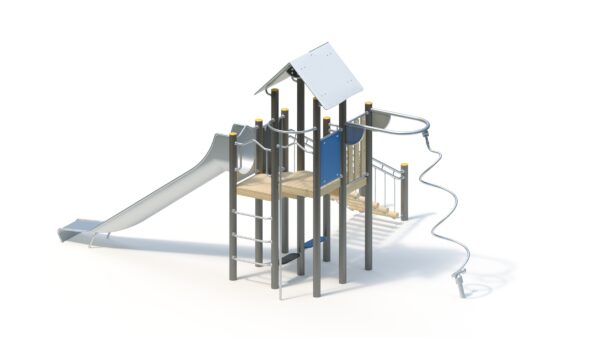

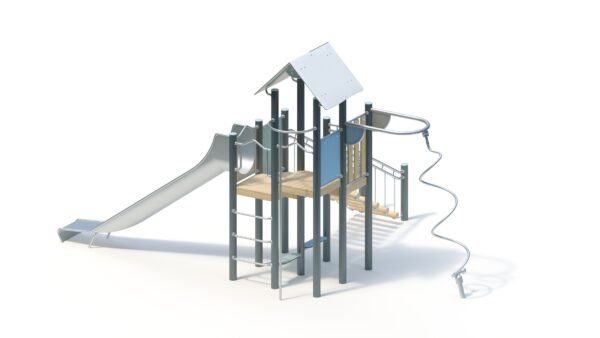

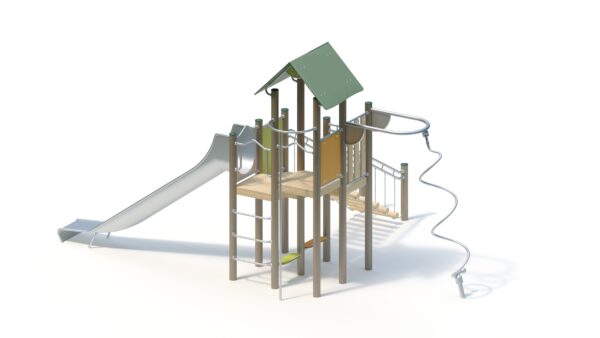

Select variant:
The most important information
| Age group ? | 5+ |
|---|---|
| Areas of use ? | Public playgrounds |
| Number of users ? | 20 people |
| Activities ? | Physical activity, Climbing, Slide |
Technical data
| Minimum space length ? | 11,62 m |
|---|---|
| Minimum space width ? | 7,99 m |
| Minimum space height ? | 0,00 m |
| Equipment length ? | 7,18 m |
| Equipment width ? | 4,56 m |
| Equipment height ? | 4,01 m |
| Free-fall height ? | 2,80 m |
| Platform heights | - |
| Total weight ? | 727.00 kg |
| Heaviest single part ? | 103.00 kg |
Assembly & Foundations
| Assembly time ? | 8,0 h |
|---|---|
| Number of fitters ? | 2 people |
| Lifting equipment required | - |
| Foundations | Quantity: 1x (0.3m x 0.3m x 0.4m) Quantity: 11 (0.4m x 0.4m x 0.4m) Quantity: 1 (0.75m x 0.4m x 0.4m) Quantity: 1 (0.6m x 0.6m x 0.5m) |
Product Downloads
Product description
Technical data

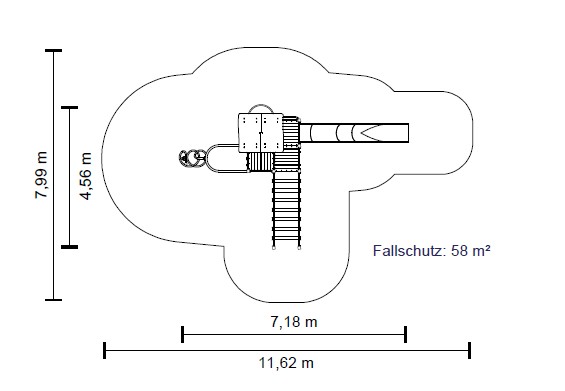

Floor area: 4.56 x 7.18 m
Minimum space: 7.99 x 11.62 m
Total height: 4.01 m
Platform height: 1.40/1.60/1.80 m
Seat height: 1.70 m
Support post
Posts made of stainless steel tube Ø 120 mm, covered with non-detachable stainless steel post caps.
Platform floor
Platform floor made of boards, 30 mm thick and circumferential squared timber beams 45 x 100 mm. The dried sawn timber made of robinia is planed, bevelled and free of rotting knots. Force-fit floor fastening using special stainless steel brackets with a continuous bolt connection.
Attachments
- Railing bracket, anti-roll, made of stainless steel tube, Ø 33.7 x 2 mm
- Tandem railing made of stainless steel tube, Ø 33.7 x 2 mm
- Access railing, roll-preventing, made of stainless steel tube, Ø 33.7 x 2 mm, consisting of horizontal railing tube and balustrade tubes arranged vertically on both sides
- Wooden balustrade made of robinia, 125 x 30 mm, fastened between stainless steel tubes Ø 33.7 x 2 mm
- Panelled balustrade made of highly weather-resistant HPL laminate, fastened between stainless steel tubes Ø 33.7 x 2 mm
- Wobbly staircase on tandem crossbeam, 10 cm diameter robinia walkways, fine-linked stainless steel railing chains
- Climbing rung (cranked) made of stainless steel tube, Ø 33.7 x 2 mm
- Seat made of highly weather-resistant HPL laminate, 20 mm
- Climbing pole made of stainless steel tube, Ø 38 mm
- Big Tornado with stainless steel pipe bend, Ø 60.3 x 3 mm, and spiral-shaped construction made of stainless steel pipe with knurled base; anti-friction bearings, protected from dirt; foundation anchor made of hot-dip galvanised steel
- Gable roof, pitch 45°, made of highly weather-resistant HPL laminate, 13 mm. Attachment to roof frame made of stainless steel tube Ø 33.7 x 2 mm
- Attachable trough slide, 0.60 m wide, one-piece stainless steel construction, sheet thickness: 2.5 mm, with roll-off protection above the single-seat section
For your planning, please note that stainless steel slides should be orientated to the north-east or in the partial shade of trees due to the possible heating of the slide surface.
Metal components: Stainless steel. The robinia wood is treated with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment also reduces cracking. The modular add-on parts transfer their forces directly to the uprights via a special adapter fastening. The screw connections are secured against unauthorised loosening.
Foundations (client-provided)
1 piece 0.30 x 0.30 x 0.40 m
11 units 0.40 x 0.40 x 0.40 m
1 piece 0.40 x 0.75 x 0.40 m
1 piece 0.60 x 0.60 x 0.50 m
Assembly time
2 fitters 8 hours each
(without foundation)
Free fall height
2,80 m
Suitable for
Children aged 5 and over,
public playgrounds etc.
Movement activities.
Each of our units is manufactured in accordance with the highest quality standards and the current EN 1176 standard, and this model serves as an inspirational suggestion and can be supplied with posts made of laminated robinia wood or stainless steel on request. The colour design is flexible and can be individually adapted to your wishes.
Item number: 822330016
