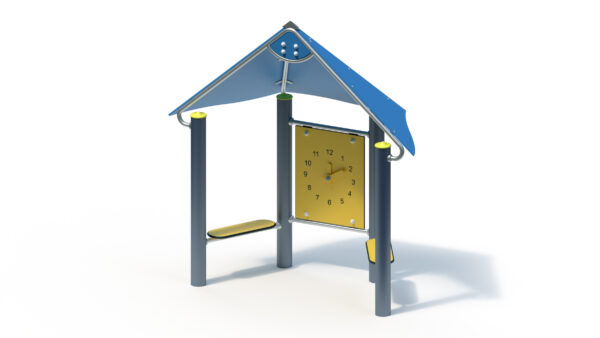

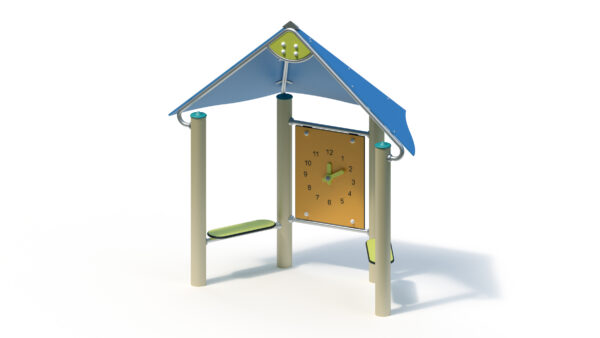

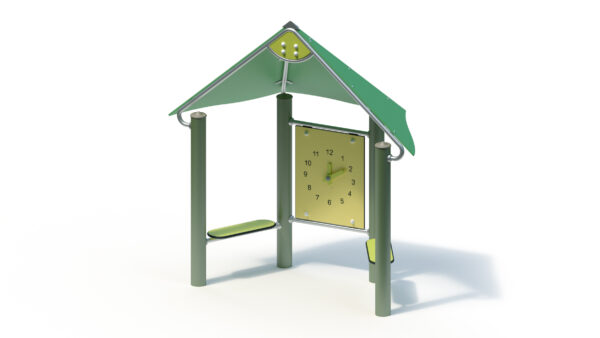

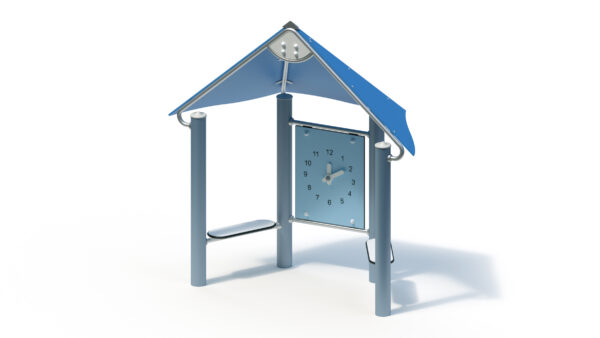

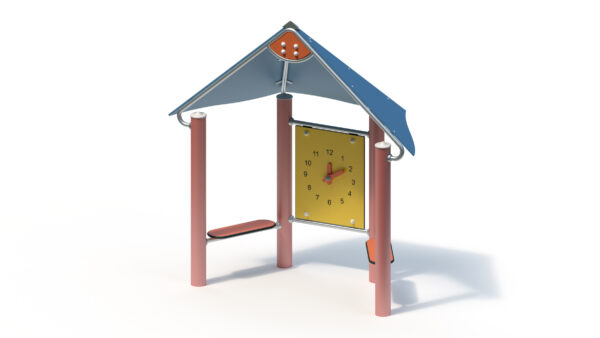

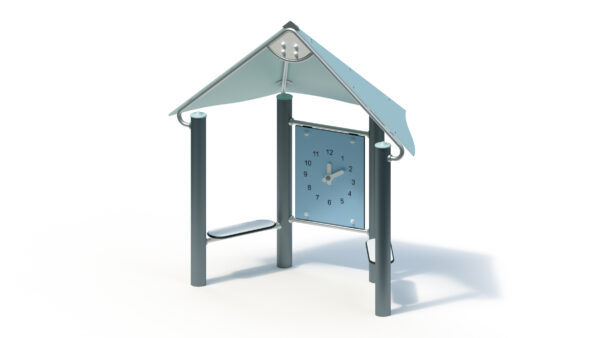

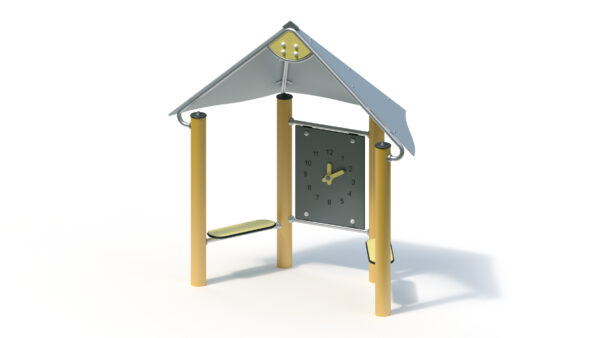

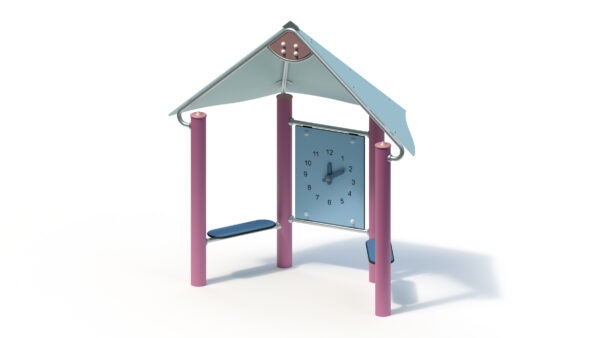

Play clock

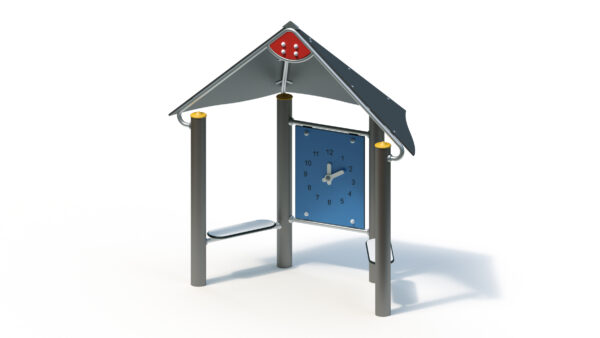

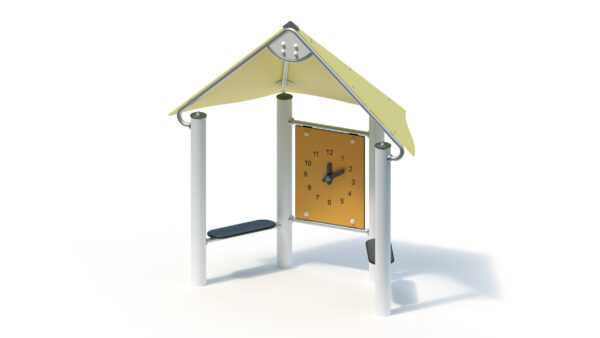

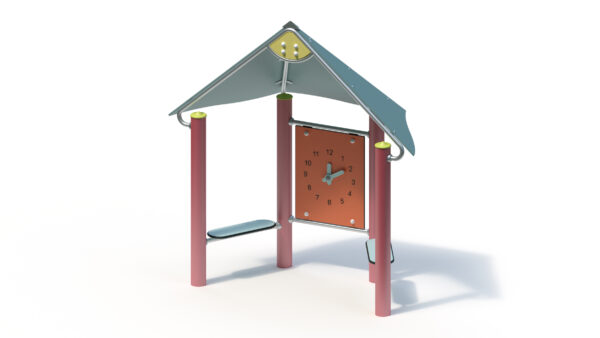

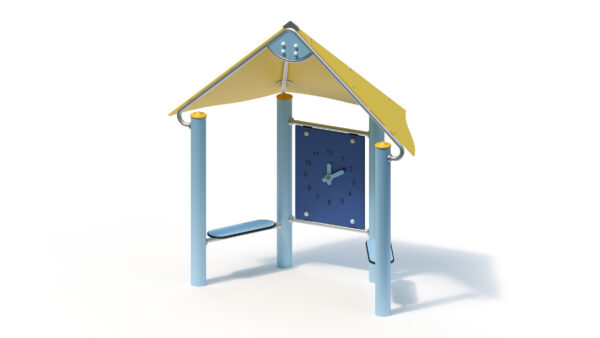

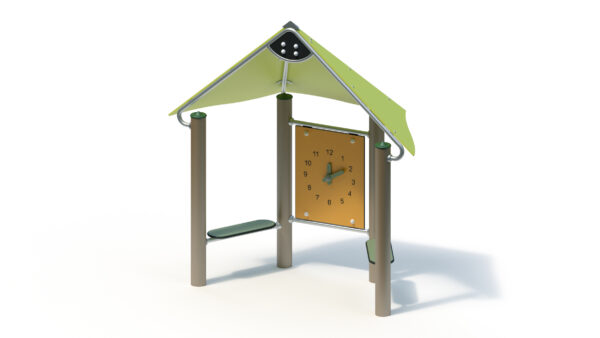

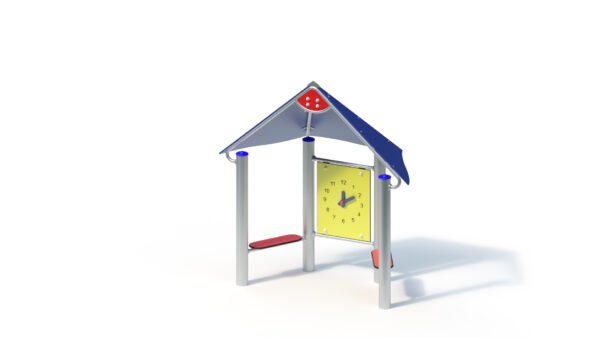

Select variant:
The most important information
| Age group ? | 1+ |
|---|---|
| Areas of use ? | Public playgrounds |
| Number of users ? | 7 People |
| Activities ? | Social activity |
Technical data
| Minimum space length ? | 5,30 m |
|---|---|
| Minimum space width ? | 4,05 m |
| Minimum space height ? | 2,30 m |
| Equipment length ? | 2,15 m |
| Equipment width ? | 1,05 m |
| Equipment height ? | 2,30 m |
| Free-fall height ? | 0,40 m |
| Platform heights | - |
| Total weight ? | 155.00 kg |
| Heaviest single part ? | 15.00 kg |
Assembly & Foundations
| Assembly time ? | 2,0 h |
|---|---|
| Number of fitters ? | 2 people |
| Lifting equipment required | - |
| Foundations | Quantity: 4 (0.4m x 0.4m x 0.4m) |
Product Downloads
Product description
Technical data

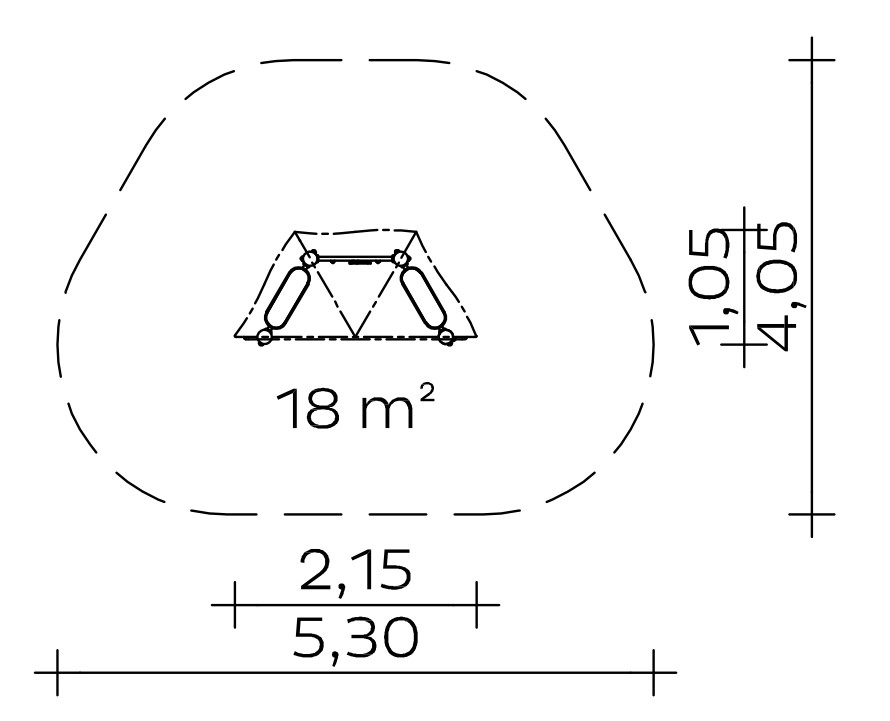

Base area: 1.05 x 2.15 m
Minimum space: 4.05 x 5.30 m (18 m²)
Total height: 2.30 m
Seat height: 0.40 m
Support post
Posts made of stainless steel tube Ø 120 x 3 mm covered with non-detachable stainless steel post caps. Connection of the modular add-on parts to the uprights using solid and fully welded stainless steel weld-in sleeves without protruding connecting elements.
Attachments
- Tent roof, pitch 45°, made of highly weather-resistant HPl laminate, 13 mm. Attachment to roof frame made of stainless steel tube Ø 33.7 x 2 mm
- Seat made of coloured, highly weather-resistant HPL laminate, 20 mm
- Panel balustrade made of coloured, highly weather-resistant HPL laminate (red and yellow). Fastened between stainless steel tubes Ø 33.7 x 2 mm. Front panel with clock, hands made of HPL laminate, blue, for manually setting the time.
Metal components: Stainless steel
The modular add-on parts transfer their forces directly to the uprights via a special adapter fastening. The screw connections are secured against unauthorised loosening by cover caps.
Foundations (client-provided)
4 pcs. 0.40 x 0.40 x 0.40 m
Concrete volume: 0.26 m³
Assembly time
2 fitters 2 hours each
(without foundation)
Suitable for
All age groups,
public playgrounds etc.
social activities.
Item number: 062158501
