Waved bench

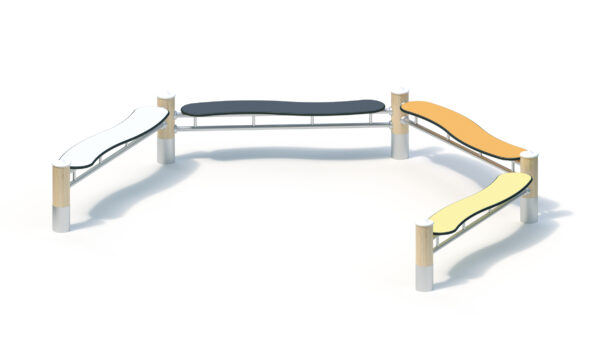

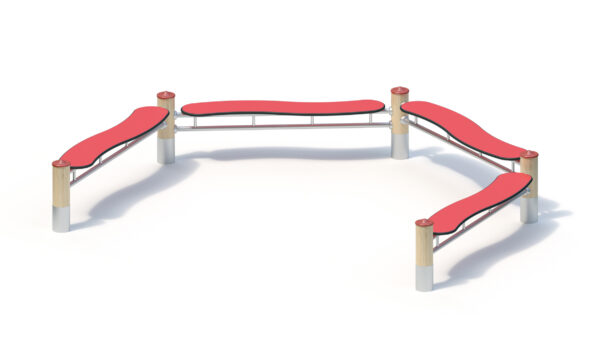

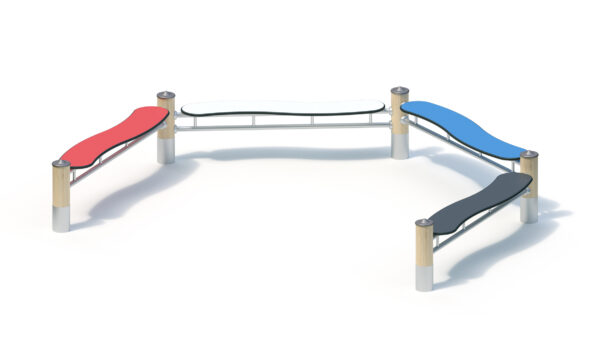

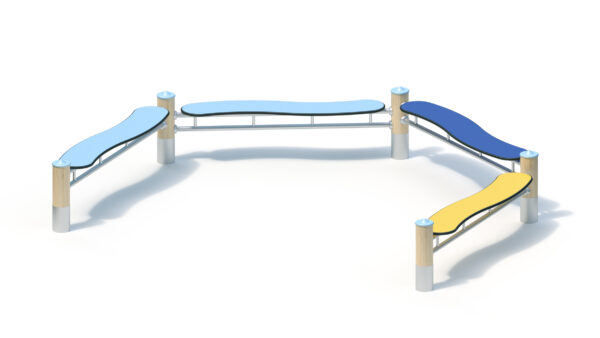

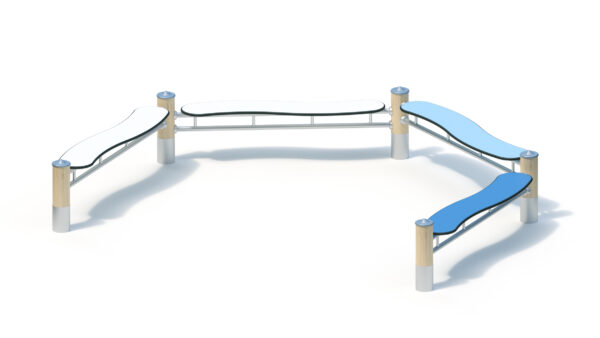

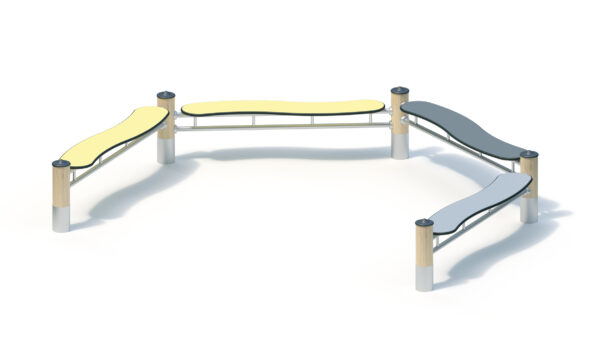

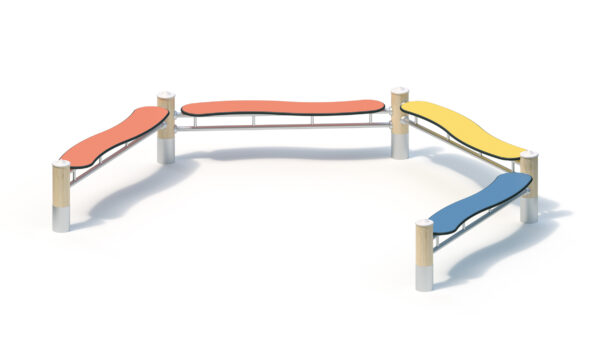

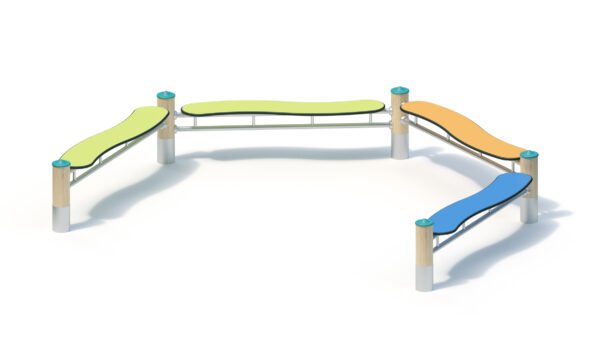

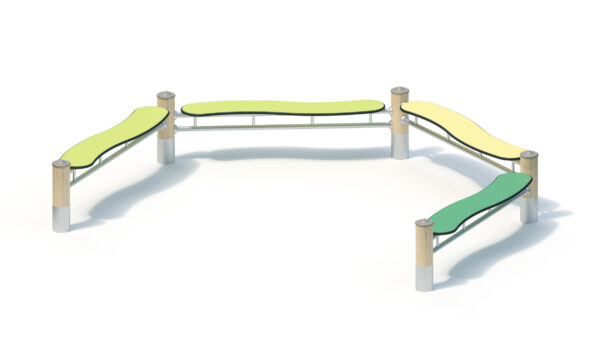

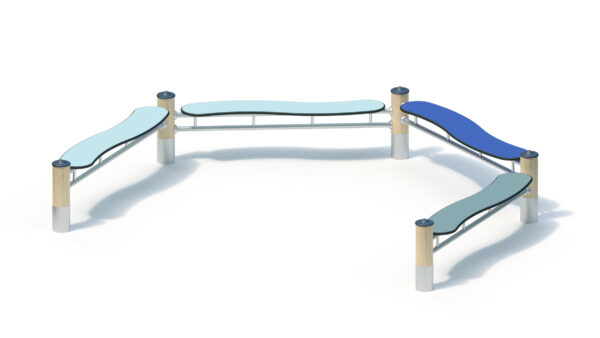

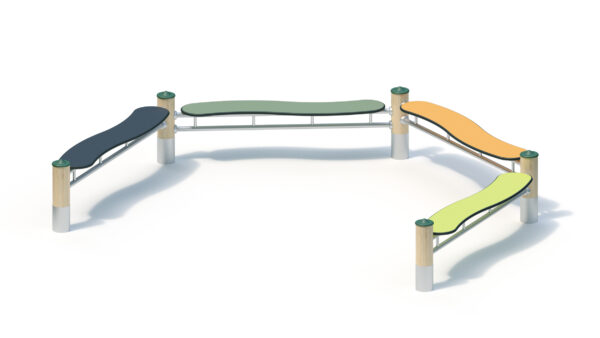

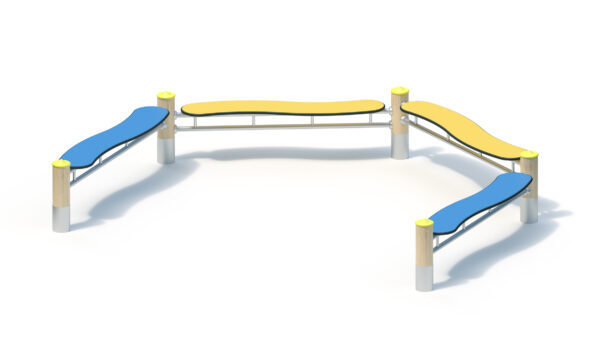

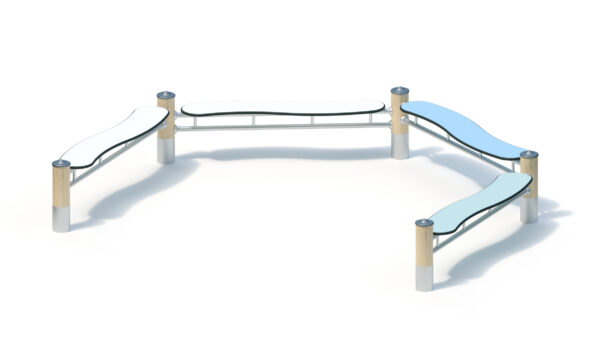

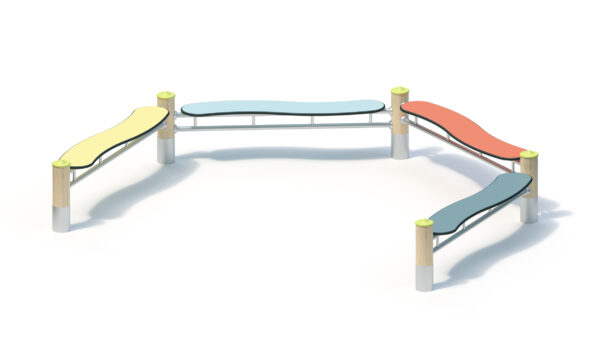

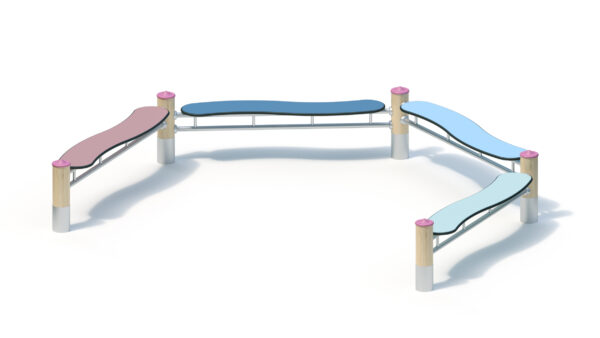

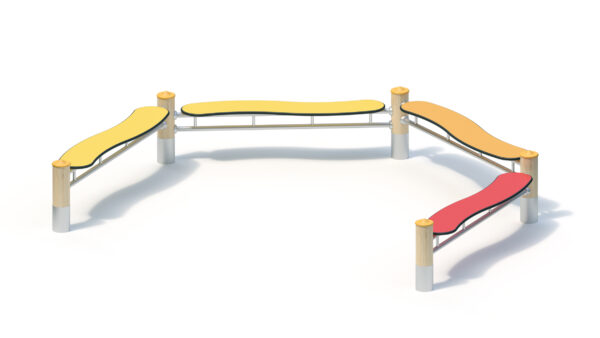

Select variant:
The most important information
| Age group ? | 1+ |
|---|---|
| Areas of application ? | Public playgrounds |
| Number of users ? | 15 persons |
| Activities ? | Social activity |
Technical data
| Device length ? | 3,10 m |
|---|---|
| Device width ? | 2,55 m |
| Device height ? | 0,55 m |
| Free fall height ? | 0,00 m |
| Platform heights | - |
| Total weight ? | 100.00 kg |
| Heaviest single item ? | 15.00 kg |
| Minimum room length ? | 6,10 m |
| Minimum room width ? | 5,55 m |
| Minimum room height ? | 0,55 m |
Assembly & Foundations
| Assembly time ? | 2,0 h |
|---|---|
| Number of fitters ? | 1 persons |
| Lifting gear required | - |
| Foundations | 040x040x040 |
Product Downloads
Product description
Technical data

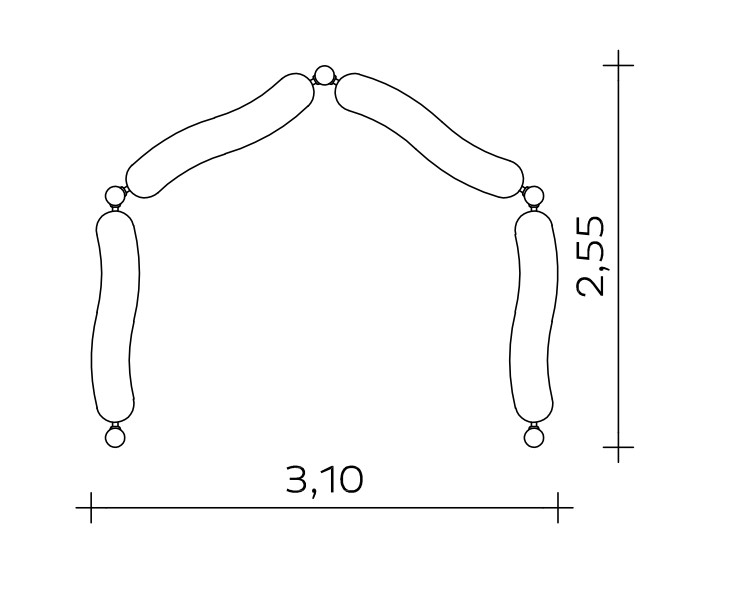

Floor area: 2.55 x 3.10 m
Seat height: 0.40/0.45 m
Weight: 15 kg heaviest individual part
100 kg in total
Support post
Standing posts made of robinia plywood, cylindrically milled, Ø 120 mm. Unprotected end grain surfaces are covered with non-detachable stainless steel post caps.
Stainless steel tubular base for the foundation and elevation of Robinia roundwood posts, Ø 120 mm, below the play level.
Attachments
- Bench top, wave-shaped, made of coloured, highly weather-resistant HPL laminate, 20 mm
Metal components: Stainless steel.
The robinia wood is treated with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment also reduces cracking. The modular add-on parts transfer their forces directly to the uprights via a special adapter fastening. The screw connections are secured against unauthorised loosening by cover caps.
Foundations (client-provided)
5 pcs. 0.40 x 0.40 x 0.40 m
Concrete volume: 0.32 m³
Assembly time
1 fitter 1.5 hours
(without foundation)
Suitable for
all age groups
public playgrounds etc.
Item number: 060154700
