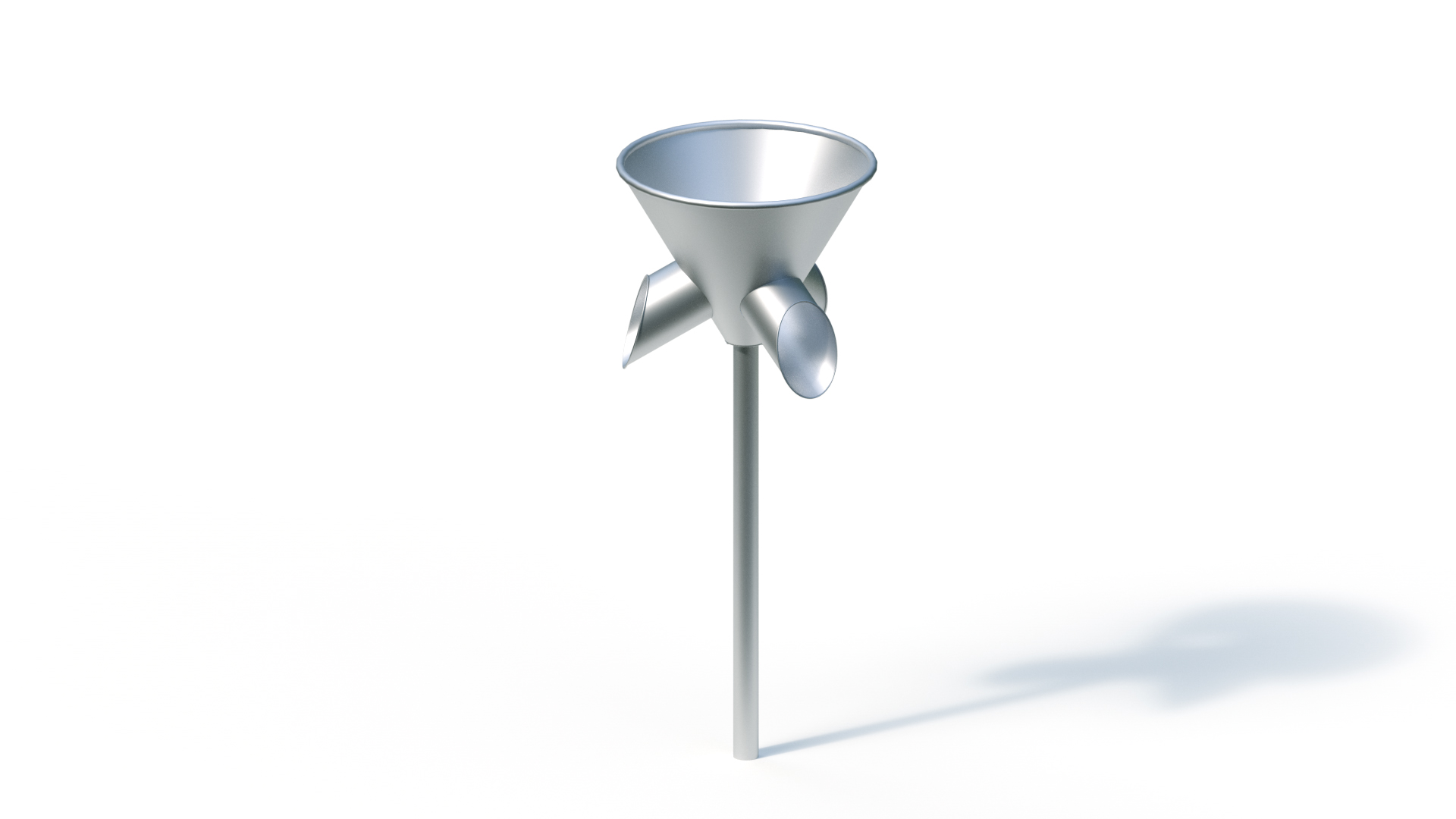

Ball cone
The most important information
:
;
| Age group ? | 3+ |
|---|---|
| Areas of use ? | Public playgrounds |
| Number of users ? | 11 people |
| Activities ? | Physical activity |
Technical data
:
;
| Minimum space length ? | 0,00 m |
|---|---|
| Minimum space width ? | 0,00 m |
| Minimum space height ? | 0,00 m |
| Equipment length ? | 1,25 m |
| Equipment width ? | 1,25 m |
| Equipment height ? | 3,00 m |
| Free-fall height ? | 0,00 m |
| Platform heights | - |
| Total weight ? | 90.00 kg |
| Heaviest single part ? | 60.00 kg |
Assembly & Foundations
:
;
| Assembly time ? | 1,0 h |
|---|---|
| Number of fitters ? | 2 people |
| Lifting equipment required | - |
| Foundations | Quantity: 1 (0.6m x 0.6m x 0.7m) |
Product Downloads
:
;
Product description
:
;
Technical data

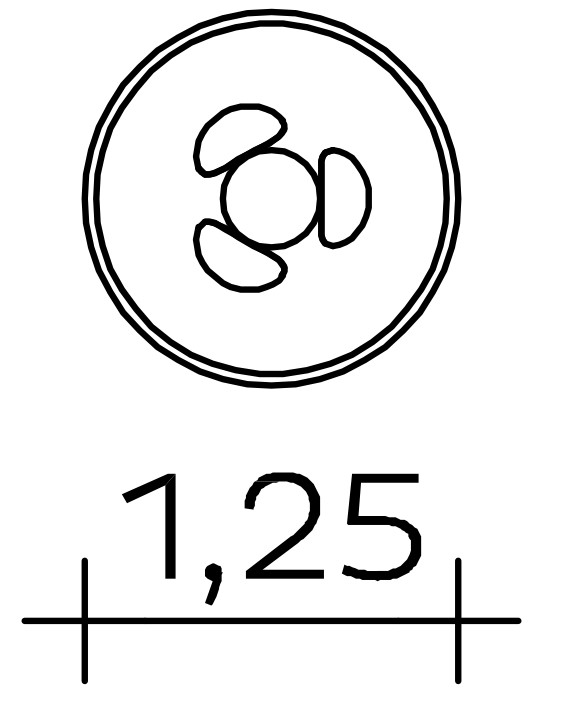

Base area: Ø 1.25 m
Total height: max: 3.00 m
Hopper: Ø 1.20 m
Downpipe: Ø 0.30 m
Weight: 60 kg heaviest individual part
90 kg in total
- Support post made of stainless steel tube, Ø 120 x 3 mm, for direct installation in in-situ concrete
- Ball hopper, hopper Ø 1.20 m, with domed inner base made of stainless steel, sheet thickness 2.5 mm. All openings protected by stainless steel rings.
Foundation (on site)
1 piece 0.60 x 0.60 x 0.70 m
Concrete quantity: 0.25 m³
Assembly time
2 fitters 1 hour each
(without foundation)
Suitable for
Children aged 4 and over,
public playgrounds etc.,
sporting activities.
Item number: 058210001
