Products

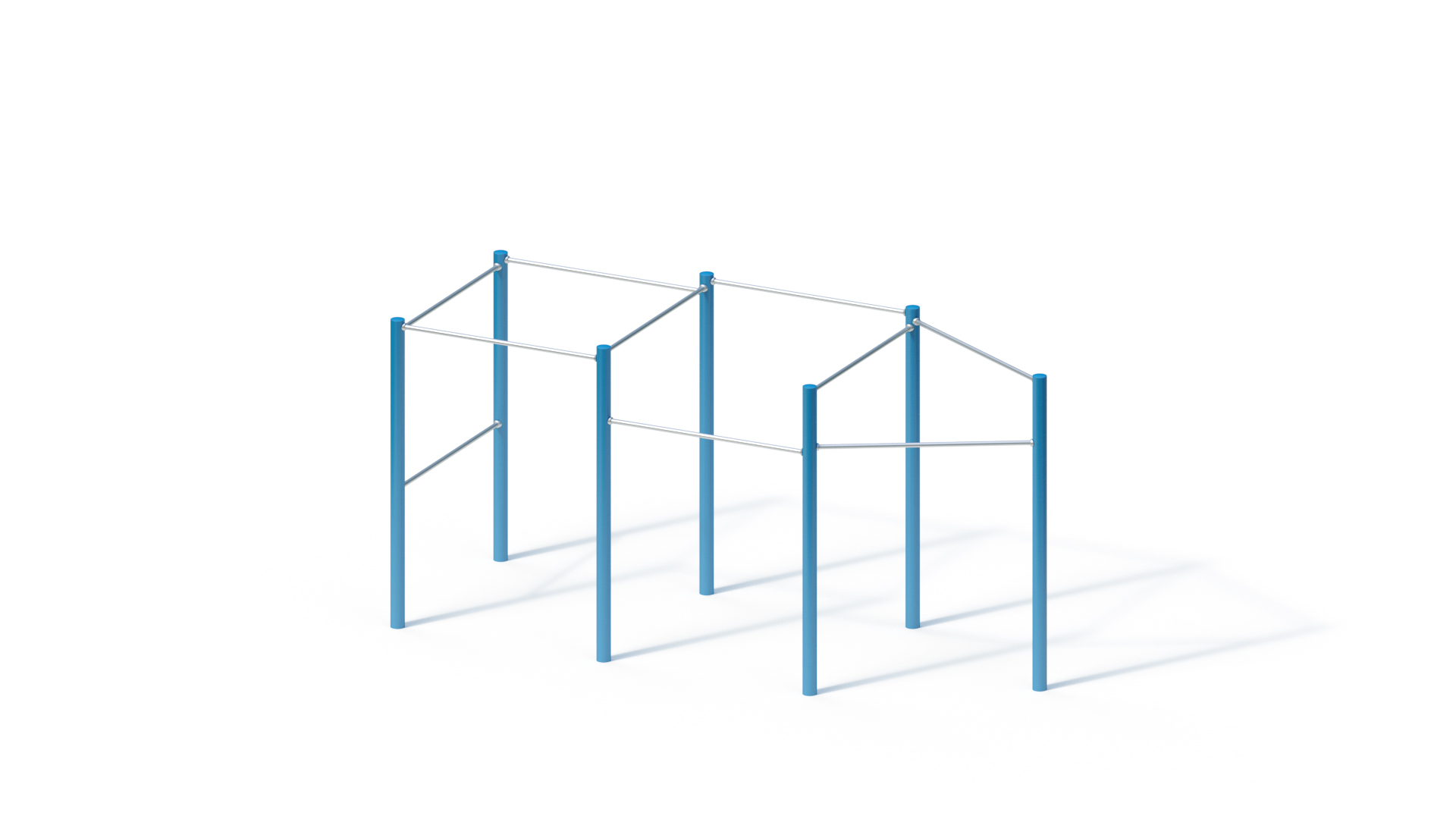

Flyerbars Part 2
Variante wählen:
The most important information
| Altersgruppe ? | 14+ |
|---|---|
| Einsatzgebiete ? | Calisthenics |
| Benutzeranzahl ? | 9 Personen |
| Aktivitäten ? | - |
Technical data
| Mindestraumlänge ? | 9,70 m |
|---|---|
| Mindestraumbreite ? | 6,40 m |
| Mindestraumhöhe ? | 2,91 m |
| Gerätelänge ? | 5,27 m |
| Gerätebreite ? | 1,91 m |
| Gerätehöhe ? | 2,61 m |
| Freie Fallhöhe ? | 1,62 m |
| Podesthöhen | - |
| Gesamtgewicht ? | 210.00 kg |
| Schwerstes Einzelteil ? | 31.00 kg |
Assembly & Foundations
| Montagezeit ? | 1,0 h |
|---|---|
| Monteuranzahl ? | 2 Personen |
| Hebezeug erforderlich | - |
| Fundamente | Quantity: 7 (0.5m x 0.5m x 0.4m) |
Product Downloads
Product description
Technical data

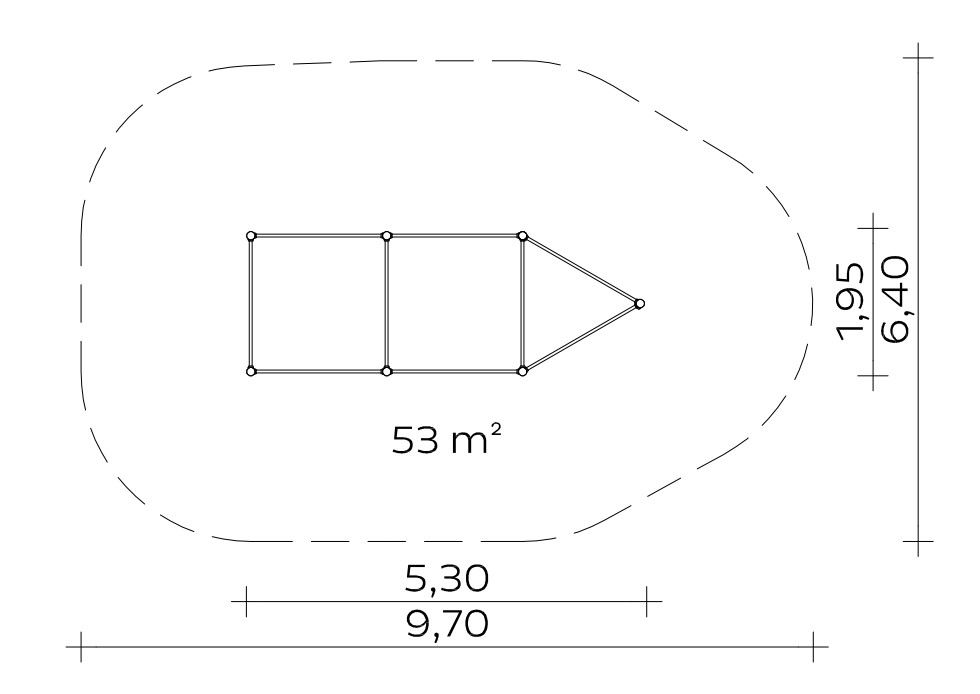

Equipment room: 5.30 x 1.95 x 2.66 m
Minimum space: 9.70 x 6.40 x 2.66 m
Impact area: 53 m²
Total height: 2.66 m
Horizontal bar heights: 1.15/2.00/2.05/2.45/2.50/2.55/2.60 m
Free fall height: 1.64 m
Weight: 31 kg heaviest individual part
210 kg in total
Jordansbars Pro
Support post made of stainless steel tube Ø 114.3 x 3 mm (powder-coated sky blue/RAL 5015)
Horizontal bars made of stainless steel tube Ø 38 x 5 mm
This product is certified in accordance with the requirements of EN 16630 („Outdoor stationary fitness equipment“).
Fitness equipment of this type is not intended for installation on or in the immediate vicinity of children's playgrounds in accordance with the EN 1176 series of standards.
Foundations (client-provided)
7 units 0.50 x 0.50 x 0.40 m
Concrete volume: 0.7 m³
Assembly time
2 fitters 1 hour each
(without foundation)
Suitable for
Teenagers and adults
(minimum height 1.40 m)
Physical activities
Item number: 057610900
Dieses Kaiser & Kühne-Produkt ermöglicht:
