The 3D model is for spatial reference only. The colours may not match the selected variant.

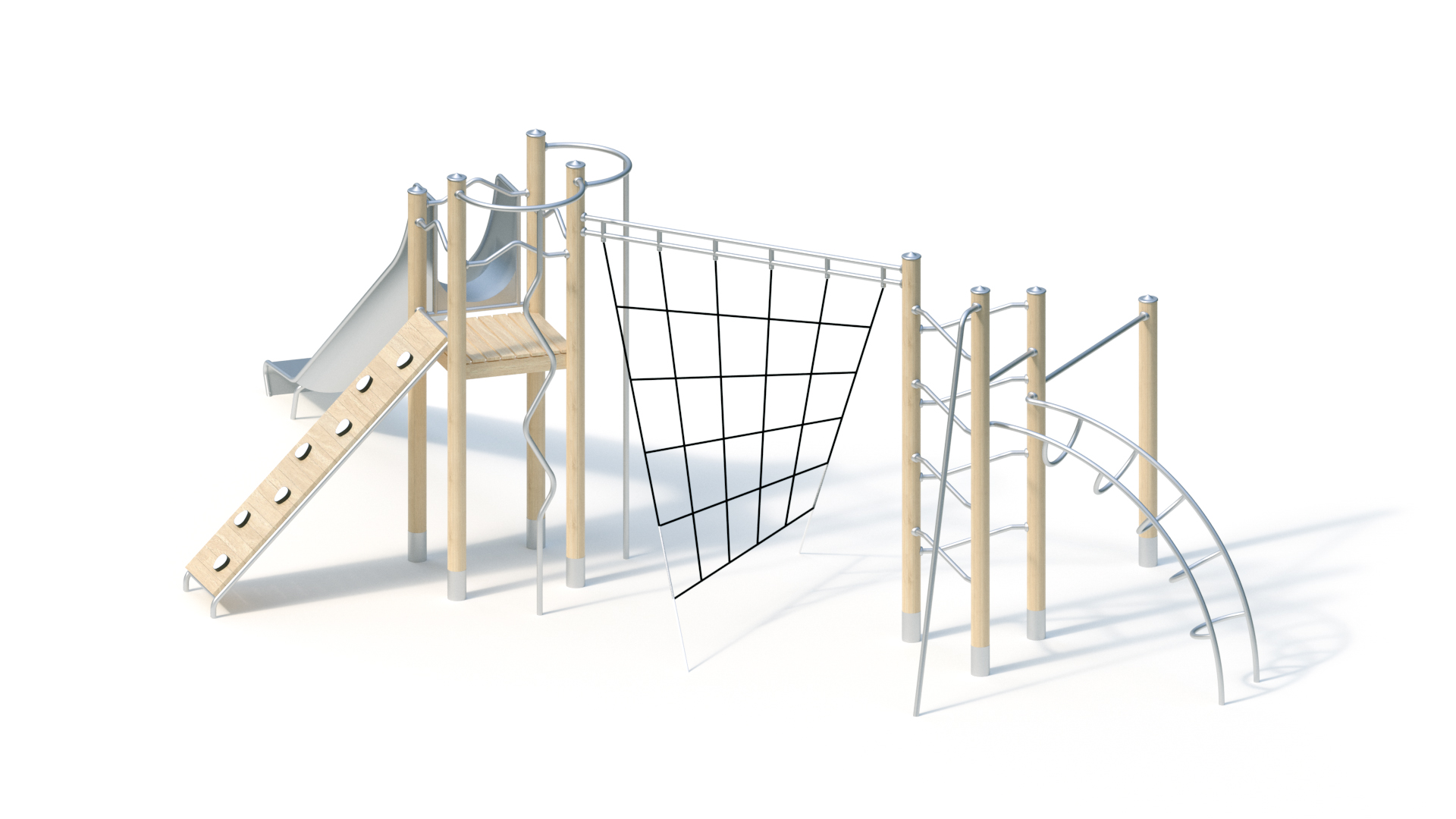

Climbing combination

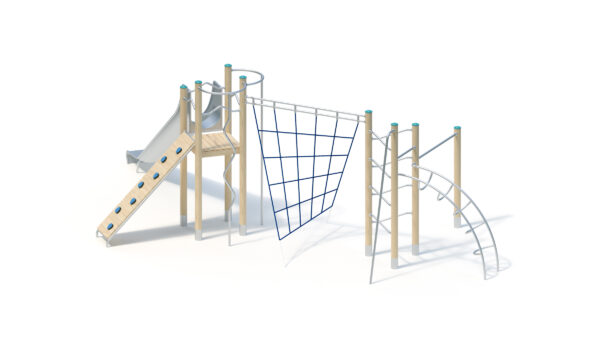

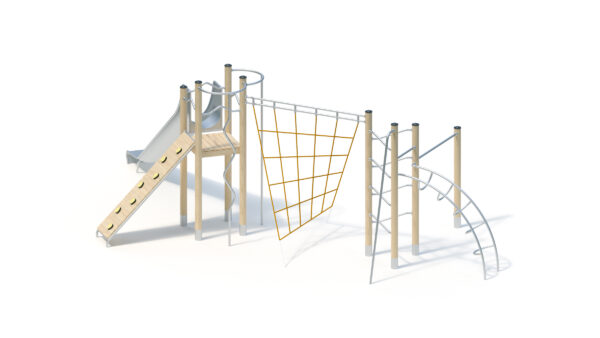

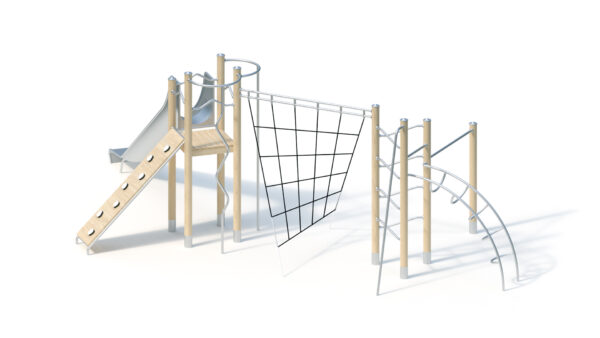

Select variant:
The most important information
| Age group ? | 4+ |
|---|---|
| Areas of use ? | Public playgrounds |
| Number of users ? | 23 people |
| Activities ? | Climbing, Physical activity |
Technical data
| Minimum space length ? | 11,46 m |
|---|---|
| Minimum space width ? | 7,76 m |
| Minimum space height ? | 2,88 m |
| Equipment length ? | 8,25 m |
| Equipment width ? | 4,55 m |
| Equipment height ? | 2,88 m |
| Free-fall height ? | 2,77 m |
| Platform heights | - |
| Total weight ? | 540.00 kg |
| Heaviest single part ? | 105.00 kg |
Assembly & Foundations
| Assembly time ? | 7,0 h |
|---|---|
| Number of fitters ? | 2 people |
| Lifting equipment required | Yes |
| Foundations | Quantity: 7 (0.3m x 0.3m x 0.4m) Quantity: 8 (0.4m x 0.4m x 0.4m) Quantity: 1 (0.75m x 0.4m x 0.4m) |
Product Downloads
Product description
Technical data

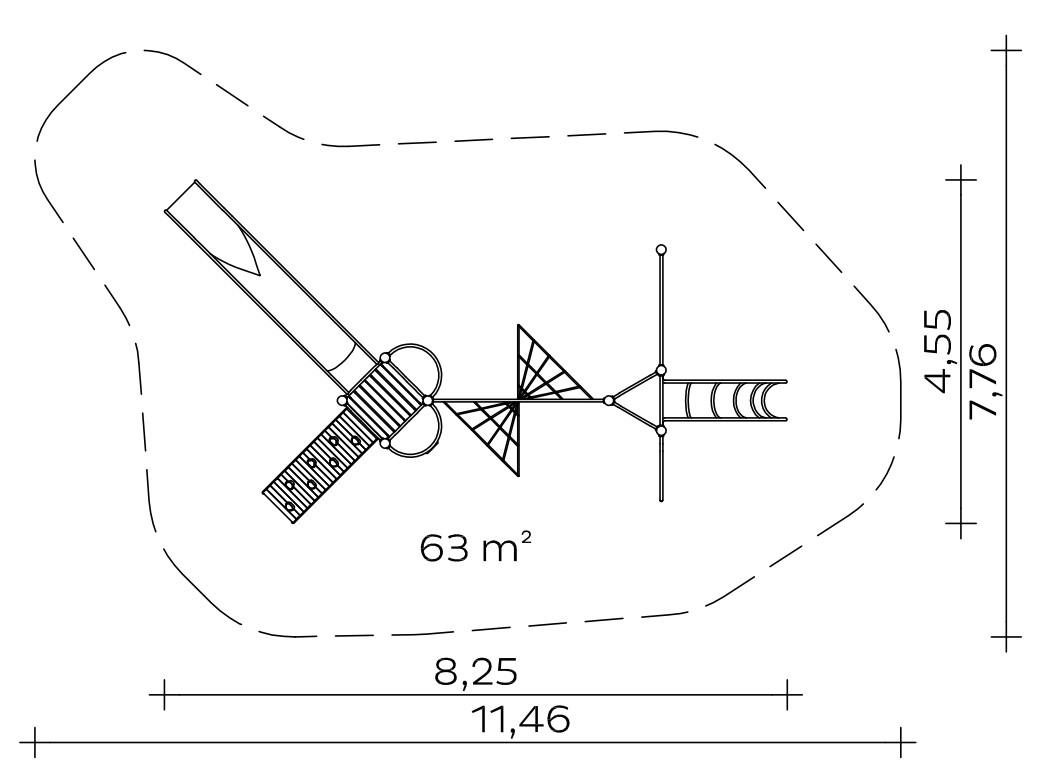

Total height: 2.88 m
Floor area: 4.55 x 8.25 m
Minimum space: 7.76 x 11.46 m (63 m²)
Platform height: 1.60 m
Seat height: 1.70 m
High bar height: 1.70 m
Weight: 105 kg heaviest individual part
540 kg in total
Support post
Standing posts made of robinia plywood, cylindrically milled, Ø 120 mm. Unprotected end grain surfaces are covered with non-detachable stainless steel post caps.
Stainless steel tubular base for the foundation and elevation of Robinia roundwood posts, Ø 120 mm, below the play level.
Platform floor
Platform floor made of boards, 30 mm thick and circumferential squared timber beams 45 x 100 mm. The dried sawn timber made of robinia is planed, bevelled and free of rotting knots. Force-fit floor fastening using special stainless steel brackets with a continuous bolt connection.
Attachments
- Railing bracket, anti-roll, made of stainless steel tube, Ø 33.7 x 2 mm
- Climbing wall made of robinia wood with attached climbing elements made of HPL laminate board
- Stainless steel tube horizontal bar, Ø 38 x 2.5 mm, torsion-resistant
- Curved ladder made of stainless steel tube
- Climbing pole inclined, direct post connection
- Climbing poles and rungs made of stainless steel tube, Ø 38 mm
- Climbing net made of Hercules rope on stainless steel crossbar, twisted through 90°
- Attachable trough slide, 0.60 m wide, one-piece stainless steel construction, sheet thickness: 2.5 mm, with roll-off protection above the single-seat section
For your planning, please note that stainless steel slides should be orientated to the north-east or in the partial shade of trees due to the possible heating of the slide surface.
Metal components: Stainless steel.
The robinia wood is treated with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment also reduces cracking. The modular add-on parts transfer their forces directly to the uprights via a special adapter fastening. The screw connections are secured against unauthorised loosening by cover caps.
Foundations (client-provided)
7 units 0.30 x 0.30 x 0.40 m
8 pcs. 0.40 x 0.40 x 0.40 m
1 piece 0.40 x 0.75 x 0.40 m
Concrete volume: 0.9 m³
Assembly time
2 fitters 7 hours each
(without foundation)
Free fall height
2,77 m
Suitable for
Children aged 5 and over,
public playgrounds etc.
sporting activities.
Item number: 055485703
