The 3D model serves as a spatial view. The colours do not correspond to the selected variant.

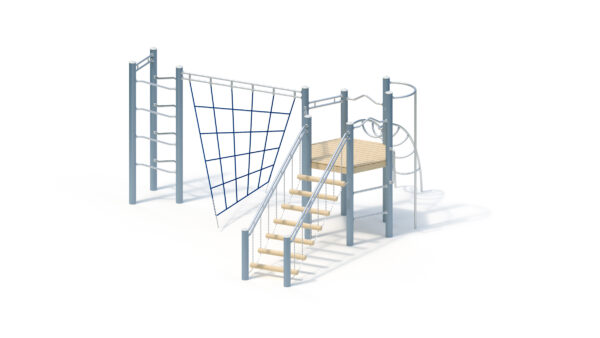

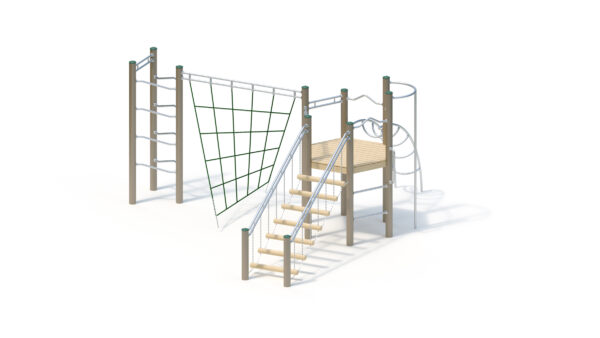

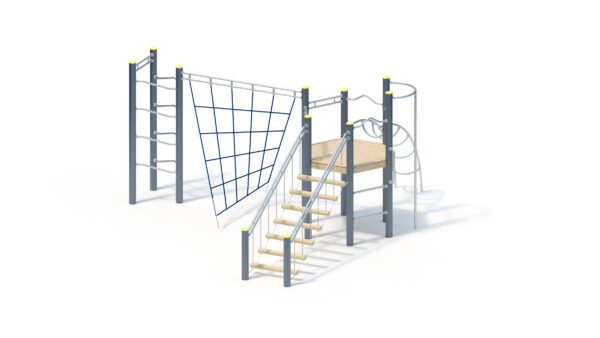

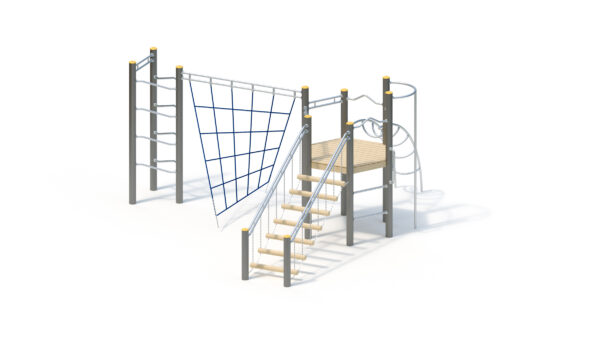

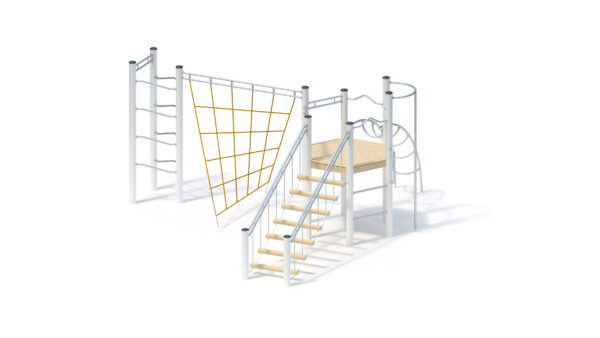

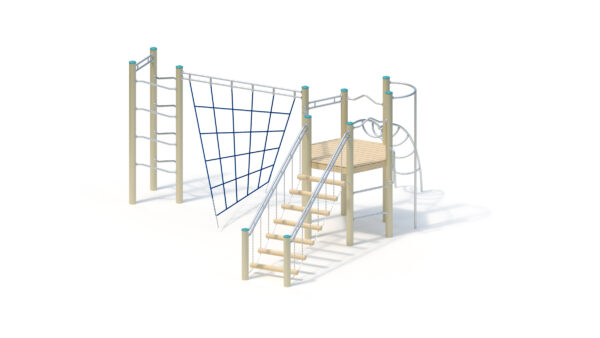

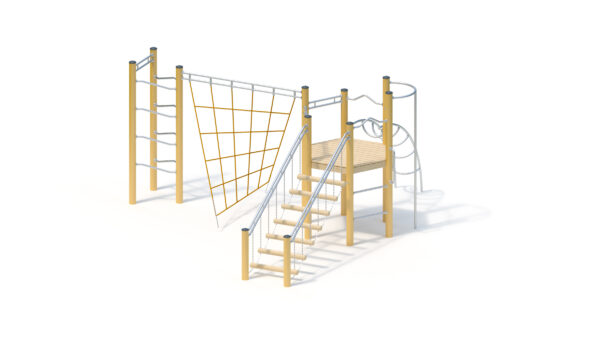

Climbing combination
Select variant:
The most important information
| Age group ? | 4+ |
|---|---|
| Areas of application ? | Public playgrounds |
| Number of users ? | 16 persons |
| Activities ? | Climbing, Physical activity |
Technical data
| Device length ? | 5,05 m |
|---|---|
| Device width ? | 5,55 m |
| Device height ? | 2,65 m |
| Free fall height ? | 2,47 m |
| Platform heights | - |
| Total weight ? | 480.00 kg |
| Heaviest single item ? | 65.00 kg |
| Minimum room length ? | 8,70 m |
| Minimum room width ? | 8,55 m |
| Minimum room height ? | 2,65 m |
Assembly & Foundations
| Assembly time ? | 7,0 h |
|---|---|
| Number of fitters ? | 2 persons |
| Lifting gear required | - |
| Foundations | 040x040x040 |
Product Downloads
Product description
Technical data
Total height: 2.65 m
Floor area: 5.05 x 5.55 m
Minimum space: 8.70 x 8.55 m (56 m²)
Platform height: 1.40 m
Weight: 65 kg heaviest individual part
480 kg total
Support post
Support posts made of stainless steel tube Ø 120 x 3 mm, covered with non-detachable stainless steel post caps. Connection of the modular add-on parts to the uprights using solid and fully welded stainless steel weld-in sleeves without protruding connecting elements.
Platform floor
Platform floor made of boards, 30 mm thick and circumferential squared timber beams 45 x 100 mm. The dried sawn timber made of robinia is planed, bevelled and free of rotting knots. Force-fit floor fastening using special stainless steel brackets with continuous bolt fastening.
Attachments
- Tandem railing made of stainless steel tube, Ø 33.7 x 2 mm
- Railing bracket, anti-roll, made of stainless steel tube, Ø 33.7 x 2 mm
- Climbing rungs made of stainless steel tube, Ø 33.7 x 2 mm or Ø 38 x 2.5 mm
- Vertical handle as climbing aid made of stainless steel tube, Ø 33.7 x 2 mm
- Wobbly staircase on tandem crossbeam, walkway posts made of robinia Ø 100 mm, fine-linked stainless steel railing chains
- Vertical climbing pole made of stainless steel tube, Ø 38 x 2 mm
- Climbing net made of Hercules rope on stainless steel crossbar, twisted through 90°
- Curved ladder made of stainless steel tube Ø 38 x 2 mm
Metal components: Stainless steel. The robinia wood is treated with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment also reduces cracking. The modular add-on parts transfer their forces directly to the uprights via a special adapter fastening. The screw connections are secured against unauthorised loosening.
Foundations (client-provided)
11 units 0.40 x 0.40 x 0.40 m
3 pcs. 0.30 x 0.30 x 0.40 m
Concrete volume: 0.81 m³
Assembly time
2 fitters 7 hours each
(without foundation)
Free fall height
2,50 m
Suitable for
Children aged 5 and over,
public playgrounds etc.,
Physical activities
Item number: 055470501
