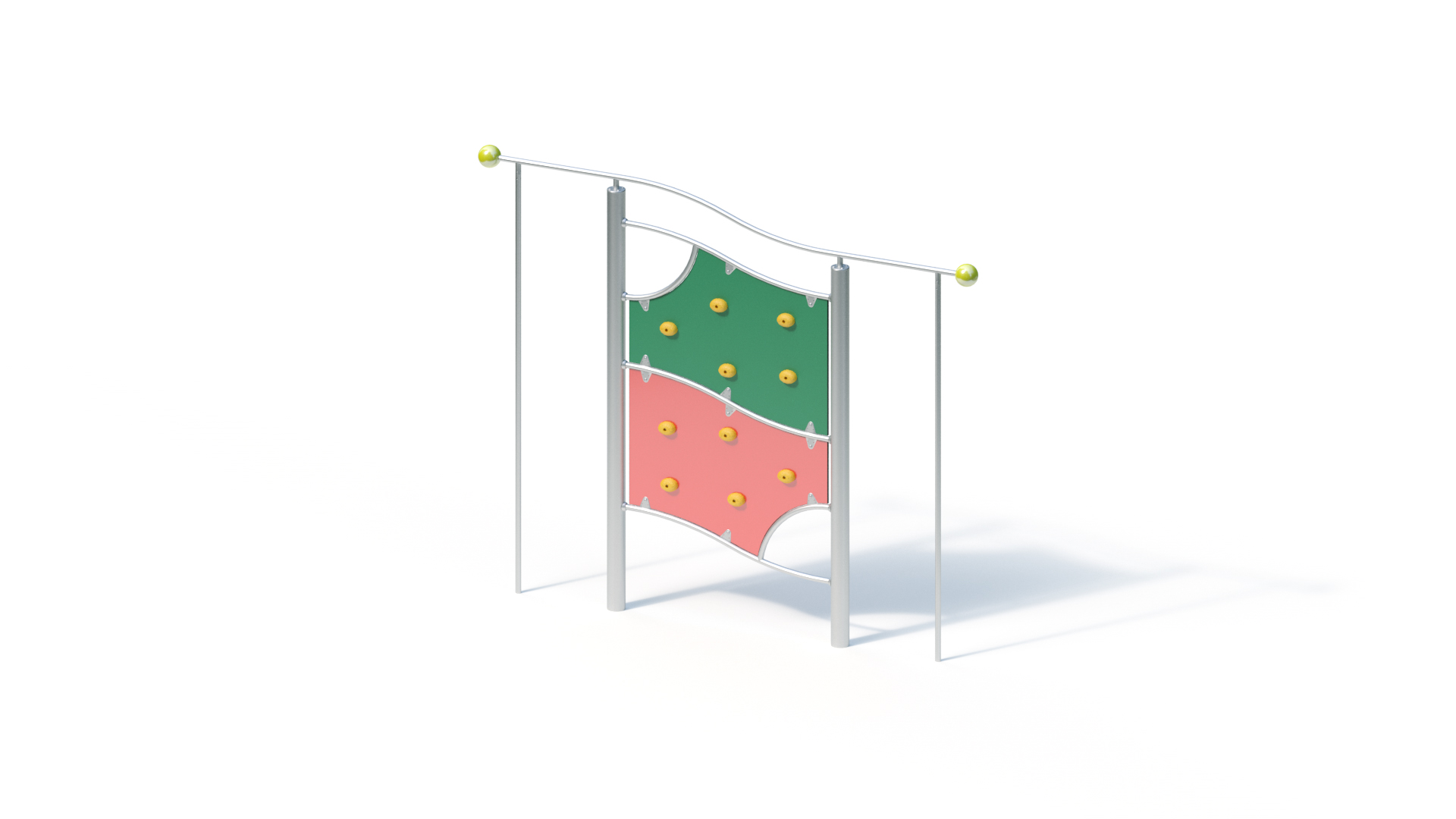

Climbing wall with a high difficulty level
The most important information
| Altersgruppe ? | 5+ |
|---|---|
| Einsatzgebiete ? | Public playgrounds |
| Benutzeranzahl ? | 10 Personen |
| Aktivitäten ? | Climbing, Physical activity |
Technical data
| Mindestraumlänge ? | 7,73 m |
|---|---|
| Mindestraumbreite ? | 4,92 m |
| Mindestraumhöhe ? | 3,00 m |
| Gerätelänge ? | 3,56 m |
| Gerätebreite ? | 0,15 m |
| Gerätehöhe ? | 3,00 m |
| Freie Fallhöhe ? | 3,00 m |
| Podesthöhen | - |
| Gesamtgewicht ? | 195.00 kg |
| Schwerstes Einzelteil ? | 82.00 kg |
Assembly & Foundations
| Montagezeit ? | 2,0 h |
|---|---|
| Monteuranzahl ? | 2 Personen |
| Hebezeug erforderlich | - |
| Fundamente | Quantity: 2 (1.2m x 0.9m x 0.6m) |
Product Downloads
Product description
Technical data
Base area: 0.15 x 3.56 m
Minimum space: 5.15 x 8.37 m (37 m²)
Total height: 3.00 m
Weight: 82 kg heaviest individual part
195 kg in total
Support post
Support post made of stainless steel tube Ø 120 x 3 mm
Attachments
- Climbing bars made of stainless steel tube, Ø 38 x 3 mm
- Climbing wall made of highly weather-resistant HPL laminate, 20 mm, in a stainless steel tube frame; with free climbing elements on both sides (difficulty level: difficult)
- Hollow sphere Ø 150 mm, powder-coated and stove-enamelled, yellow/RAL 1021
Metal components: Stainless steel. The modular add-on parts transfer their forces directly to the uprights via a special adapter fastening. The screw connections are secured against unauthorised loosening.
Foundations (client-provided)
2 units 1.20 x 0.90 x 0.60 m
Concrete volume: 1.30 m³
Assembly time
2 fitters 1.5 hours each
(without foundation)
Free fall height
3,00 m
Suitable for
Children aged 5 and over,
public playgrounds etc.,
sporting activities
Item number: 055451500
