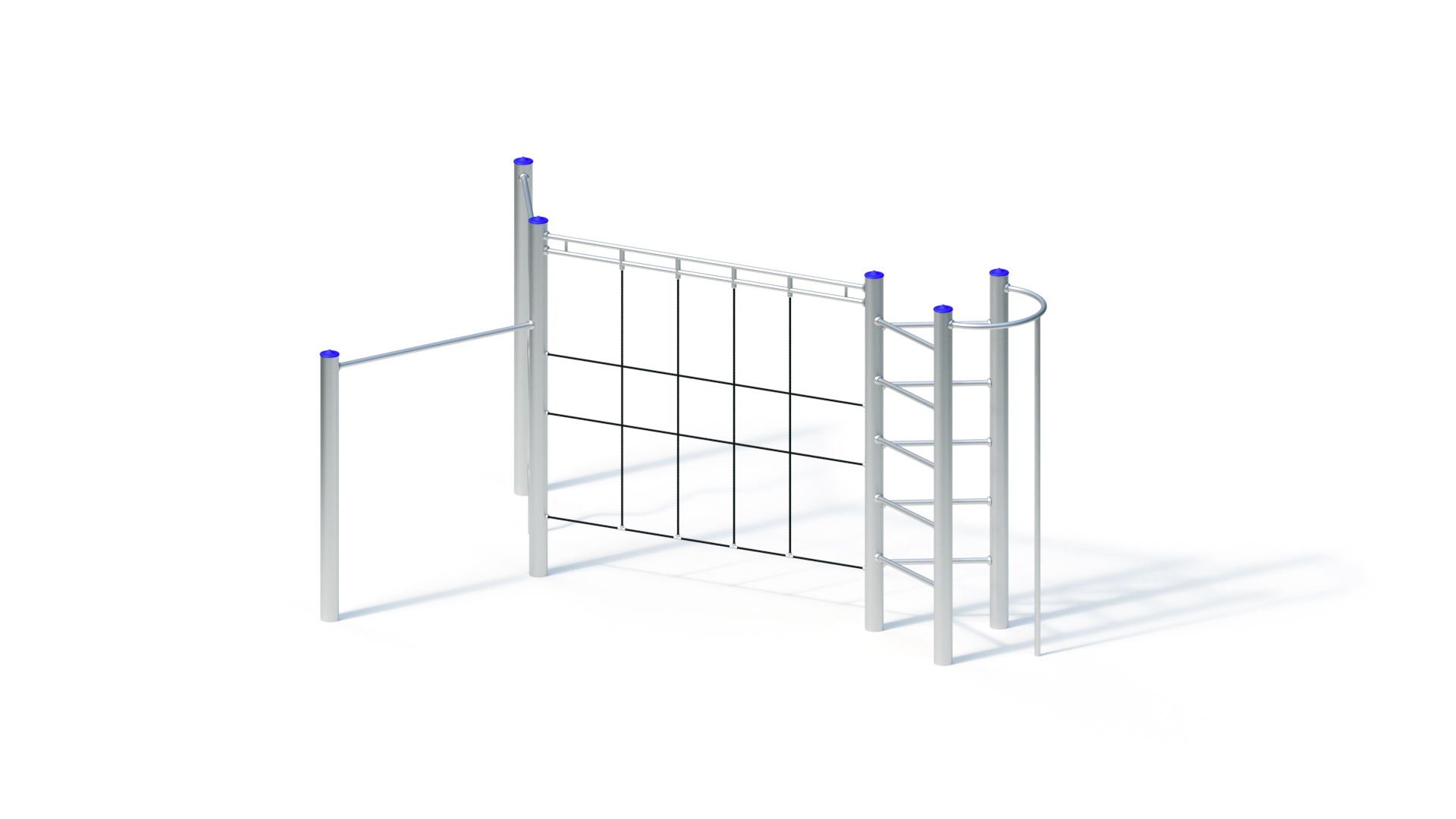

Climbing combination

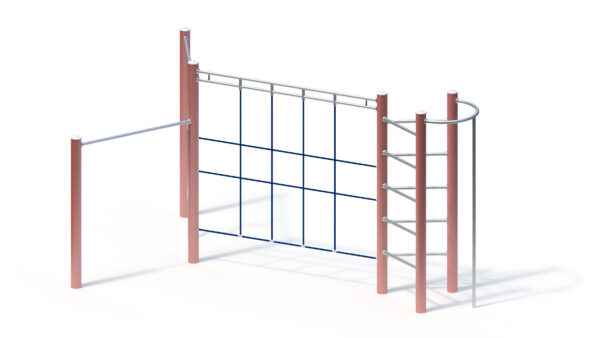

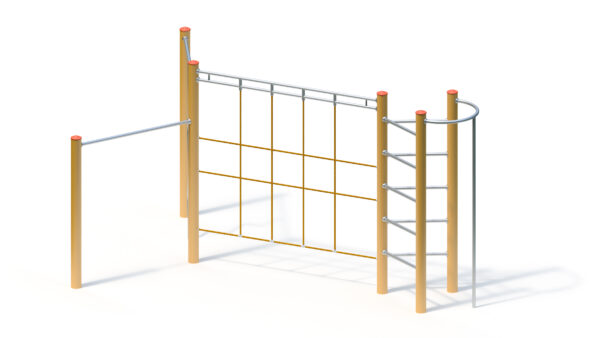

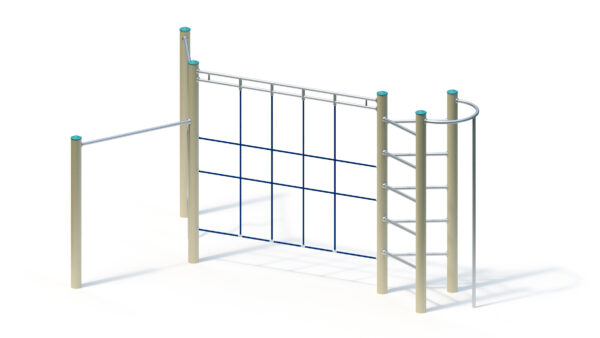

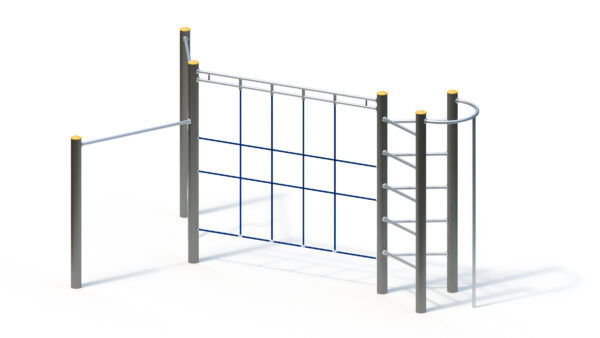

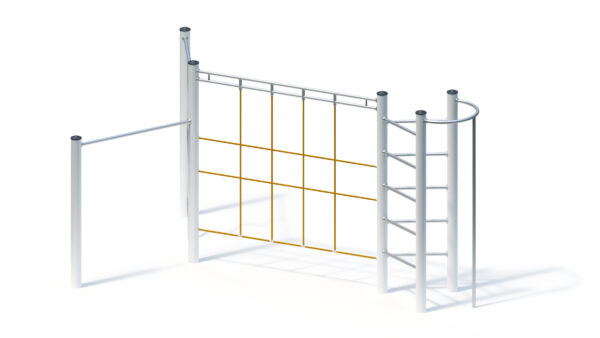

Select variant:
The most important information
| Age group ? | 4+ |
|---|---|
| Areas of use ? | Public playgrounds |
| Number of users ? | 14 people |
| Activities ? | Climbing, Physical activity |
Technical data
| Minimum space length ? | 8,45 m |
|---|---|
| Minimum space width ? | 6,52 m |
| Minimum space height ? | 2,43 m |
| Equipment length ? | 4,45 m |
| Equipment width ? | 2,90 m |
| Equipment height ? | 2,43 m |
| Free-fall height ? | 2,32 m |
| Platform heights | - |
| Total weight ? | 240.00 kg |
| Heaviest single part ? | 30.00 kg |
Assembly & Foundations
| Assembly time ? | 4,0 h |
|---|---|
| Number of fitters ? | 2 people |
| Lifting equipment required | - |
| Foundations | Quantity: 2 (0.3m x 0.3m x 0.4m) Quantity: 6 (0.4m x 0.4m x 0.6m) |
Product Downloads
Product description
Technical data

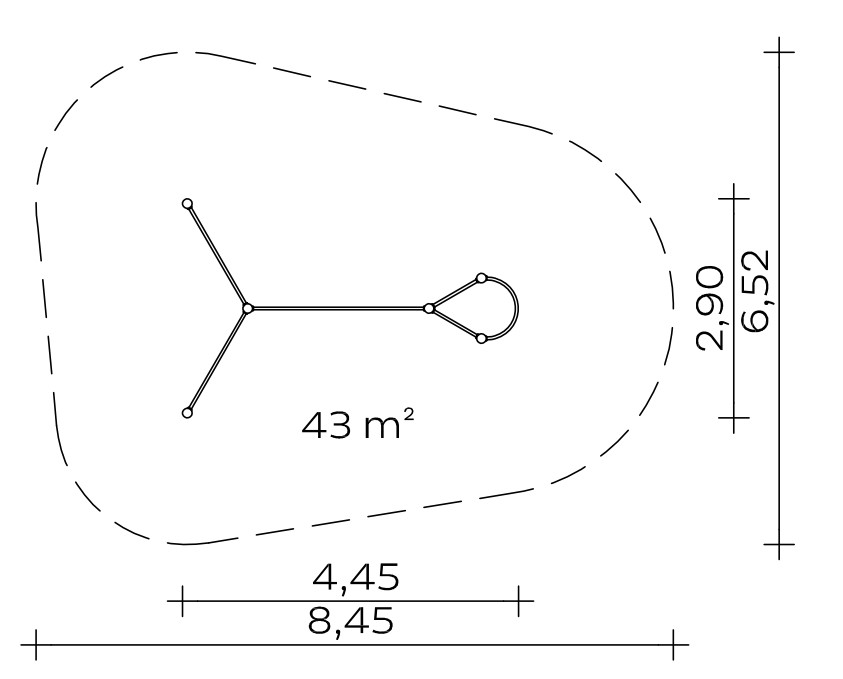

Floor area: 2.90 x 4.45 m
Minimum space: 6.52 x 8.45 m (43 m²)
Total height: 2.43 m
High bar height: 1.75 m
Weight: 30 kg heaviest individual part
240 kg in total
Support post
Posts made of stainless steel tube Ø 120 mm, covered with non-detachable stainless steel post caps. Connection of the modular add-on parts to the uprights using solid and fully welded stainless steel weld-in sleeves without protruding connecting elements.
Attachments
- Stainless steel tube horizontal bar, Ø 38 x 2.5 mm, torsion-resistant
- Climbing pole and climbing rungs made of stainless steel tube, Ø 38 mm
- Climbing net made of Hercules rope on stainless steel crossbar
Metal components: Stainless steel.
The modular add-on parts transfer their forces directly to the uprights via a special adapter fastening. The screw connections are secured against unauthorised loosening.
Foundations (client-provided)
2 pcs. 0.30 x 0.30 x 0.40 m
6 pcs. 0.40 x 0.40 x 0.60 m
Concrete volume: 0.65 m³
Assembly time
2 fitters 3.5 hours each
(without foundation)
Free fall height
2,32 m
Suitable for
Children aged 5 and over,
public playgrounds etc.
sporting activities.
Item number: 055411502
