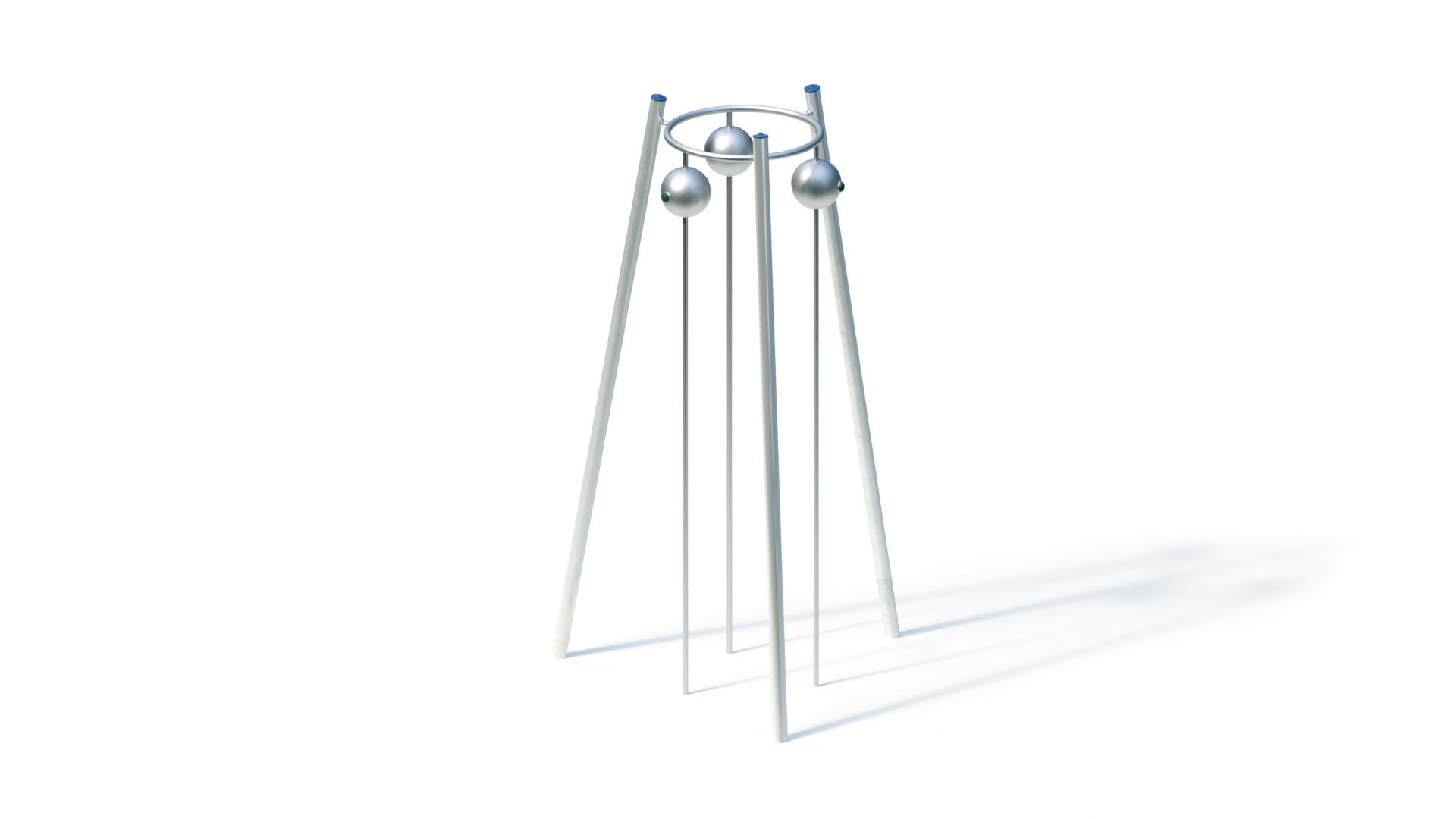

Bell climber
The most important information
| Age group ? | 5+ |
|---|---|
| Areas of use ? | Public playgrounds |
| Number of users ? | 3 people |
| Activities ? | Climbing, Physical activity |
Technical data
| Minimum space length ? | 6,20 m |
|---|---|
| Minimum space width ? | 6,20 m |
| Minimum space height ? | 4,75 m |
| Equipment length ? | 2,80 m |
| Equipment width ? | 2,45 m |
| Equipment height ? | 4,75 m |
| Free-fall height ? | 2,95 m |
| Platform heights | - |
| Total weight ? | 200.00 kg |
| Heaviest single part ? | 55.00 kg |
Assembly & Foundations
| Assembly time ? | 1,0 h |
|---|---|
| Number of fitters ? | 3 people |
| Lifting equipment required | - |
| Foundations | Quantity: 3 (0.6m x 0.6m x 0.6m) Quantity: 1 (1.6m x 1.6m x 0.4m) |
Product Downloads
Product description
Technical data

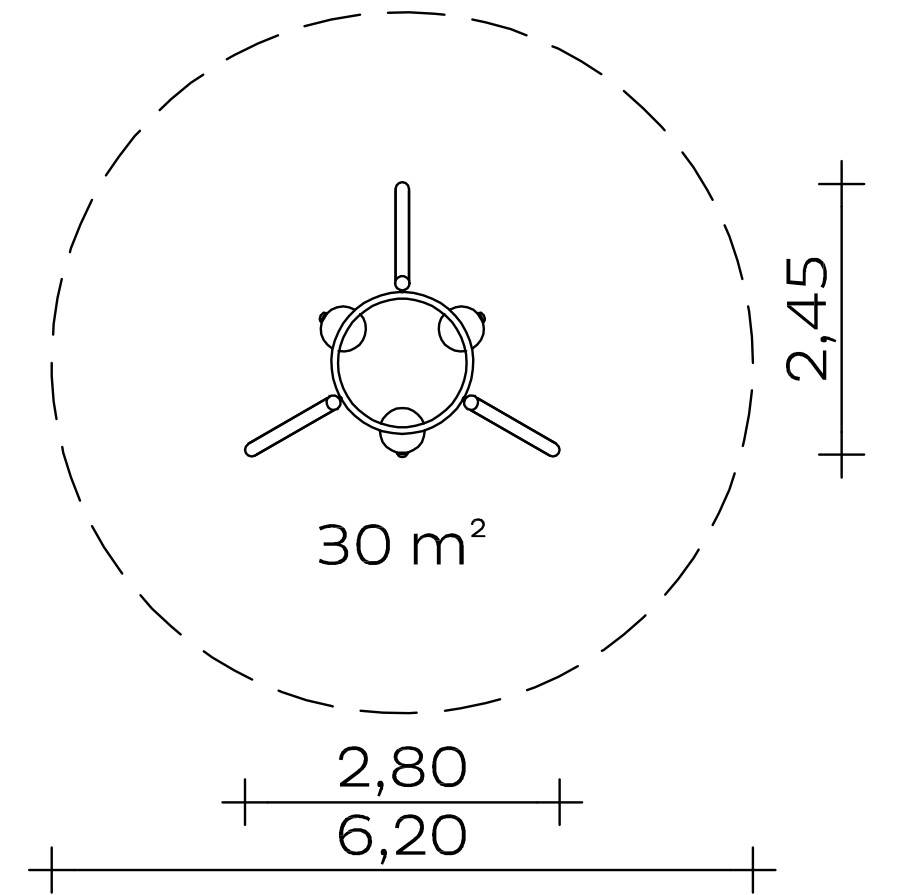

Total height: 4.75 m
Floor area: 2.45 x 2.80 m
Minimum space: Ø 6.20 m (30m²)
Weight: 55 kg heaviest individual part
200 kg in total
Attachments
- Support post Stainless steel tube Ø 120 x 3 mm, covered with non-detachable stainless steel post caps
- Tubular ring made of stainless steel tube, Ø 60.3 x 2.9 mm, with stainless steel balls Ø 400 mm, with non-intrusive acoustic signalling devices
- Climbing bars made of stainless steel tube, Ø 42.4 x 3.2 mm
- Stainless steel metal components
Foundations (client-provided)
3 units 0.60 x 0.60 x 0.60 m
1 piece Ø 1.60 x 0.40 m
Concrete volume: 1.45 m³
Assembly time
3 fitters 1.5 hours each
(without foundation)
Free fall height
2,95 m
Suitable for
Children aged 5 and over,
public playgrounds etc.
sporting activities.
Item number: 053302501
