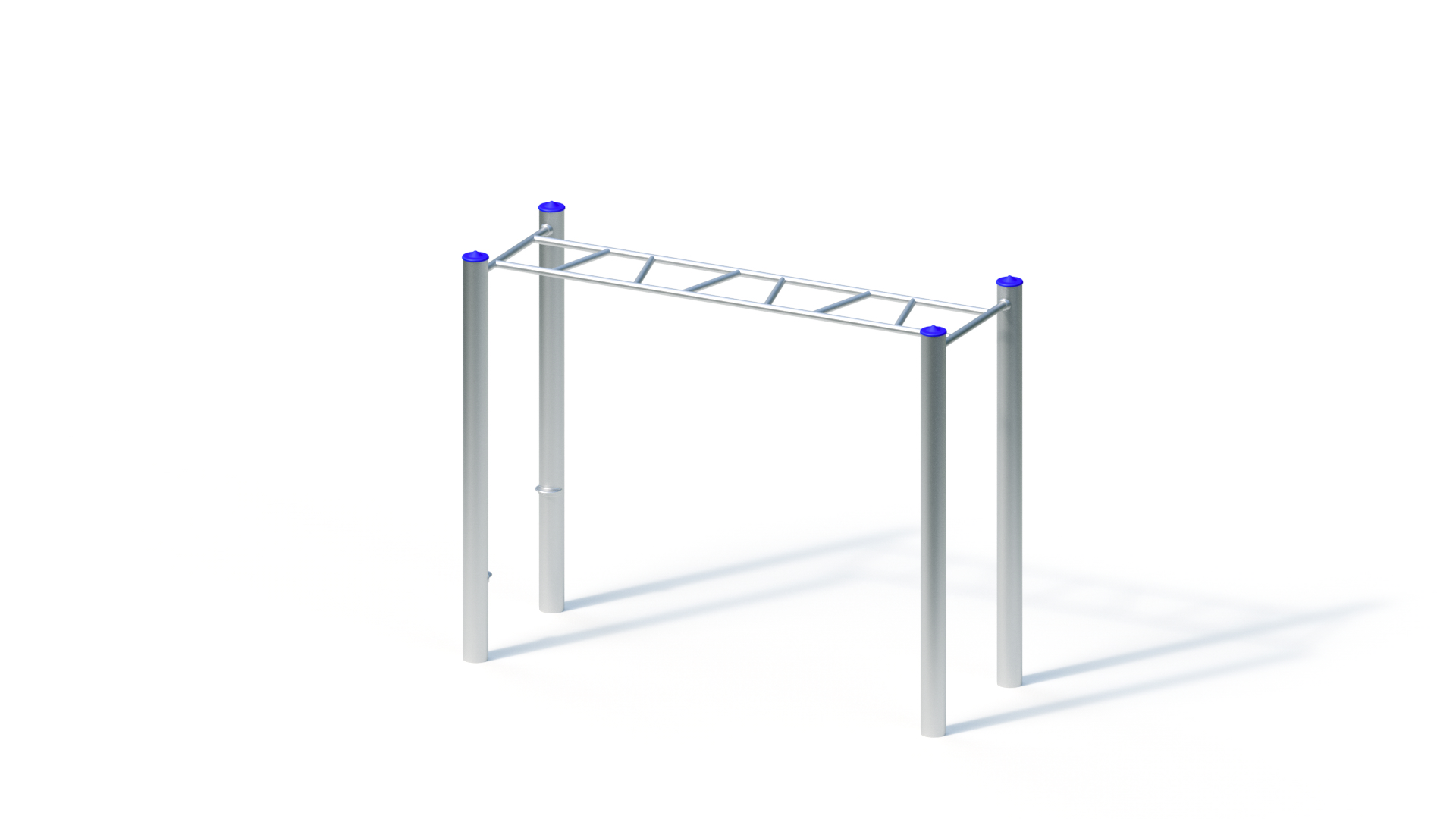

Horizontal monkey bars (1,90)

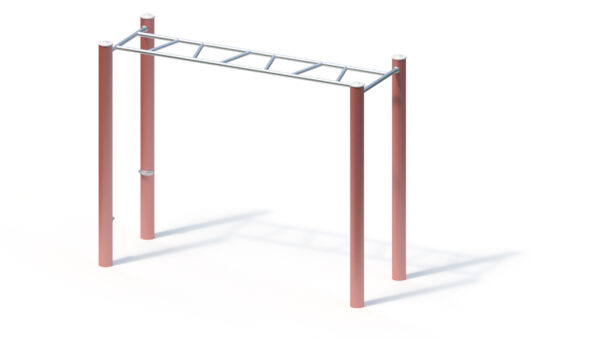

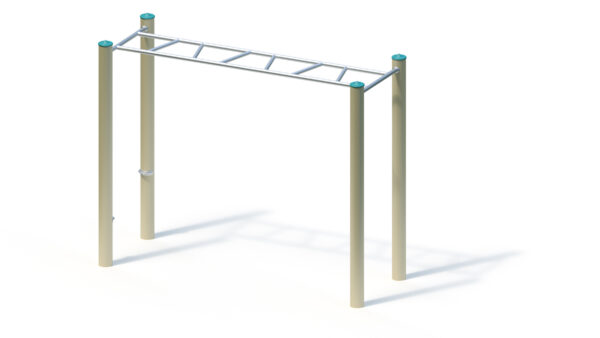

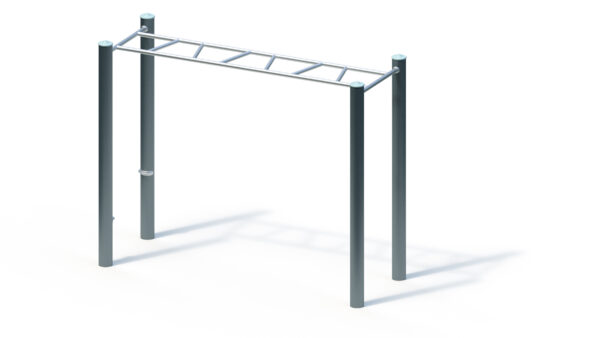

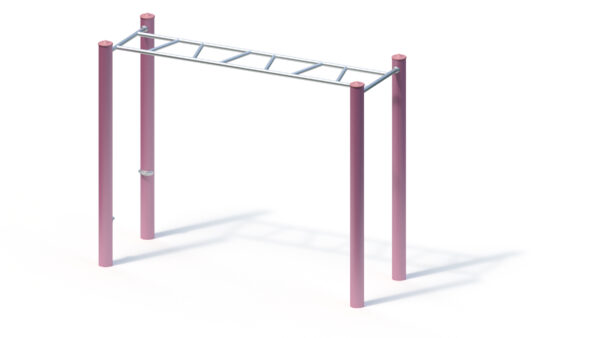

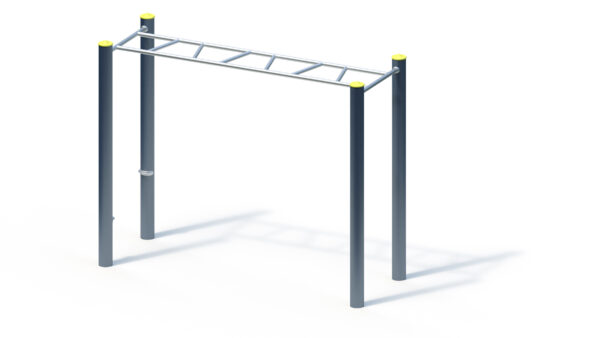

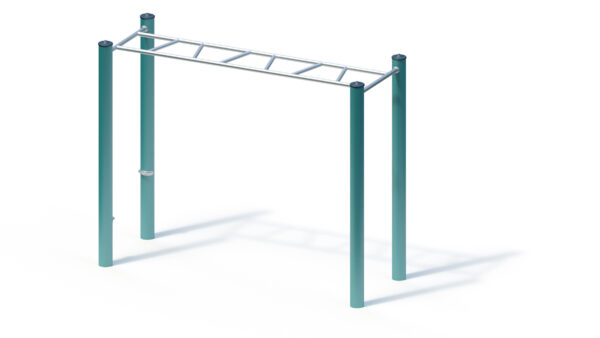

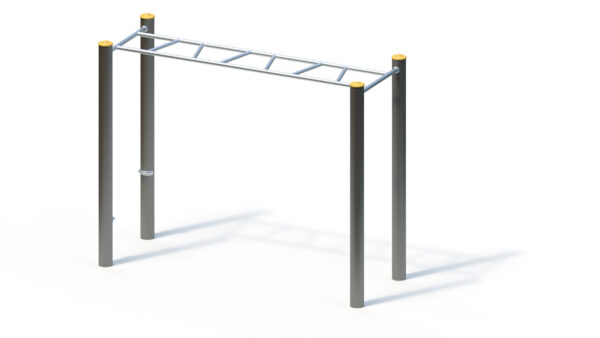

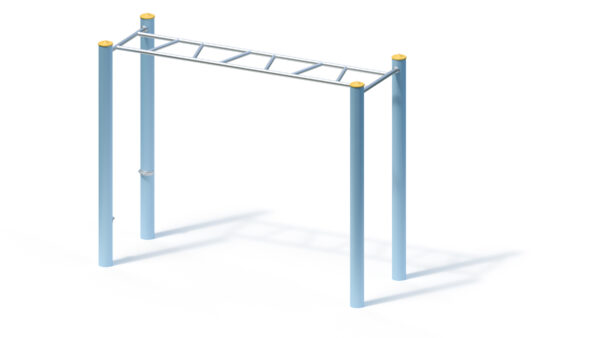

Variante wählen:
The most important information
| Altersgruppe ? | 5+ |
|---|---|
| Einsatzgebiete ? | Public playgrounds |
| Benutzeranzahl ? | 4 Personen |
| Aktivitäten ? | Climbing, Physical activity |
Technical data
| Mindestraumlänge ? | 6,08 m |
|---|---|
| Mindestraumbreite ? | 4,48 m |
| Mindestraumhöhe ? | 2,03 m |
| Gerätelänge ? | 2,53 m |
| Gerätebreite ? | 0,93 m |
| Gerätehöhe ? | 2,05 m |
| Freie Fallhöhe ? | 1,92 m |
| Podesthöhen | - |
| Gesamtgewicht ? | 115.00 kg |
| Schwerstes Einzelteil ? | 25.00 kg |
Assembly & Foundations
| Montagezeit ? | 3.0 hours |
|---|---|
| Monteuranzahl ? | 2 Personen |
| Hebezeug erforderlich | - |
| Fundamente | Quantity: 2 (1.2m x 0.4m x 0.6m) |
Product Downloads
Product description
Technical data

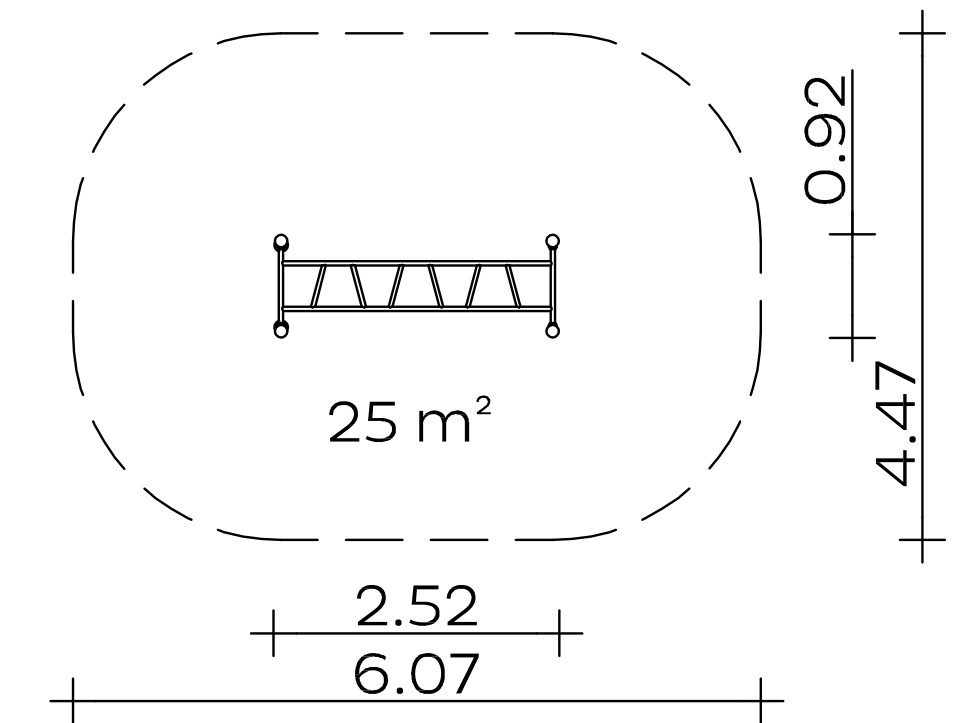

Base area: 2.53 x 0.93 m
Minimum space: 6.08 x 4.48 m (25 m²)
Total height: 2.03 m
Hanging ladder height: 1.90 m
Weight: 25 kg heaviest individual part
115 kg in total
Support post
Support posts made of stainless steel tube Ø 120 mm covered with non-detachable stainless steel post caps
Attachments
- Stainless steel tube hanging ladder
- Stainless steel climbing aid
Metal components: Stainless steel 1.4301
The modular add-on parts transfer their forces directly to the uprights via a special adapter fastening.
The screw connections are secured against unauthorised loosening.
Foundations (client-provided)
2 units 0.40 x 1.20 x 0.60 m
Concrete volume: 0.58 m³
Assembly time
2 fitters 1.5 hours each
(without foundation)
Free fall height
1,92 m
Suitable for
Children aged 8 and over,
public playgrounds etc.,
sporting activities
Item number: 053182501
