The 3D model serves as a spatial view. The colours do not correspond to the selected variant.

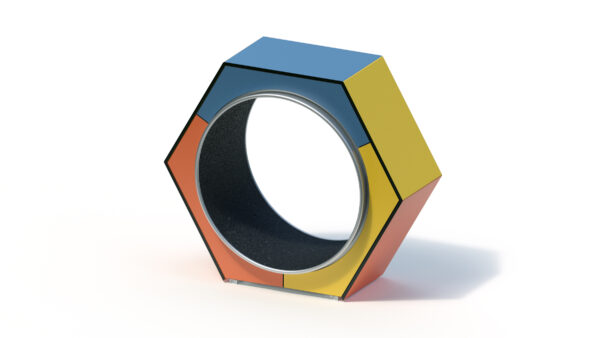

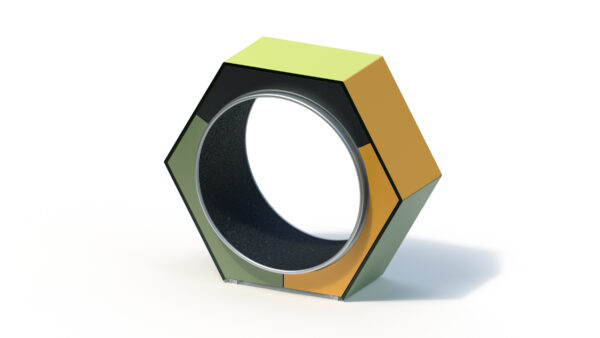

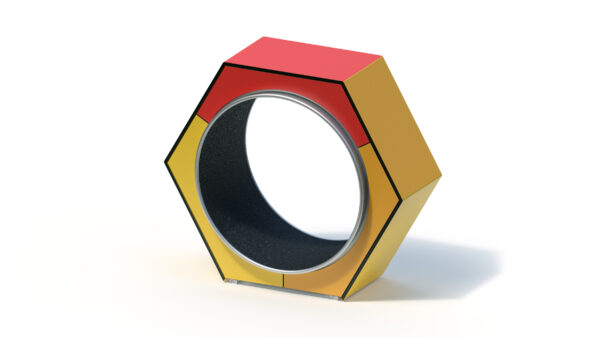

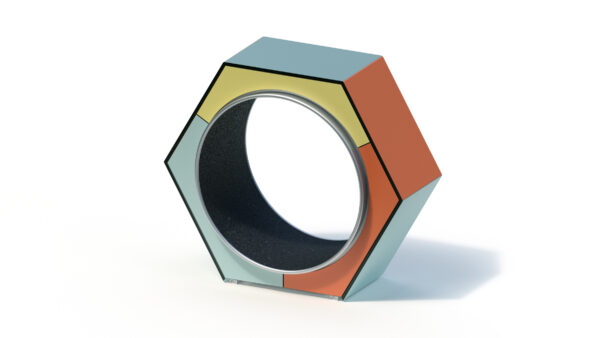

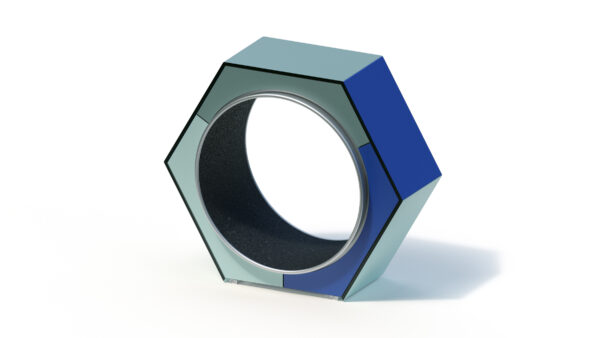

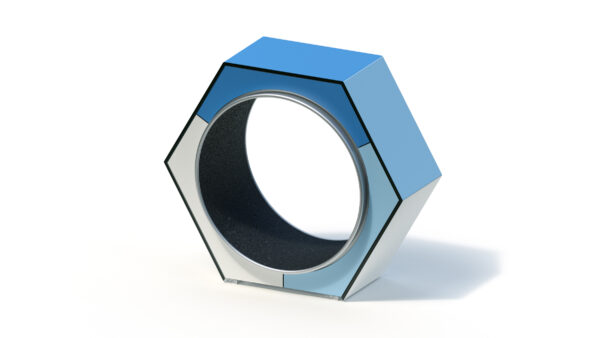

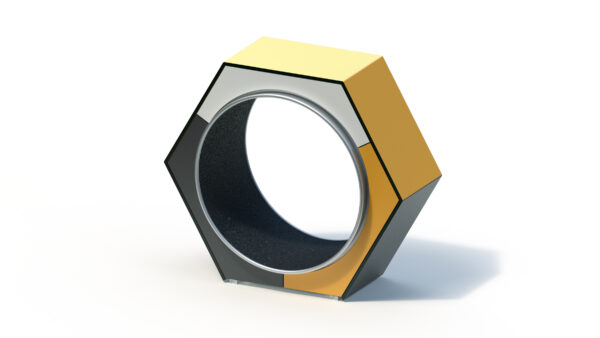

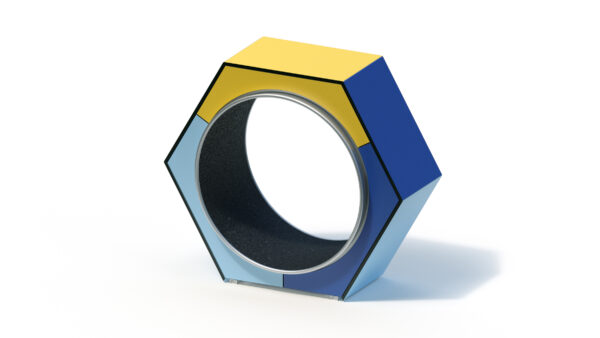

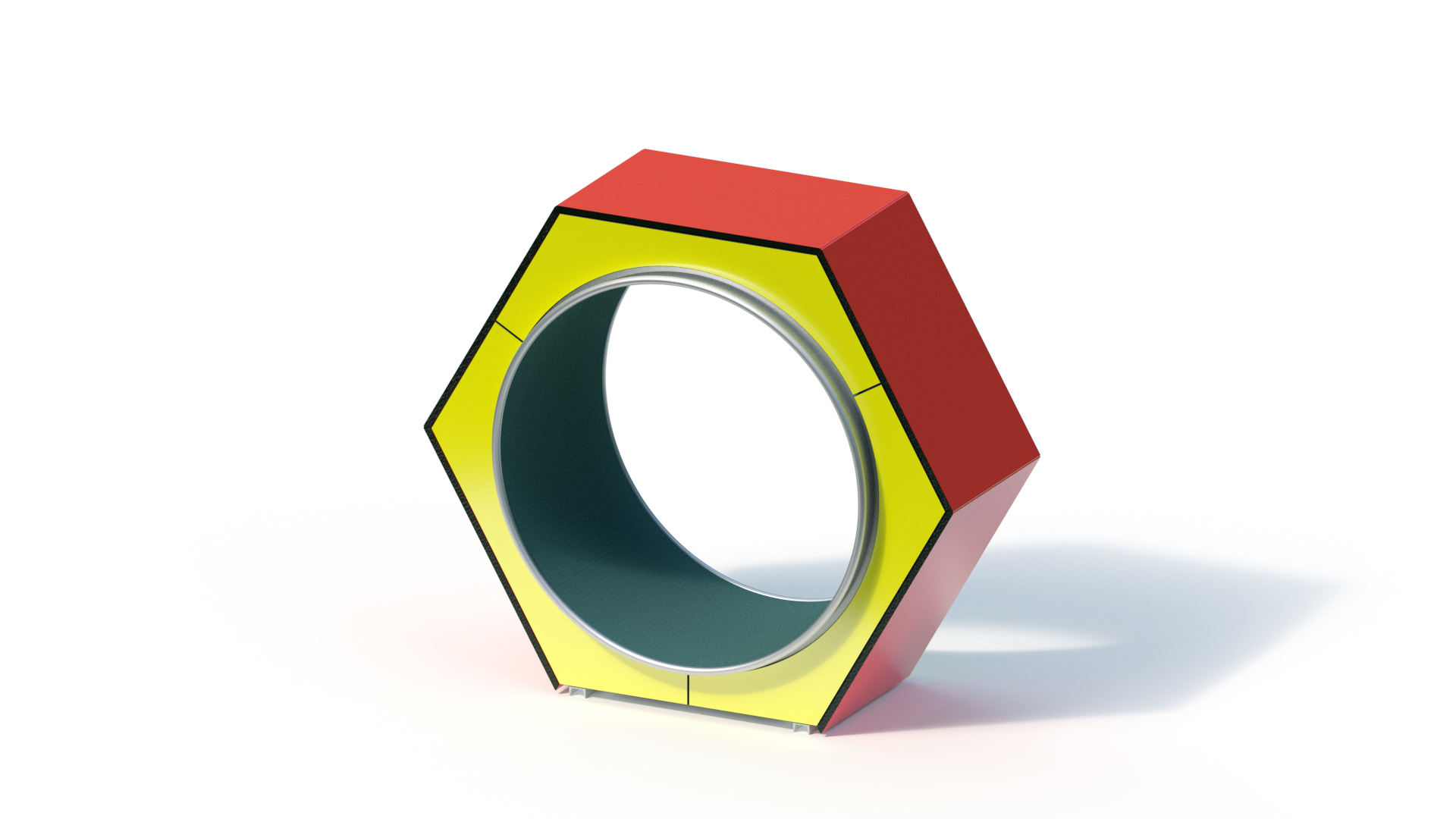

Rotor

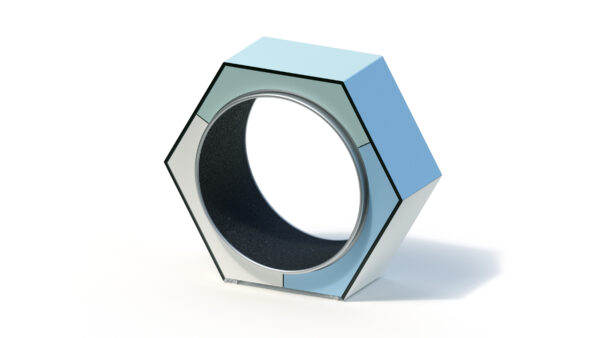

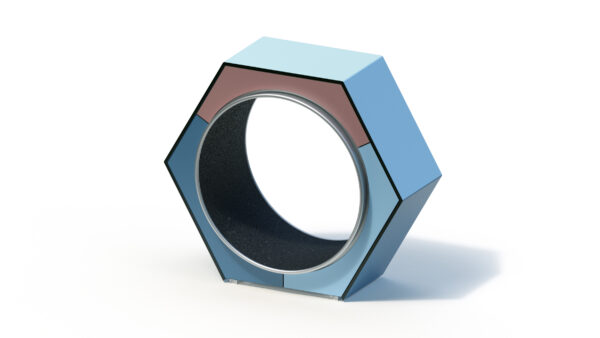

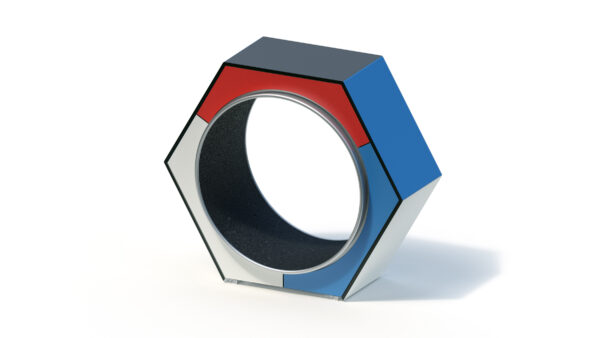

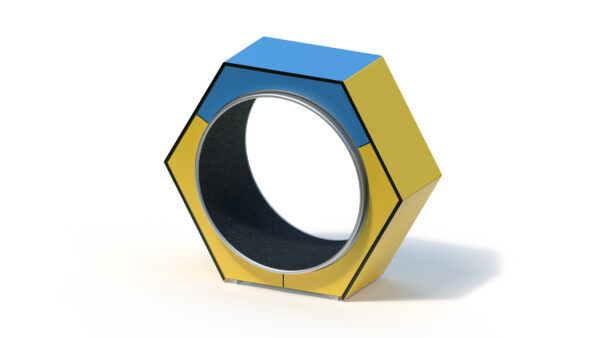

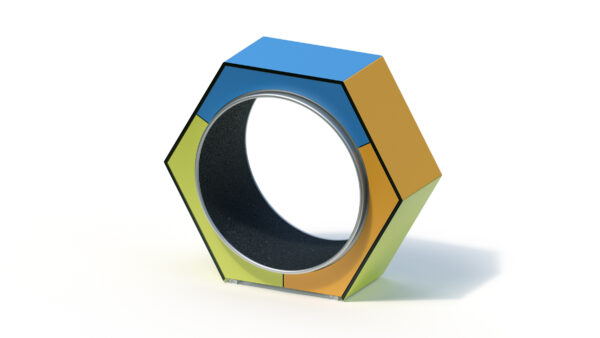

Select variant:
The most important information
| Age group ? | 6+ |
|---|---|
| Areas of application ? | Public playgrounds |
| Number of users ? | 1 persons |
| Activities ? | Physical activity |
Technical data
| Device length ? | 2,60 m |
|---|---|
| Device width ? | 1,10 m |
| Device height ? | 2,30 m |
| Free fall height ? | 0,85 m |
| Platform heights | - |
| Total weight ? | 675.00 kg |
| Heaviest single item ? | 664.00 kg |
| Minimum room length ? | 5,60 m |
| Minimum room width ? | 4,10 m |
| Minimum room height ? | 2,30 m |
Assembly & Foundations
| Assembly time ? | 2,0 h |
|---|---|
| Number of fitters ? | 2 persons |
| Lifting gear required ? | - |
| Foundations | 140x090x050 |
Product Downloads
Product description
Technical data

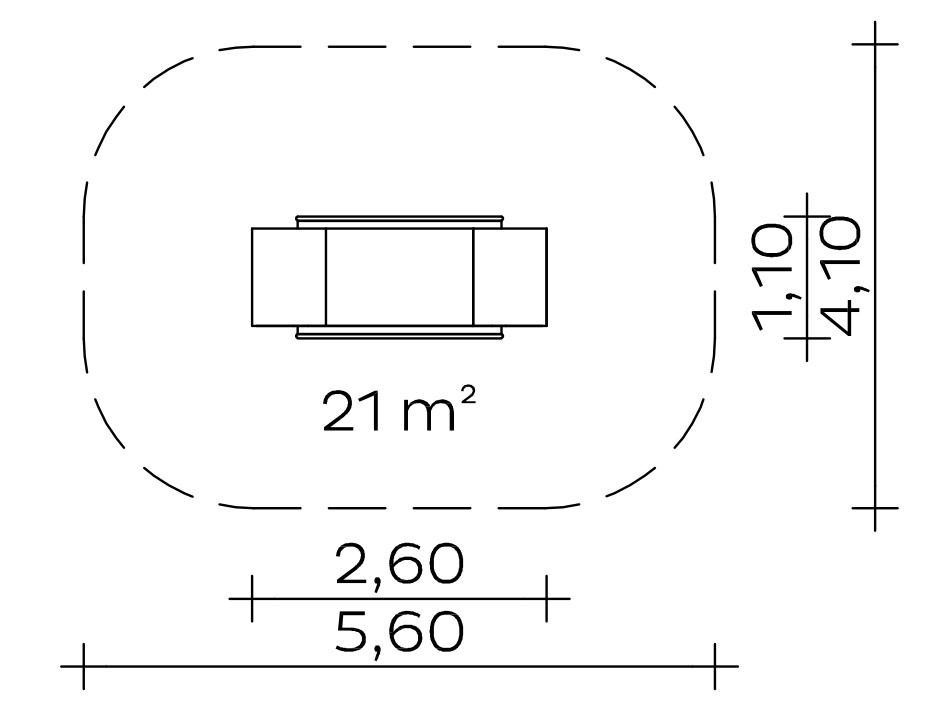

Floor area: 1.10 x 2.60 m
Minimum space: 4.10 x 5.60 m (21 m²)
Height: 2.30 m
Weight: 530 kg heaviest individual part
540 kg in total
- Housing: Hot-dip galvanised steel construction with multiple roller bearing mounted inner track,
High-pressure laminate panelling 15 mm
- Barrel: Stainless steel
- Tread: EPDM
Foundation (on site)
1 piece 1.40 x 0.90 x 0.50 m
Concrete volume: 0.63 m³
Assembly time
2 fitters 2 hours each
(without foundations) + lifting gear
Free fall height
0,85 m
Suitable for
Children aged 8 and over,
public playgrounds etc.
Physical activities
Item number: 045450001
