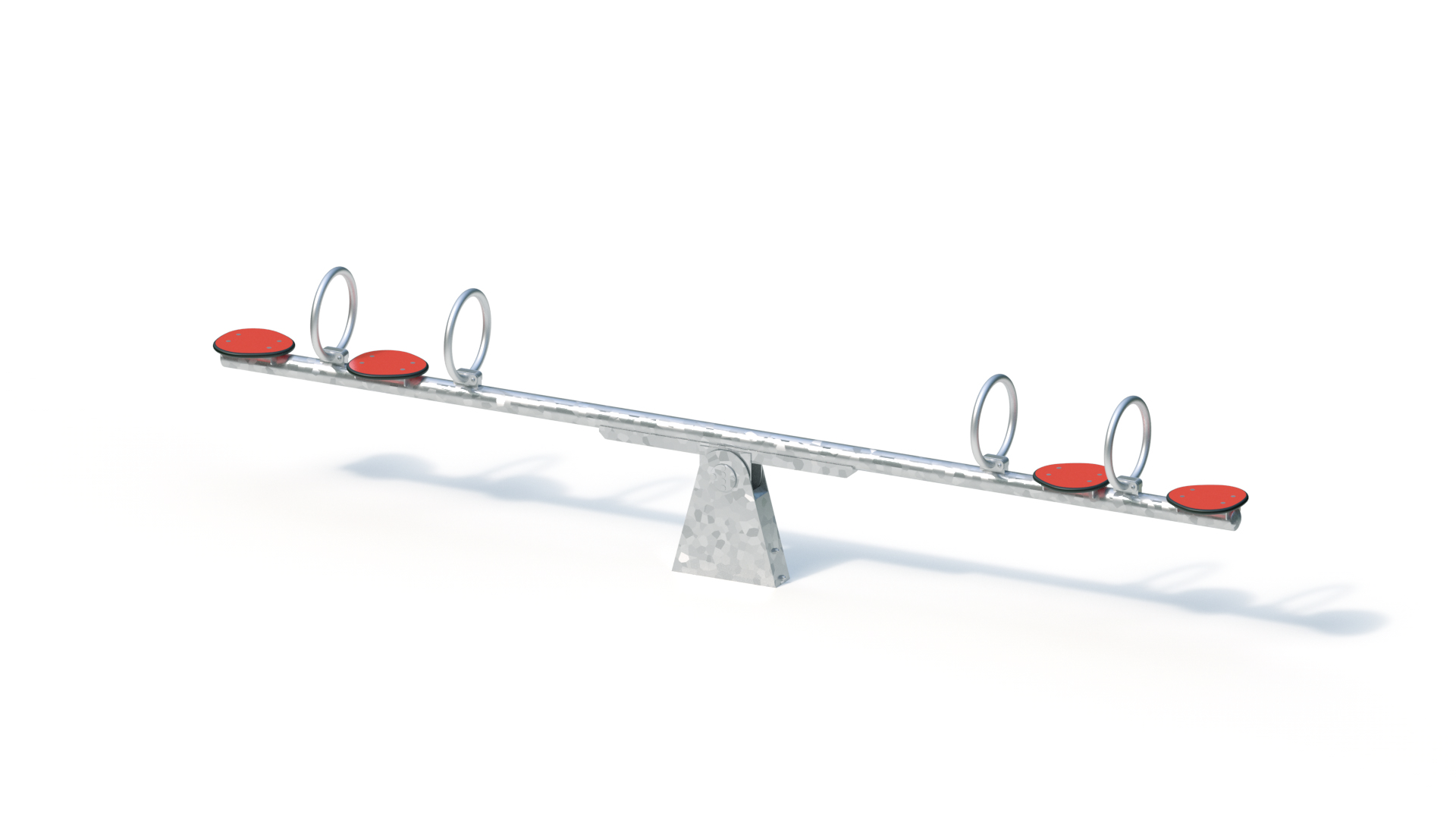

Double see-saw

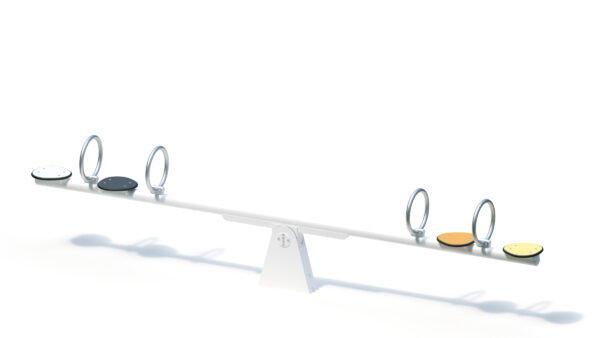

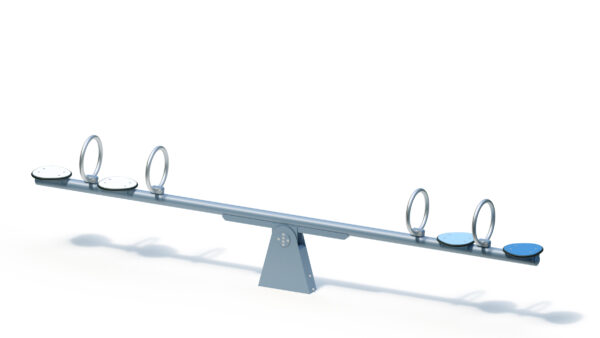

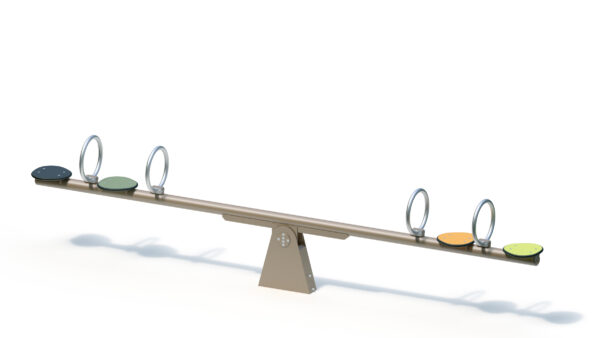

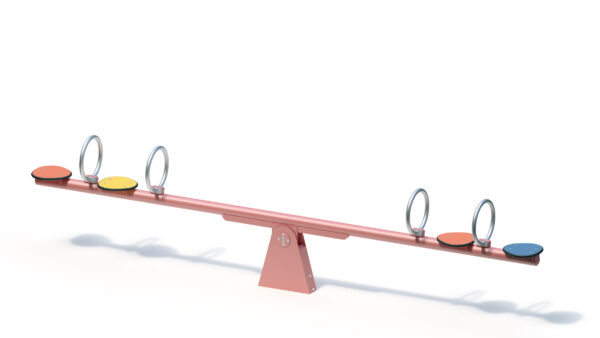

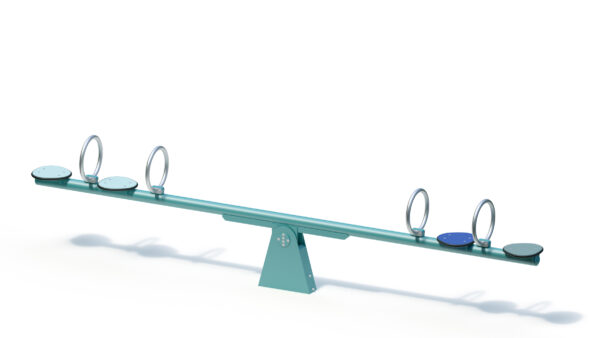

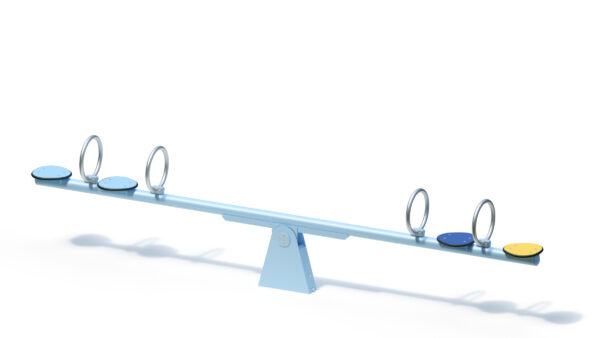

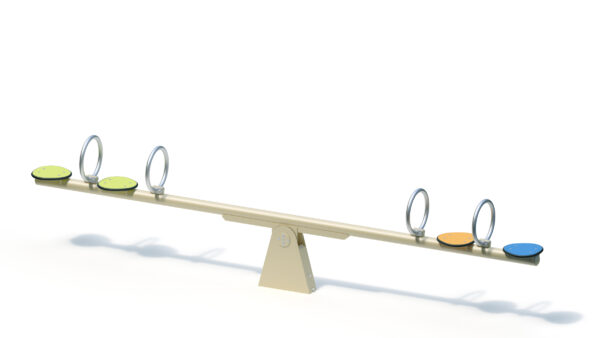

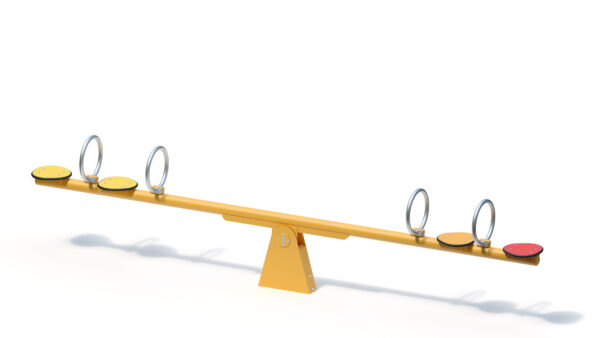

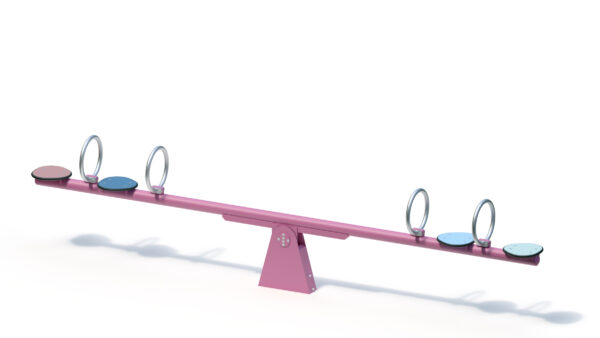

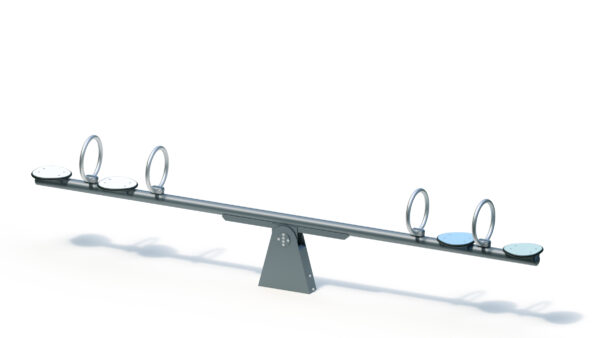

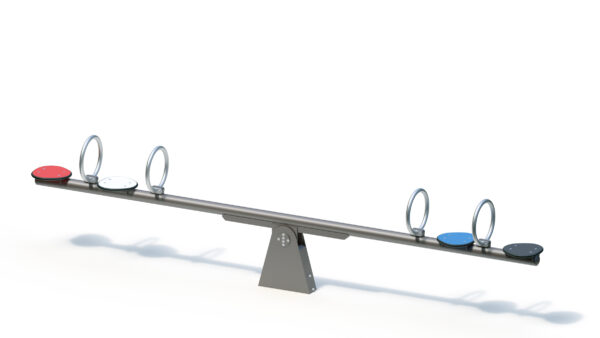

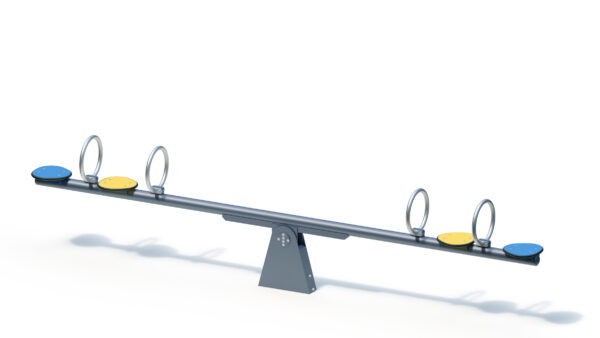

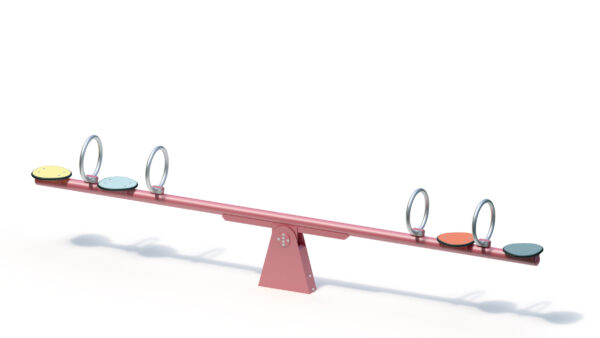

Variante wählen:
The most important information
| Altersgruppe ? | 4+ |
|---|---|
| Einsatzgebiete ? | Public playgrounds |
| Benutzeranzahl ? | 4 Personen |
| Aktivitäten ? | Physical activity |
Technical data
| Gerätelänge ? | 4,05 m |
|---|---|
| Gerätebreite ? | 0,35 m |
| Gerätehöhe ? | 0,90 m |
| Freie Fallhöhe ? | 1,10 m |
| Podesthöhen | - |
| Gesamtgewicht ? | 166.00 kg |
| Schwerstes Einzelteil ? | 155.00 kg |
| Mindestraumlänge ? | 6,05 m |
| Mindestraumbreite ? | 2,35 m |
| Mindestraumhöhe ? | 0,90 m |
Assembly & Foundations
| Montagezeit ? | 1,0 h |
|---|---|
| Monteuranzahl ? | 2 Personen |
| Hebezeug erforderlich | - |
| Fundamente | Quantity: 1 (0.9m x 0.6m x 0.6m) |
Product Downloads
Product description
Technical data

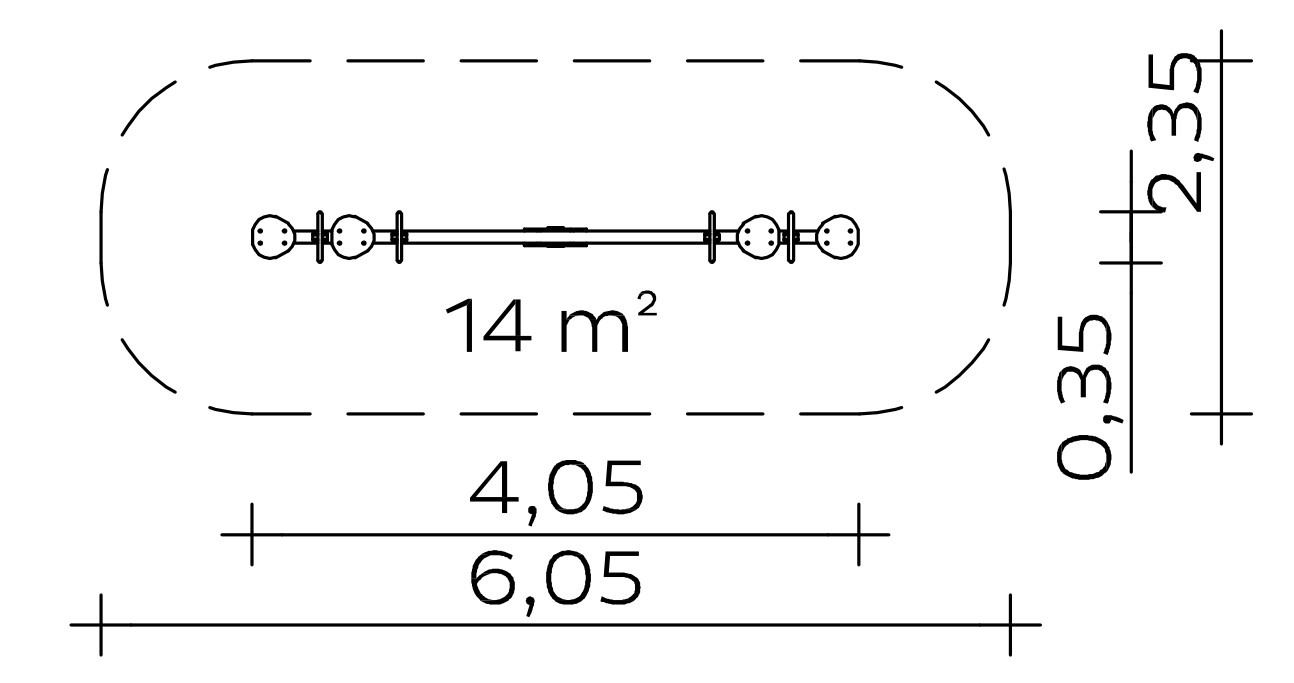

Base area: 0.35 x 4.05 m
Minimum space: 2.35 x 6.05 m (14 m²)
Rocking height: max. 1.05 m
Rocking beam: tubular steel Ø 82.5 x 3970 mm, DIN 2448, hot-dip galvanised, wall thickness 6.3 mm
Handle: Stainless steel tube
Seat plate: high-pressure laminate 20 mm
Sheet steel housing: hot-dip galvanised
Rocking mechanism with vibration-damping rubber spring bearing. Additionally shock-absorbing thanks to parabolic rubber buffers. Self-lubricating plain bearings.
Movement of the rocker beam is limited by internal, damped end stops. No external, on-site movement limiters required (e.g. rubber tyres).
Weight: 155 kg heaviest individual part
166 kg in total
Foundation (on site)
1 piece 0.60 x 0.90 x 0.60 m
Concrete volume: 0.32 m³
Assembly time
2 fitters 0.5 hours
(without foundation)
Free fall height
1,10 m
Suitable for
Children aged 4 and over,
public playgrounds etc.
Movement activities.
Item number: 044350000
