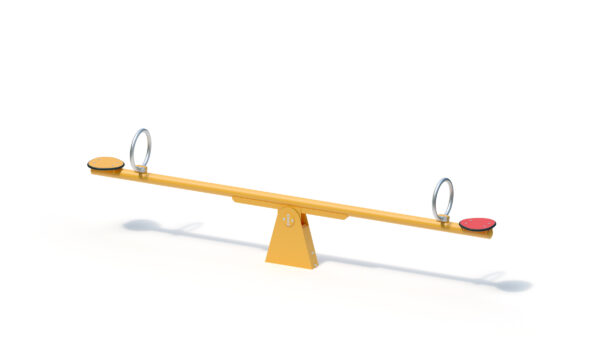

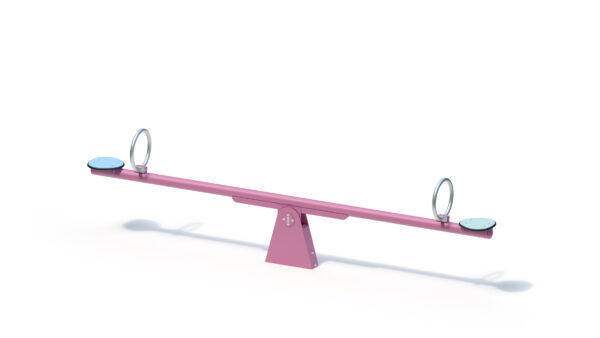

See-saw

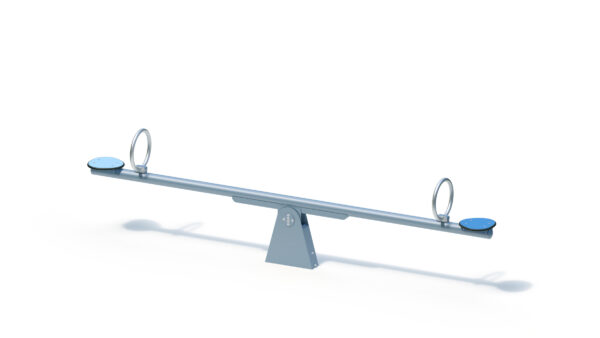

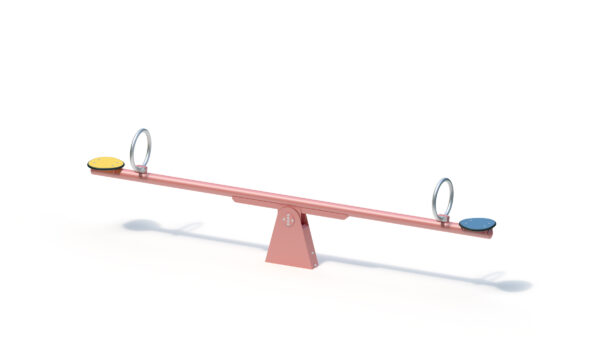

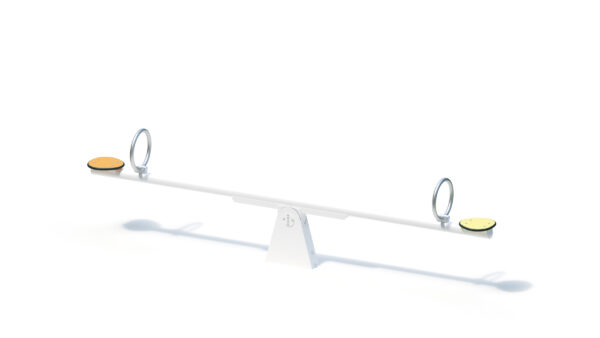

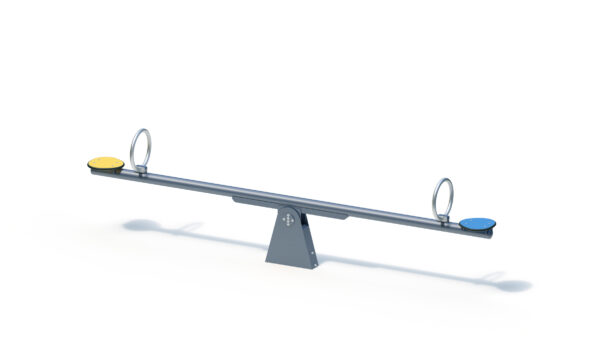

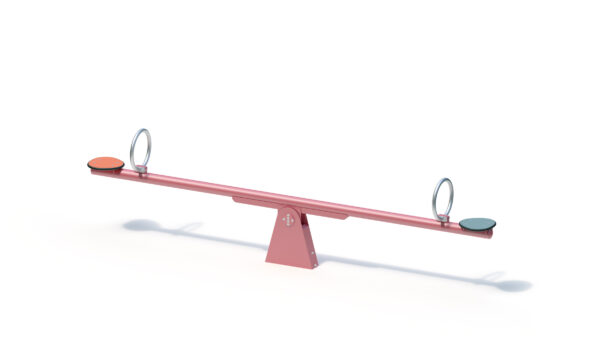

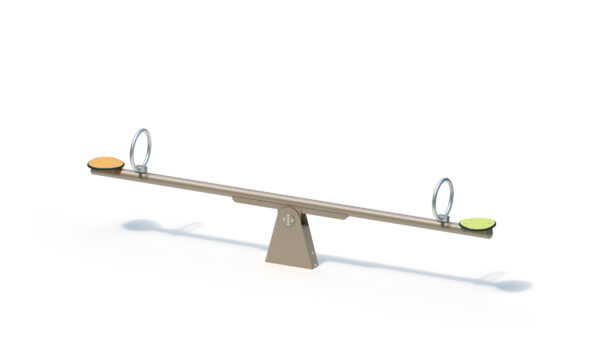

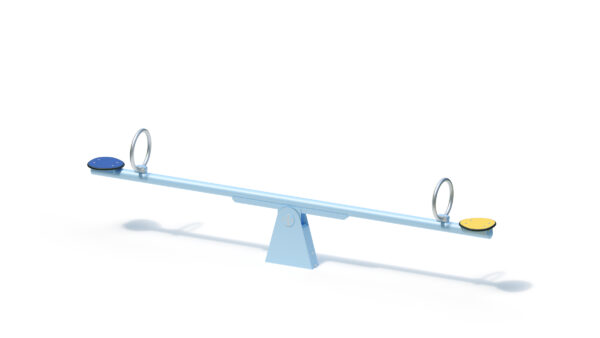

Select variant:
The most important information
| Age group ? | 4+ |
|---|---|
| Areas of use ? | Public playgrounds |
| Number of users ? | 2 people |
| Activities ? | Physical activity |
Technical data
| Minimum space length ? | 5,55 m |
|---|---|
| Minimum space width ? | 2,35 m |
| Minimum space height ? | 0,90 m |
| Equipment length ? | 3,55 m |
| Equipment width ? | 0,35 m |
| Equipment height ? | 0,90 m |
| Free-fall height ? | 1,00 m |
| Platform heights | - |
| Total weight ? | 141.00 kg |
| Heaviest single part ? | 130.00 kg |
Assembly & Foundations
| Assembly time ? | 1,0 h |
|---|---|
| Number of fitters ? | 2 people |
| Lifting equipment required | - |
| Foundations | Quantity: 1 (0.8m x 0.6m x 0.6m) |
Product Downloads
Product description
Technical data

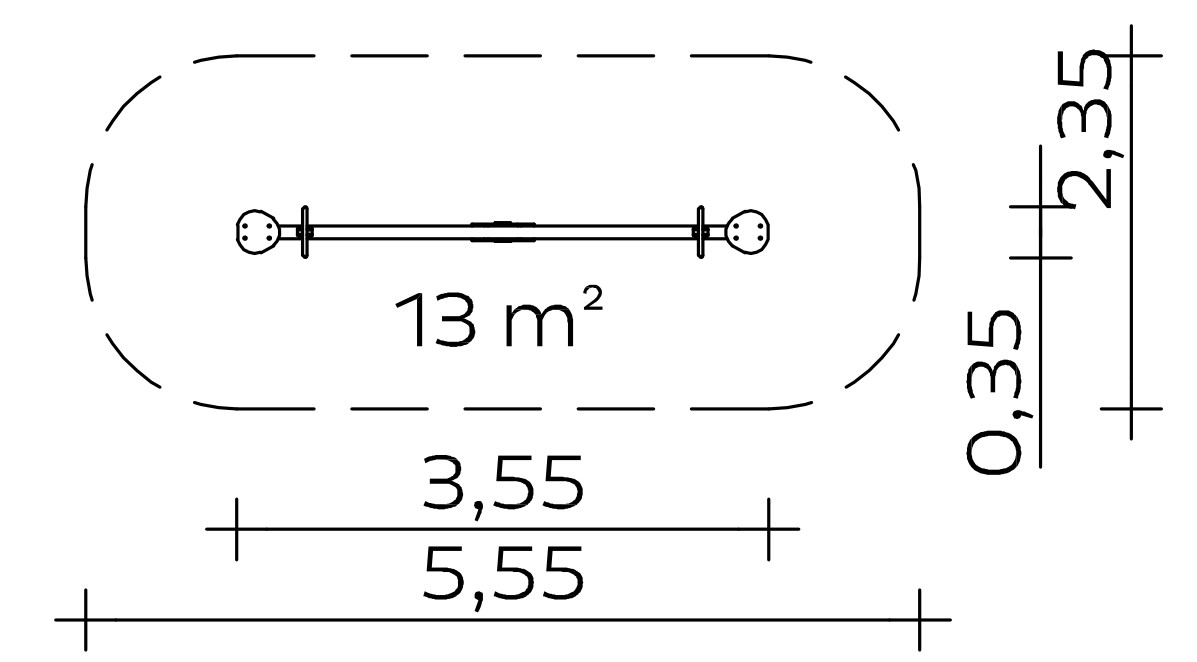

Base area: 0.35 x 3.55 m
Minimum space: 2.35 x 5.55 m (13 m²)
Rocking height: max. 1.00 m
Rocking beam: tubular steel Ø 82.5 x 3445 mm, DIN 2448, hot-dip galvanised, wall thickness 6.3 mm
Handle: stainless steel tube, Ø 30 mm, wall thickness 2 mm
Seat plate: high-pressure laminate 20 mm
Sheet steel housing: hot-dip galvanised, wall thickness 6 mm
Rocking mechanism with vibration-damping rubber spring bearing.
Additional shock absorption thanks to parabolic rubber buffers.
Movement of the rocker beam is limited by internal, damped end stops. No external, on-site movement limiters required (e.g. rubber tyres).
Self-lubricating plain bearing.
Weight: 130 kg heaviest individual part
141 kg in total
Foundation (on site)
1 piece 0.60 x 0.80 x 0.60 m
Concrete volume: 0.29 m³
Assembly time
2 fitters 0.5 hours
(without foundation)
Free fall height
1,00 m
Suitable for
Children aged 4 and over,
public playgrounds etc.
Movement activities.
Foundation (on site)
1 piece 0.60 x 0.80 x 0.60 m
Concrete volume: 0.29 m³
Item number: 044340000
