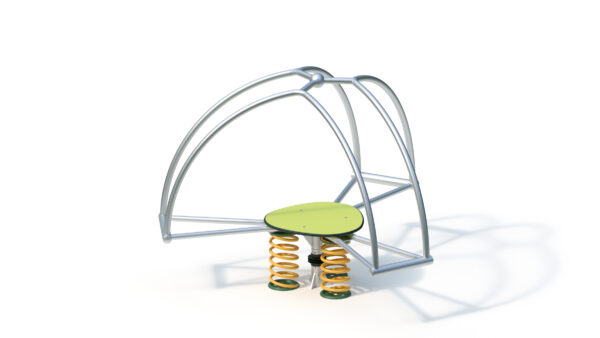

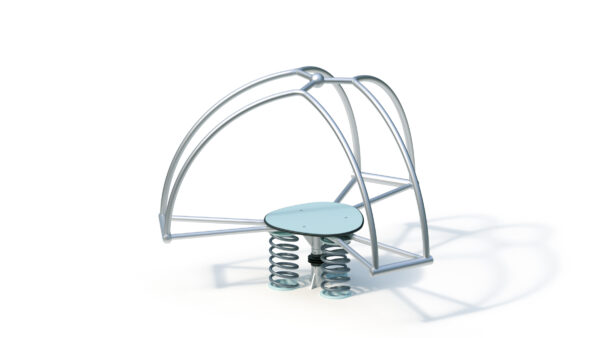

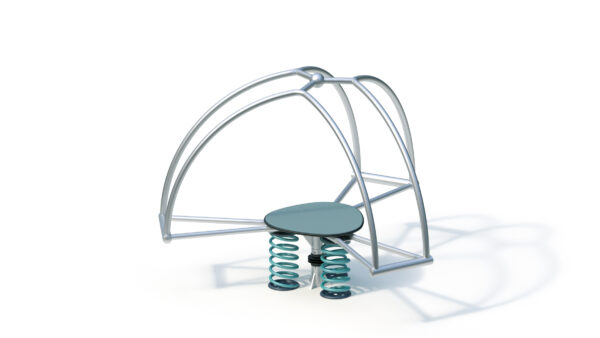

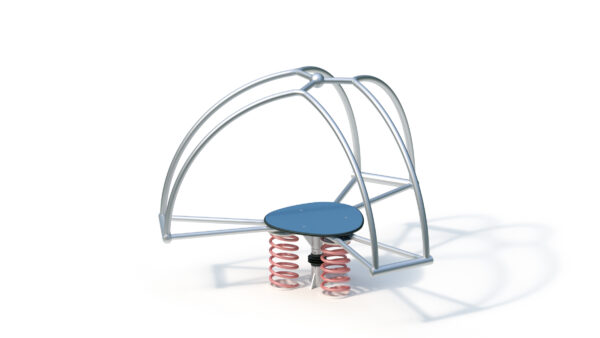

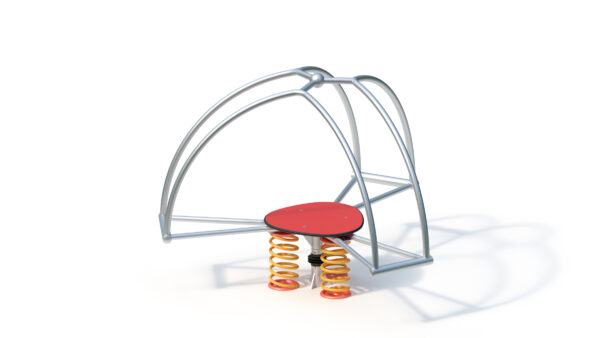

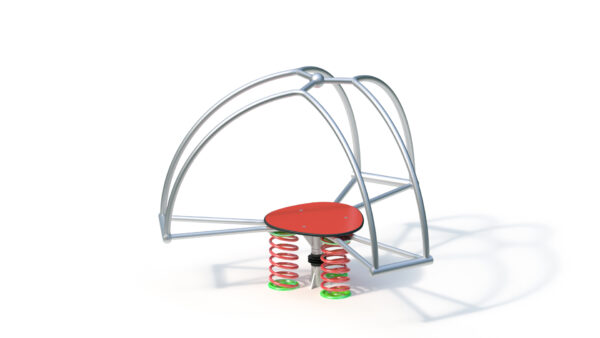

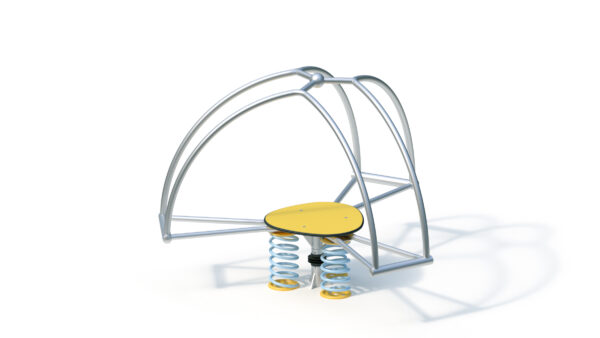

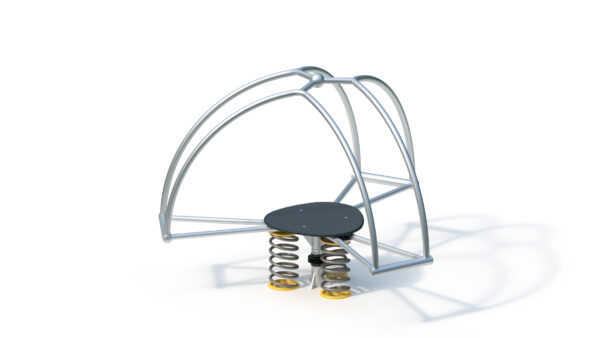

Standing see-saw
Select variant:
The most important information
| Age group ? | 4+ |
|---|---|
| Areas of use ? | Public playgrounds |
| Number of users ? | 6 people |
| Activities ? | Physical activity |
Technical data
| Minimum space length ? | 5,06 m |
|---|---|
| Minimum space width ? | 5,06 m |
| Minimum space height ? | 1,48 m |
| Equipment length ? | 2,05 m |
| Equipment width ? | 1,75 m |
| Equipment height ? | 1,48 m |
| Free-fall height ? | 0,95 m |
| Platform heights | - |
| Total weight ? | 175.00 kg |
| Heaviest single part ? | 0.00 kg |
Assembly & Foundations
| Assembly time ? | 1,0 h |
|---|---|
| Number of fitters ? | 1 person |
| Lifting equipment required | - |
| Foundations | Quantity: 1 (1.2m x 1.2m x 0.1m) |
Product Downloads
Product description
Technical data
Base area: 1.75 x 2.05 m
Minimum space: Ø 5.06 m (20 m²)
Standing height: approx. 0.45 m
Weight: 175 kg in total
Rocking frame: Stainless steel
Rocker spring: special spring wire Ø 20 mm
HPL laminate panel, 20 mm; theft-proof screw connection
Standpipe with non-slip knurling
Support bearing: Ball head plain bearing
Foundation (on site)
1 piece 1.20 x 1.20 x 0.10 m
Concrete volume: 0.14 m³
Assembly time
1 fitter 1 hour
(without foundation)
Free fall height
0,95 m
Please note:
The impact surface around the play equipment must have an appropriate level of shock absorption that is at least equal to the free fall height, but always at least 600 mm (see EN 1176-5).
Suitable for
Children from 4 years,
public playgrounds etc.,
Movement activities.
Item number: 044277000
