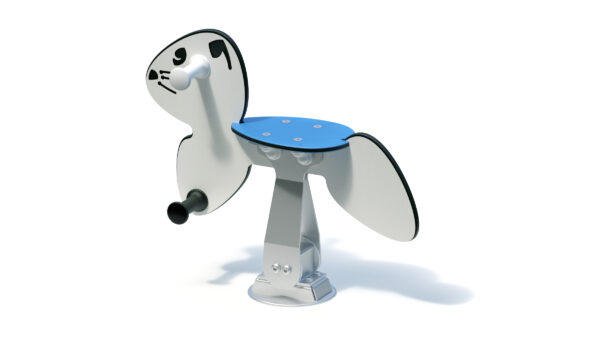

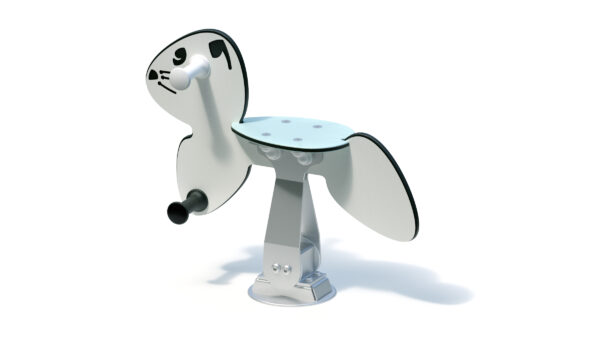

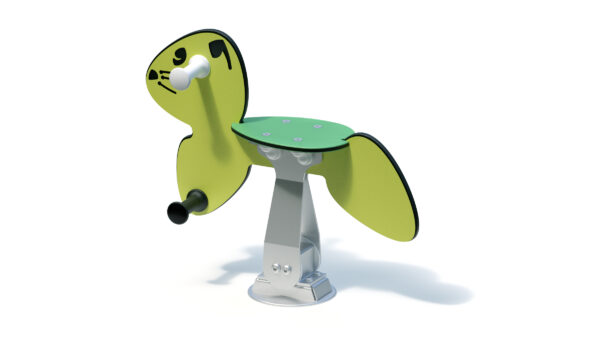

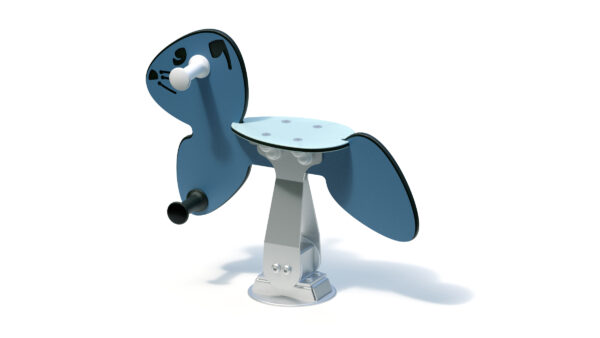

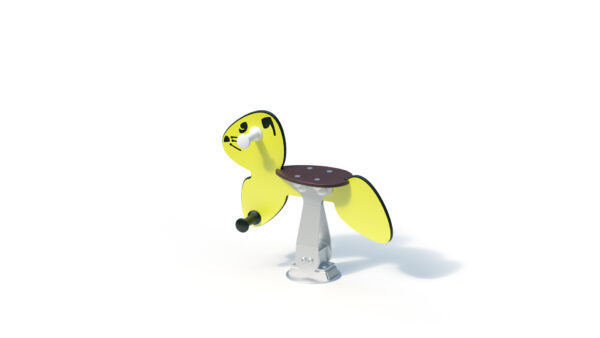

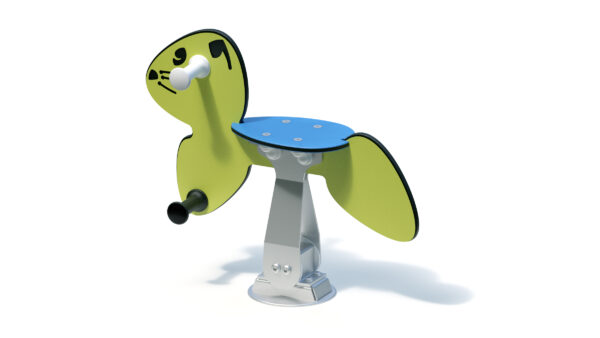

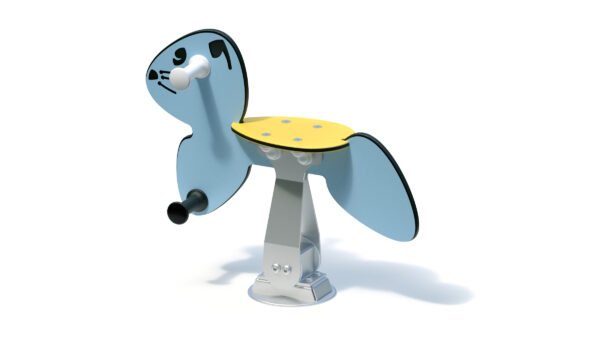

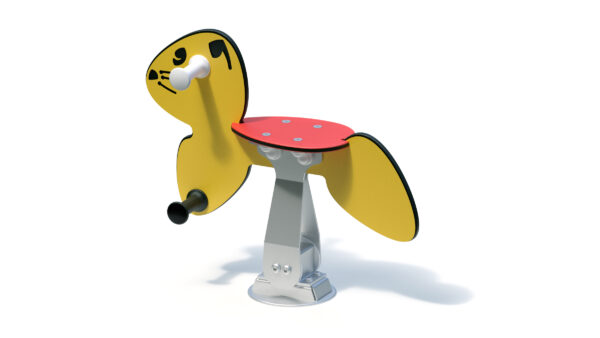

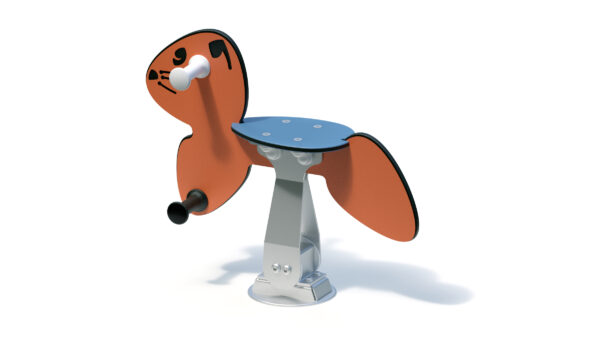

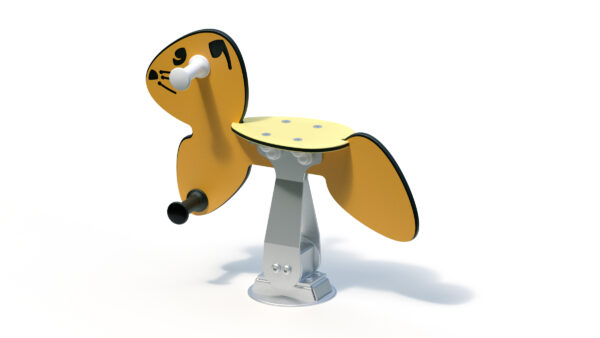

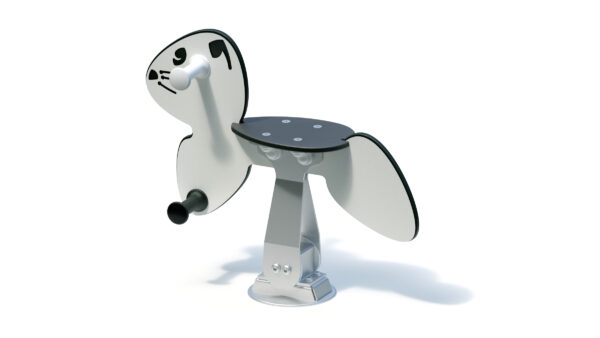

Rocker cat
Variante wählen:
The most important information
| Altersgruppe ? | 2+ |
|---|---|
| Einsatzgebiete ? | supervised playgrounds |
| Benutzeranzahl ? | 1 Personen |
| Aktivitäten ? | Physical activity |
Technical data
| Mindestraumlänge ? | 2.84m |
|---|---|
| Mindestraumbreite ? | 2,22 m |
| Mindestraumhöhe ? | 0,61 m |
| Gerätelänge ? | 0,65 m |
| Gerätebreite ? | 0,22 m |
| Gerätehöhe ? | 0,57 m |
| Freie Fallhöhe ? | 0,37 m |
| Podesthöhen | - |
| Gesamtgewicht ? | 22.00 kg |
| Schwerstes Einzelteil ? | 0.00 kg |
Assembly & Foundations
| Montagezeit ? | 0,0 h |
|---|---|
| Monteuranzahl ? | 1 Personen |
| Hebezeug erforderlich | - |
| Fundamente | Quantity: 1x (0.8m x 0.5m x 0.1m) |
Product Downloads
Product description
Technical data
Total height: 0.57 m
Base area: 0.22 x 0.65 m

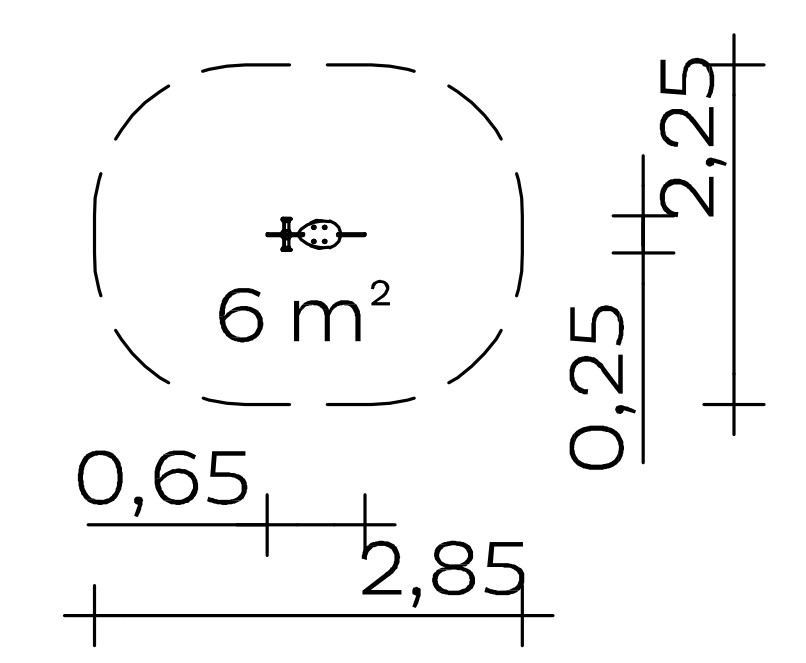

Minimum space: 2.22 x 2.84 m (6 m²)
Seat height: 0.37 m
Weight: 22 kg in total
Rocking frame: Stainless steel with Rosta rubber spring element
Carcass made of highly weather-resistant 13 mm HPL laminate
Seat plate made of highly weather-resistant 13 mm HPL laminate, theft-proof screw connection
Handles/footrests: polyamide Ø 51 mm (white/black), with cover caps
Floor anchor included
Assembly time
Delivered pre-assembled in one piece
Foundations (client-provided)
If the ground is light (usually loose bulk material such as bark mulch, wood chips, sand, gravel), the base plate of the ground anchor must be covered with a foundation (0.80 x 0.50 x 0.10 m).
Concrete quantity: 0.04 m³
Free fall height
0,37 m
Please note:
The impact surface around the play equipment must have an appropriate degree of shock absorption corresponding to a free fall height of at least 600 mm (see EN 1176-6).
Suitable for
Children from 1 - 6 years,
supervised playgrounds,
Physical activities
Item number: 044203000
