Hill slide (4,00) with starting platform 0,20
The most important information
| Altersgruppe ? | 3+ |
|---|---|
| Einsatzgebiete ? | Public playgrounds |
| Benutzeranzahl ? | 7 Personen |
| Aktivitäten ? | - |
Technical data
| Mindestraumlänge ? | 13,15 m |
|---|---|
| Mindestraumbreite ? | 4,45 m |
| Mindestraumhöhe ? | 4,95 m |
| Gerätelänge ? | 9,65 m |
| Gerätebreite ? | 1,50 m |
| Gerätehöhe ? | 4,95 m |
| Freie Fallhöhe ? | 1,50 m |
| Podesthöhen | - |
| Gesamtgewicht ? | 360.00 kg |
| Schwerstes Einzelteil ? | 225.00 kg |
Assembly & Foundations
| Montagezeit ? | 2,0 h |
|---|---|
| Monteuranzahl ? | 2 Personen |
| Hebezeug erforderlich | Ja |
| Fundamente | Quantity: 4 (0.4m x 0.4m x 0.4m) Quantity: 3 (0.4m x 0.4m x 0.6m) Quantity: 1 (1.4m x 0.75m x 0.4m) |
Product Downloads
Product description
Technical data

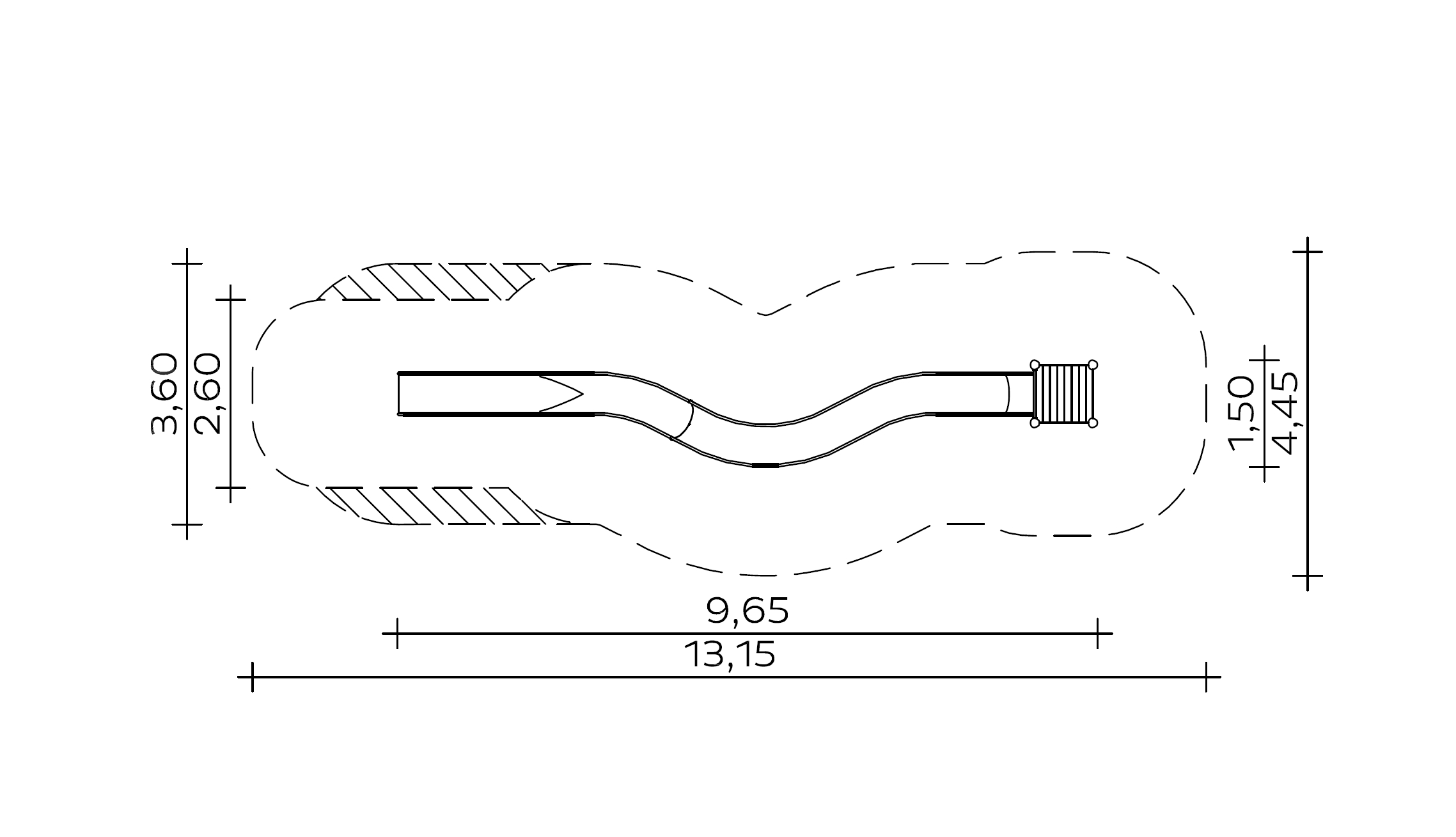

Floor area: 1.50 x 9.65 m
Minimum space: 4.45 x 13.15 m
(with free fall height max. 1.50 m)
Platform height: 0.20 m
Slide attachment height: 0.20 m
Seat height: 0.30 m
Slide mounting height above
Zero slide run-out: 4.00 m
(for hill height 3.80 m)
Slide inclination: 30°
Slide width: 0.60 m
Sliding plate thickness: 2.5 mm
Support post
Posts made of stainless steel tube Ø 120 mm, covered with non-detachable stainless steel post caps. Connection of the modular add-on parts to the uprights using solid and fully welded stainless steel weld-in sleeves without protruding connecting elements.
Stand posts flush with the platform are covered with welded-on discs made of stainless steel.
Platform floor
Platform floor made of boards, 30 mm thick and circumferential squared timber beams 45 x 100 mm. The dried sawn timber made of robinia is planed, bevelled and free of rotting knots. Force-fit floor fastening using special stainless steel brackets with a continuous bolt connection.
Slope slide
Stainless steel chute segments, particularly low-noise due to trough shape, welded into a two-part chute for transport reasons, incl. respective flange connection at the separation point for easy assembly by bolting on site.
Stainless steel support posts for the curve area.
Slide course: curves 27° left, 54° right, 27° left
For your planning, please note that stainless steel slides should be orientated to the north-east or in the partial shade of trees due to the possible heating of the slide surface.
Metal components: Stainless steel. The robinia wood is treated with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment also reduces cracking. The modular add-on parts transfer their forces directly to the uprights via a special adapter fastening. The screw connections are secured against unauthorised loosening by cover caps.
Foundations (client-provided)
4 pcs. 0.40 x 0.40 x 0.40 m
3 pcs. 0.40 x 0.40 x 0.60 m
1 piece 1.40 x 0.75 x 0.40 m
Concrete volume: 0.81 m³
Assembly time
2 fitters 2 hours each, plus lifting gear
(without foundation)
Free fall height
Platform: 0.20 m
Slide: The free fall height and the extent of the impact area are determined by the vertical distance between the bottom edge of the slide and the top edge of the terrain.
The impact surface in the slip area must be fitted with a floor material that fulfils the requirements of Table 4 (see EN 1176-1). If a different material is to be used, its shock-absorbing properties must be verified by testing in accordance with EN 1177:2008. The floor surface surrounding the run-out part of the slide must fulfil the requirements for a critical fall height of at least 1000 mm (see EN 1176-3).
Suitable for
Children aged 5 and over,
public playgrounds etc.
Movement activities.
Item number: 041880501
