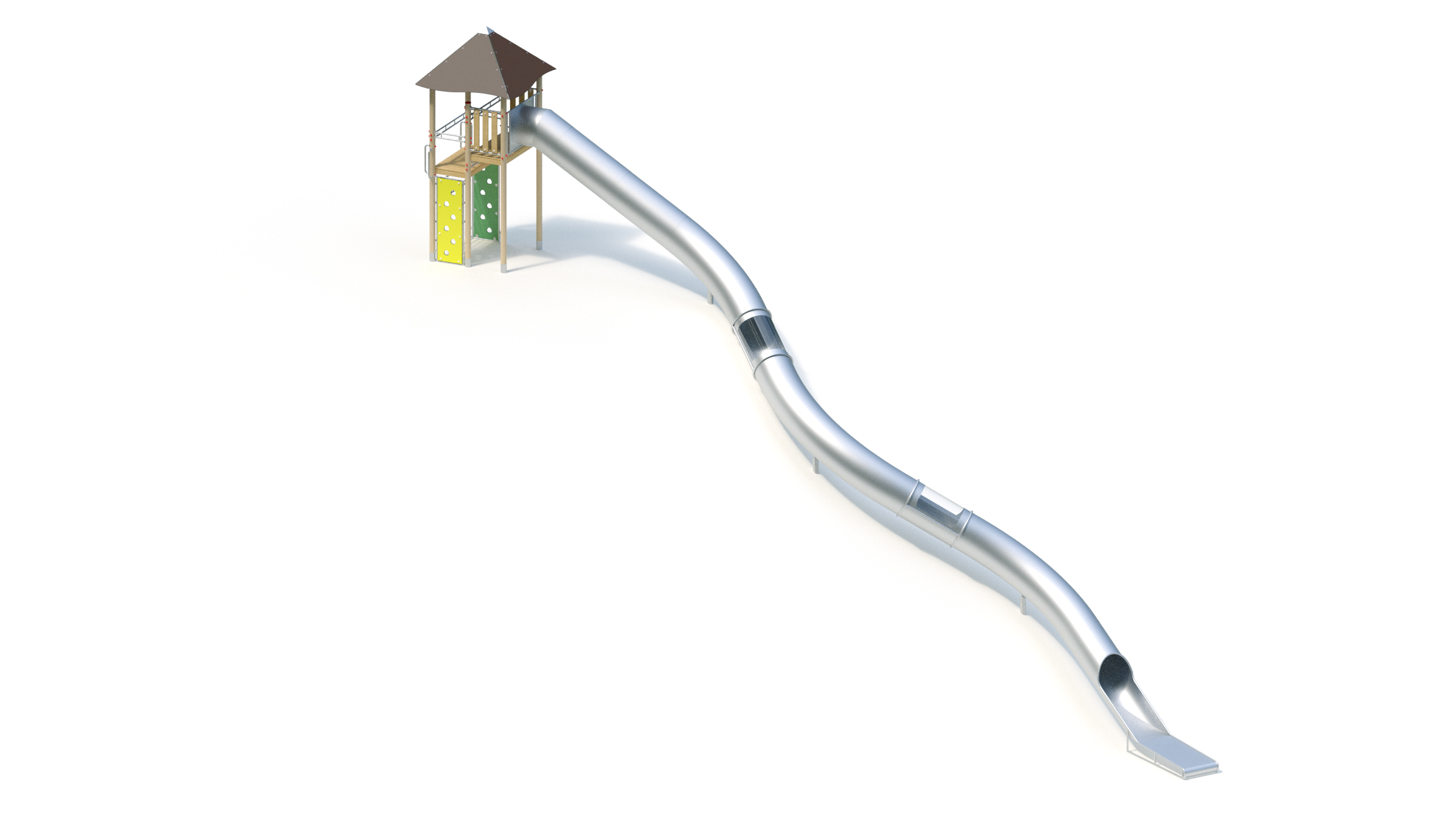

Combi slide

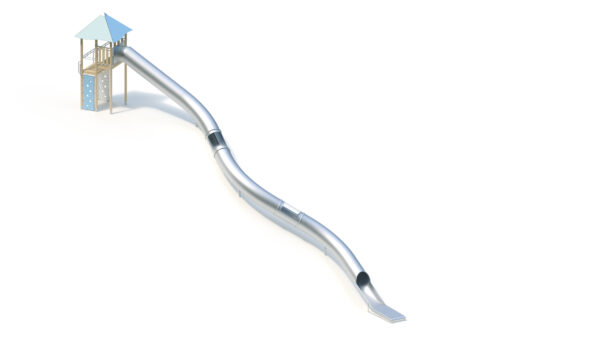

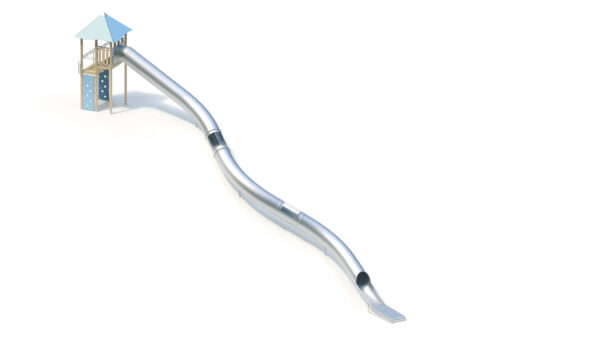

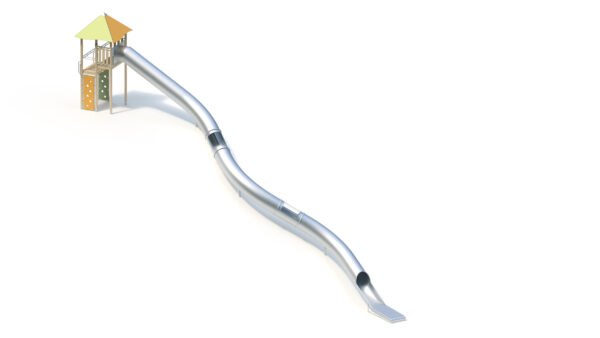

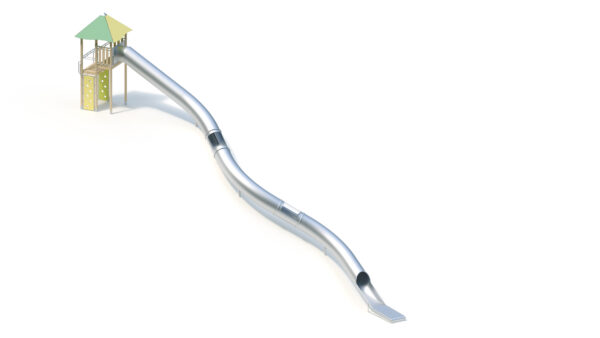

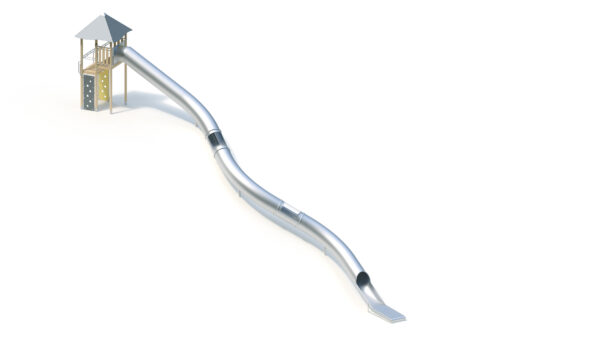

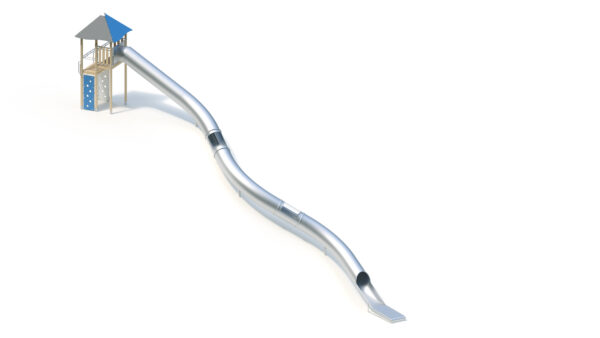

Variante wählen:
The most important information
| Altersgruppe ? | 3+ |
|---|---|
| Einsatzgebiete ? | - |
| Benutzeranzahl ? | 11 Personen |
| Aktivitäten ? | - |
Technical data
| Mindestraumlänge ? | 22,92 m |
|---|---|
| Mindestraumbreite ? | 8,95 m |
| Mindestraumhöhe ? | 4,88 m |
| Gerätelänge ? | 19,46 m |
| Gerätebreite ? | 5,59 m |
| Gerätehöhe ? | 4,88 m |
| Freie Fallhöhe ? | 2,40 m |
| Podesthöhen | - |
| Gesamtgewicht ? | 2100.00 kg |
| Schwerstes Einzelteil ? | 1300.00 kg |
Assembly & Foundations
| Montagezeit ? | 10,0 h |
|---|---|
| Monteuranzahl ? | 3 Personen |
| Hebezeug erforderlich | - |
| Fundamente | Quantity: 6 (0.4m x 0.4m x 0.4m) Quantity: 3 (0.4m x 0.4m x 0.6m) Quantity: 3 (1m x 0.4m x 0.4m) |
Product Downloads
Product description
Technical data
Total height: 4.88 m (without slide)

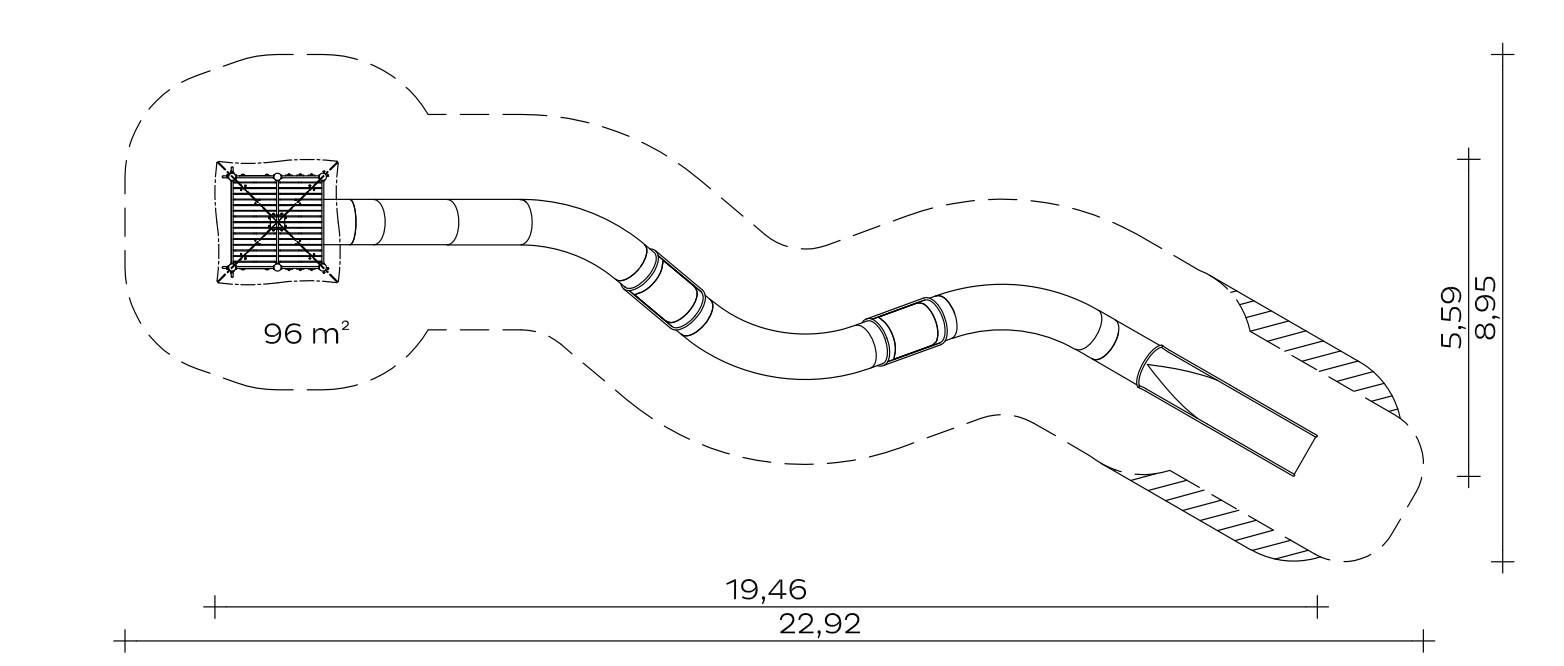

Floor area: 5.59 x 19.46 m
Minimum space: 8.95 x 22.92 m (96 m²)
Platform heights: 2.00/2.40 m
Slide attachment height: 2.40 m
Seat height: 2.50 m
Slide mounting height above
Zero slide run-out: 9.40 m
(for hill height 7.00 m)
Slide inclination: 30°
Slide width: 0.80 m
Sliding plate thickness: 2.5 mm
Support post
Standing posts made of robinia plywood, cylindrically milled, Ø 120 mm. Unprotected end grain surfaces are covered with non-detachable stainless steel post caps.
Stainless steel tubular base for the foundation and elevation of Robinia roundwood posts, Ø 120 mm, below the play level.
Platform floor
Platform floor made of boards, 30 mm thick and circumferential squared timber beams 45 x 100 mm. The dried sawn timber made of robinia is planed, bevelled and free of rotting knots. Force-fit floor fastening using special stainless steel brackets with a continuous bolt connection.
Attachments
- Tandem railing made of stainless steel tube, Ø 33.7 x 2 mm
- Wooden balustrade made of robinia, 125 x 30 mm, fastened between stainless steel tubes Ø 33.7 x 2 mm
- Climbing wall made of highly weather-resistant HPL laminate, 20 mm, stainless steel tube frame, six climbing openings
- Climbing rung made of stainless steel tube, Ø 38 x 2.5 mm, twist-proof
- Vertical handle as climbing aid made of stainless steel tube, Ø 33.7 x 2 mm
- Tent roof, pitch 45°, made of highly weather-resistant HPL laminate, 13 mm, attached to roof frame made of stainless steel tube Ø 33.7 x 2 mm, with stainless steel cover, 1.5 mm

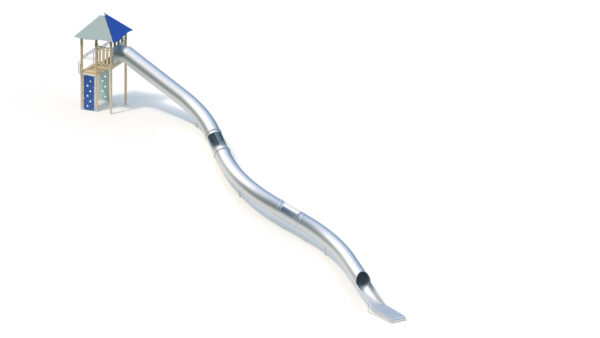

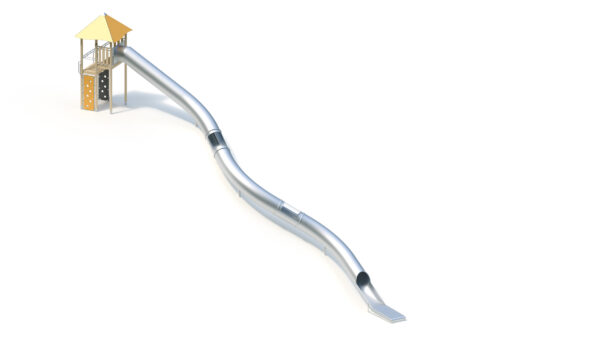

Tunnel slide 30°, height 9.40 m
Course: curves 40° right, 60° left, 50° right
Light openings: made of shatterproof polycarbonate, 2 pieces
Slide segments made of stainless steel, particularly quiet due to tunnel shape, welded into a three-part slide for transport reasons, incl. respective flange connection at the separation point for easy assembly by bolting on site. Including support post made of stainless steel tube Ø 120 x 3 mm, stainless steel fastening flange.
For your planning, please note that stainless steel slides should be orientated to the north-east or in the partial shade of trees due to the possible heating of the slide surface.
Metal components: Stainless steel
The robinia wood is treated with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment reduces cracking.
The modular add-on parts transfer their forces directly to the uprights via a special adapter fastening. The screw connections are secured against unauthorised loosening by cover caps.
Foundations (client-provided)
6 pcs. 0.40 x 0.40 x 0.40 m
3 pcs. 0.40 x 0.40 x 0.60 m
3 pcs. 1.00 x 0.40 x 0.40 m
Assembly time
3 fitters 10 hours each + hoist
(without foundation)
Free fall height
2,40 m
Suitable for
Children aged 5 and over,
public playgrounds etc.,
Physical activities
Item number: 041330700
